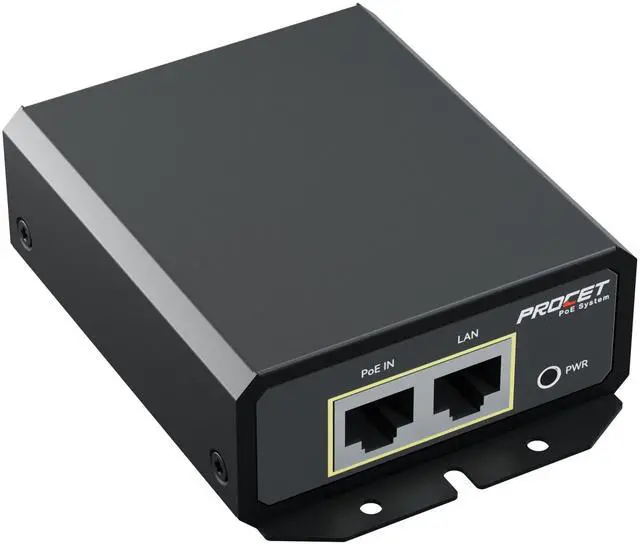

    Gigabit PoE Splitter 12V/24V DC 25W, IEEE802.3af/at Compliant Power Adapter, IP40, Work Temp -40F to 149F, 6KV Surge Protection, for Non-PoE Terminals, PT-PD208GT

    • Accepts input voltage range of 40-57Vdc from IEEE802.3af/at/PoE+ Power Sourcing Equipment (PSE) such as PoE injector or PoE switch.

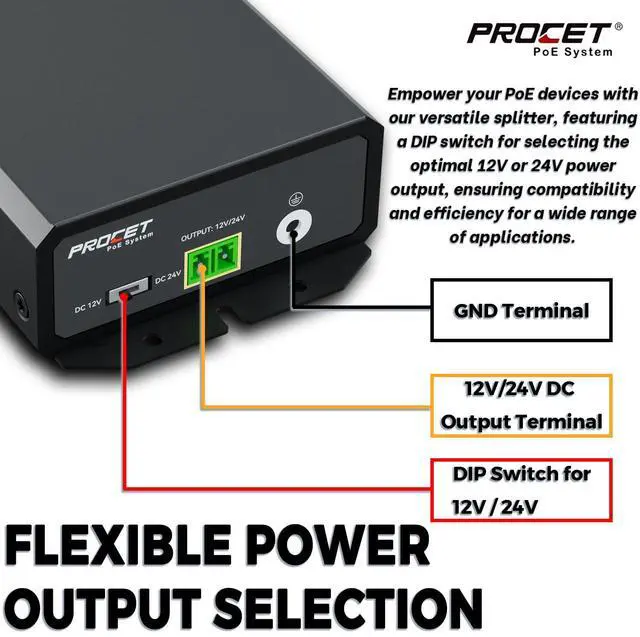

    • Maximum output power: 25W. Two voltage modes for different requirements by DIP Switch: 12Vdc 2.15A Max or 24Vdc 1.05A Max.

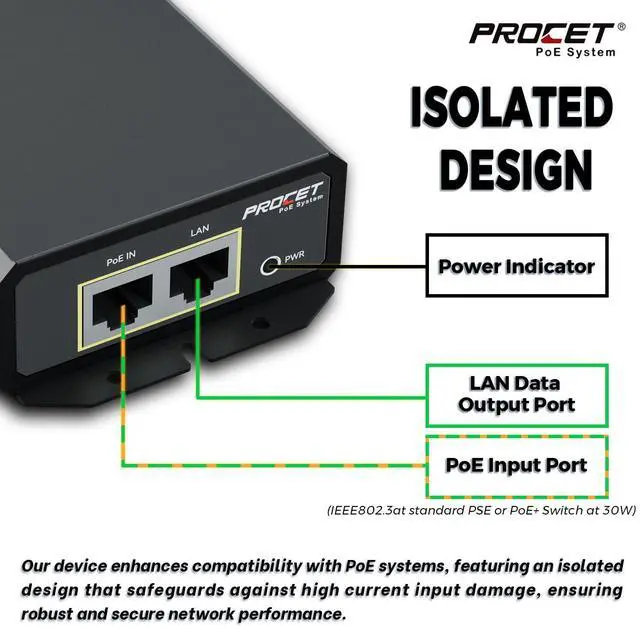

    • Industrial Design. High-impact metal shell. IP40 rate. Work Temp: 25W:-13°F to 104°F (-25 to 40) /13W: -13°F to 149°F (-25 to 65). 6KV Surge Protection. Isolated design inside to avoid high current input damage.

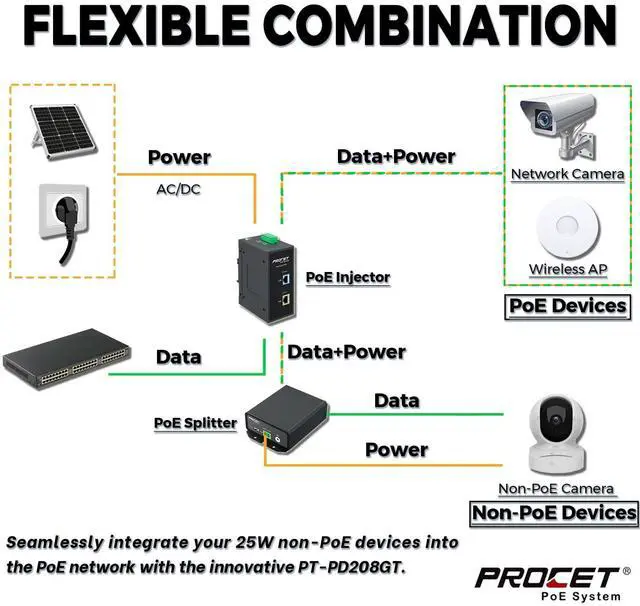

    • The PT-PD208GT can separate power and data from a PSE, delivering them to non-PoE high-power devices such as DVRs, NVRs, surveillance systems, PTZ cameras, LED strip lights, LCD monitors, routers, ADSL modems, hubs, and more.
    • If you have any questions, please feel free to contact us. PROCET Customer Service Team will provide you with professional service within 24 hours.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/e5e7bc55-1d20-4ea2-9634-ee192d6ca5dd.__CR0,0,600,1200_PT0_SX150_V1___.jpg

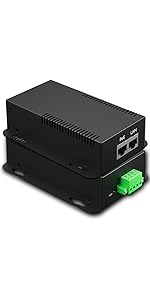

    PT-PD208GBH-12
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/e5e7bc55-1d20-4ea2-9634-ee192d6ca5dd.__CR0,0,600,1200_PT0_SX150_V1___.jpg
    PT-PD208GBH-24
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/87b4a12b-9f58-4139-8239-6e05d272c8ca.__CR0,0,600,1200_PT0_SX150_V1___.jpg

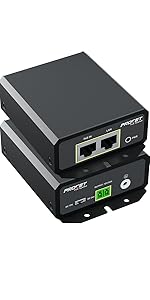

    PT-PD208GT
    Customer Reviews
    Price
    PoE Splitter Splitter Splitter
    Output 12Vdc 5.95A 24Vdc 2.96A 12Vdc 2.15A Max 24Vdc 1.05A Max
    Output Power 71.4W 71.04W 25W
    Input Power 90W 90W 30W
    PoE Standard IEEE802.3af/at/bt IEEE802.3af/at/bt IEEE802.3af/at/PoE+

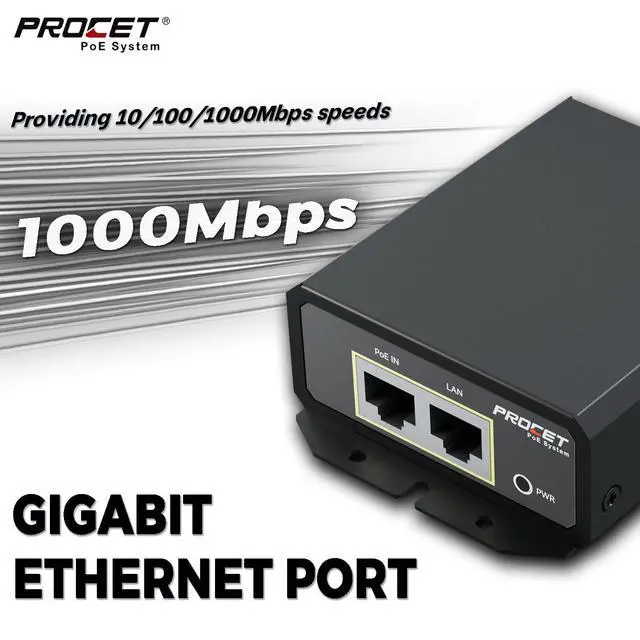

    Data Speed 10/100/1000Mbps 10/100/1000Mbps 10/100/1000Mbps
    Power Pins 4/5(+),7/8(-) & 3/6(+),1/2(-) 4/5(+),7/8(-) & 3/6(+),1/2(-) 4/5(+),7/8(-) & 3/6(+),1/2(-)
    IP Rated IP20 IP20 IP40
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/e5e7bc55-1d20-4ea2-9634-ee192d6ca5dd.__CR0,0,600,1200_PT0_SX150_V1___.jpg
    PT-PD208GBH-12
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/e5e7bc55-1d20-4ea2-9634-ee192d6ca5dd.__CR0,0,600,1200_PT0_SX150_V1___.jpg
    PT-PD208GBH-24
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/87b4a12b-9f58-4139-8239-6e05d272c8ca.__CR0,0,600,1200_PT0_SX150_V1___.jpg
    PT-PD208GT
    Customer Reviews
    Price
    PoE Splitter Splitter Splitter
    Output 12Vdc 5.95A 24Vdc 2.96A 12Vdc 2.15A Max 24Vdc 1.05A Max
    Output Power 71.4W 71.04W 25W
    Input Power 90W 90W 30W
    PoE Standard IEEE802.3af/at/bt IEEE802.3af/at/bt IEEE802.3af/at/PoE+
    Data Speed 10/100/1000Mbps 10/100/1000Mbps 10/100/1000Mbps
    Power Pins 4/5(+),7/8(-) & 3/6(+),1/2(-) 4/5(+),7/8(-) & 3/6(+),1/2(-) 4/5(+),7/8(-) & 3/6(+),1/2(-)
    IP Rated IP20 IP20 IP40
    Gigabit PoE Splitter 12V/24V DC 25W, IEEE 802.3 af/at Compliant Power Adapter, IP40, Work Temp -40F to 149F, 6KV Surge Protection, for Non-PoE Terminals, PT-PD208GT
