Key Features:

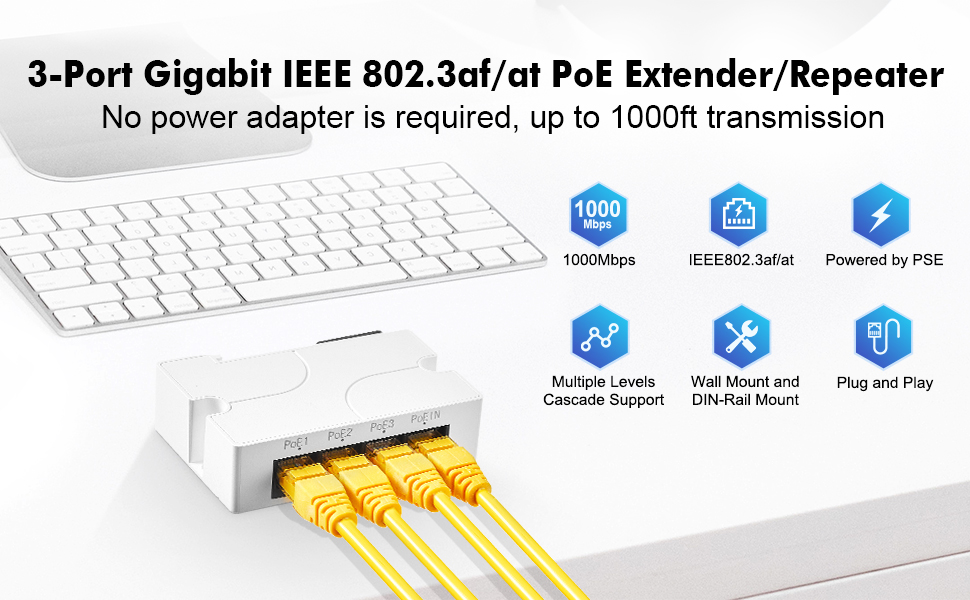

3-Port gigabit IEEE802.3 af/at PoE extender uses advanced network cable drive technology and power supply technology to break through the limit of ethernet transmission distance within 100 meters, and can extend the 1000BASE-T electrical signal to 1000ft(300 meters). It is powered by PoE switch/POE Injector that support IEEE802.3af/at. The product also applicable to non-PoE switches and can be widely used in security PoE network monitoring and PoE network engineering. Using high-quality and high-speed network IC and the most stable PoE chip to ensure the safe and stable operation of your.
- 1*10/100/1000Mbps PD Ethernet Port + 3*10/100/1000Mbps PoE Port.
- Comply with IEEE 802.3?IEEE 802.3u?IEEE 802.3af/at Standards.
- Input Max 30W, Output Max 24W.
- Ethernet Port Supports 10/100/1000Mbps adaptive and PoE functions.
- Support Port Auto Flip (Auto MDI/MDIX).
- Panel indicator monitoring status and help failure analysis.
- Flow control mode: full-duplex adopts IEEE802.3x standard, half-duplex adopts Back pressure standard.
- Plug and Play, no configuration is required.
- DIN-rail and wall mountable.

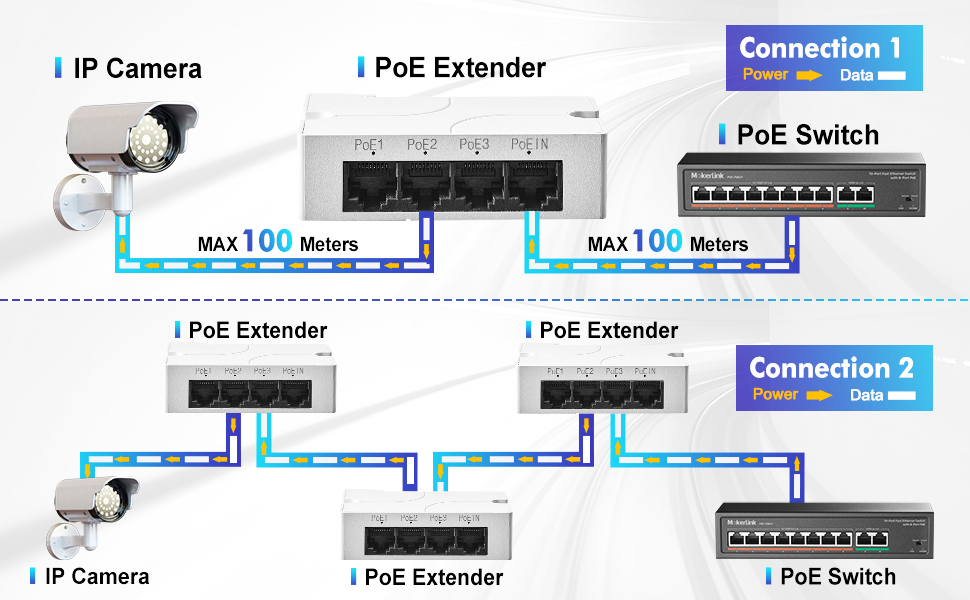

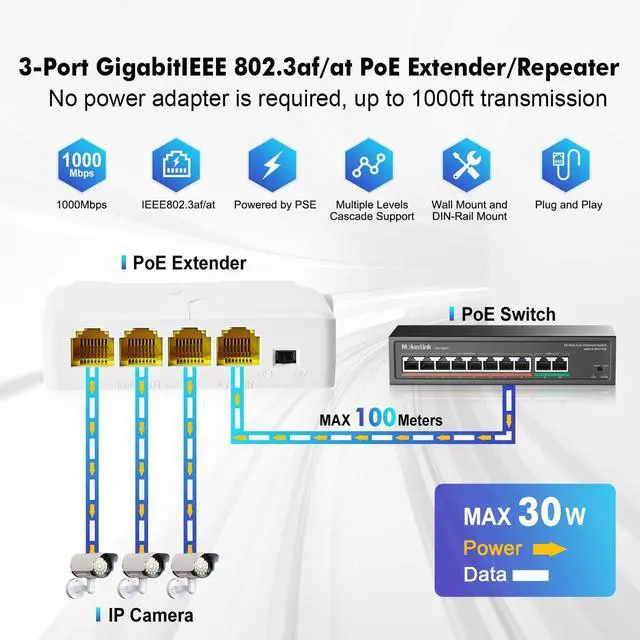

PoE Powered and 1000ft Extension Distance
The PoE extender is powered by PoE Switch/PoE NVR/PoE Injector that comply with IEEE 802.3af/at Standards. It extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE or PoE+ device.

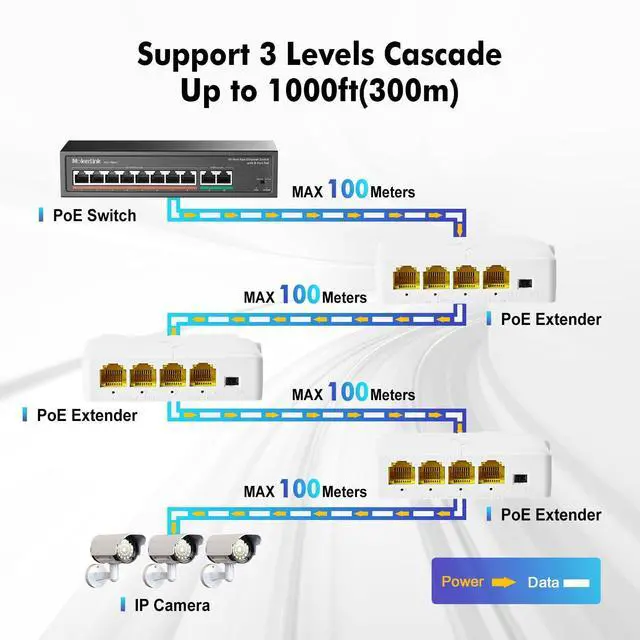

The PoE extender also supports 3 levels cascade deployment, the transmission distance up to 1,000ft(300m).

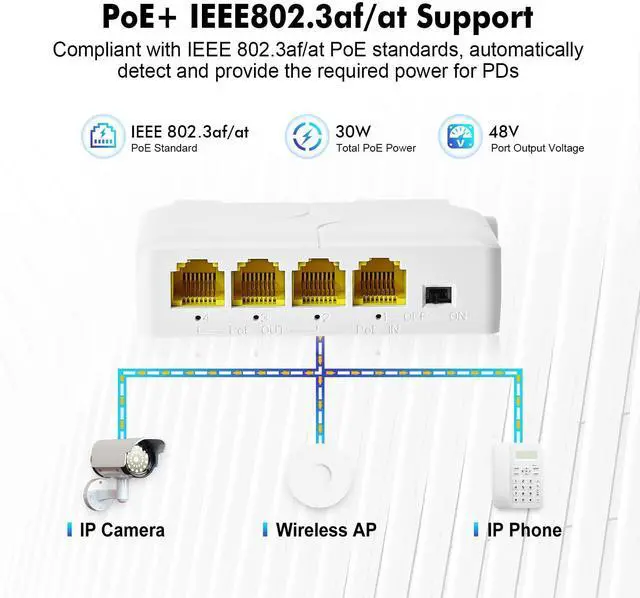

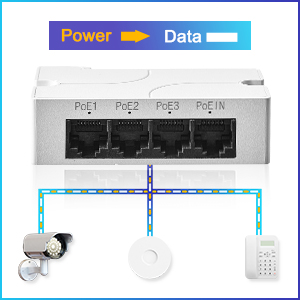

IEEE802.3af/at (PoE/PoE+) Support
The 3 PoE out ports compatible with IEEE802.3af/at standard, It determines and delivers the exact power supply to your devices with up to 30W power output.

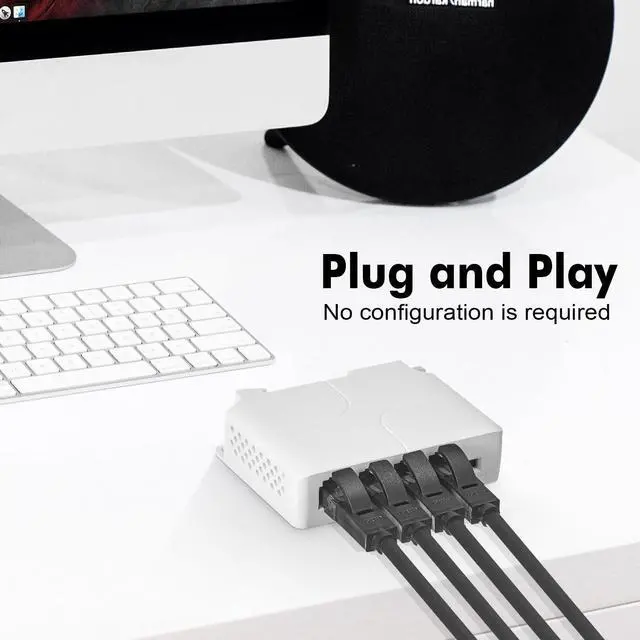

Plug and Play
The 3 port PoE extender support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device.

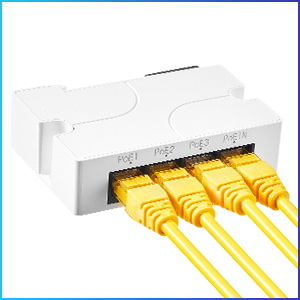

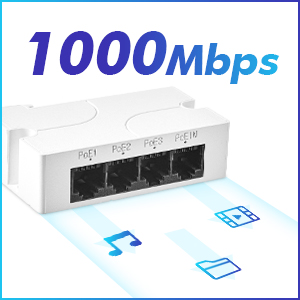

Full Gigabit Port
1*10/100/1000Mbps PD Ethernet Port + 3*10/100/1000Mbps PoE Por, provide enough bandwith to prevent network bottlenecks.

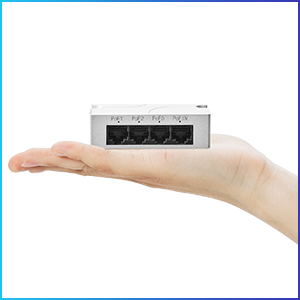

Compact Size
Compact dimension (82mm * 52mm * 23mm”), This design makes these sensors interesting for room critical applications.

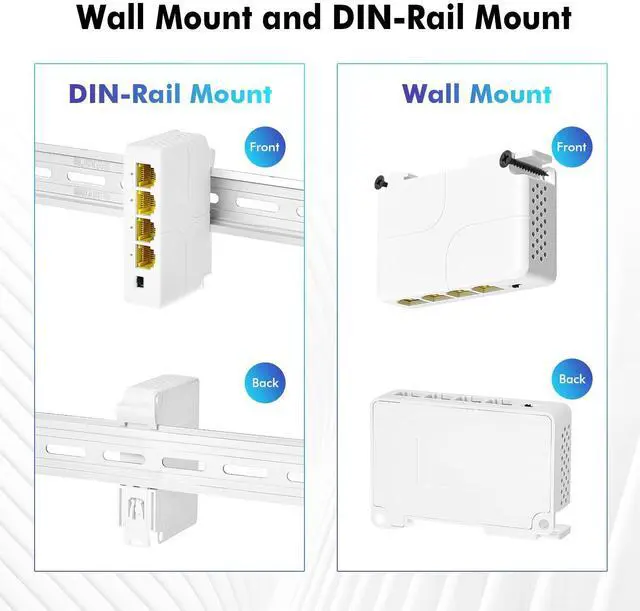

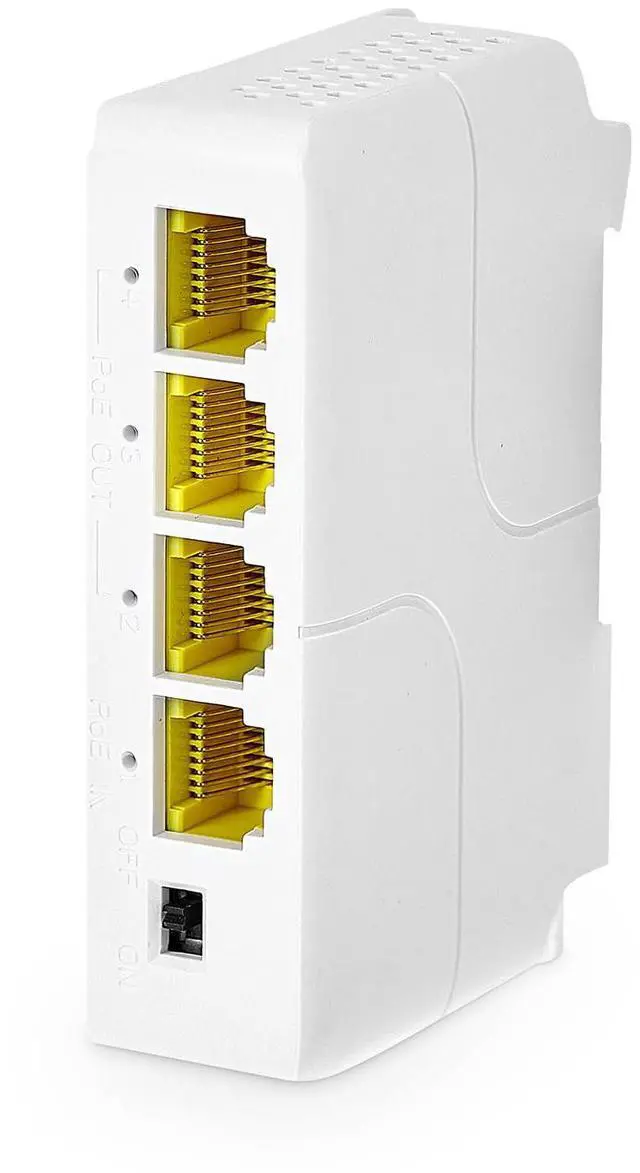

DIN-Rail Mountable
Ultra Compact PoE repeater can be mounted on a 35mm din rail. Save time and space.

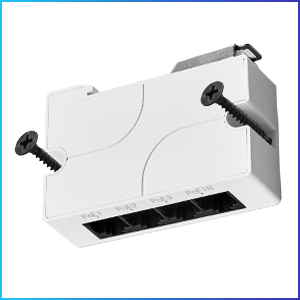

Wall Mountable
You can mount the extender on the wall or desktop,perfect solution for a variety of environments.
Product Specifications
Key Features:
3-Port gigabit IEEE802.3 af/at PoE extender uses advanced network cable drive technology and power supply technology to break through the limit of ethernet transmission distance within 100 meters, and can extend the 1000BASE-T electrical signal to 1000ft(300 meters). It is powered by PoE switch/POE Injector that support IEEE802.3af/at. The product also applicable to non-PoE switches and can be widely used in security PoE network monitoring and PoE network engineering. Using high-quality and high-speed network IC and the most stable PoE chip to ensure the safe and stable operation of your.
- 1*10/100/1000Mbps PD Ethernet Port + 3*10/100/1000Mbps PoE Port.
- Comply with IEEE 802.3?IEEE 802.3u?IEEE 802.3af/at Standards.
- Input Max 30W, Output Max 24W.
- Ethernet Port Supports 10/100/1000Mbps adaptive and PoE functions.
- Support Port Auto Flip (Auto MDI/MDIX).
- Panel indicator monitoring status and help failure analysis.
- Flow control mode: full-duplex adopts IEEE802.3x standard, half-duplex adopts Back pressure standard.
- Plug and Play, no configuration is required.
- DIN-rail and wall mountable.
PoE Powered and 1000ft Extension Distance
The PoE extender is powered by PoE Switch/PoE NVR/PoE Injector that comply with IEEE 802.3af/at Standards. It extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE or PoE+ device.
The PoE extender also supports 3 levels cascade deployment, the transmission distance up to 1,000ft(300m).
IEEE802.3af/at (PoE/PoE+) Support
The 3 PoE out ports compatible with IEEE802.3af/at standard, It determines and delivers the exact power supply to your devices with up to 30W power output.
Plug and Play
The 3 port PoE extender support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device.
Full Gigabit Port
1*10/100/1000Mbps PD Ethernet Port + 3*10/100/1000Mbps PoE Por, provide enough bandwith to prevent network bottlenecks.
Compact Size
Compact dimension (82mm * 52mm * 23mm”), This design makes these sensors interesting for room critical applications.
DIN-Rail Mountable
Ultra Compact PoE repeater can be mounted on a 35mm din rail. Save time and space.
Wall Mountable
You can mount the extender on the wall or desktop,perfect solution for a variety of environments.
Product Specifications
| Model | EXT-AT13G |
| Name | 3-Port 1000Mbps PoE Extender |
| Ethernet | 1*10/100/1000Mbps PD Ethernet Port + 3*10/100/1000Mbps PoE Port |
| Network protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX/FX), IEEE802.3x (Flow control) |
| PoE protocol | IEEE802.3at (30W), IEEE802.3af (15.4W) |
| POE Pin | 1/2 (-), 3/6 (+), 4/5(+), 7/8(-) |
| PoE Power | Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc |
| Network Medium | 10Base-T : Cat5e or above UTP(=100m) 100Base-TX : Cat,5e or above UTP(=100m) 1000Base-TX : Cat,5e or above UTP(=100m) |
| Transmission Distance | Up to 1000ft(300m) ,support 3 level cascading |
| Backplane bandwidth | 10Gbps |
| Forwarding Rate | 7.4Mpps |
| Working Environment | Working Temperature:-10~55°C, Storage Temperature:-40~85°C |
| Structure Size | Product Size: 82*52*23mm, Product Weight:55g |
| Shell | ABS+PC |
