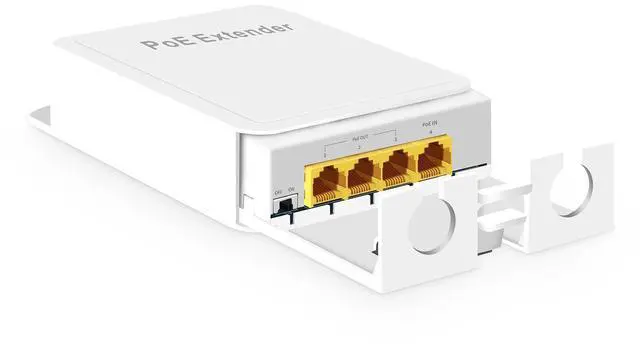

EXT-AT13GO is a hardened outdoor PoE extender. It works together with conventional PoE devices to extend maximum base transmission distance to 300 meters. It designed for different surveillance scenarios such as roads in parks/ communities, malls, factories, and construction sites.

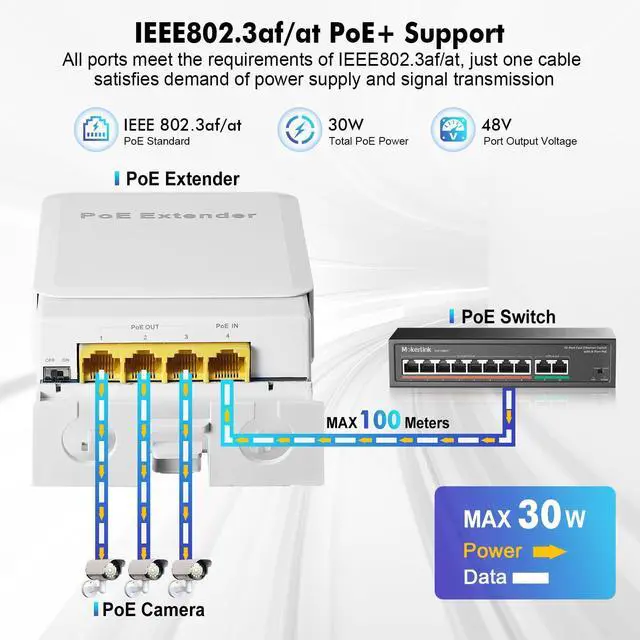

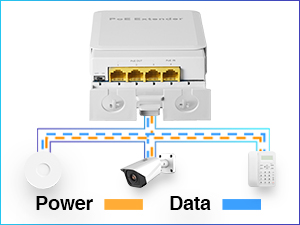

IEEE802.3af/at PoE+ Support
The three PoE out ports compatible with IEEE802.3af/at standard, It determines and delivers the exact power supply to your devices.

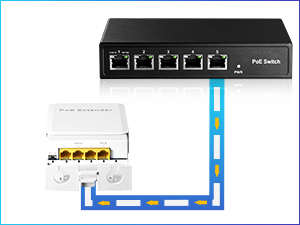

PoE Input
The PoE extender supports one RJ45 (PD) port in, It support IEEE802.3at ( Max. 30W)

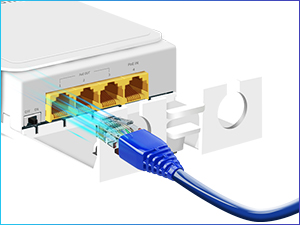

Full Gigabit Port
1*10/100/1000Mbps PD Ethernet Port + 3*10/100/1000Mbps PoE Por, provide enough bandwith to prevent network bottlenecks.

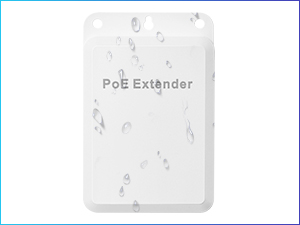

IP55 Waterproof
The PoE extender uses ABS+PC housing and supports IP55 waterproof, It designed for outdoor surveillance scenarios.

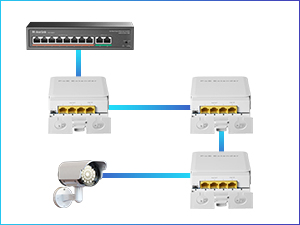

Long Distance PoE
The transmission distance of a PoE port can be up to 300m with cascade, meeting the requirement of wired transmission.

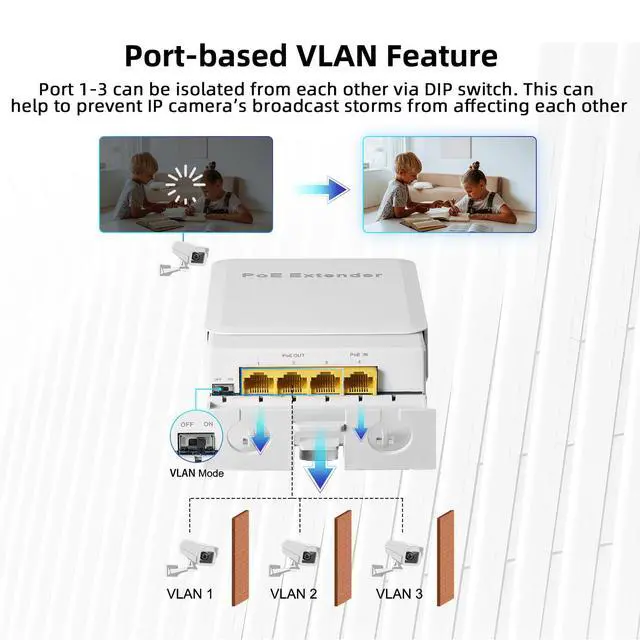

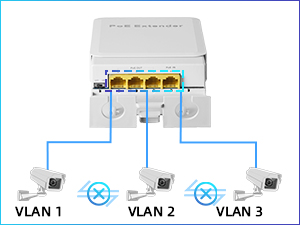

Port-based VLAN
By dialing or enabling extend switch on the PoE extender, port 1-3 can be isolated with each other, prevent broadcast storms.
Plug and Play
No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables.

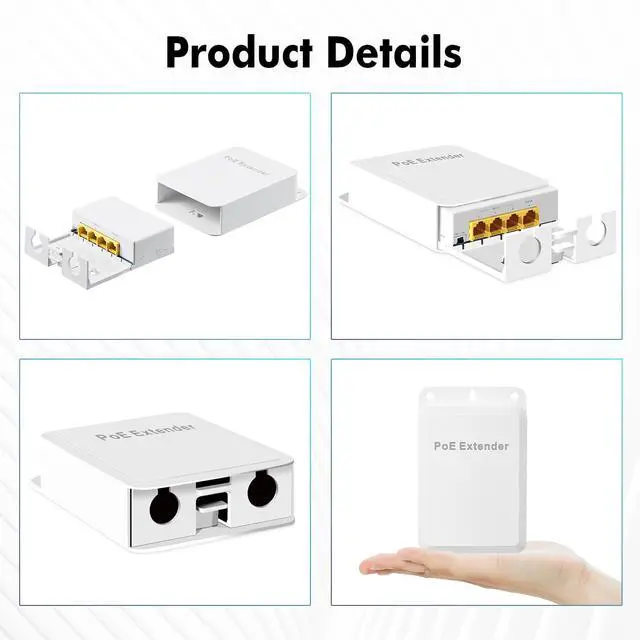

Wall Mountable
You can mount the extender on the wall or desktop,perfect solution for a variety of environments.
Product Specifications
EXT-AT13GO is a hardened outdoor PoE extender. It works together with conventional PoE devices to extend maximum base transmission distance to 300 meters. It designed for different surveillance scenarios such as roads in parks/ communities, malls, factories, and construction sites.
IEEE802.3af/at PoE+ Support
The three PoE out ports compatible with IEEE802.3af/at standard, It determines and delivers the exact power supply to your devices.
PoE Input
The PoE extender supports one RJ45 (PD) port in, It support IEEE802.3at ( Max. 30W)
Full Gigabit Port
1*10/100/1000Mbps PD Ethernet Port + 3*10/100/1000Mbps PoE Por, provide enough bandwith to prevent network bottlenecks.
IP55 Waterproof
The PoE extender uses ABS+PC housing and supports IP55 waterproof, It designed for outdoor surveillance scenarios.
Long Distance PoE
The transmission distance of a PoE port can be up to 300m with cascade, meeting the requirement of wired transmission.
Port-based VLAN
By dialing or enabling extend switch on the PoE extender, port 1-3 can be isolated with each other, prevent broadcast storms.
Plug and Play
No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables.
Wall Mountable
You can mount the extender on the wall or desktop,perfect solution for a variety of environments.
Product Specifications

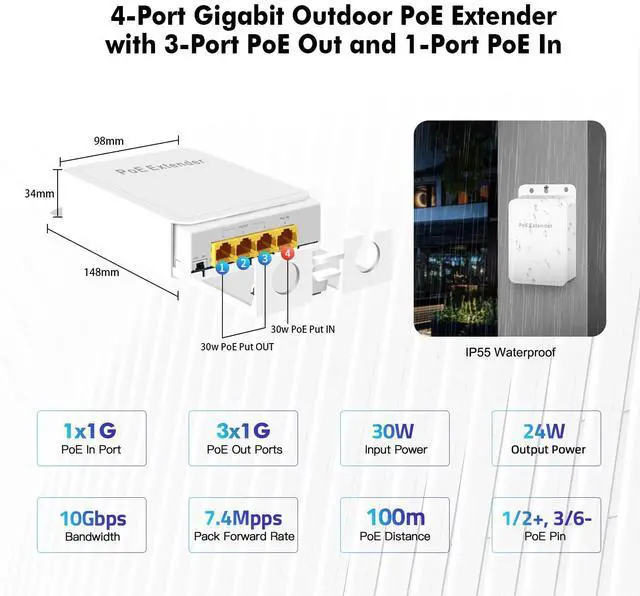

| Product | 3-Port 1000Mbps outdor PoE Extender |
|---|---|
| Model | EXT-AT13GO |
| Ethernet | 1*10/100/1000Mbps PD Ethernet Port + 3*10/100/1000Mbps PoE Port |
| Network protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX/FX), IEEE802.3x (Flow control) |
| PoE protocol | IEEE802.3at (30W), IEEE802.3af (15.4W) |
| POE Pin | 1/2 (-), 3/6 (+), 4/5(+), 7/8(-) |
| PoE Power | Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc |
| Network Medium | 10Base-T : Cat5e or above UTP(=100m) 100Base-TX : Cat,5e or above UTP(=100m) 1000Base-TX : Cat,5e or above UTP(=100m) |
| Transmission Distance | Up to 1000ft(300m) ,support 3 level cascading |
| Backplane bandwidth | 10Gbps |
| Forwarding Rate | 7.4Mpps |
| Working Environment | Working Temperature:-10~55°C, Storage Temperature:-40~85°C |
| Structure Size | Product Size: 98*147*34mm, Product Weight:150g |
| Waterproof | IP55 |
