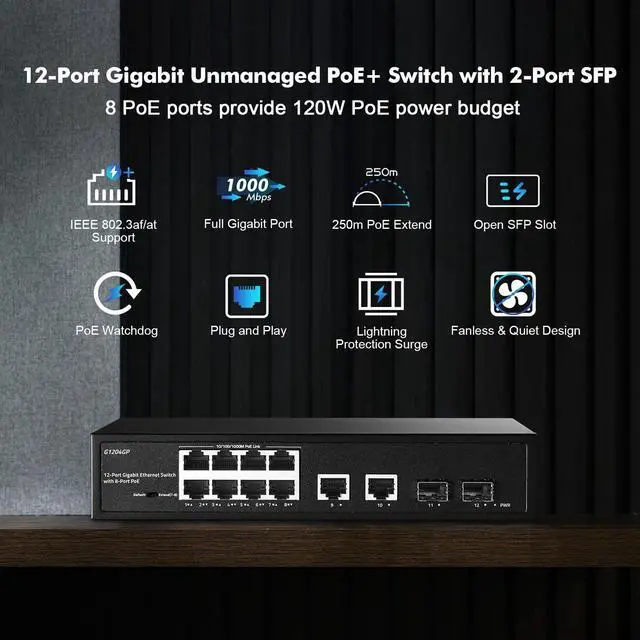

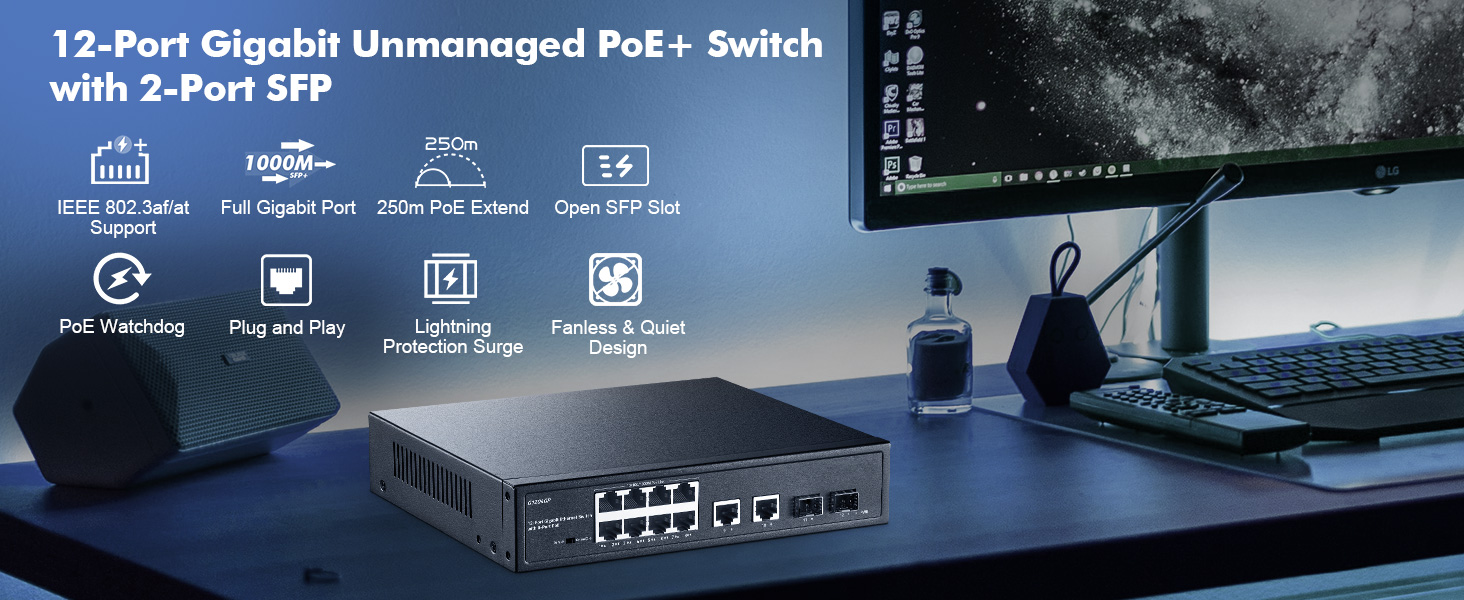

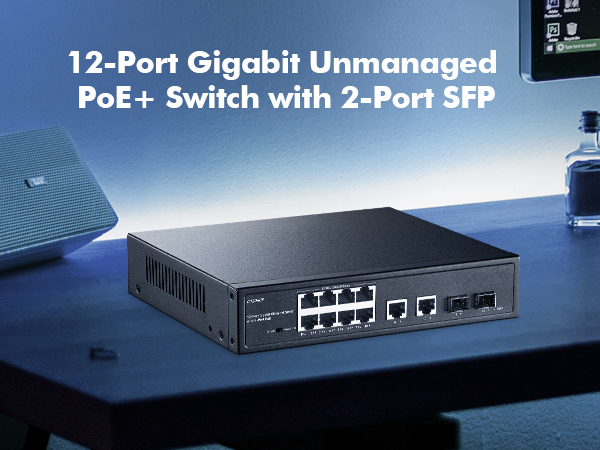

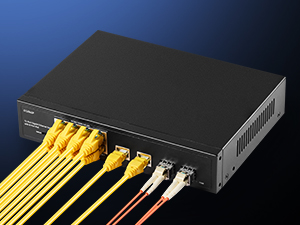

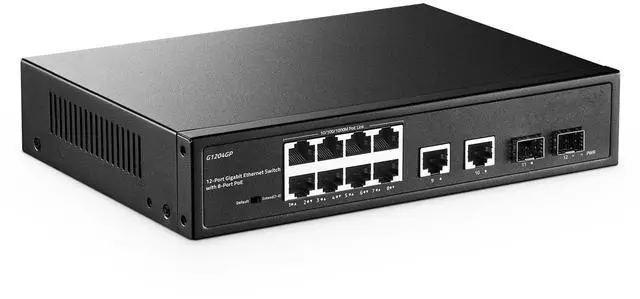

G1204GP is an unmanaged PoE Switch. It provides 8×10/100/1000Mbps PoE ports, 2x10/100/1000Mbps RJ45 ports and 2 × 1000M SFP ports. The product is equipped with two types of transmission modes (Default Mode / Extend Mode ). The maximum power consumption is 120W.
PoE Devices Auto Detection
With PoE devices auto detection capability, the PoE switch is able to verify whether the connected device is IEEE802.3af/at compliant.

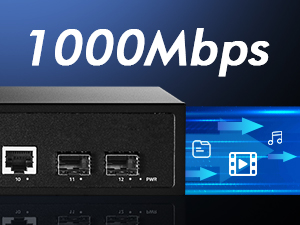

Full Gigabit Ports
Full gigabit port configuration, suitable for applications that also require high data throughput due to the use of high-resolution camera.

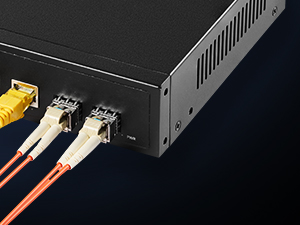

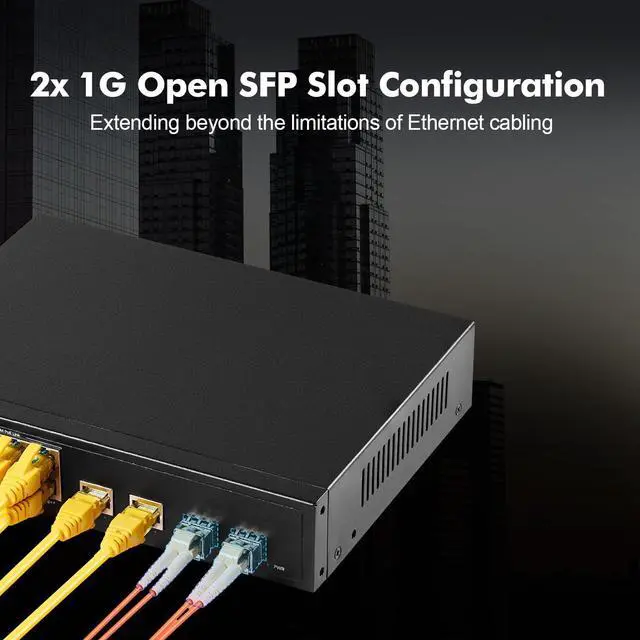

Open SFP Slot
The switch with 2x 1G SFP ports allows you finish fiber connectivity that is with different bandwith requirements conveniently and cost savings.

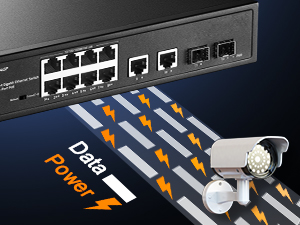

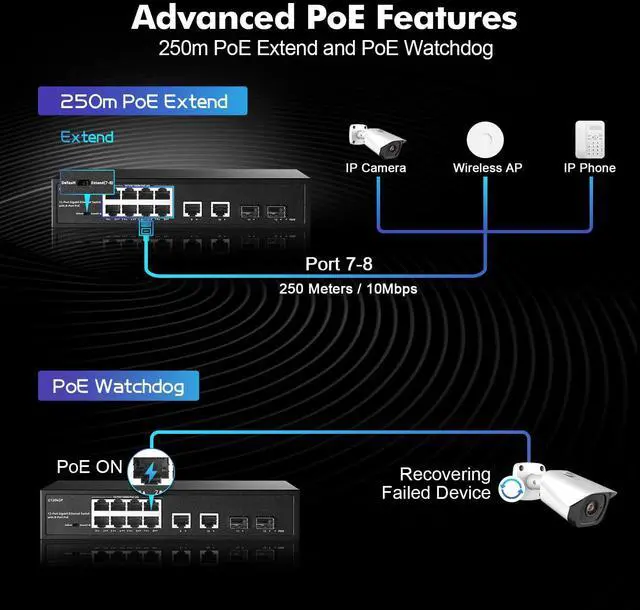

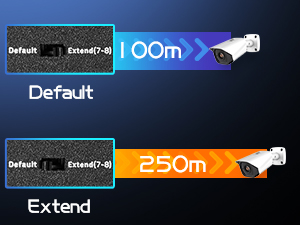

Long Distance PoE
7-8 ports force 10M, transmission distance extend to 250M.when you enable Extend mode.
Plug and Play
The PoE switch is designed to simply increase port density. Installation is plug and play with no special requirements or configuration needed.

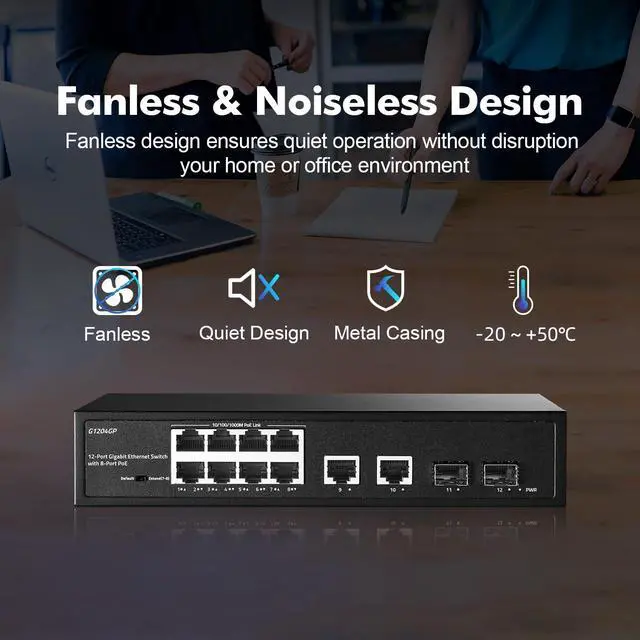

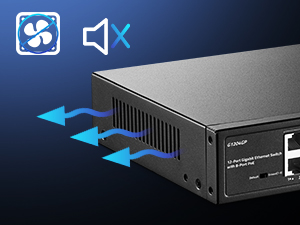

Fanless & Noiseless Design
Fanless design ensure noiseless operation without disruption your quiet home or office,and greater reliability over time with fewer parts to fail.

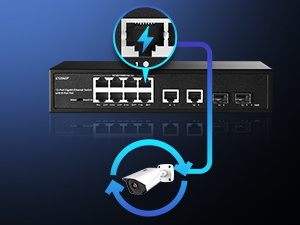

PoE Watchdog
PoE Watchdog enables the switch to automatically detect port status and restart the failed ports to recover connection.

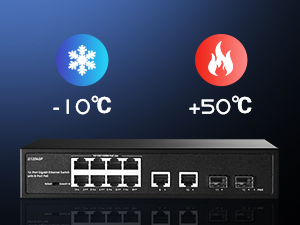

Wide Operating Temperature
Supports working at ambient temperatures of -10 °C to +50 °C, improving system robustness, adapted to harsh environments.
Product Specifications
Product Compare
 G1204GP |  F1002GP |  G0602GS |  F1602GP |  F2602GP | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
Ethernet Port | 8x1G PoE+ 2x1G RJ45+ 2x1G SFP | 8x100M PoE + 2x 1000M RJ45 | 4 x 1G PoE+1x 1G RJ45 +1G SFP | 16x100M PoE + 2x 1000M RJ45 | 24x100M PoE + 2x 1000M RJ45 |
PoE Protocol | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at |
Total PoE Budget | 120W | 96W | 65W | 200W | 300W |
Switching Capacity | 24Gbps | 5.6Gbps | 12Gbps | 7.2Gbps | 8.8Gbps |
Size | 220*161*44.5mm | 200x118x44mm | 200x118x44mm | 268x181x44mm | 268x181x44mm |
Weight | 0.92kg | 0.71kg | 0.6kg | 1.29kg | 1.44kg |
Mount Method | Wall Mount | Wall Mount | Wall Mount | Rack Mount | Rack Mount |
YuLinca engaged in the research and development, manufacturing, sales and service of ethernet network and comprehensive IT peripherals.
YuLinca committed to provide high quality and cost-effective products, include POE injector, POE switch, 1G/2.5G/10G switch, Managed switch, etc.
1G/2.5G/10G Switch
1G/2.5G/10G poe injector
Gigabit PoE Switch
Industrail din rail switch
RackMount PoE Switch
G1204GP is an unmanaged PoE Switch. It provides 8×10/100/1000Mbps PoE ports, 2x10/100/1000Mbps RJ45 ports and 2 × 1000M SFP ports. The product is equipped with two types of transmission modes (Default Mode / Extend Mode ). The maximum power consumption is 120W.
PoE Devices Auto Detection
With PoE devices auto detection capability, the PoE switch is able to verify whether the connected device is IEEE802.3af/at compliant.
Full Gigabit Ports
Full gigabit port configuration, suitable for applications that also require high data throughput due to the use of high-resolution camera.
Open SFP Slot
The switch with 2x 1G SFP ports allows you finish fiber connectivity that is with different bandwith requirements conveniently and cost savings.
Long Distance PoE
7-8 ports force 10M, transmission distance extend to 250M.when you enable Extend mode.
Plug and Play
The PoE switch is designed to simply increase port density. Installation is plug and play with no special requirements or configuration needed.
Fanless & Noiseless Design
Fanless design ensure noiseless operation without disruption your quiet home or office,and greater reliability over time with fewer parts to fail.
PoE Watchdog
PoE Watchdog enables the switch to automatically detect port status and restart the failed ports to recover connection.
Wide Operating Temperature
Supports working at ambient temperatures of -10 °C to +50 °C, improving system robustness, adapted to harsh environments.

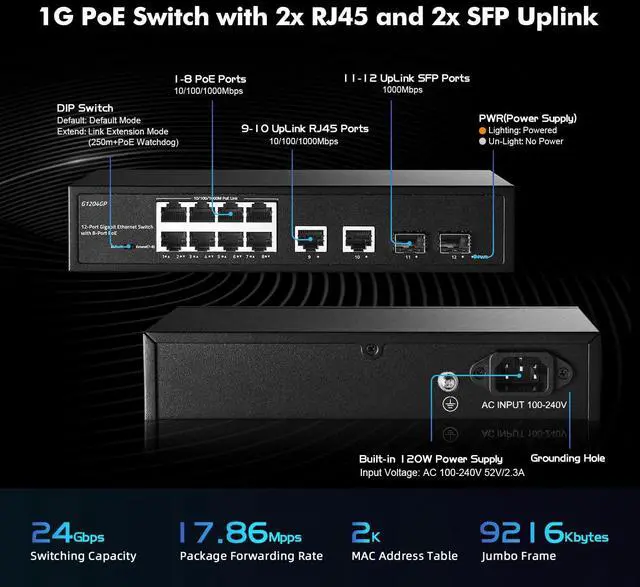

Product Specifications
| Model | G1204GP |
|---|---|
| Product Name | 12 Port Gigabit Intelligent Standard PoE Switch |
| Ethernet | 8* Gigabit PoE Ports + 2* Gigabit Ethernet ports + 2* Gigabit SFP Ports |
| Bandwidth | 24Gbps |
| Pack forward rate | 17.856Mpps |
| Memory cache | 448K |
| MAC address | 2K |
| Jumbo Frame | 9216bytes |
| Network Protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fiber Standard) |
| PoE Protocol | IEEE802.3af(15.4W), IEEE802.3at(30W) |
| Network Medium | 10Base-T: Cat 3, 4, 5 Class or above UTP/STP (= 100m) 100Base-TX: Cat 5 Class or above UTP/STP (= 100m) 1000Base-TX: Cat 5 Class or above UTP/STP (= 100m), Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Working Environment | Working Temperature: -10~50°C, Storage Temperature: -40~70°C, Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing |
| Indicator | Indicator: PWR (Power),1-12 Green Light (Link&Data), PWR On: Powered on, Off: Powered off, 1-10 Green Light (Link&Data) On: Link normal , Off: Link blocked, Flashing: Data transmitting |
| DIP Mode | Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled Extend: Link extension mode, 7-8 ports force 10M, transmisstion distance 250M (enable POE watchdog) |
| Structure Size | Product Dimensions: 220*161*44.5mm Package Dimensions: 315*215*85mm Product N.W: 0.92kg Product G.W: 1.22kg |
| Power Voltage | Input voltage: AC 100-240 V 50-60Hz Supply power:52V /2.3A 120W |
Product Compare
G1204GP | F1002GP | G0602GS | F1602GP | F2602GP |
|---|---|---|---|---|
| Customer Reviews | ||||
| — | — | — | — | — |
| Price | ||||
| — | — | — | — | — |
| Ethernet Port | ||||
| 8x1G PoE+ 2x1G RJ45+ 2x1G SFP | 8x100M PoE + 2x 1000M RJ45 | 4 x 1G PoE+1x 1G RJ45 +1G SFP | 16x100M PoE + 2x 1000M RJ45 | 24x100M PoE + 2x 1000M RJ45 |
| PoE Protocol | ||||
| IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at | IEEE 802.3af/at |
| Total PoE Budget | ||||
| 120W | 96W | 65W | 200W | 300W |
| Switching Capacity | ||||
| 24Gbps | 5.6Gbps | 12Gbps | 7.2Gbps | 8.8Gbps |
| Size | ||||
| 220*161*44.5mm | 200x118x44mm | 200x118x44mm | 268x181x44mm | 268x181x44mm |
| Weight | ||||
| 0.92kg | 0.71kg | 0.6kg | 1.29kg | 1.44kg |
| Mount Method | ||||
| Wall Mount | Wall Mount | Wall Mount | Rack Mount | Rack Mount |
