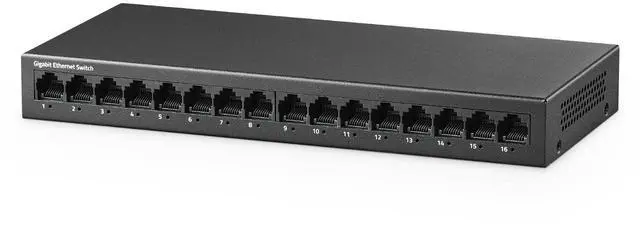

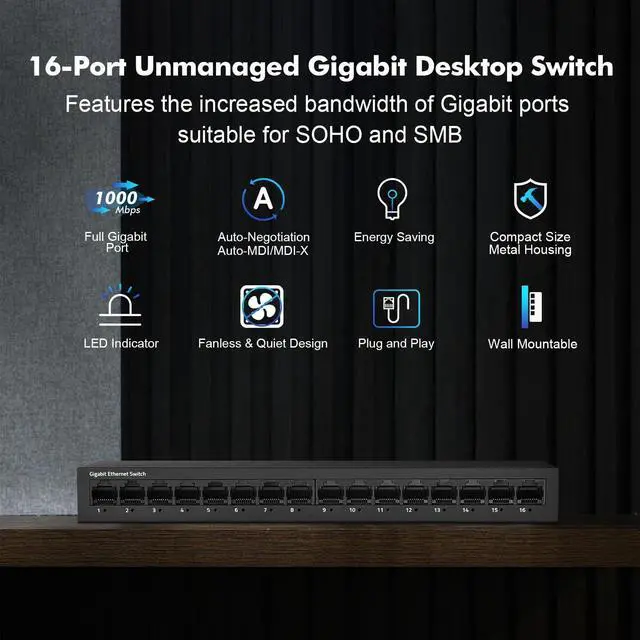

The UMG16 Gigabit Unmanaged Ethernet switches come with 16 gigabit copper ports in a desktop metal case and is wall-mountable. Fanless, silent and energy-efficient operation. It is idel for small and medium business.

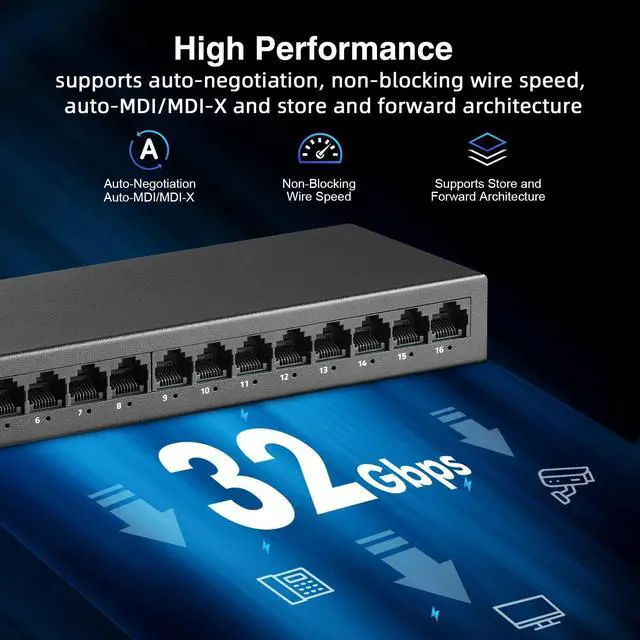

High Performance & Reliable Connection
It allows connecting 16 devices at different bandwidths, offering flexible and budget-friendly networking solutions, Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture which maximizing network performance.
Plug and Play
Automatic connectivity to your 16x 1G ethernet devices. No need for an IT expert.

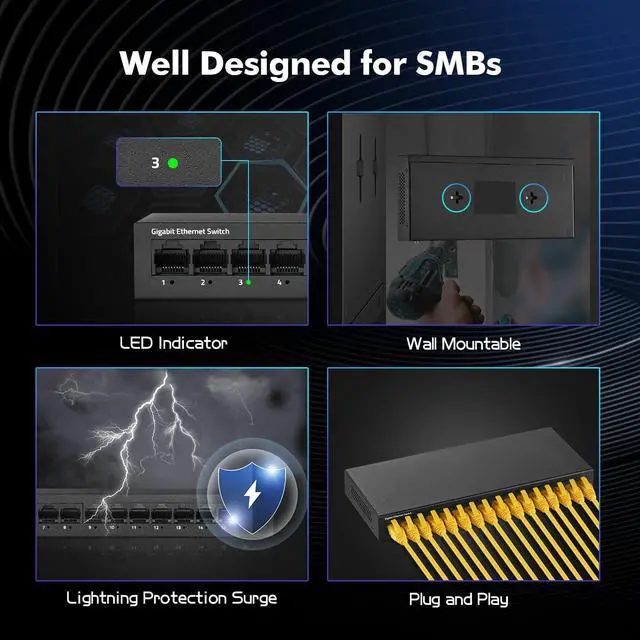

Desktop and Wall Mount
Small and silent desktop or wallmount form factor for quiet operation, It can be placed virtually anywhere and operate silently.

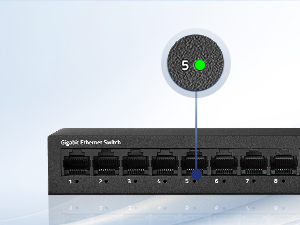

Led Indicator
The status LEDs on front panel provide a visual indication on what is physically wrong with the network switch.

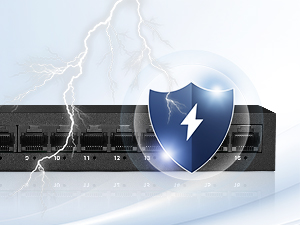

Safe Guard Your Devices
Each RJ45 port and DC port are equipped with power backfeed protection in order to avoid damaging the devices.

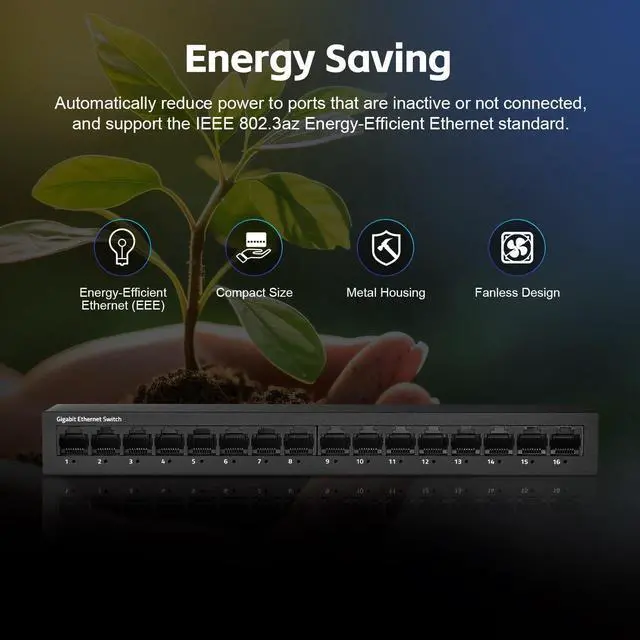

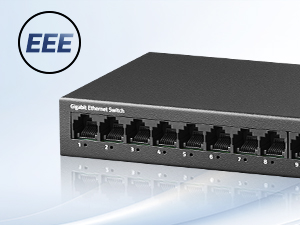

Energy Saving (EEE) Support
Complies with IEEE 802.3az(Energy Efficient Ethernet), inactive link detection and cable length detection for power saving.

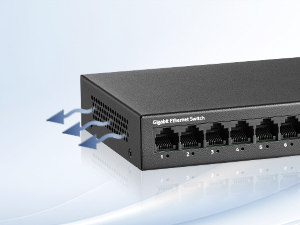

Fanless & Slient Operantion
Silent, fanless design for energy efficiency and noise-sensitive environments.

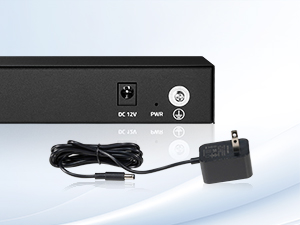

DC 12V/1A Lower-Power Adapter
The switch is adapted with 12V/1A low-power power supply, and the maximum power consumption is less than 24W.
Metal and Compact form-factor
Durable metal case and compact form-factor.
Technical Parameter
YuLinca engaged in the research and development, manufacturing, sales and service of ethernet network and comprehensive IT peripherals.
YuLinca committed to provide high quality and cost-effective products, include POE injector, POE switch, 1G/2.5G/10G switch, Managed switch, etc.
1G/2.5G/10G Switch
1G/2.5G/10G poe injector
Gigabit PoE Switch
Industrail din rail switch
RackMount PoE Switch
The UMG16 Gigabit Unmanaged Ethernet switches come with 16 gigabit copper ports in a desktop metal case and is wall-mountable. Fanless, silent and energy-efficient operation. It is idel for small and medium business.
High Performance & Reliable Connection
It allows connecting 16 devices at different bandwidths, offering flexible and budget-friendly networking solutions, Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture which maximizing network performance.

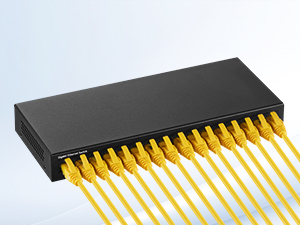

Plug and Play
Automatic connectivity to your 16x 1G ethernet devices. No need for an IT expert.

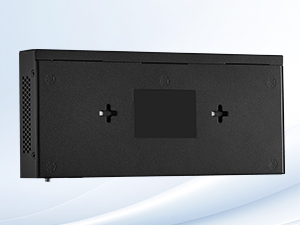

Desktop and Wall Mount
Small and silent desktop or wallmount form factor for quiet operation, It can be placed virtually anywhere and operate silently.
Led Indicator
The status LEDs on front panel provide a visual indication on what is physically wrong with the network switch.
Safe Guard Your Devices
Each RJ45 port and DC port are equipped with power backfeed protection in order to avoid damaging the devices.
Energy Saving (EEE) Support
Complies with IEEE 802.3az(Energy Efficient Ethernet), inactive link detection and cable length detection for power saving.
Fanless & Slient Operantion
Silent, fanless design for energy efficiency and noise-sensitive environments.
DC 12V/1A Lower-Power Adapter
The switch is adapted with 12V/1A low-power power supply, and the maximum power consumption is less than 24W.

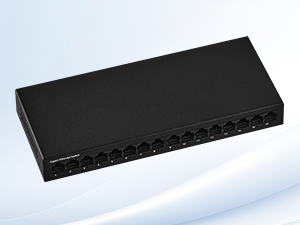

Metal and Compact form-factor
Durable metal case and compact form-factor.
Technical Parameter

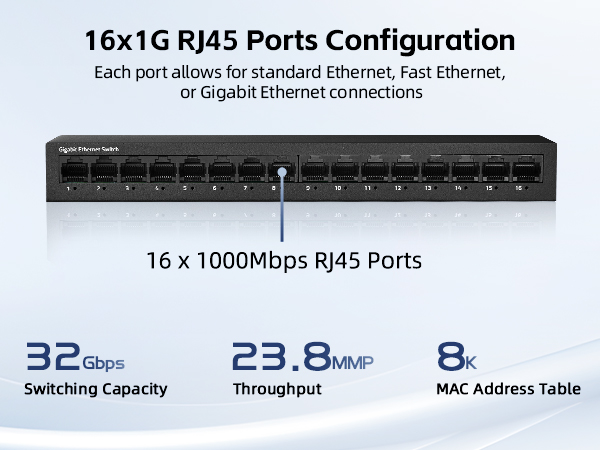

| Model | UMG16 |
|---|---|
| Ethernet | 16*10/100/1000Mbps RJ45 Ports |
| Backplane bandwidth | 32Gbps |
| Pack Forwarding Rate | 23.8Mpps |
| Pack Cache | 4Mbit |
| MAC Address | 8K |
| Transfer Mode | Storage & Forwarding |
| Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP(=100m) 100Base-TX: Cat5 or above UTP(=100m) 1000Base-TX: Cat5 or aboveUTP(=100m) |
| Working Environment | Working Temperature:-0~40°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~95%,non-condensing |
| Power Voltage | Power adapter input voltage: AC 100-240V 50/60Hz Power adapter output voltage: 12V 1A, Maximum 24W |

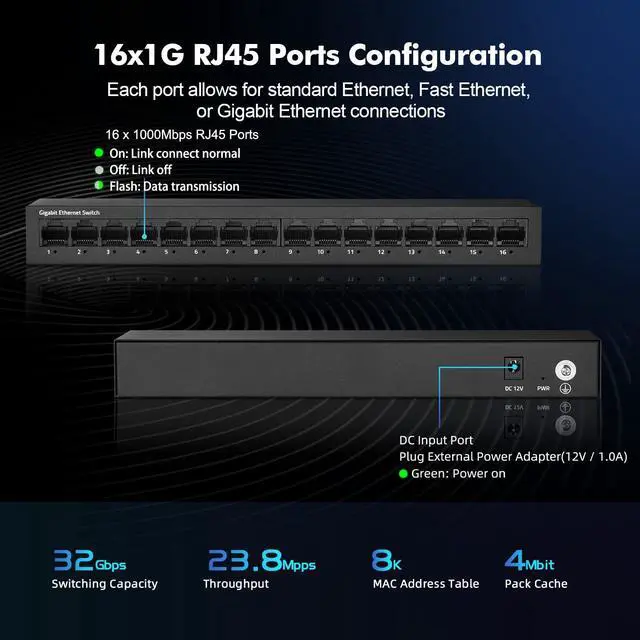

| Port light | On: Link connect normal Off: Link off Flash: Data transmission |
| Structure size | Product Size: 240*102*30mm Package Size: 255*125*65mm Product Net-Weight: 0.59Kg Product Gross-Weight: 0.74Kg |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc |
