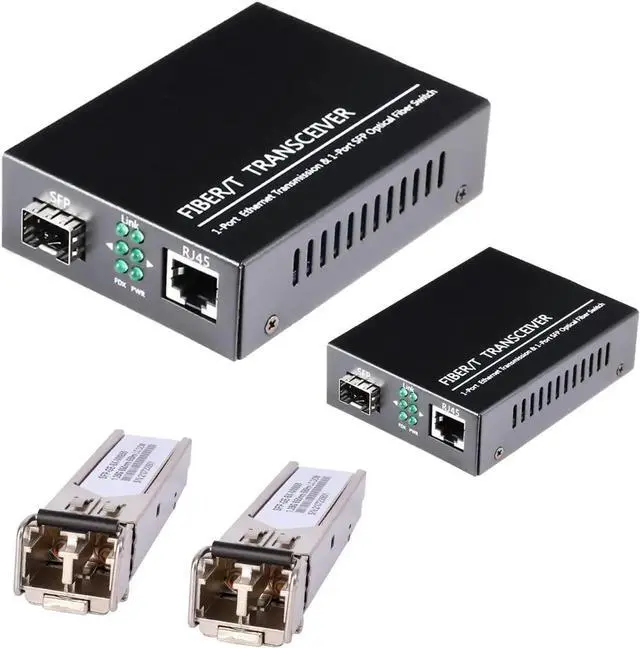

A Pair of Fiber Transceiver, 1.25G/s Bidi Gigabit Multi-Mode SFP Ethernet Media Converter with 2PCS LC Dual Module Included, 10/100/1000Base-Tx to 1000Base-SX SMF RJ45 to SFP Slot up to 550M
- What You Get: 2pcs Gigabit Multi-Mode Ethernet SFP Slot media converters; 2pcs SFP BiDi LC Dual Multi-Mode transceiver; 2pcs AC/DC Power Supply; 1 x Users Manual. Support wide power supply voltage (100V-240V), Power Supply: 5V-1A, UL Certified.
- Fiber Optical Port: 1.25Gbps SFP port, connecting the BiDi Multi-Mode LC Dual transceivers up to 550M(2 SFP LX Transceiver included); Fiber Type: MMF, Cable Type: UTP/STP Cat.5e for 100 meters.
- RJ45 Port: 10M/100M/1000M Auto-negotiation, full Duplex or half Duplex, Auto-negotiation, Supports MDI/MDIX auto-crossover, Complies with IEEE 802.3/802.3u/802.3z/802.3ab.
- Plug & Play: Simply plug in optical port and RJ45 port, and it will work immediatelly. Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status. Supports jumbo frame size 9K bytes; Supports working temperature range from 0°C to 60°C.
- 100% Money Guarantee15 years OEM factory competency, Most efficient technical support with superb processing
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Wide Applications
1. Extend or bridge networks using fiber cable
2. Provide connectivity to users in an isolated area of a large complex or in a separate building
3. Ideal for secure connections required by government or corporations where EMI is not acceptable

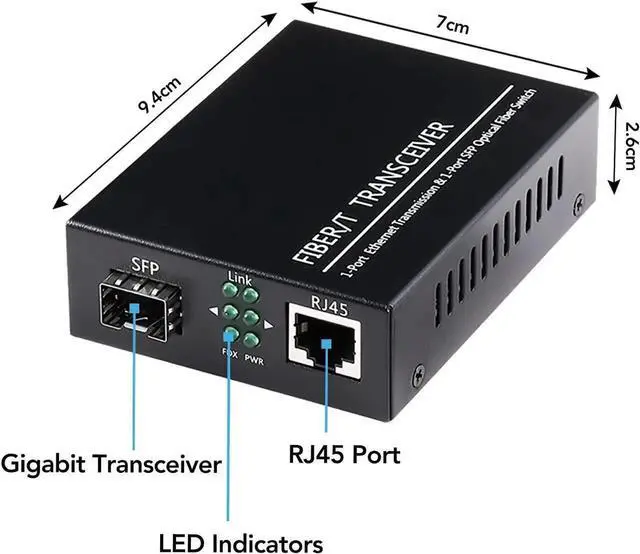

LED Indicators
1.
FP: Light on when fiber speed is 1000Mbps, else light off
2.
TP: Light on when TP speed is 1000Mbps, else light off
3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
5.
PWR: Light on when DC power on, else light off.

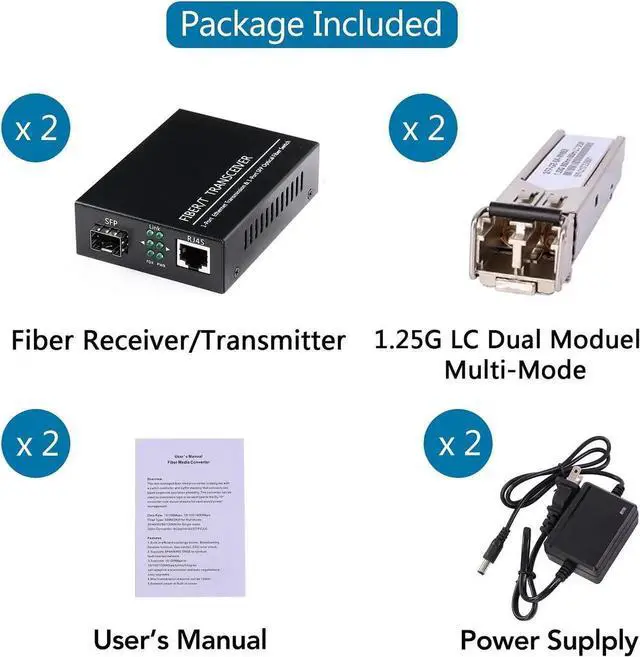

Product Include
2x Gigabit Ethernet Fiber Media Converter

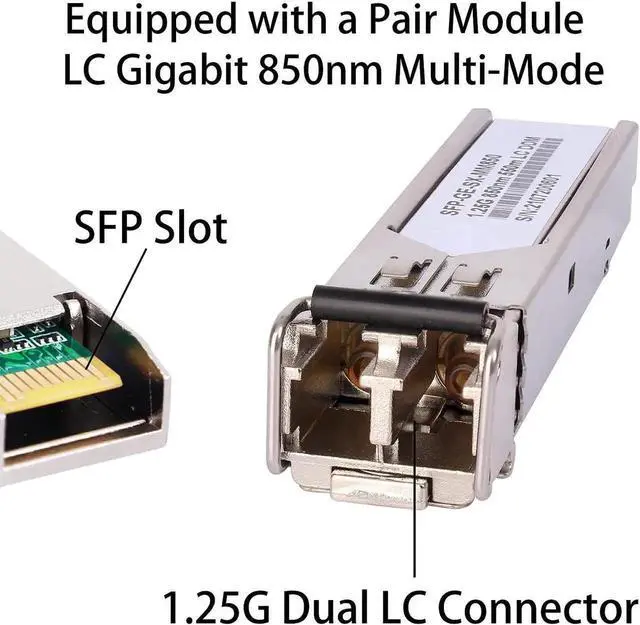

2xBiDi SFP slot LC Multi-Mode Dual Transceiver module up to 550m
2xDC Power Adapter Output voltage: 5V DC/1A
1xProduct Manual, Multi-Language Quick Installation Guide
Feature Introduction
1.
Optical Port Data Rate: 1.25G bps, 10/100/1000Base-Tx to 1000Base-LX Dual LC Fiber Gigabit Media Converter
2.
Interface: Dual LC Port+RJ45 Port, RJ45
Port Data Rate: 10/100/1000M auto-negotiation
3.
Fiber Type: Multi-Mode Dual, Fiber
Connector: Dual LC Fiber, Reach: 550m, Included Power Supply Weight: 0.35 kg
Excellent Function
1.

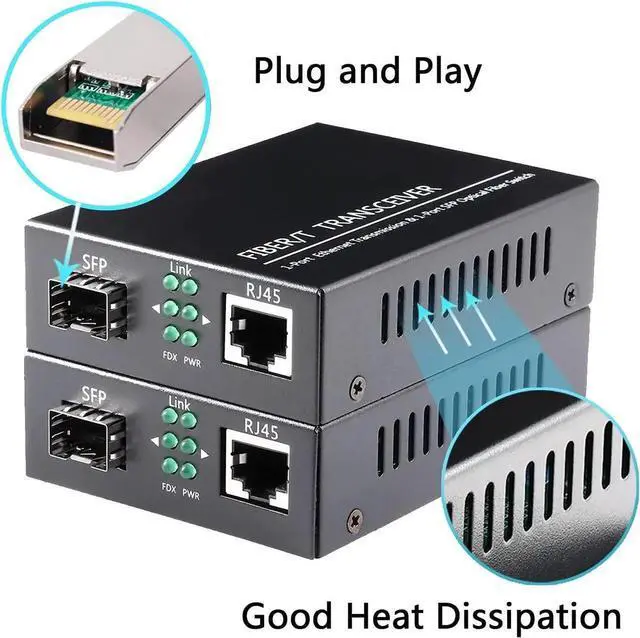

Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life
2. Lightning protection. Strong anti-interference ability. High-speed and stability signal conversion
3. Standalone design with simple plug-and-play set-up. Compact size provide more flexible installation options.
Dimensions: 95x72x27mm (DxW xH)
4.
Power Adapter Safety standards: UL/EN60950 GB4943, Power Dissipation 3 watts, External
Power: AC100V~240V
5. High-quality Conversion Chip & Easy Installation, Operating
temperature: 0°C to 60°C.
Storage temperature: -20°C to 70°C.
Humidity: 5% to 90% RH
