BV-Tech 6 Port PoE+ Switch (4 PoE+ Ports with 2 Ethernet Uplink and Extend Function) 60W 802.3at + 1 High Power PoE Port| Desktop Fanless Design | Plug & Play | Sturdy Metal Housing
- 4 PoE+ Ports and 2 Ethernet Uplink Ports at 10/100Mbps each, making network setups easier and more convenient.

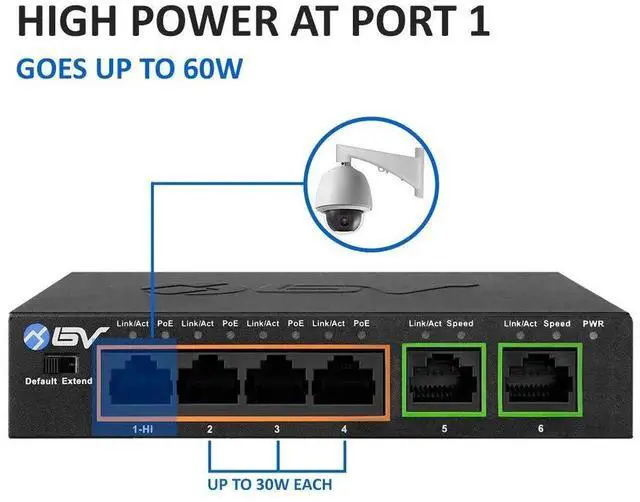

- Hi-PoE at port 1 providing up to 60W single port, PoE+ at port 2-4 up to 30W per port, which is better than normal PoE port that can only provide 15. 4W per port. 60W Max Total Power (includes 60W DC adapter).
- Extend function extending max PoE transmission distance from 100 meters to 250 meters
- PD detection will automatically detect and provide required power for your PoE devices **Note: Do not support passive PoE device**
- 100% Satisfaction 30-day Money-Back with 1 Year and Lifetime Tech Support
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

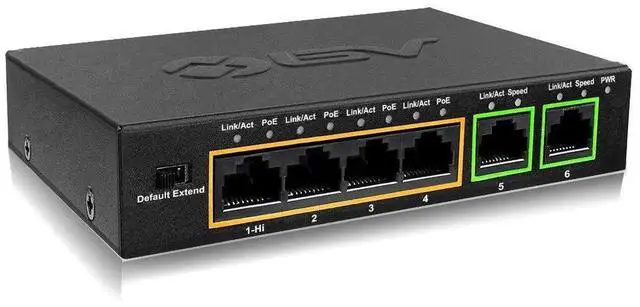

The POE-SW502 is an unmanaged 6-Port Power over Ethernet Switch with a total of 60 watts of PoE power. All ports run at 10/100Mbps and can provide up to 30W per port through the IEEE 802. 3at standard, as well as up to 60W on port 1 through Hi-PoE. It has two Ethernet uplink ports to allow for communication without sacrificing any PoE ports. It also features an extend switch to allow for PoE transmission of up to 820ft (which reduces data transmission to 10Mbps).
Specifications
:

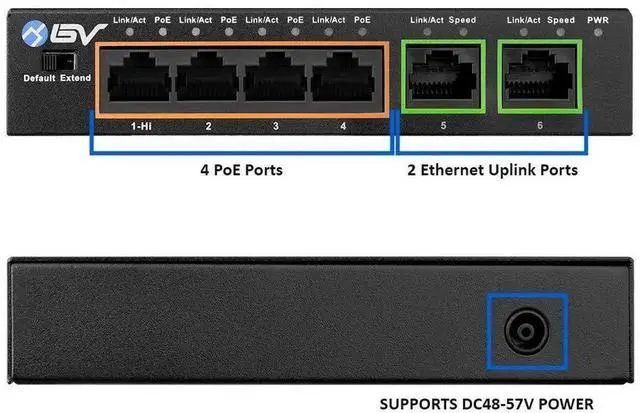

Ports: 2*10/100Mbps Uplink ports, 4*10/100 Mbps PoE ports
PoE Power: Port 1 60W, Port 2-4 30W, Tota l60W
PoE Protocol: IEEE802. 3af (PoE), IEEE802. 3at (PoE+), Hi-PoE
Switching Capabity: 1.
8G Packet Forwarding Rate: 890kpps Packet
Buffer Memory: 768Kb
MAC Table Size: 2K
Flow Control: Enabled
Humidity: 10 90%
Power: DC48-57V
Lightning Protection: Common Mode 2KV; Differential Mode 0.
5KV Operating Temperature: 14F 131F (-10C 55C)

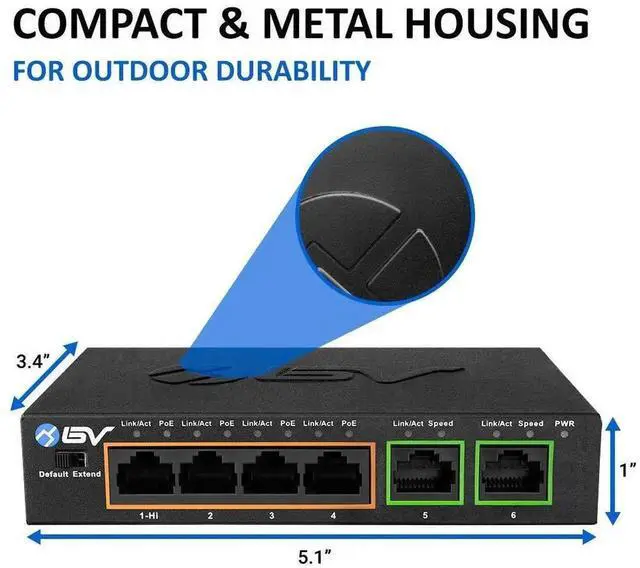

Weight: 0. 66lb (300g) Dimensions (W x D x
H): 5. 12in x 3. 35in x 1. 02in (130mm x 85mm x 26mm) All products sold by PoE Depot come with a 100% Satisfaction we offer a 30-day money-back, as well as a 1 year that covers replacement for free.
