1000BASE Ethernet Media Converter Device, Automotive-Grade, 2-Wire Ethernet BroadR-Reach(1000BASE-T1) to Fast Ethernet (1000BASE-TX) Automotive IEEE 1000BASE-T1 Compliant with 100Mbit/s Transmit
- Establishes a direct point-to-point conversion between automotive ECU's using 1000BASE-T1/BroadR-Reach(1000 Mbit/s Fullduplex,) and any standard Fast Ethernet (1000 Mbit/s, 1000BASE-TX) device with an standard ethernet RJ45 connector.
- Comes with 1x Unshielded Twisted Pair (UTP) cable and 1x 12V power adapter.
- By using the Broadcom BroadR-Reach PHY BCM89881B1BFBG, ensure a trustworthy and effective tool to customers that are looking for a cost-efficient, quick and manageable solution for testing requirements, with no latency and no packet loss.

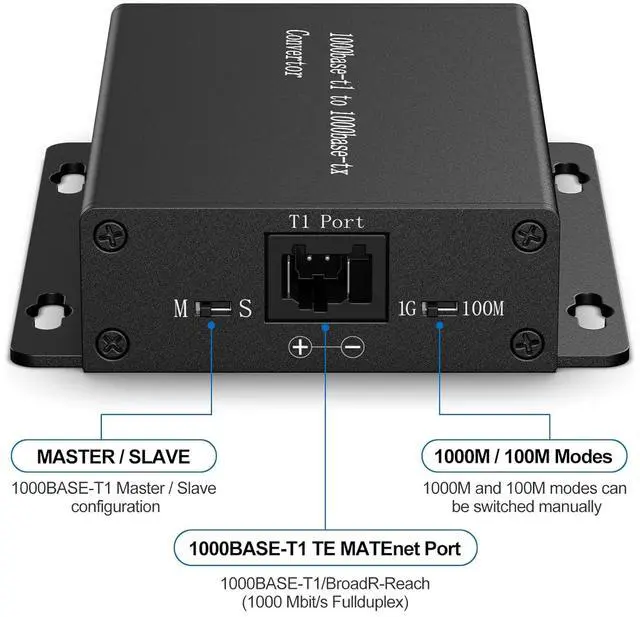

- Features with 1000BASE-T1 Master / Slave configuration and link LED.
- Plug and Play, No need to install the drivers. 100M and 1000M modes can be switched manually.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

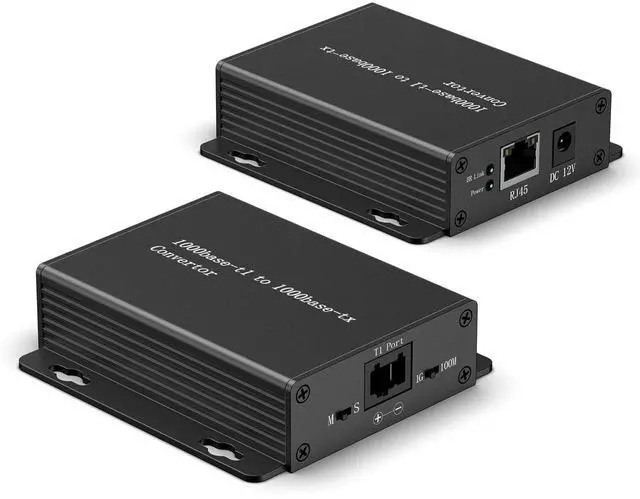

The device features bi-directional conversion between Standard Ethernet (1000BASE-TX) and Automotive Ethernet (1000BASE-T1).
A massive stainless-steel housing, coupled with switches for ease of configuration enables the user to interact with the converter, effortlessly.
No customized driver is needed to interact with our 1000BASE-T1 Media Converter. The device communicates with standard Ethernet through an RJ-45 connector.
It comes with a TE MATEnet connector and a standard Ethernet RJ-45 connector.
The design makes it portable and easy to install in test racks. The galvanized sheet steel with black powder coating housing makes it robust.
The device is capable to function in a variating temperature range from 0 Celsius to +70 Celsius. With the in-built link LEDs, the operation of the device is transparent and adds the tester to detect Link up and data transmission visually.

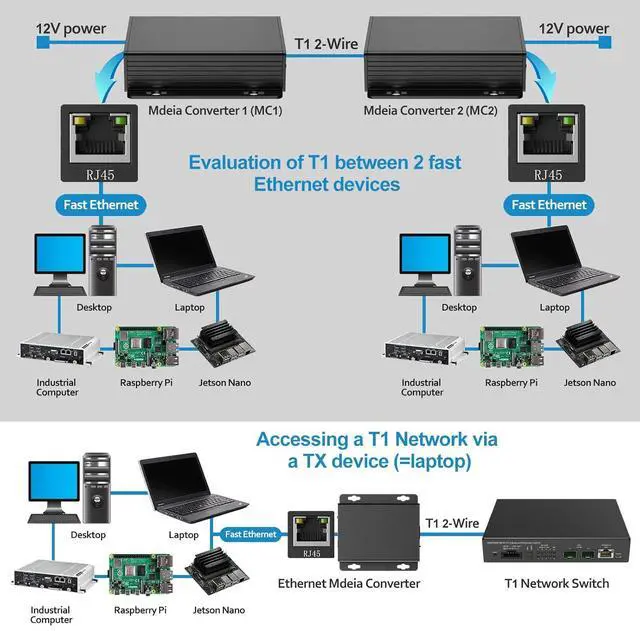

No extra hardware or software is needed to connect the device with a PC or a Laptop. The device can be coupled with any hardware or software tool that runs on standard Ethernet with an RJ-45 connector.
Thus, the 1000BASE-T1 to 1000BASE-TX Media Converter is the ideal solution for working quickly and efficiently with the new 1000BASE-T1 technology without the hustle of extra- wiring, customized connectors, and vendor-specific tools.

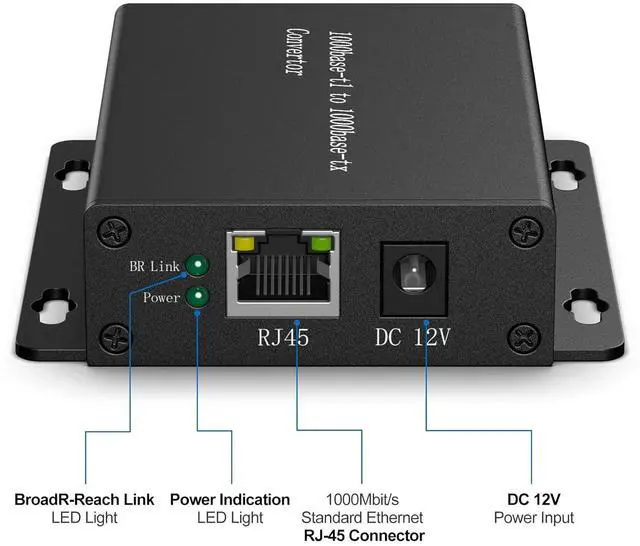

LED Lights for BroadR-Reach Link and Power Indicator
LED Indicators
A massive stainless-steel housing, coupled with switches for ease of configuration enables the user to interact with the converter, effortlessly.
No customized driver is needed to interact with our 1000BASE-T1 Media Converter. The device communicates with standard Ethernet through an RJ-45 connector.
It comes with a TE MATEnet connector and a standard Ethernet RJ-45 connector.
The design makes it portable and easy to install in test racks. The galvanized sheet steel with black powder coating housing makes it robust.
The device is capable to function in a variating temperature range from 0 Celsius to +70 Celsius. With the in-built link LEDs, the operation of the device is transparent and adds the tester to detect Link up and data transmission visually.
No extra hardware or software is needed to connect the device with a PC or a Laptop. The device can be coupled with any hardware or software tool that runs on standard Ethernet with an RJ-45 connector.
Thus, the 1000BASE-T1 to 1000BASE-TX Media Converter is the ideal solution for working quickly and efficiently with the new 1000BASE-T1 technology without the hustle of extra- wiring, customized connectors, and vendor-specific tools.
LED Lights for BroadR-Reach Link and Power Indicator
LED Indicators
