12 Port Gigabit Outdoor PoE Switch with 2 Uplink & 2 SFP | IP65 Waterproof | 120W Built-in Power | IEEE802.3af/at/bt | AI Watchdog | 6KV Lightning Protection | All-in-one Box | Plug & Play

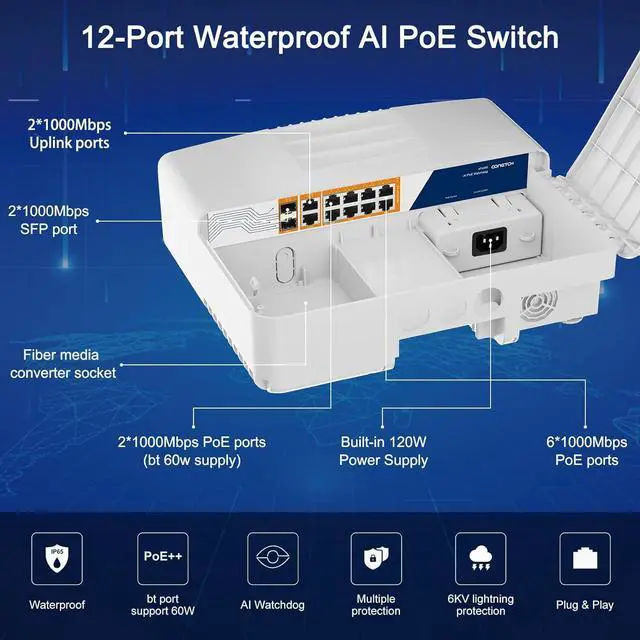

- Outdoor PoE switch: 8 port poe ( 6 PoE+ Ports, 2 POE++ Ports ), 2 Gigabit Uplink Ports, 2 Gigabit SFP Ports, 120W built-in power supply, Input Voltage Range 90~240V

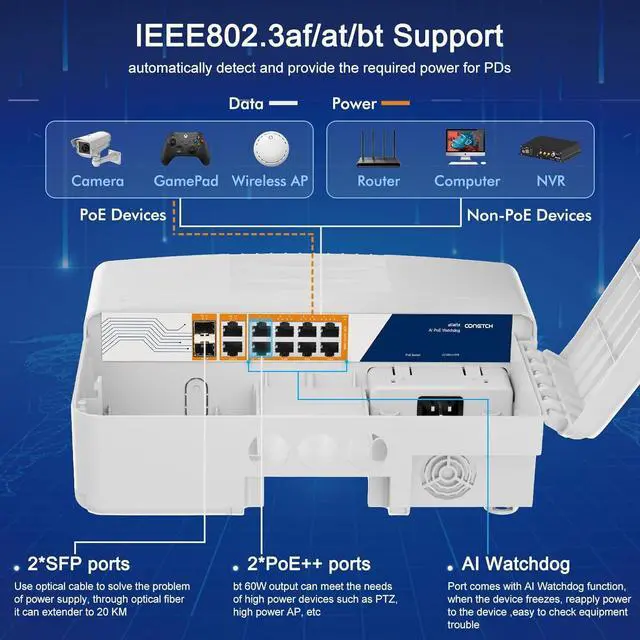

- Power Over Ethernet: 1-6 PoE+ (802.3af/at) ports providing up to 30W per port and 7-8 PoE++ (802.3af/at/bt) ports providing up to 60W per port, supports total PoE budget up to 120W Please note: If your device support 24V passive PoE, not support IEEE802.3af/at/bt 48V PoE, it will not be compatible
- IP65 Waterproof: Industrial housing design, integrated top cover, PC/ABS high polymer alloy material, extraordinary toughness, waterproof indoor and outdoor full-time, Flexibility to mount anywhere you need it.
- AI Watchdog Function : PoE 1~8 ports Support AI Watchdog, When the data or power transmission between the poe port and the terminal device is abnormal, the corresponding poe port of the device will automatically detect the problem and restart the connection.
- Stable and Security: 6KV lightning protection, 8KV Electro-
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PortsPoE (1~6): 10/100/1000Mbps PoE ports (RJ45)
PoE (7~8): 10/100/1000Mbps PoE ports (RJ45); Support bt 60W
High PowerLAN (1~2): 10/100/1000Mbps uplink ports (RJ45)
SFP (1~2): 10/100/1000Mbps SFP portTransmission Rate2000Mbps Full Duplex; 10 or 100 or 1000 Mbps Half DuplexTransmission Distance300ftMAC address table8KPower InputAC 90~240V Total120W
Protection LevelLightning Protection: 6KV
ESD Protection: 8KVBandwidth24GbpsWorking
EnvironmentOperating Temperature: -30°C~60°C
Storage Temperature: -40°C~70°C
Operating Humidity: 10%~90% Non-condensing
Storage Humidity: 5%~90% Non-condensingNetworking StandardIEEE 802.3 i 10BASE-T/IEEE 802.3 u 100BASE-TX IEEE 802.3 ab 1000BASE-T IEEE 802.3 x Flow Control IEEE 802.3 af/at/bt Power over
EthernetPhysical SpecificationsSize (L*W*H): 12.2 * 10.2 * 3.9 inch Product
PoE (7~8): 10/100/1000Mbps PoE ports (RJ45); Support bt 60W
High PowerLAN (1~2): 10/100/1000Mbps uplink ports (RJ45)
SFP (1~2): 10/100/1000Mbps SFP portTransmission Rate2000Mbps Full Duplex; 10 or 100 or 1000 Mbps Half DuplexTransmission Distance300ftMAC address table8KPower InputAC 90~240V Total120W
Protection LevelLightning Protection: 6KV
ESD Protection: 8KVBandwidth24GbpsWorking
EnvironmentOperating Temperature: -30°C~60°C
Storage Temperature: -40°C~70°C
Operating Humidity: 10%~90% Non-condensing
Storage Humidity: 5%~90% Non-condensingNetworking StandardIEEE 802.3 i 10BASE-T/IEEE 802.3 u 100BASE-TX IEEE 802.3 ab 1000BASE-T IEEE 802.3 x Flow Control IEEE 802.3 af/at/bt Power over
EthernetPhysical SpecificationsSize (L*W*H): 12.2 * 10.2 * 3.9 inch Product
