2 Ports Hardened Industrial Gigabit PoE+ Injector 30W Max Per Port 12~48VDC Power Input Support IEEE802.3af/at PoE Device Support 10/100/1000Base-T Compliant with IEEE 802.3ab

Product Features:
12~48VDC Power Input
2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port(Data + Power)
Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment
Max 30W PoE at one ports, total POE power less than 60W
Support 10/100/1000Base-TX

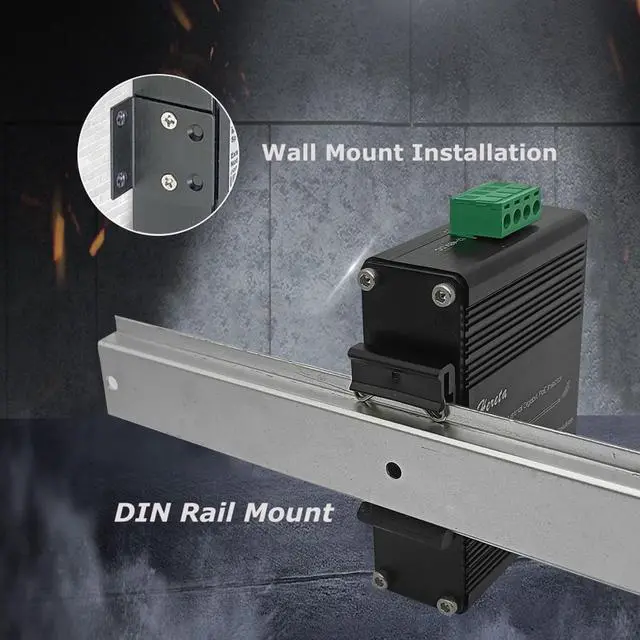

Support DIN-Rail & Wall-mount installation.
Extensive LED indicators for PoE diagnostics

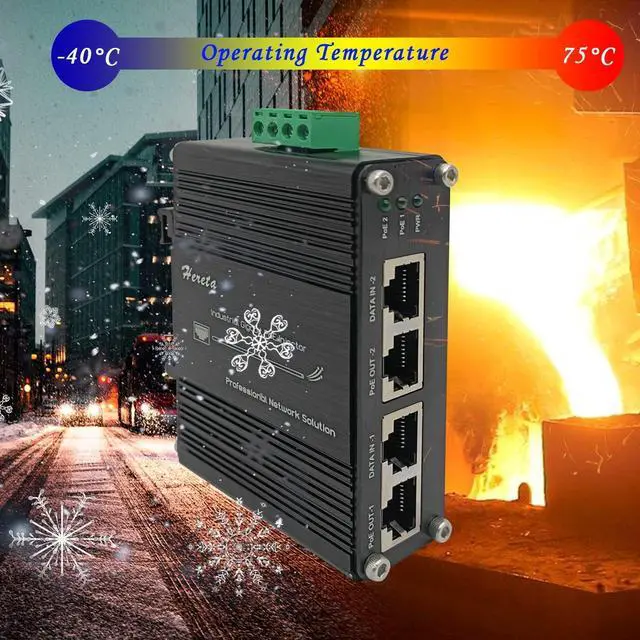

Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
MTBF: >200,000hrs

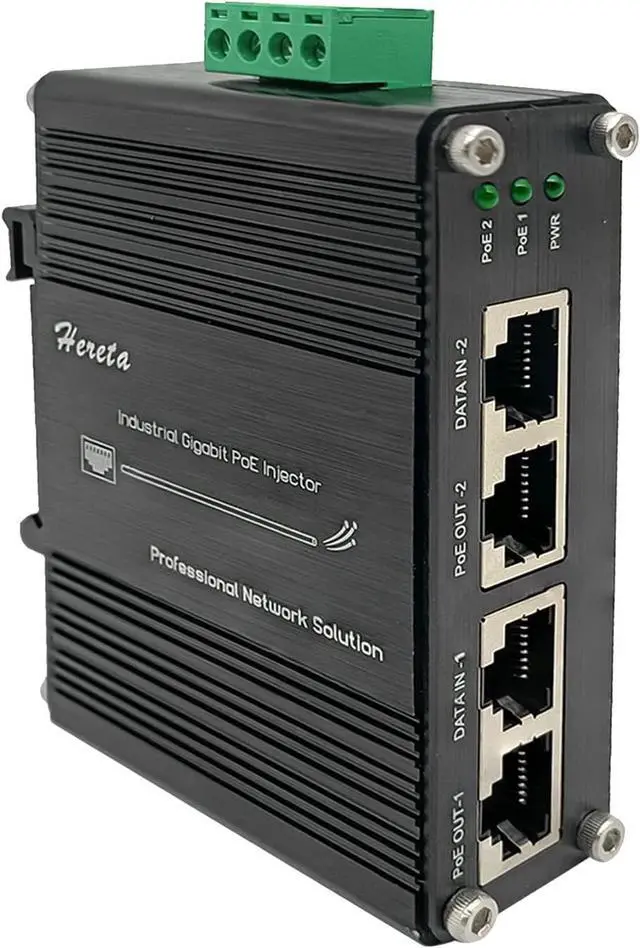

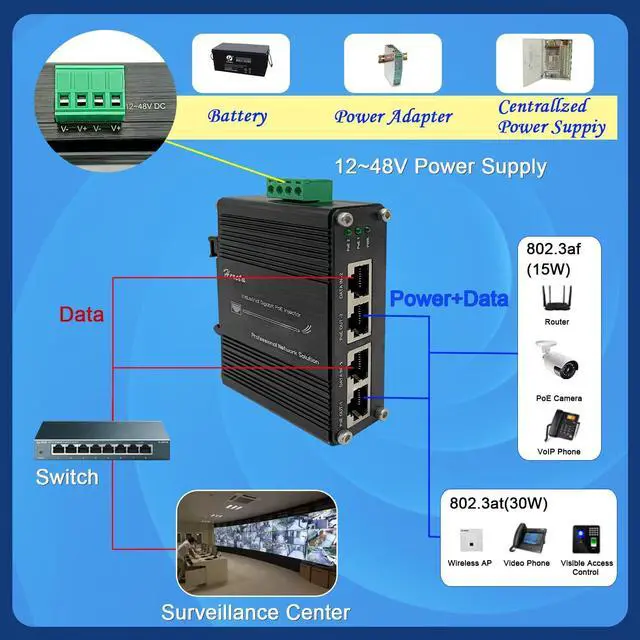

The LNK-INJ302 product is a Hardened 2 ports Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
LNK-INJ302 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
Max 30W PoE at one ports, total POE power less than 60W.
The 2Ch PoE+ Injector Supports Wide Input Voltage12~48V DC
The 2 Ports Industrial PoE Injector Supports:Plug and Play
