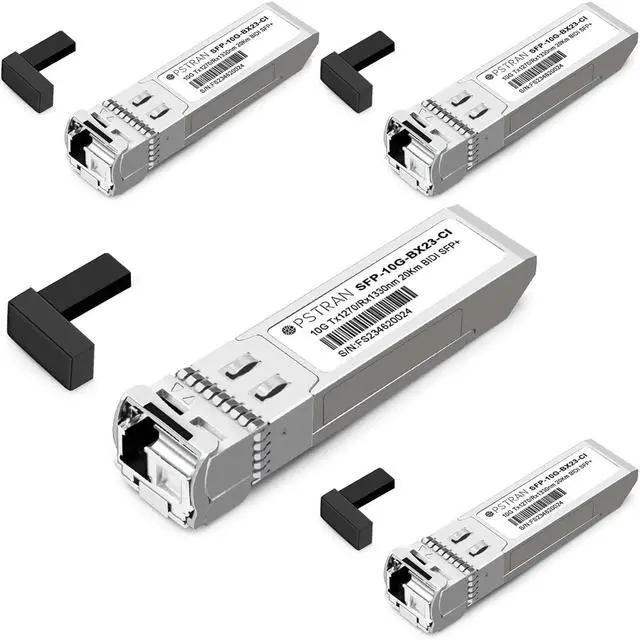

10GBASE-BX BiDi SFP+ Optical Transceiver Module Compatible with Cisco SFP-10G-BX20U 1270nm-TX/1330nm-RX 20km DOM Simplex LC SMF 4 Pack
- 10GBASE-BX BiDi SFP+ Optical Transceiver Module, 1270nm-TX/1330nm-RX 20km DOM Simplex LC SMF. Matched Pairs: It must be used in pairs with SFP+ 1330nm-TX/1270nm-RX. Double Your Bandwidth by Using Only One Fiber for Transmit and Receive
- Tested in Targeted Switches for Superior Performance, Quality, and reliability.We owns compatibility LAB facilities to meet the EEPROM coding and writing requirements with various brands of the latest and advanced networking equipments to ensure the reliability.
- Build-In Real Time Digital Optical Monitoring Capability for Strong Diagnostic capabilities
- Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle, Laser Safety and RoHS Compliant
- Built-in high performance Chip, Max. Power Consumption 1W
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

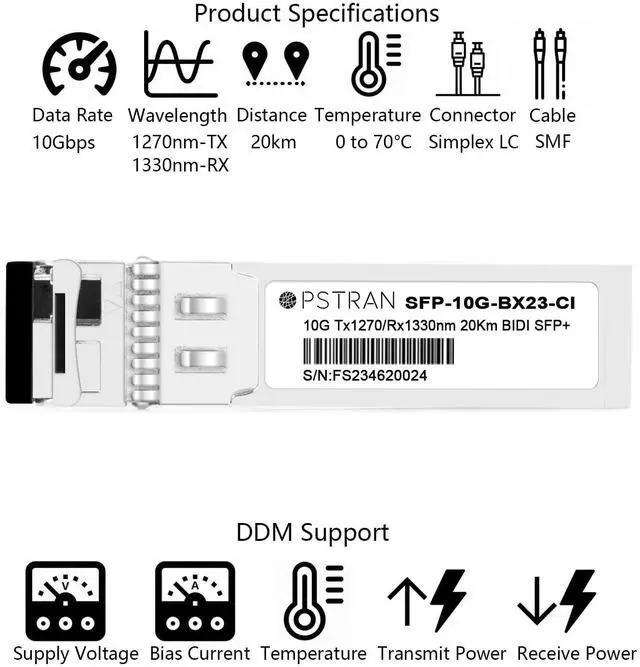

Product Features
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
1270nm DFB laser and PIN photodiode, Up to 20km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature: Standard: 0 to +70°C Industrial: -40 to +85°C
Typical Power Consumption 1W
The OPSTRAN wide compatible BIDI SFP+ transceiver supports up to 20km over OS2 SMF via an LC simplex connector. This transceiver is compliant with SFF-8431 and IEEE 802.3ae standard. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet etc.
This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths.

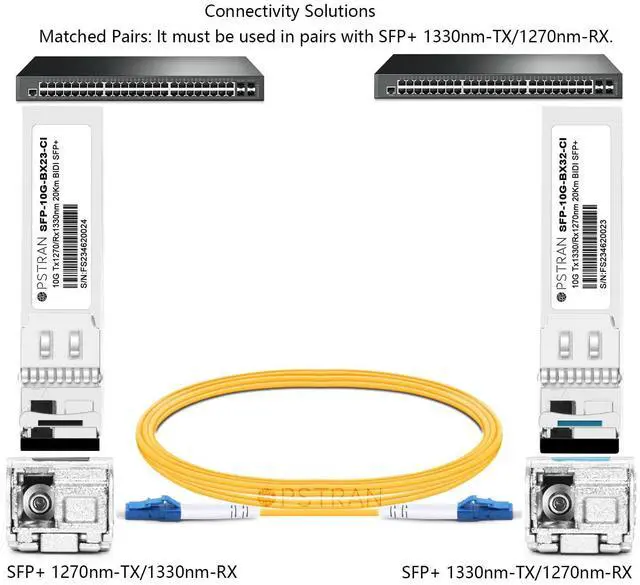

Matched Pairs: It must be used in pairs with SFP+ 1330nm-TX/1270nm-RX.

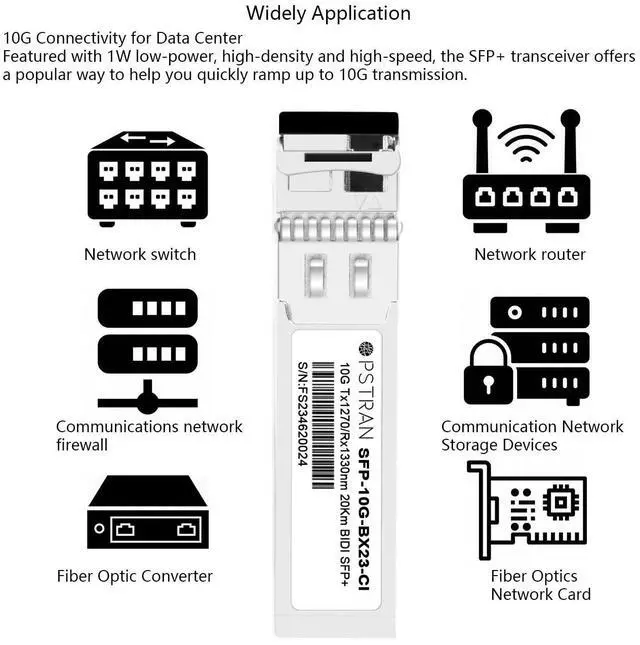

10G Connectivity for Data Center
Featured with 1W low-power, high-density and high-speed, the BIDI SFP+ transceiver offers a popular way to help you quickly ramp up to 10G transmission.
Tested by OPSTRAN lab authority in 2023 in Host Devices for Interoperability
Every unit is quality tested OPSTRAN lab authority in 2023 for compatibility in the targeted switch environment, which enable flawless operations.
Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to enable you get the high quality and reliable optics.
Optical Spectrum Test: No Packet Loss & CRC
Eye Pattern Test: Mask Margin >20%
Bit Error Rate Test: BER 1E-12
Temperature Test: 0~70°C
OPSTRAN 10GBASE-BX20 BIDI SFP+ Optical Transceiver Module TX1270nm/RX1330nm 20km LC SMF DDM OPSTRAN 10GBASE-BX20 BIDI SFP+ Optical Transceiver Module TX1270nm/RX1330nm 20km LC SMF DDM Connectivity Solutions OPSTRAN 10GBASE-BX20 BIDI SFP+ Optical Transceiver Module TX1270nm/RX1330nm 20km LC SMF DDM Features OPSTRAN 10GBASE-BX20 BIDI SFP+ Optical Transceiver Module TX1270nm/RX1330nm 20km LC SMF DDM testing
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Product Features
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
1270nm DFB laser and PIN photodiode, Up to 20km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with simplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature: Standard: 0 to +70°C Industrial: -40 to +85°C
Typical Power Consumption 1W
The OPSTRAN wide compatible BIDI SFP+ transceiver supports up to 20km over OS2 SMF via an LC simplex connector. This transceiver is compliant with SFF-8431 and IEEE 802.3ae standard. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet etc.
This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths.
Matched Pairs: It must be used in pairs with SFP+ 1330nm-TX/1270nm-RX.
10G Connectivity for Data Center
Featured with 1W low-power, high-density and high-speed, the BIDI SFP+ transceiver offers a popular way to help you quickly ramp up to 10G transmission.
Tested by OPSTRAN lab authority in 2023 in Host Devices for Interoperability
Every unit is quality tested OPSTRAN lab authority in 2023 for compatibility in the targeted switch environment, which enable flawless operations.
Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to enable you get the high quality and reliable optics.
Optical Spectrum Test: No Packet Loss & CRC
Eye Pattern Test: Mask Margin >20%
Bit Error Rate Test: BER 1E-12
Temperature Test: 0~70°C
OPSTRAN 10GBASE-BX20 BIDI SFP+ Optical Transceiver Module TX1270nm/RX1330nm 20km LC SMF DDM OPSTRAN 10GBASE-BX20 BIDI SFP+ Optical Transceiver Module TX1270nm/RX1330nm 20km LC SMF DDM Connectivity Solutions OPSTRAN 10GBASE-BX20 BIDI SFP+ Optical Transceiver Module TX1270nm/RX1330nm 20km LC SMF DDM Features OPSTRAN 10GBASE-BX20 BIDI SFP+ Optical Transceiver Module TX1270nm/RX1330nm 20km LC SMF DDM testing
