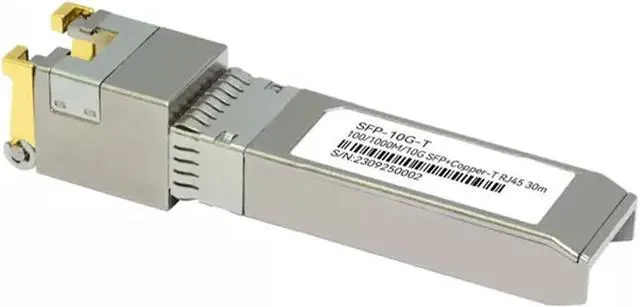

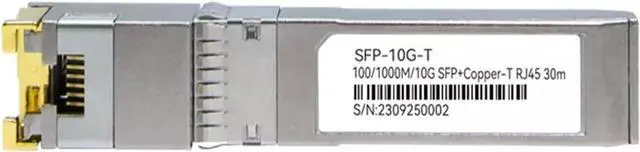

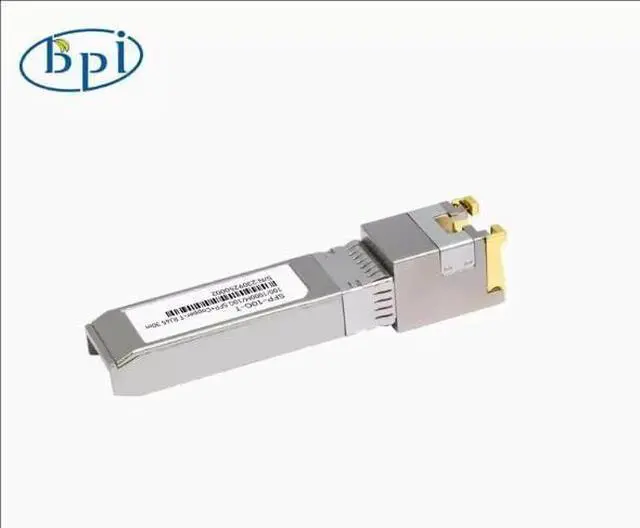

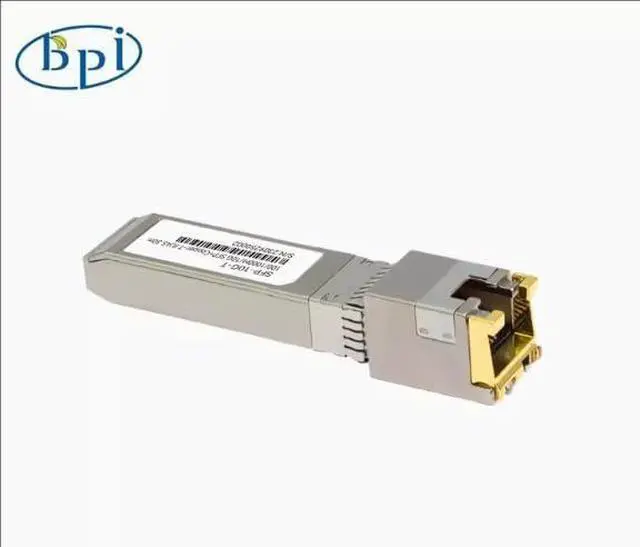

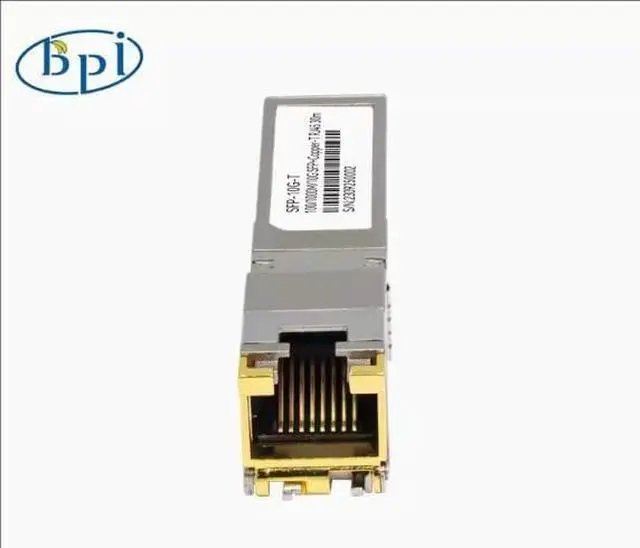

WayPonDEV 10G SFP+ Copper Module for Banana Pi BPI-R4 OpenWRT Router Borad, SFP to RJ45, Compatible with 10Gbase-T/5Gbase-T/2.5Gbase-T/1000base-T Online Port, 1 Pack (10G SFP+ Copper Module)

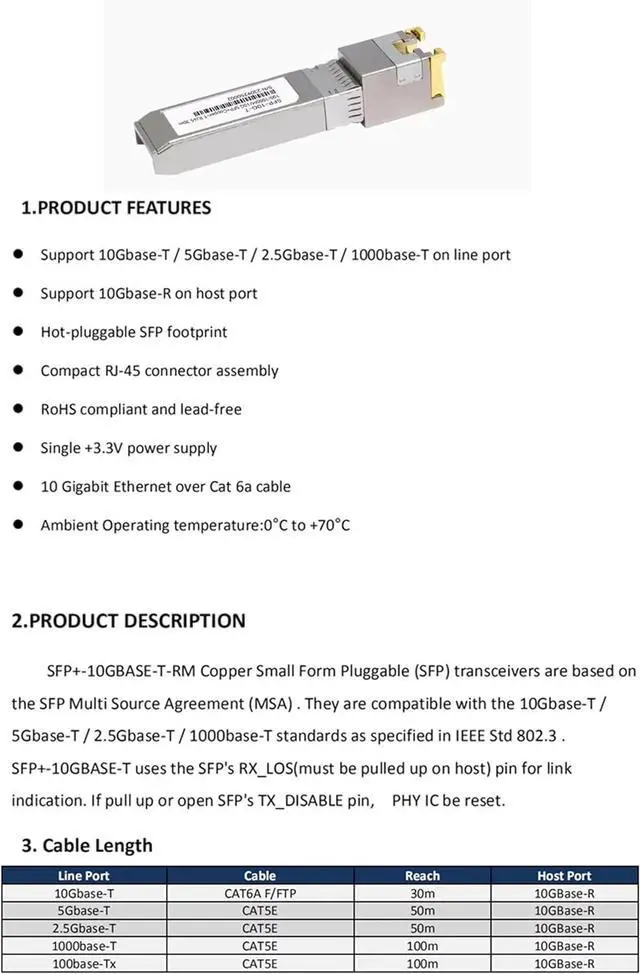

- 10G SFP+ Copper Module for Banana Pi BPI-R4 OpenWRT Router Borad support 10Gbase-T/5Gbase-T/2.5Gbase-T/1000base-T on line port, Support 10Gbase-R on host port.
- Banana Pi BPI-R4 OpenWRT Router Borad's 10G SFP+ Copper Module support Hot-pluggable SFP footprint, it is compact Rj-45 connector assembly.
- Banana Pi BPI-R4 Router Borad 10G SFP+ Copper Module supoort RoHS compliant and lead-free, Single +3.3V power supply.
- 10G SFP+ Copper Module support 10 Gigabit Ethernet over Cat 6a cable, Ambient Operating temperature: 0°C to +70°C.
- They are compatible with the 10Gbase-T/5Gbase-T/2.5Gbase-T/1000base-T standards as specified in lEEE Std 802.3. SFP+-10GBASE-T-RM Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MsA) .
- SFP+-10GBASE-T uses the SFP's RX LOS(must be pulled up on host) pin for link indication. lf pull up or open SFP's TX DISABLE pin, PHY lC be reset.
- Note: The module does not include cables, and requires the use of single-mode single
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
10G SFP+ Copper Module for Banana Pi BPI-R4 OpenWRT Router Borad support 10Gbase-T/5Gbase-T/2.5Gbase-T/1000base-T on line port, Support 10Gbase-R on host port.
Banana Pi BPI-R4 OpenWRT Router Borad's 10G SFP+ Copper Module support Hot-pluggable SFP footprint, it is compact Rj-45 connector assembly.
Banana Pi BPI-R4 Router Borad 10G SFP+ Copper Module supoort RoHS compliant and lead-free, Single +3.3V power supply.
10G SFP+ Copper Module support 10 Gigabit Ethernet over Cat 6a cable, Ambient Operating temperature: 0°C to +70°C.
They are compatible with the 10Gbase-T/5Gbase-T/2.5Gbase-T/1000base-T standards as specified in lEEE Std 802.3. SFP+-10GBASE-T-RM Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MsA) .
SFP+-10GBASE-T uses the SFP's RX LOS(must be pulled up on host) pin for link indication. lf pull up or open SFP's TX DISABLE pin, PHY lC be reset.
Note: The module does not include cables, and requires the use of single-mode single-fiber LC-LC cables. Getting Started with BPI-R4 10G SFP Module: "docs.banana-pi.org/en/BPI-R4/GettingStarted_BPI-R4#_10g_sfp_module"
Banana Pi BPI-R4 OpenWRT Router Borad's 10G SFP+ Copper Module support Hot-pluggable SFP footprint, it is compact Rj-45 connector assembly.
Banana Pi BPI-R4 Router Borad 10G SFP+ Copper Module supoort RoHS compliant and lead-free, Single +3.3V power supply.
10G SFP+ Copper Module support 10 Gigabit Ethernet over Cat 6a cable, Ambient Operating temperature: 0°C to +70°C.
They are compatible with the 10Gbase-T/5Gbase-T/2.5Gbase-T/1000base-T standards as specified in lEEE Std 802.3. SFP+-10GBASE-T-RM Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MsA) .
SFP+-10GBASE-T uses the SFP's RX LOS(must be pulled up on host) pin for link indication. lf pull up or open SFP's TX DISABLE pin, PHY lC be reset.
Note: The module does not include cables, and requires the use of single-mode single-fiber LC-LC cables. Getting Started with BPI-R4 10G SFP Module: "docs.banana-pi.org/en/BPI-R4/GettingStarted_BPI-R4#_10g_sfp_module"
