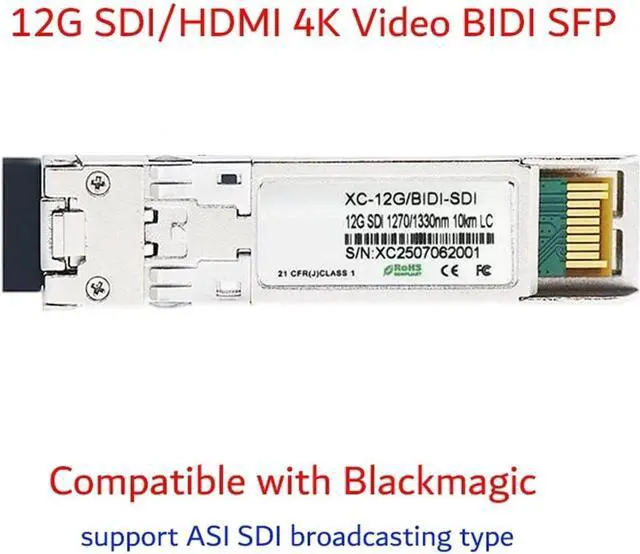

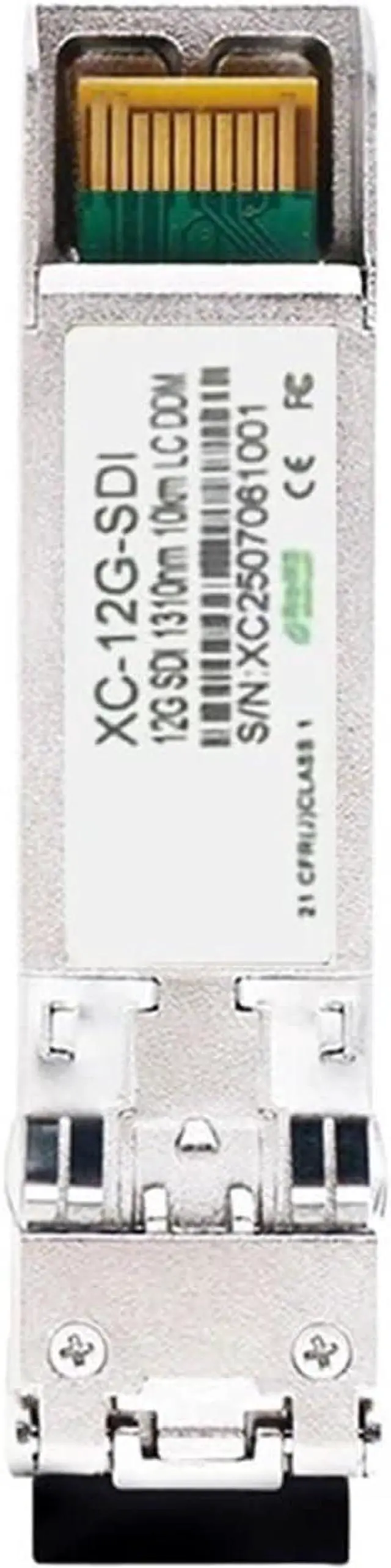

High-Speed SFP Double Fiber 12G-SDI/SD-SDI Transceiver Module for 4K Video - Compatible with BMD Yellowbrick(20KM 5 PCS)

Network Transceivers
1.Description
XC-12GBD20transceiver is an excellent product, which is a series of high performance optical modules suitable for High speed serial links over single-mode optical fiber at signaling rates up to 12.5Gbps.Because of its hot-pluggable capability, XC-12GBD10-XXXXSFP transceiver can be installed in or removed from any compliant pluggable small form factor port, regardless of, whether the host equipment is operating or not. Furthermore, XC-12GBD10-XXXXSFP+ transceiver supports a DDM function and detailed product's information that stored for retrieval by host equipment. For further information, please refer to SFP+ Multi- Agreement ().The transceiver operates up to 12.5Gbps data-rate from a single +3.3 V power supply.
2.Feature
-Operating data rate up to 12.5Gbps
-Compliant with SFP+ , SFF 8431 Rev 4.1
-Digital Diagnostic SFF-8472 compliant
-Uncooled CWDM DFB Laser transmitter & High sensitivity PIN PD Receiver
Single +3.3V power supply
-Up to 10km Transmission on 9/125 um Single Mode Fiber
-Single LC connector
-Very low jitter
-Very low EMI and excellent ESD protection
-Low power dissipation
3.Application
-Fiber channel system : Multi-rate, 1.06Gbps to 12.5Gbps
-10G Ethernet 10km
-9.8304Gb/s CPRI/OBSAI
Other high speed data connection
==========
Wireless function : No
Type : LR
Hign-concerned Chemical : None
Fiber Type : Single Mode
Connector Type : LC/UPC
Model Number : 12GBD
