$292.99
Meet Your Seller

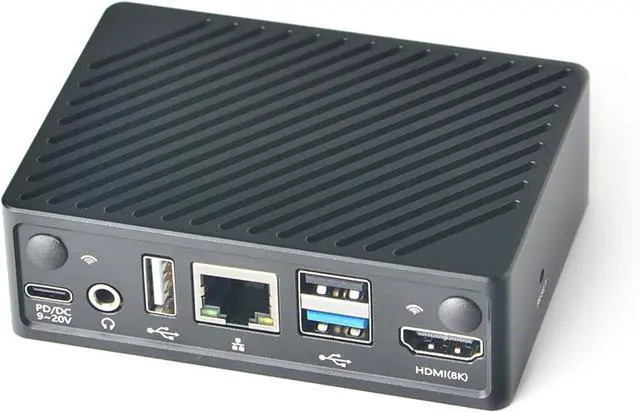

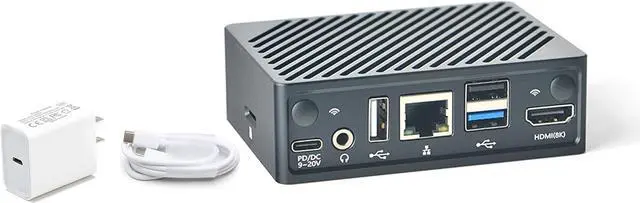

FriendlyElec NanoPi M6 Computer Mini Router OpenWRT, LPDDR5 4GB/16GB/32GB RAM, 6Tops NPU Mali-G610 GPU RK3588S SoC, for NAS, Smart Gateway and 8K Video Playing, Support Debian Ubuntu (16GB Metal Case)
- [Portable Mini Router Smart Gateway] The NanoPi M6 is an open-sourced mini router smart gateway device. It is based on Rockchip RK3588S SoC (4 x Cortex-A76 up to 2.4GHz and 4 x Cortex-A55 up to 1.8GHz), with Mali-G610 MP4 GPU 6TOPs NPU, and 4GB/16GB/32GB LPDDR5 RAM at 2133MHz. Flash: None onboard eMMC, but with eMMC module socket at HS400 mode. It also supports booting with TF cards,with microSD socket up to SDR104 mode.

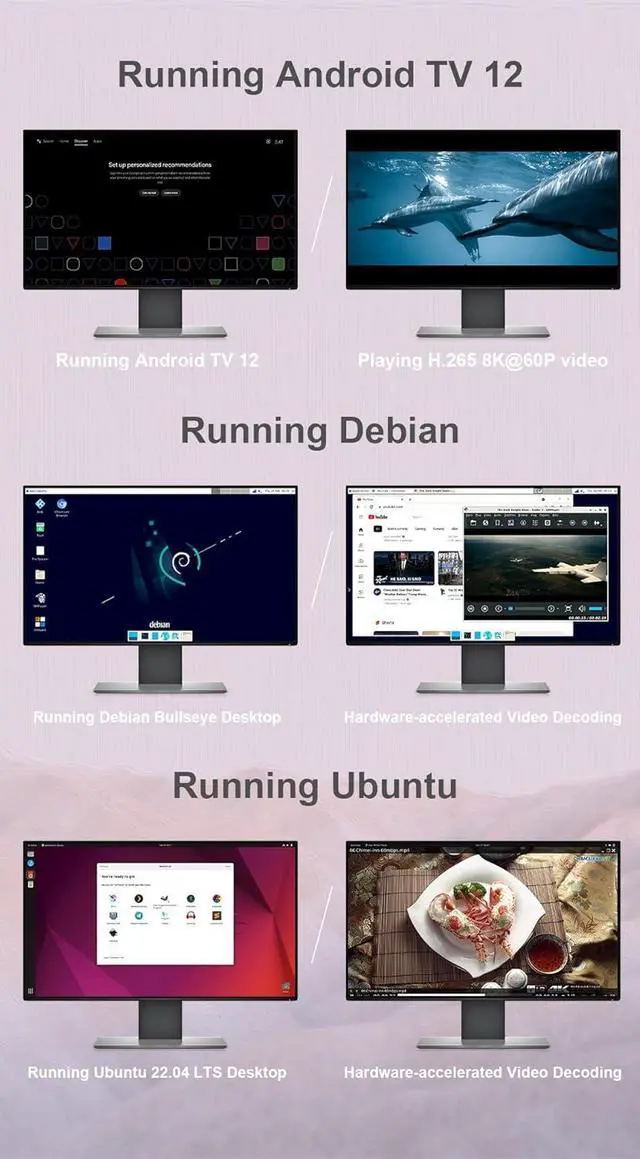

- [Open Source Programmable] NanoPi M6 computer mini router can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS network storage device, smart home gateways, cloud server and more. It offers endless possibilities for geeks, fans and developers.
- [Rich Hardware Resources] The NanoPi M6 Single Board Computer has rich hardware resources with a compact size of 90 x 62 mm, a 30-pin header is provided to expose hardware resources for secondary development, including interfaces such as UAR
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SoC: Rockchip RK3588S CPU: Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz)
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
VPU: 8K 60fps H.265 and VP9 decoder, 8K 30fps H.264 decoder, 4K 60fps AV1 decoder, 8K 30fps H.264 and H.265 encoder
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit LPDDR5 at 2400MHz
Flash: eMMC module socket, at HS400 mode
Ethernet: 1x Native Gigabit Ethernet
USB: 1x USB 3.0 Type-A and 2x USB 2.0 Type-A

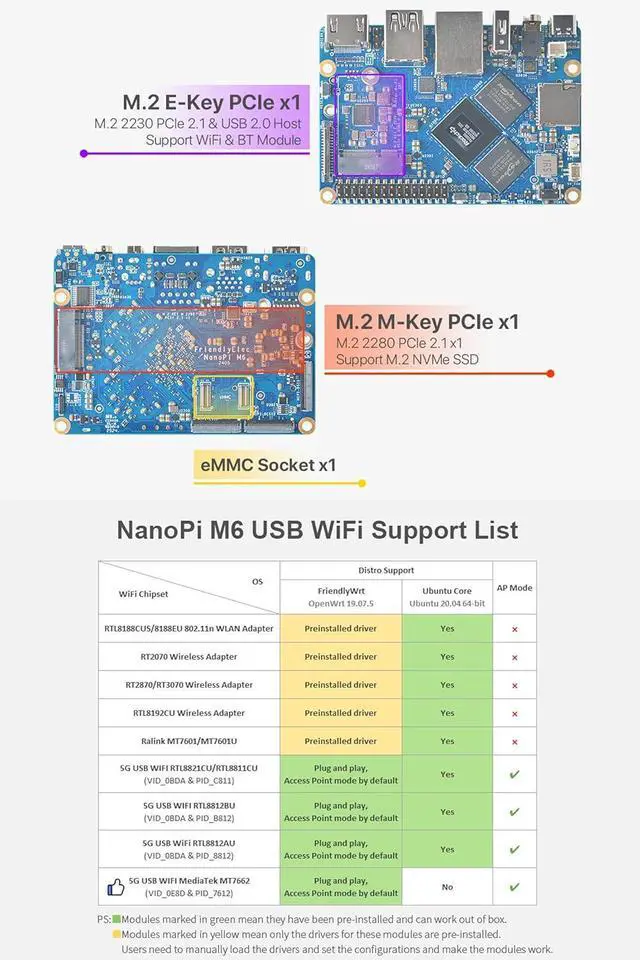

M.2 Connectors one M.2 M-Key connector with PCIe 2.1 x1 for SSDs
one M.2 E-key connector with PCIe 2.1 x1 and USB2.0 Host for Wi-Fi&BT
microSD: support up to SDR104 mode
Video input: 1x 4-lane MIPI-CSI V1.2
1x 4-lane MIPI-CSI D/C PHY
Video output: 1x Standard HDMI output ports compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
support displays up to 7680x4320 60Hz
Support RGB/YUV(up to 10bit) format
2x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1
Audio: 1x 3.5mm jack for stereo headphone output
1x 2.0mm PH-2A connector for analog microphone input
GPIO: 30-pin 2.54mm header connector
up to 1x SPI, 6x UARTs, 3x I2Cs, 1x SPDIFs, 4x PWMs, 20x GPIOs
Debug: UART via 3-Pin 2.54mm header

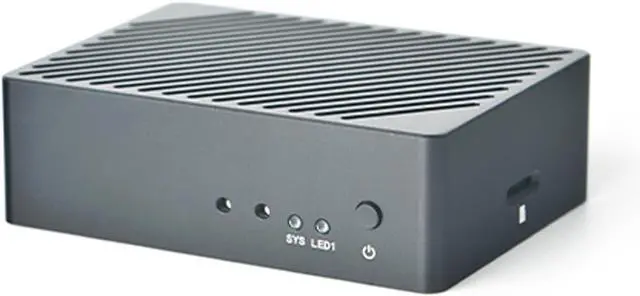

LEDs: 2 x GPIO Controlled LED (SYS, LED1)
others: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
Buttons: MASK, Reset, Recovery, Power
one 5V Fan connector
GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
VPU: 8K 60fps H.265 and VP9 decoder, 8K 30fps H.264 decoder, 4K 60fps AV1 decoder, 8K 30fps H.264 and H.265 encoder
NPU: 6TOPs, supports INT4/INT8/INT16/FP16
RAM: 64-bit LPDDR5 at 2400MHz
Flash: eMMC module socket, at HS400 mode
Ethernet: 1x Native Gigabit Ethernet
USB: 1x USB 3.0 Type-A and 2x USB 2.0 Type-A
M.2 Connectors one M.2 M-Key connector with PCIe 2.1 x1 for SSDs
one M.2 E-key connector with PCIe 2.1 x1 and USB2.0 Host for Wi-Fi&BT
microSD: support up to SDR104 mode
Video input: 1x 4-lane MIPI-CSI V1.2
1x 4-lane MIPI-CSI D/C PHY
Video output: 1x Standard HDMI output ports compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation
support displays up to 7680x4320 60Hz
Support RGB/YUV(up to 10bit) format
2x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1
Audio: 1x 3.5mm jack for stereo headphone output
1x 2.0mm PH-2A connector for analog microphone input
GPIO: 30-pin 2.54mm header connector
up to 1x SPI, 6x UARTs, 3x I2Cs, 1x SPDIFs, 4x PWMs, 20x GPIOs
Debug: UART via 3-Pin 2.54mm header
LEDs: 2 x GPIO Controlled LED (SYS, LED1)
others: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
Buttons: MASK, Reset, Recovery, Power
one 5V Fan connector
