Benewake TFmini-S Lidar Sensor Range Finder Module 5V UART I2C 0.1m-12m
- How to work with pixhawk : https://discuss(dot)ardupilot(dot)org/t/avoidance-experiments-with-the-poc-and-benewake-tfmini/25277How to use with raspberry pi/arduino: https://github(dot)com/TFmini

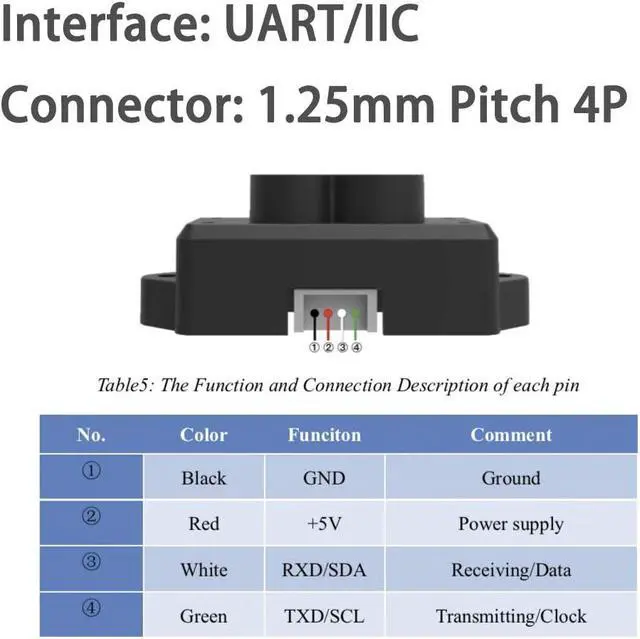

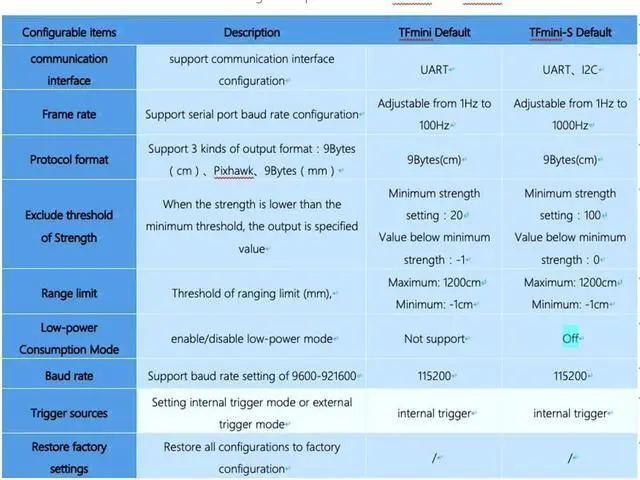

- Communication interface : UART/I2C, Default: UART. If you need I2C, pls send configuration commands to set (After connection enter: 5A 05 0A MODE SU where MODE = 0 (UART) or 1 (IIC) and SU stands for checksum. Important: After sending the parameter configuration command, be sure to send the "Save Configuration (5A 04 11 6F)" command, otherwise the parameters will be reset when the product is connected again.)

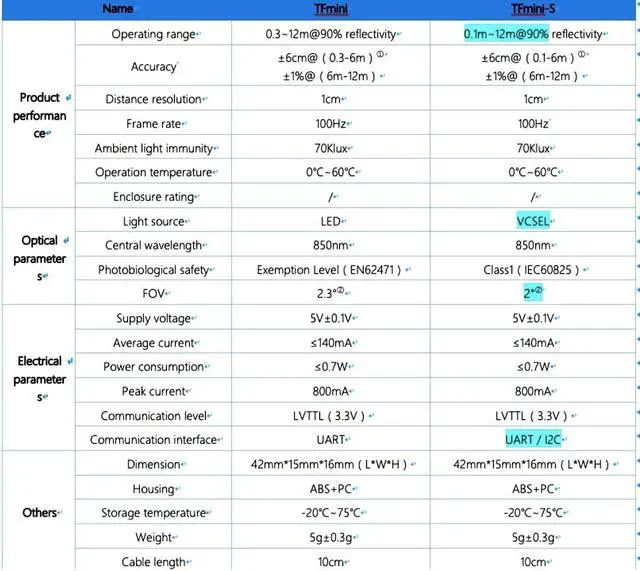

- Operating Range : 0.1-12m at 90% reflectivity, Frequency: 100Hz(1-1000Hz adjustable), Light source:VCSEL, Applicable voltage range: 4.5-6V
- Applications: Traffic Monitoring, Obstacle detection, Obstacle detection, Level measurement, Smart device, Security and obstacle avoidance etc.

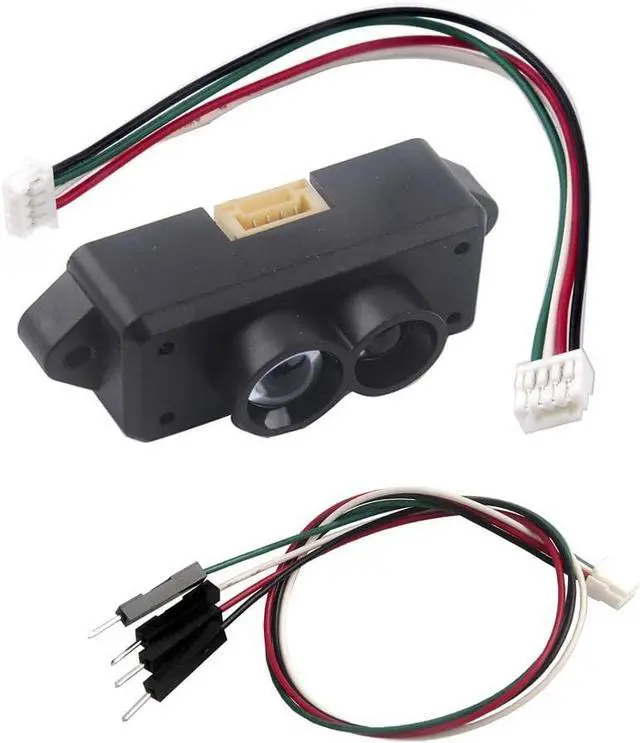

- What you will get: 1PCS TFmini-S and 2PCS Cable
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
How to work with pixhawk : https://discuss(dot)ardupilot(dot)org/t/avoidance-experiments-with-the-poc-and-benewake-tfmini/25277How to use with raspberry pi/arduino: https://github(dot)com/TFmini
Communication interface : UART/I2C, Default: UART. If you need I2C, pls send configuration commands to set (After connection enter: 5A 05 0A MODE SU where MODE = 0 (UART) or 1 (IIC) and SU stands for checksum. Important: After sending the parameter configuration command, be sure to send the "Save Configuration (5A 04 11 6F)" command, otherwise the parameters will be reset when the product is connected again.)
Operating Range : 0.1-12m at 90% reflectivity, Frequency: 100Hz(1-1000Hz adjustable), Light source:VCSEL, Applicable voltage range: 4.5-6V
Applications: Traffic Monitoring, Obstacle detection, Obstacle detection, Level measurement, Smart device, Security and obstacle avoidance etc.
What you will get: 1PCS TFmini-S and 2PCS Cable
Communication interface : UART/I2C, Default: UART. If you need I2C, pls send configuration commands to set (After connection enter: 5A 05 0A MODE SU where MODE = 0 (UART) or 1 (IIC) and SU stands for checksum. Important: After sending the parameter configuration command, be sure to send the "Save Configuration (5A 04 11 6F)" command, otherwise the parameters will be reset when the product is connected again.)
Operating Range : 0.1-12m at 90% reflectivity, Frequency: 100Hz(1-1000Hz adjustable), Light source:VCSEL, Applicable voltage range: 4.5-6V
Applications: Traffic Monitoring, Obstacle detection, Obstacle detection, Level measurement, Smart device, Security and obstacle avoidance etc.
What you will get: 1PCS TFmini-S and 2PCS Cable
