DTECH 4K HDMI Fiber Optic Extender 300m 10km 20km 40km IR RS232 HDMI Fiber transceiver (0.3km)

Introduction
This HDMI fiber extender is used to solve the problems appears when the HDMI signal is in long distance transmitting, such as image mosaic, color distortion, and inability to transmit. It is designed for internet tablet display and large-screen advertising wall display, and other occasions require high-quality HDMI audio and video signal long distance transmission. You can select the corresponding fiber module according to the transmission distance, and can also realize cascade transmission via fiber optic switch. It is widely used in all supermarkets, video conference, security center, computer teaching systems and data management systems, etc.
Specification
This product supports 3840*2160@30Hz resolution, and the transmission distance can be extended from 300 meters to 80 kilometers depending on the fiber module. This model is equipped with a 300meter fiber module that can be extended to 300 meters, at the same time the RS232 signals can also be transmitted to the far end.
2. Parameters
(1) With a fiber module the HDMI signal can be transmitted to 40km via the optical fiber cable.
(2) HDMI signal resolution supports 3840*2160@30Hz, backward compatible;
(3) Support RS232 far end transmission;
(4) Built-in automatic equalization system makes the picture smooth, clear and stable;
(5) With lightning protection, dust prevention, static prevention, can prolong the service life;
(6) Cascading transmission can be implemented via optical fiber switch;
(7) By using of 26AWG HDMI standard cable .

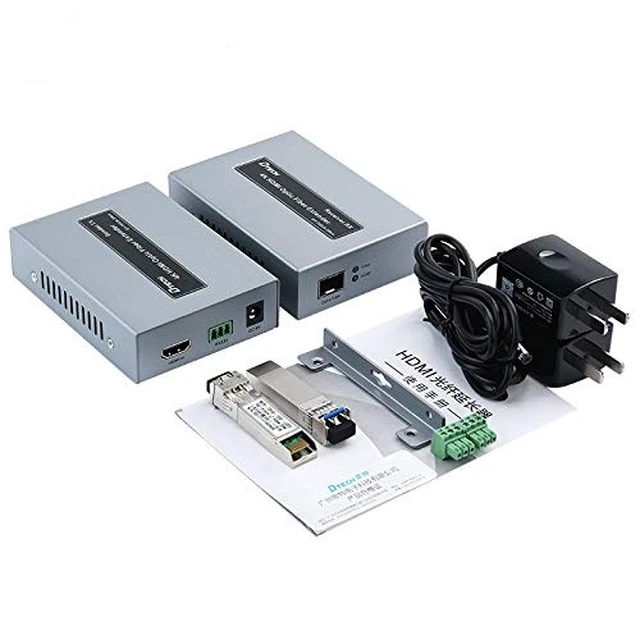

Product List
One transmitter
One receiver
2 power adapters
2 fiber optic modules
One copy of the instructions
