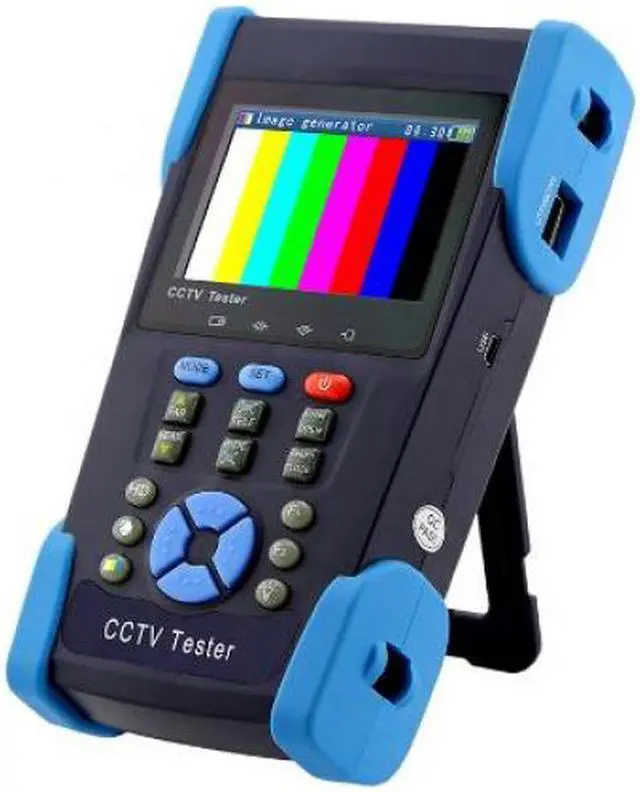

HD CCTV All In One Test Monitor 3.5" HD TVI, HD-CVI, HD AHD , HD SDI, Analog 12V Power Out , LED Light , Cable test , Audio test , PTZ Test

The new HD coaxial tester is developed for the On-Site installation and maintenance of coaxial camera, it also combine other functions analog camera test, analog signal output, UTP test, Its portability, ser-friendly design and many other functions make the tester an essential tool for all installers or technicians

3.5 inch screen display, 480 (RGB) x320 resolution
Low power consumption, working time lasts 11 hours
LCD screen brightness/contrast/color saturation adjustable NTSC/PAL auto adjust
CVI /TVI /AHD/SDI coaxial camera image display, coaxial PTZ control and call up the camera
OSD menu
Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator (Eight-system switchable, transmit/receive eight-system colorful images).
LED Flashlight.
PTZ control, color bar generator shortcut key.
F1, F2 user-defined key
PTZ control and PTZ protocol analysis
Cable test, Test LAN cable or telephone cable, UTP cable etc, cable type and the
sequence of wires will be displayed
Support more than 30 protocols, such as Pelco-D, Pelco-P, SAMSUNG.
Support RS485,rate 600 ~ 115200bps adjustable
Built in Lithium Ion Polymer Battery(3.7V DC 3000mAh )
Image display and data control integration
Audio Testing
DC 12V 1A Power Out
