1 Input 8 Output Video Distributor

BNC to VGA Converter Dual Output AP-VC01-1
Red LED: power on/off.
It can be connected video camera, multiplexer, VCR, DVR…etc.
Power supply included.
See more complete detail
Video Input Channel 1

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

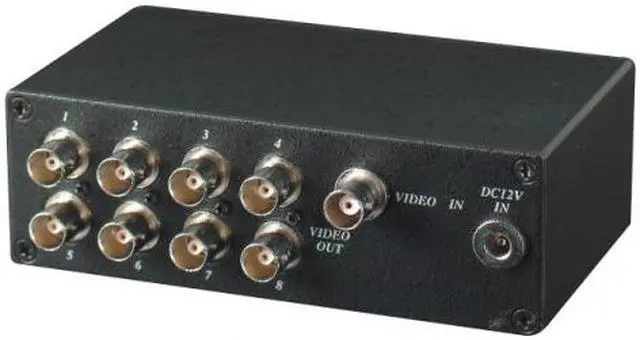

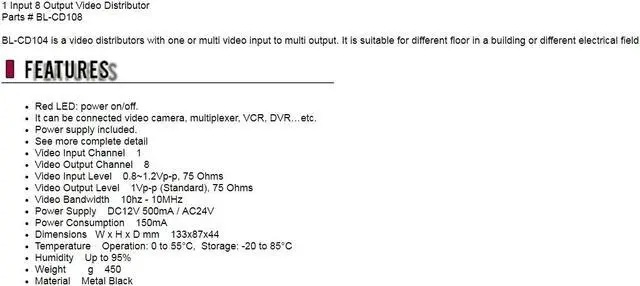

1 Input 8 Output Video Distributor
Parts # BL-CD108

BL-CD104 is a video distributors with one or multi video input to multi output. It is suitable for different floor in a building or different electrical field.
BNC to VGA Converter Dual Output AP-VC01-1
Red LED: power on/off.
It can be connected video camera, multiplexer, VCR, DVR…etc.
Power supply included.
See more complete detail
Video Input Channel 1
Video Output Channel 8
Video Input Level 0.8~1.2Vp-p, 75 Ohms
Video Output Level 1Vp-p (Standard), 75 Ohms
Video Bandwidth 10hz - 10MHz
Power Supply DC12V 500mA / AC24V
Power Consumption 150mA
Dimensions W x H x D mm 133x87x44
Temperature Operation: 0 to 55°C, Storage: -20 to 85°C
Humidity Up to 95%
Weight g 450
Material Metal Black
