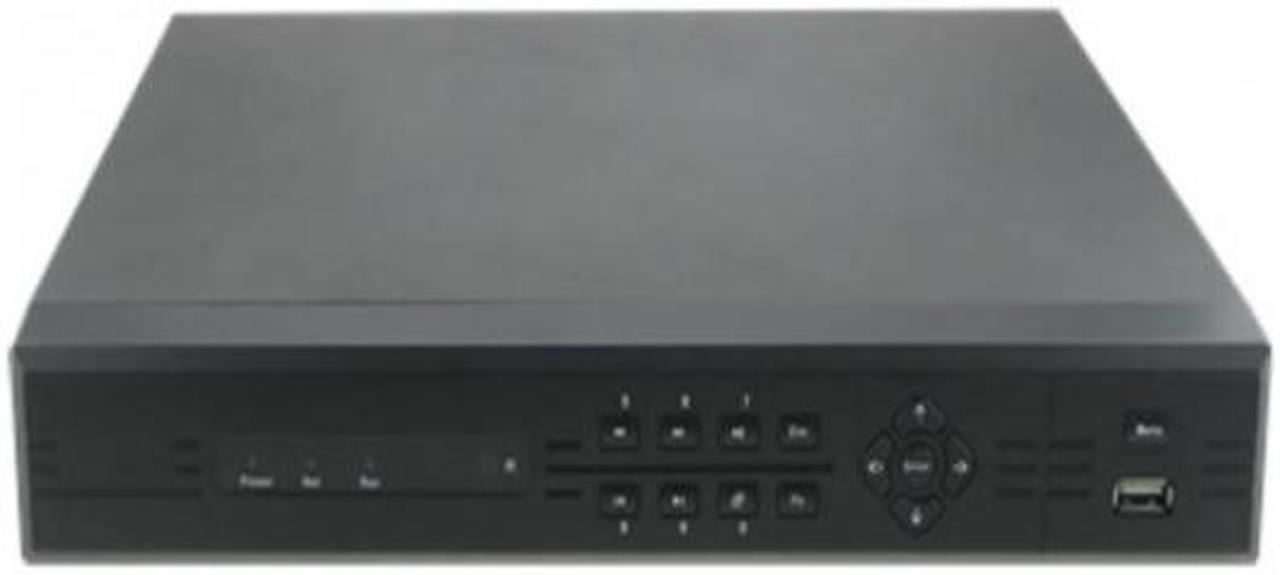

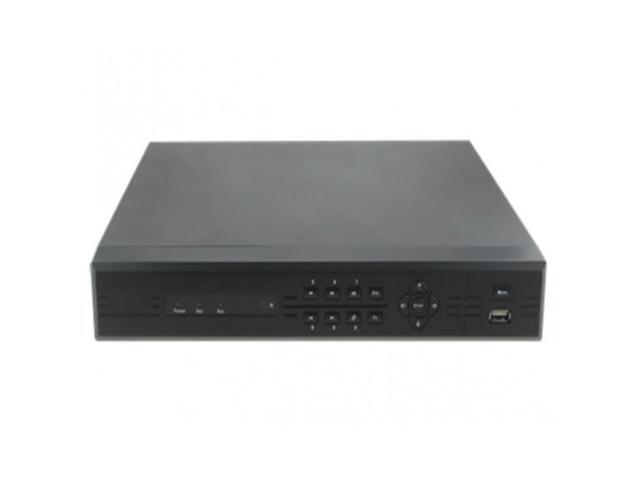

CCTV Security Camera HD-TVI 8CH Tribrid DVR System, HDMI, VGA, BNC, Analog, HD-TVI and IP Cameras Upto 3MP, Cloud ,P2P (No HDD)

CCTV Security Camera HD-TVI 8CH Tribrid DVR System, HDMI, VGA, BNC, Analog, HD-TVI and IP Cameras Upto 3MP, Cloud ,P2P (No HDD)
Part# TVR08

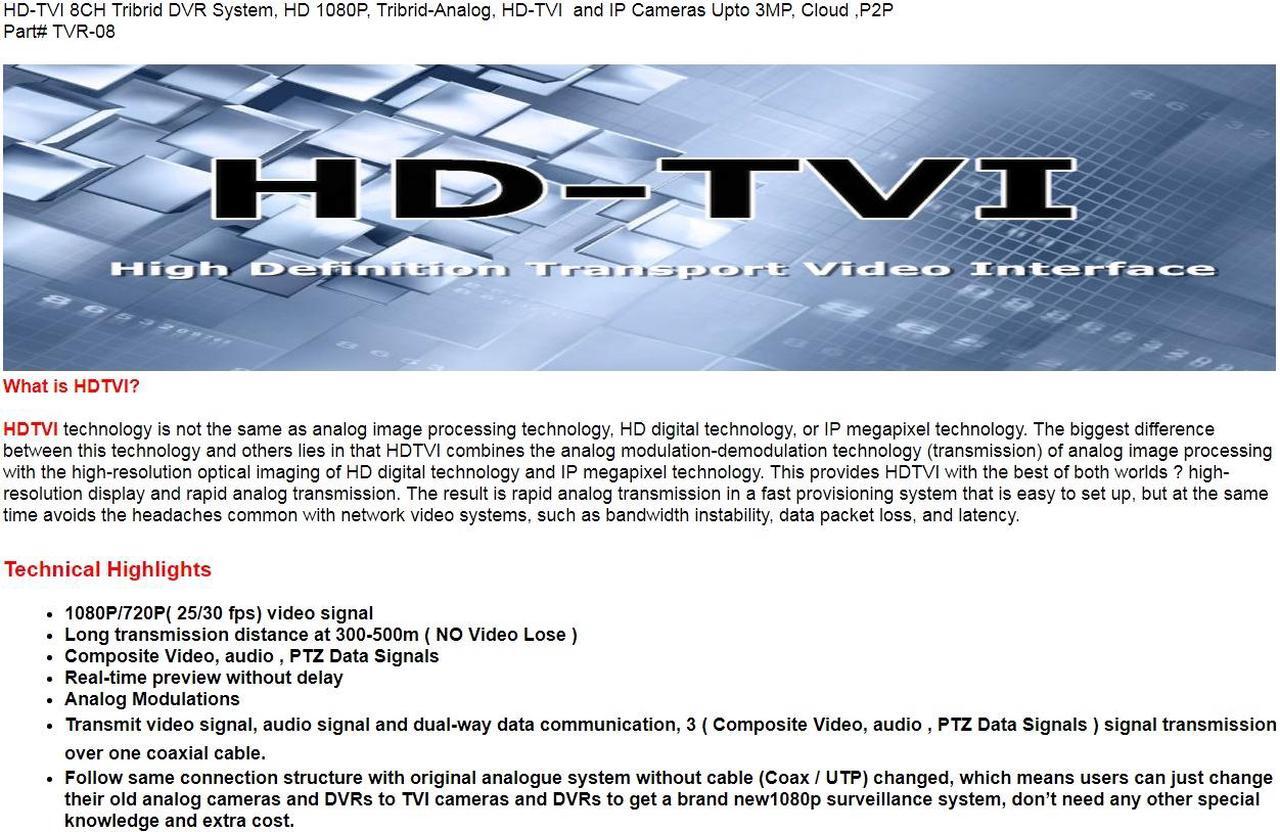

What is HDTVI?

HDTVI technology is not the same as analog image processing technology, HD digital technology, or IP megapixel technology. The biggest difference between this technology and others lies in that HDTVI combines the analog modulation-demodulation technology (transmission) of analog image processing with the high-resolution optical imaging of HD digital technology and IP megapixel technology. This provides HDTVI with the best of both worlds ? high-resolution display and rapid analog transmission. The result is rapid analog transmission in a fast provisioning system that is easy to set up, but at the same time avoids the headaches common with network video systems, such as bandwidth instability, data packet loss, and latency.

Technical Highlights

1080P/720P( 25/30 fps) video signal
Long transmission distance at 300-500m ( NO Video Lose )
Composite Video, audio , PTZ Data Signals
Real-time preview without delay
Analog Modulations
Transmit video signal, audio signal and dual-way data communication, 3 ( Composite Video, audio , PTZ Data Signals ) signal transmission over one coaxial cable.
Follow same connection structure with original analogue system without cable (Coax / UTP) changed, which means users can just change their old analog cameras and DVRs to TVI cameras and DVRs to get a brand new1080p surveillance system, don’t need any other special knowledge and extra cost.

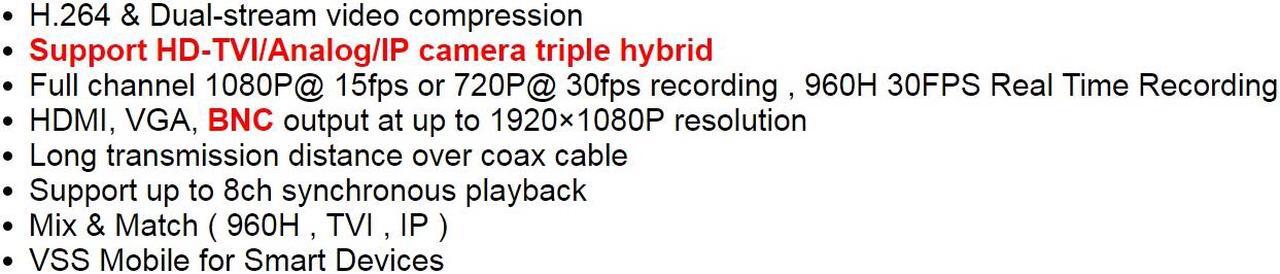

H.264 & Dual-stream video compression
Support HD-TVI/Analog/IP camera triple hybrid
Full channel 1080P@ 15fps or 720P@ 30fps recording , 960H 30FPS Real Time Recording
HDMI, VGA, BNC output at up to 1920×1080P resolution
Long transmission distance over coax cable
Support up to 8ch synchronous playback
Mix & Match ( 960H , TVI , IP )
VSS Mobile for Smart Devices
