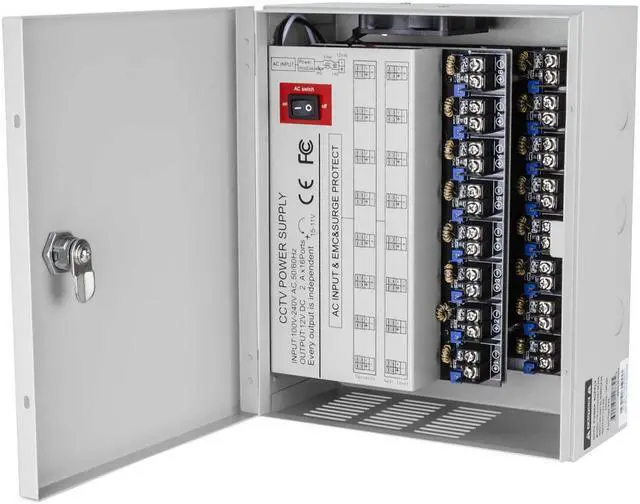

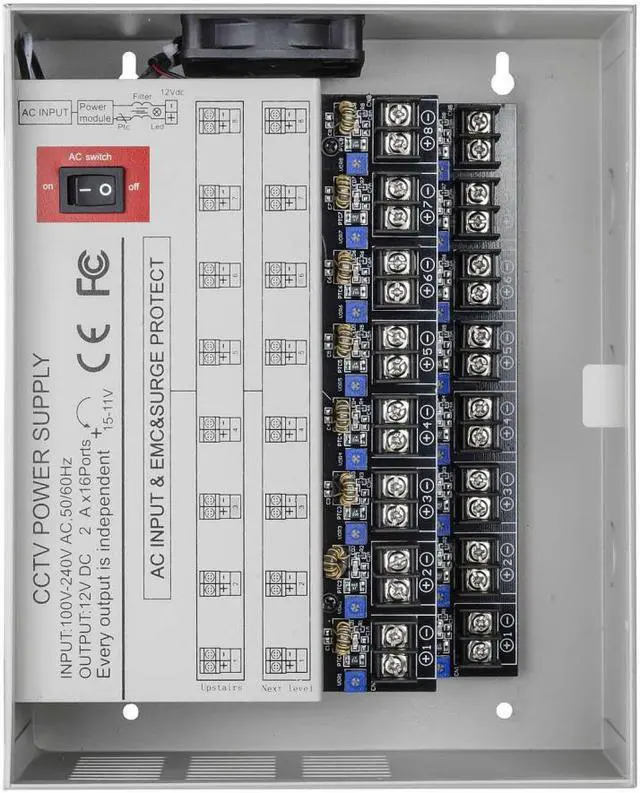

CCTV Camera Power Supply Distribution Box - 12V DC 16 channel 32 Amps UL Listed PTC Fused, Individual voltage adjustable for each output, 11-15V

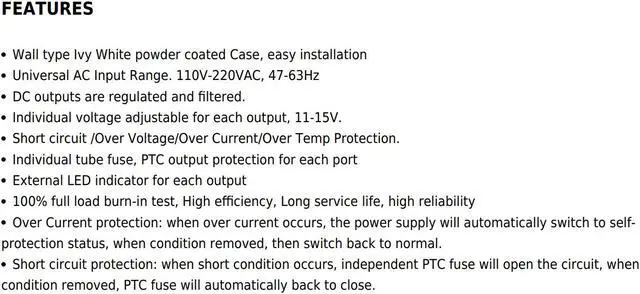

- CCTV Camera Power Supply Distribution Box - 12V DC 16 channel 32 Amps UL Listed PTC Fused, Individual voltage adjustable for each output, 11-15V
- Wall type Ivy White powder coated Case, easy installation
- Universal AC Input Range. 110V-220VAC, 47-63Hz
- DC outputs are regulated and filtered.
- Individual voltage adjustable for each output, 11-15V.
- Short circuit /Over Voltage/Over Current/Over Temp Protection.
- Individual tube fuse, PTC output protection for each port
- External LED indicator for each output
- 100% full load burn-in test, High efficiency, Long service life, high reliability
- Over Current protection: when over current occurs, the power supply will automatically switch to selfprotection status, when condition removed, then switch back to normal.
- Short circuit protection: when short condition occurs, independent PTC fuse will open the circuit, when
- condition removed, PTC fuse will automatically back to close.
- High voltage protection: when high voltage occurs
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CCTV Camera Power Supply Distribution Box - 12V DC 16 channel 32 Amps UL Listed PTC Fused, Individual voltage adjustable for each output, 11-15V
Wall type Ivy White powder coated Case, easy installation
Universal AC Input Range. 110V-220VAC, 47-63Hz
DC outputs are regulated and filtered.
Individual voltage adjustable for each output, 11-15V.
Short circuit /Over Voltage/Over Current/Over Temp Protection.
Individual tube fuse, PTC output protection for each port
External LED indicator for each output
100% full load burn-in test, High efficiency, Long service life, high reliability
Over Current protection: when over current occurs, the power supply will automatically switch to selfprotection status, when condition removed, then switch back to normal.
Short circuit protection: when short condition occurs, independent PTC fuse will open the circuit, when
condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs
Wall type Ivy White powder coated Case, easy installation
Universal AC Input Range. 110V-220VAC, 47-63Hz
DC outputs are regulated and filtered.
Individual voltage adjustable for each output, 11-15V.
Short circuit /Over Voltage/Over Current/Over Temp Protection.
Individual tube fuse, PTC output protection for each port
External LED indicator for each output
100% full load burn-in test, High efficiency, Long service life, high reliability
Over Current protection: when over current occurs, the power supply will automatically switch to selfprotection status, when condition removed, then switch back to normal.
Short circuit protection: when short condition occurs, independent PTC fuse will open the circuit, when
condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs
