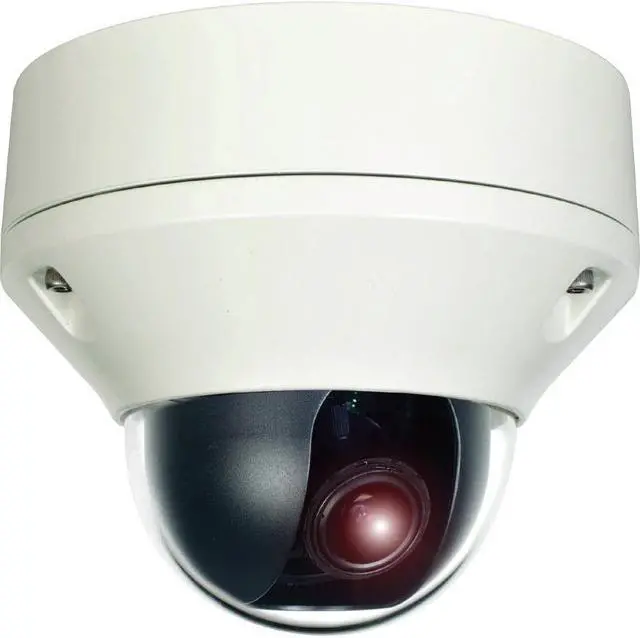

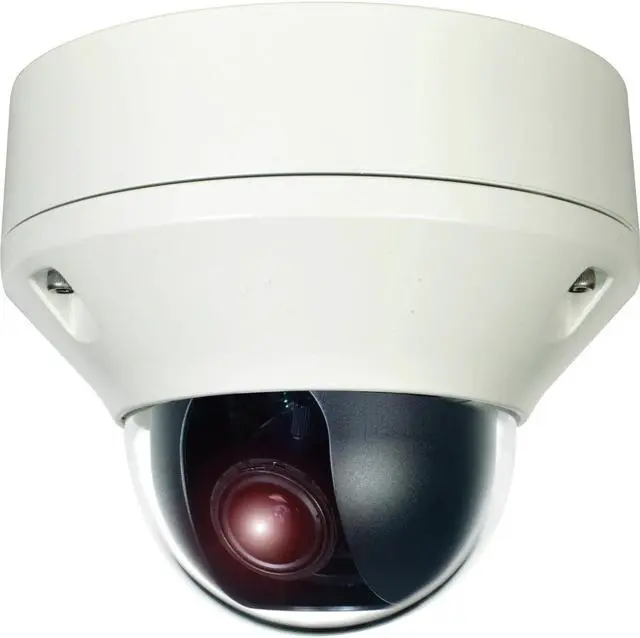

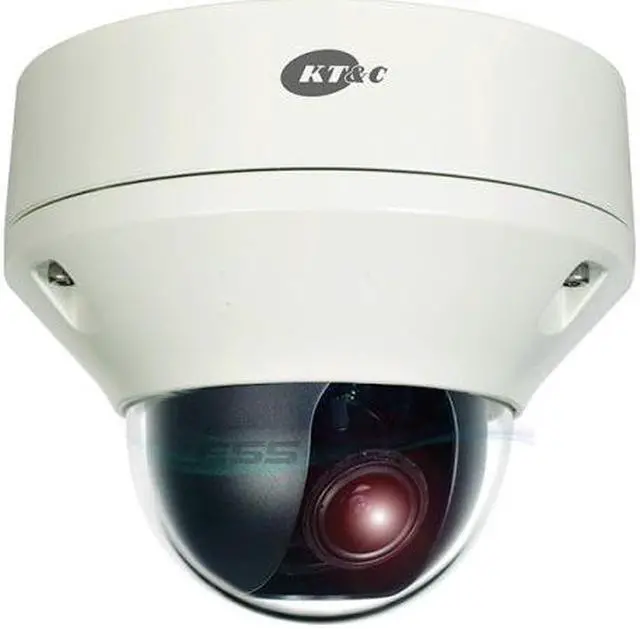

KT&C KEZ-c2DR28V12 OMNI EZ HD-TVI Camera 1080p Outdoor Vandal Dome, 2.8-12mm, Dual Power

1080p HD-TVI Outdoor Dome

Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality and
- useful digital zoom on live view and playback
- Field select 1080p or 720p
- Field select 30/25 Hz or 60/50 Hz
Operation over ‘almost any’ wire
- More than 1000 feet on standard RG59 coax
- More than 1500 feet on RG6
- More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair).
HD-TVI HD BNC main output
CVBS analog service video output inside housing
- Use standard hand held test monitors
- Convenient aim and focus; ease of service
1/3” Sony progressive scan CMOS sensor with .5 lux native light sensitivity
Varifocal Aspheric 2.8~12mm 2 Megapixel lens to capture the desired field of view
Digital Day/Night low light operation plus Digital Slow Shutter low light enhancement (More than 2~4X DSS should be limited to select applications.)
Simple and easy to use OSD setup menu
- Local 3-axis joystick inside access cover
- Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment)
- Digital Wide Dynamic Range to handle the most challenging of bright or unbalanced lighting conditions
- Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
- Adjustable 3D Noise Reduction to increase low light picture clarity andconserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery
- Defog improves image contrast in the presence of haze or smoke that obscures image details
- Image H/V flip and rotate, digital zoom and more
Dual voltage 24VAC/12VDC operation with low current draw (power supply sold separately)
IP68water proof, vandal proof construction
Operating temperature range of -40°F~140°F
Easy mounting using 3-Axis positioning for convenient wall or ceiling mounting
- Optional KA-RCMP1 for mounting to standard electrical boxes
- Optional KA-RCWM1 wall mounting arm
