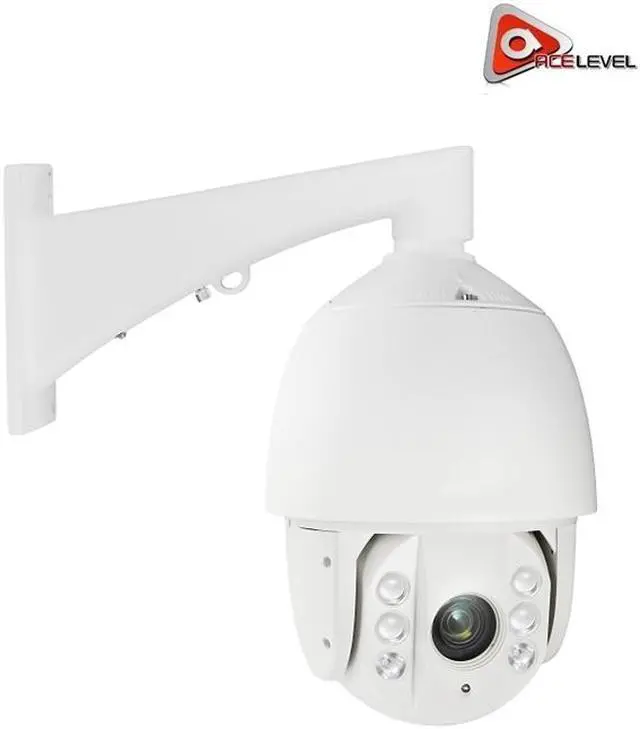

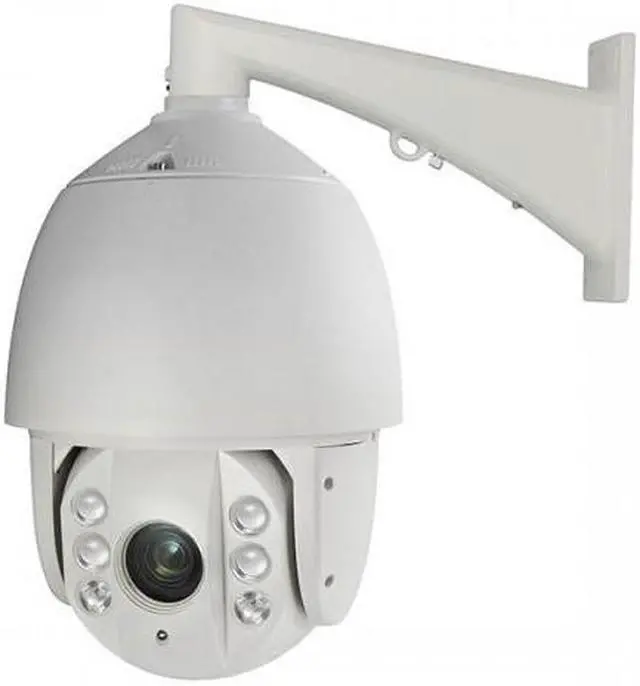

LTS Platinum IP PTZ High Speed Dome Camera 2.1MP

Image Sensor: 1/ 2.8 ’’ sensor
Effective Pixel: 2230K pixels Min.
Illumination:
Color: 0.05L ux@F 1.6, AGC ON;
B/W: 0.01L ux@F 1.6, AGC ON)
White Balance: Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/
Manual S/ N Ratio: = 50dB
Digital Noise Reduction: 3D DNR
Backlight compensation: BLC Wide
Dynamic Range: 128X Digital WDR
Shutter Speed: 1 ~ 1/10, 000s
Day & Night: IR Cut
Filter Focus Mode: Auto / Semiautomatic /
Manual Focal Length: 4.7 ~ 94mm, 20x
Zoom Speed: Approx. 3s (Optical Wide-Tele) Angle of
View: 58.3 ~ 3.2 degree (Wide-Tele) Min.
Working Distance: 10 ~ 1000mm (Wide-Tele)
Aperture Range: F 1.6 ~F 3.5 Pan/
Tilt Range:
Pan: 360° endless;
Tilt: -15° ~ 90° (Auto Flip) Pan/
Tilt Speed: Pan
Manual Speed: 0.1 ° ~ 160°/s,
Pan Preset Speed: 300°/s;
Tilt Manual Speed: 0.1 ° ~ 120°/s,
Tilt Preset Speed: 200°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples Number of
Preset: 256
Park action: Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
Patrol: 8 patrols, up to 32 presets per patrol
Power-off Memory: Support
IR Distance: Up to 100m
IR Intensity: Automatically adjusted, depending on the zoom ratio
Audio Input: Audio input (Line input), 2 ~ 2.4V [p-p]; output impedance: 1KO±10%
Audio Output: Line level, impedance: 600O
Ethernet: 10Base-T / 100Base-TX, RJ45 connector Max.
Image Resolution: 1920×1080
Frame Rate:
60Hz: 30 fps (1920×1080), 30 fps (1280×960), 30
fps (1280×720); 50Hz: 25 fps (1920×1080), 25 fps (1280×960), 25 fps (1280×720)
Image Compression: H.
264/MPEG4 Audio Compression: G. 711u /G. 711a /G.
726 Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1 x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View: Up to 6
Streams: Dual Streams Mini SD
Memory Card: Micro SD Slot, up to 32GB
User/Host Level: Up to 32 users, 3
Levels: Administrator, Camera control, live view only
Security Measures: User authentication (ID and PW), Host authentication (MAC address), IP address filtering
Application programming: Open-ended API, support Onvif, PSIA and
CGI Web Browser: IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 +
Working Temperature/ Humidity: -30 °C ~ 65°C (-22°F ~ 149°F); 90% or less
Power Supply: 24 VAC/ PoE+;
Power Consumption: Max. 30W/ 21W (IR
On/Off) Ingress protection level: IP66 standard; TVS 4, 000V lightning protection, surge protection and voltage transient protection
Impact Protection: IEC60068-275Eh, 20J; EN50102, up to
IK10 Dimensions: F220× 353.4 mm (F 8.66 ”× 13.91 ” without bracket)
Weight: 5.5 kg( 12.13I bs without bracket)
