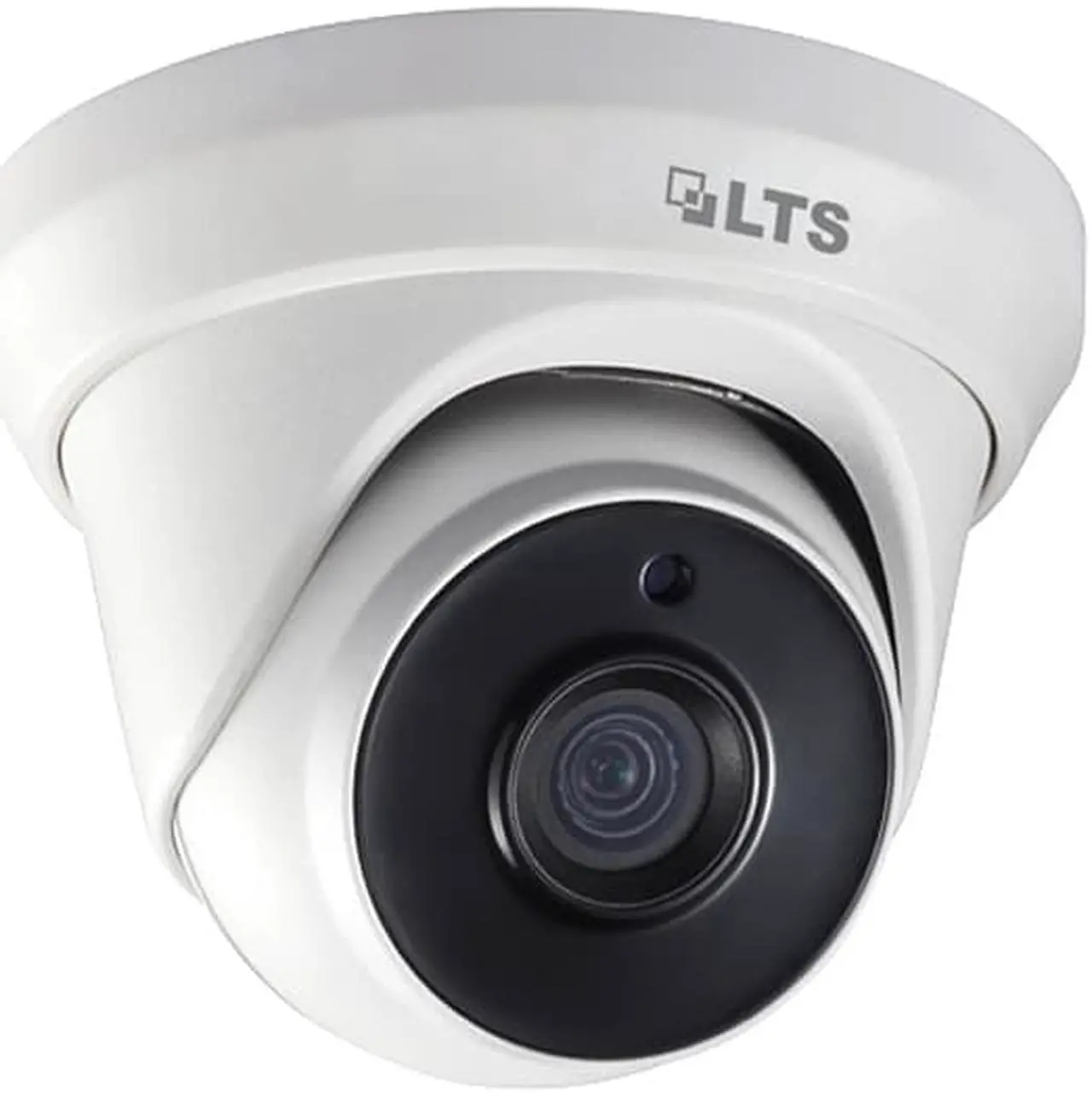

Camera Image Sensor 2.0 megapixel progressive scan CMOS Signal System PAL/NTSC Resolution 1920 (H) × 1080 (V)
Frame Rate PAL: 1080p@25fps
NTSC: 1080p@30fps Min.
illumination Color: 0.003 Lux @ (F 1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s Lens 2.8 mm fixed focal lens Horizontal Field of View 104° ( 2.8 mm) Lens Mount M12 Day & Night IR cut filter WDR (Wide Dynamic Range) = 130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° Menu Image Mode STD/HIGH-SAT AGC Support Day/Night Mode Auto/Color/BW (Black White) White Balance Auto/Manual AE (Auto Exposure) Mode WDR/BLC/HLC/Global Privacy Mask 4 programmable privacy masks Motion Detection 4 programmable motion areas NR (Noise Reduction) 3D/2D Language English Functions Brightness, Sharpness, Mirror, Smart IR, HLC Interface Video Output Switchable TVI/AHD/CVI/CVBS General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) Power Supply 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. Power Consumption Max. 3.4 W Ingress Protection IP67
Material Enclosure: Plastic
Main Body: Metal IR Range Up to 197ft (60 m) Communication Up the coax, TVI output Dimensions Ø 110 mm × 93.2 mm (F 4.33" × 3.67" ) Weight Approx. 315 g ( 0.69 lb. )
