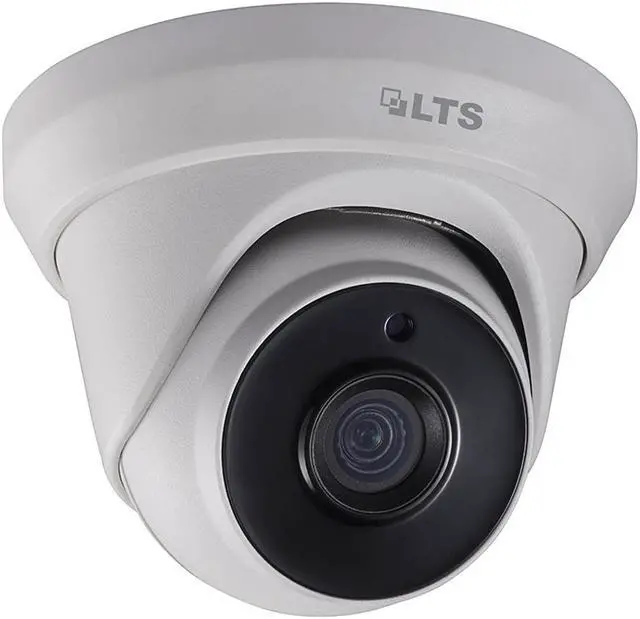

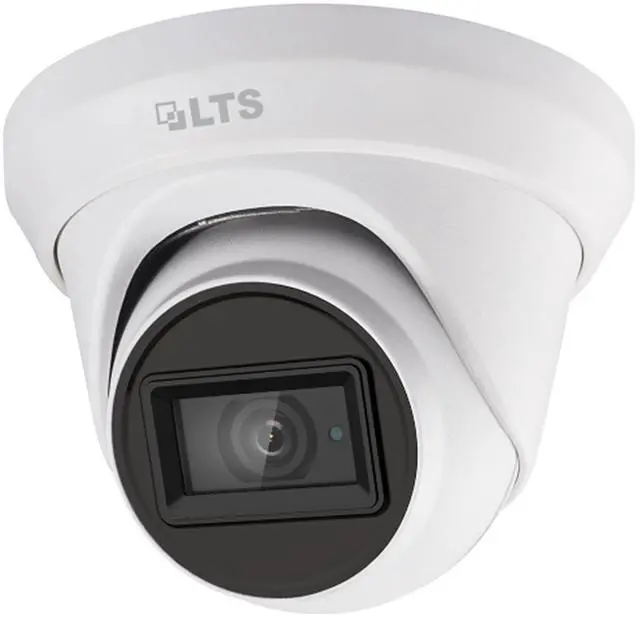

LTS CMHT1752WE-28F HD TVI 5MP 2.8mm Lens 131ft IR WDR Low-Light 4in1 Turrent Camera LTCMHT1752WE-28F

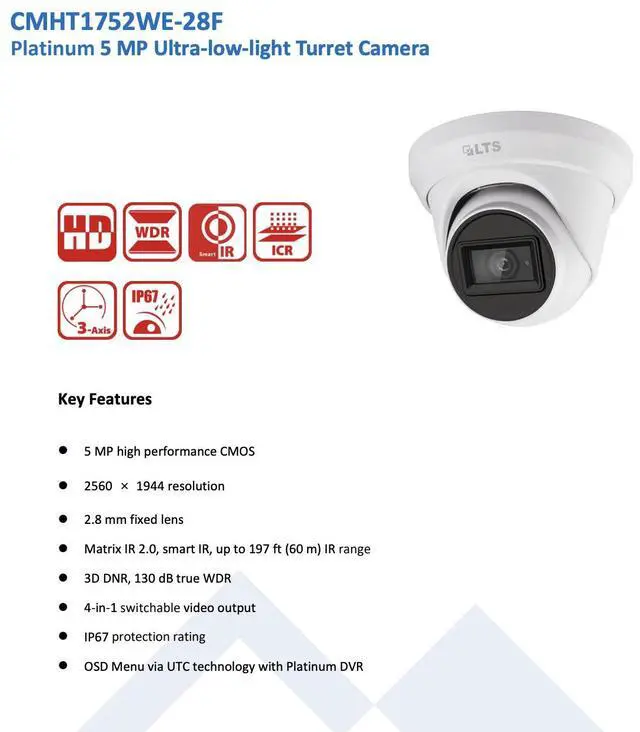

- 5 MP high performance CMOS, 2560 × 1944 resolution, 2.8 mm fixed lens, Matrix IR 2.0, smart IR, up to 197ft(60 m) IR distance, 3D DNR, 130 dB true WDR, 4 in 1 video output (switchable TVI/AHD/CVI/CVBS), IP67, OSD Menu via UTC technology with Platinum DVR
- 5 MP high performance CMOS
- 2560 × 1944 resolution
- 2.8 mm fixed lens
- Matrix IR 2.0, smart IR, up to 197ft(60 m) IR distance
- 3D DNR, 130 dB true WDR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
- OSD Menu via UTC technology with Platinum DVR
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

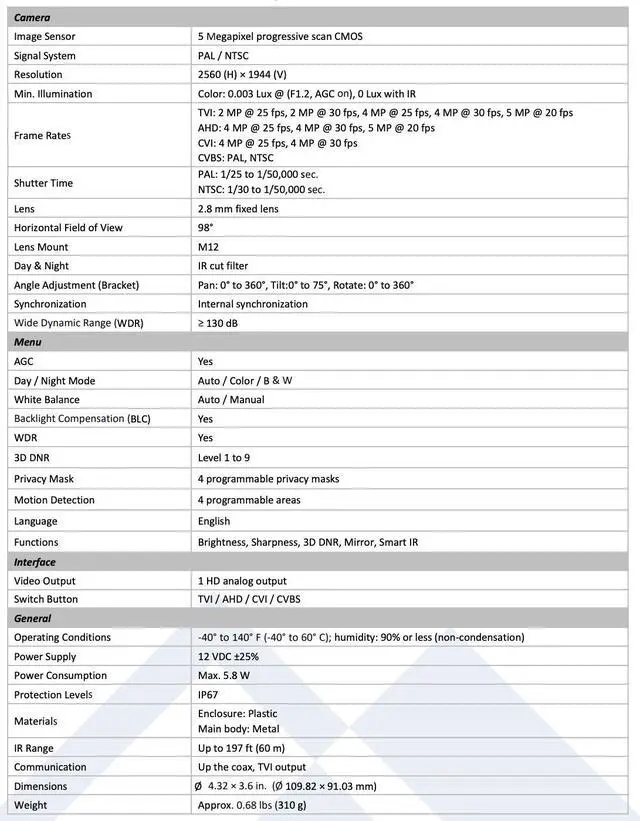

Camera Image Sensor 5 megapixel progressive scan CMOS Signal System PAL/NTSC Resolution 2560 (H) × 1944 (V) Min.
Illumination Color: 0.003 Lux@(F 1.2, AGC ON), 0 Lux with IR
Frame Rate TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5
MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5
MP@20fps CVI: 4 MP@25fps, 4
MP@30fps CVBS: PAL, NTSC
Shutter Time PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s Lens 2.8 mm fixed lens Horizontal Field of View 98° ( 2.8 mm) Lens Mount M12 Day & Night IR cut filter Angle Adjustment (Bracket)
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° Synchronization Internal synchronization WDR (Wide Dynamic Range) = 130 dB Menu AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto/Manual BLC (Backlight Compensation) Yes WDR Yes 3D DNR Level 1 to 9 Privacy Mask 4 programmable privacy masks Motion Detection 4 programmable areas Language English Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR Interface Video Output 1 HD analog output Switch Button TVI/AHD/CVI/CVBS General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) Power Supply 12 VDC ±25% Power Consumption Max. 5.8 W Protection Level IP67
Material Enclosure: Plastic

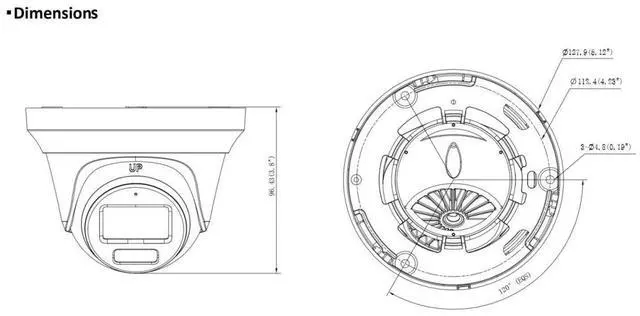

Main body: Metal IR Range Up to 197ft (60 m) Communication Up the coax, TVI output Dimensions Ø 109.82 mm × 91.03 mm (Ø 4.32" × 3.6" ) Weight Approx. 310 g ( 0.68 lb. )
Illumination Color: 0.003 Lux@(F 1.2, AGC ON), 0 Lux with IR
Frame Rate TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5
MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5
MP@20fps CVI: 4 MP@25fps, 4
MP@30fps CVBS: PAL, NTSC
Shutter Time PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s Lens 2.8 mm fixed lens Horizontal Field of View 98° ( 2.8 mm) Lens Mount M12 Day & Night IR cut filter Angle Adjustment (Bracket)
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° Synchronization Internal synchronization WDR (Wide Dynamic Range) = 130 dB Menu AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto/Manual BLC (Backlight Compensation) Yes WDR Yes 3D DNR Level 1 to 9 Privacy Mask 4 programmable privacy masks Motion Detection 4 programmable areas Language English Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR Interface Video Output 1 HD analog output Switch Button TVI/AHD/CVI/CVBS General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) Power Supply 12 VDC ±25% Power Consumption Max. 5.8 W Protection Level IP67
Material Enclosure: Plastic
Main body: Metal IR Range Up to 197ft (60 m) Communication Up the coax, TVI output Dimensions Ø 109.82 mm × 91.03 mm (Ø 4.32" × 3.6" ) Weight Approx. 310 g ( 0.68 lb. )
