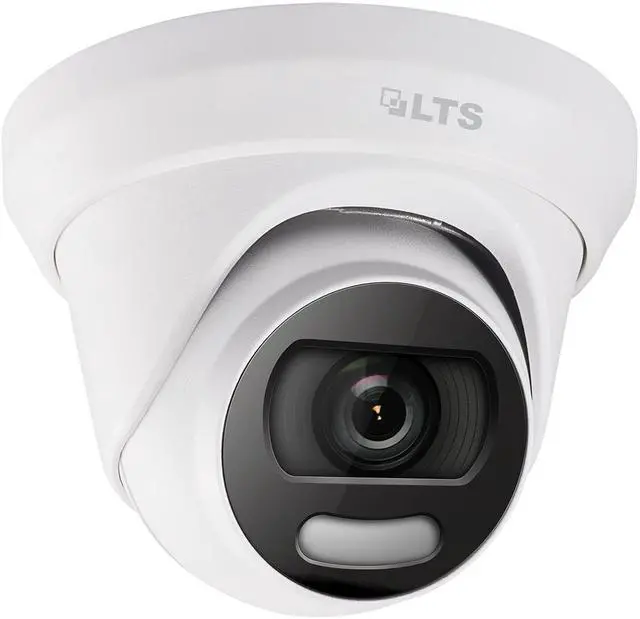

LTS CMHT1752W-28CF HD TVI 5MP 24 Color 2.8mm 66ft IR WDR 4in1 Video Turret Camera LTCMHT1752W-28CF

Camera

Image Sensor


5 MP CMOS

Resolution


2560 (H) × 1944 (V)



Frame Rate


5MP@20fps

Min. illumination


0.0005 Lux @ (F 1.0, AGC ON), 0 Lux with white light

Shutter Time


PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Slow Shutter


Max. 16 times

Lens


2.8 mm fixed lens

Field of View


2.8 mm,
horizontal FOV: 104°, vertical
FOV: 54°, diagonal FOV: 126°

Lens Mount


M16

Day & Night


Color

WDR (Wide Dynamic Range)


120 dB

Angle Adjustment


Pan: 0° to 360°;
Tilt: 0° to 75°; Rotate: 0° to 360°

Menu

Image Mode


STD/HIGH SAT

AGC


Yes

White Balance


Auto/Manual

HLC


Yes

BLC (Backlight Compensation)


Yes

Privacy Mask


4 programmable privacy masks

Motion Detection


4 programmable areas

WDR


Yes

Functions


Brightness, Sharpness, 3D DNR, Mirror, Smart light

Interface

Video Output


Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions


-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)



Power Supply


12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Power Consumption


Max. 3 W

Protection Level


IP67



Material


Main Body: Metal Mounting Base: Plastic

White Light


Up to 66ft (20 m)

Dimensions


Ø 109.82 mm × 85.56 mm ( Ø 4.32" × 3.37" )

Weight


Approx. 336 g ( 0.74 lb. )
