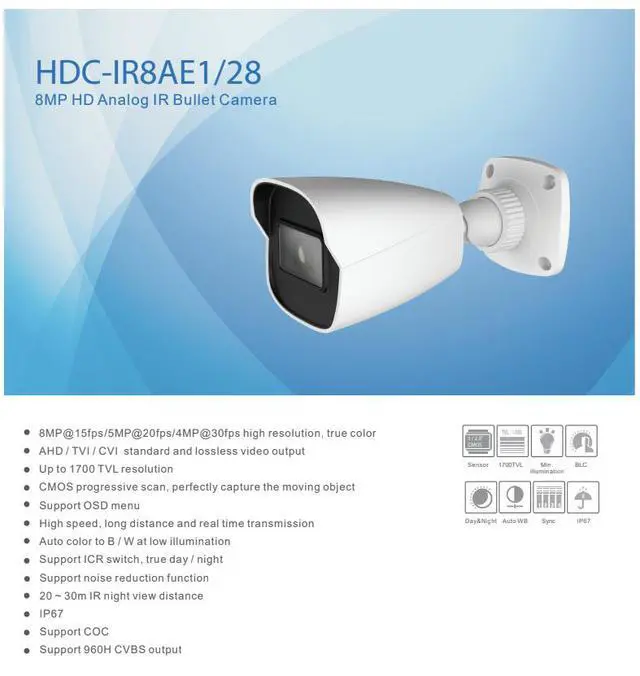

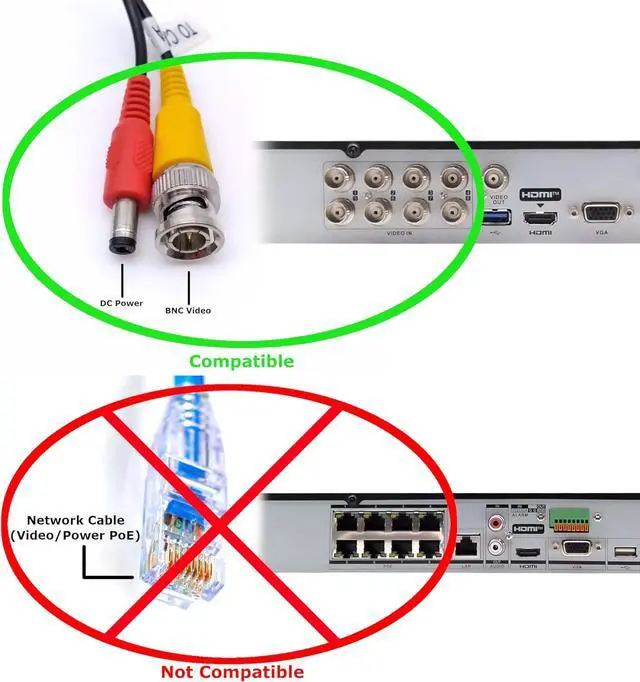

ENS HDC-IR8AE1/28 8MP 2.8mm HD Analog Bullet Camera, 4K AHD/TVI/CVI/CVBS, 1700TVL, Smart IR 98ft, True Day Night ICR, OSD Coax Control, IP67, 12V DC (Analog DVR Required)

Overview

The ENS HDC-IR8AE1/28 is an 8MP HD analog bullet camera that delivers 4K-class resolution over standard coaxial cable an efficient way to upgrade image quality on an existing analog system without rewiring a building. It outputs AHD, TVI, CVI, and CVBS, so it drops into virtually any modern HD analog DVR, and it delivers up to 1700 TVL of resolution at 3840 × 2160. A 1/2.5" progressive-scan CMOS sensor captures moving subjects cleanly, and a true ICR mechanical filter switches between accurate daytime color and monochrome night mode, with Smart IR reaching 2030 m (6698 ft) while preventing the washed-out overexposure that plagues cheaper IR cameras at close range. The camera's OSD menu is controlled over the coax itself via COC, so settings can be adjusted from the recorder with no separate control cable. Backed by BLC, 3D noise reduction, auto white balance, and auto defect correction, in an IP67-rated housing rated from 30°C to 50°C. Powered by 12V DC, drawing under 5W with IR active.

Key Features

1. 8MP Resolution Over Coax 3840 × 2160 at up to 1700 TVL, delivering 4K-class detail on existing coaxial cable with no network rewiring.
2. Four Output Standards AHD, TVI, CVI, and 960H CVBS, compatible with virtually any modern HD analog DVR.
3. Flexible Frame Rates 8MP at 15fps, 5MP at 20fps, or 4MP at 30fps choose resolution or smoothness to suit the scene.
4. Smart IR to 2030 m Automatically modulates IR intensity to prevent overexposed, washed-out subjects at close range.
5. True Day/Night with ICR Mechanical infrared cut filter for accurate daytime color and clean monochrome at night.
6. OSD via Coax Control (COC) Adjust camera settings from the DVR over the same coaxial cable; no separate control run needed.
7. Progressive Scan CMOS 1/2.5" sensor captures moving subjects without the interlacing artifacts of older analog cameras.
8. Image Processing BLC, 3D noise reduction, auto white balance, auto defect correction, plus adjustable saturation, sharpness, and contrast.
9. IP67 Weatherproof Sealed against dust and water, operating from 30°C to 50°C (22°F to 122°F).
10. Low Power Draw Under 2W with IR off, under 5W with IR on, from a standard 12V DC supply.
11. Simple Retrofit An easy resolution upgrade for existing analog installations at a fraction of the cost of converting to IP.

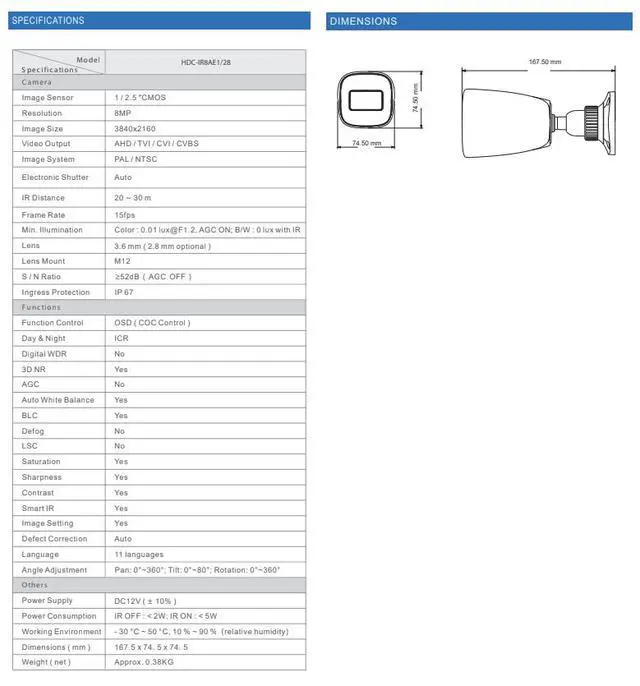

Specifications

1. Model: HDC-IR8AE1/28 | Type: HD Analog Bullet Camera
2. Resolution: 8MP (3840 × 2160) | up to 1700 TVL
3. Frame Rate: 15fps at 8MP; 20fps at 5MP; 30fps at 4MP
4. Image Sensor: 1/2.5" progressive scan CMOS | S/N Ratio: 52 dB (AGC off)
5. Video Output: AHD / TVI / CVI / CVBS (960H) | Image System: PAL / NTSC
6. Lens: 2.8 mm, M12 mount
7. Min. Illumination: Color 0.01 lux @ F1.2 (AGC on); B&W 0 lux with IR
8. IR Distance: 2030 m (6698 ft) | Smart IR: Yes
9. Day/Night: ICR true day/night switching
10. Electronic Shutter: Auto
11. Image: BLC, 3D NR, auto white balance, auto defect correction, adjustable saturation/sharpness/contrast
12. Not supported: Digital WDR, AGC, defog, LSC
13. Function Control: OSD via COC (coax control) | 11 languages
14. Power: DC 12V (±10%) | Consumption: <2W IR off, <5W IR on
15. Ingress Protection: IP67
16. Working Environment: 30°C to 50°C (22°F to 122°F), 1090% RH
17. Dimensions: 167.5 × 74.5 × 74.5 mm | Weight: approx. 0.38 kg (0.84 lbs)
18. Angle Adjustment: Pan 0360°, Tilt 080°, Rotation 0360°
