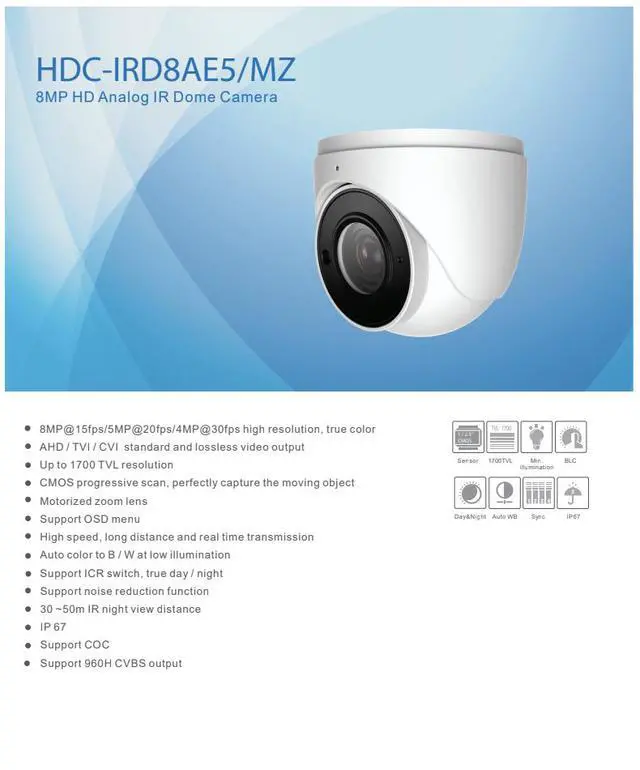

ENS Titanium HDC-IRD8AE5/MZ 8MP 4K HD Analog Dome Camera, 2.8-12mm Motorized Zoom, 164ft IR Night Vision, AHD/TVI/CVI/CVBS 4-in-1, 1700TVL, Smart IR, Coax Control, IP67

Overview

The ENS Titanium HDC-IRD8AE5/MZ is an 8MP HD analog dome for sites running coax rather than Ethernet an upgrade path that gets 4K-class resolution out of existing cabling without pulling new network runs. It outputs AHD, TVI, CVI, and 960H CVBS, so it drops into virtually any HD analog DVR, and at up to 1700 TVL it resolves detail well beyond what legacy analog cameras deliver. Resolution scales with frame rate needs: 8MP at 15fps, 5MP at 20fps, or 4MP at a full 30fps.

The 2.812 mm motorized zoom lens is the practical advantage here. Field of view adjusts remotely through the DVR using COC coax control, so setting or re-framing a camera doesn't mean climbing a ladder and reopening a sealed housing a real time saver on ceiling-mounted or high installs.

A 1/2.5" progressive scan CMOS sensor captures moving subjects cleanly without the tearing interlaced sensors produce, with 0.01 lux color sensitivity at F1.2. Smart IR reaches 3050 m and modulates output to prevent close-range subjects from washing out, with true ICR day/night switching handling the transition. The IP67 housing operates from -30°C to 50°C and draws under 4.5W with IR active on standard 12V DC.

Key Features

8MP Resolution Over Coax 3840 × 2160 on existing analog cabling; 5MP at 20fps or 4MP at 30fps when frame rate matters more.

4-in-1 Output AHD, TVI, CVI, and 960H CVBS in one camera, compatible with essentially any HD analog DVR.

Up to 1700 TVL Resolution far beyond legacy analog, with lossless true-color video output.

2.812 mm Motorized Zoom Adjust field of view remotely instead of reopening the housing on a ladder.

COC Coax Control Drive the OSD menu and lens adjustment straight from the DVR over the video cable, no separate control wiring.

3050 m Smart IR Up to 164 ft of night reach, with Smart IR preventing washout on close subjects.

Progressive Scan CMOS 1/2.5" sensor captures moving objects without interlacing artifacts.

True Day/Night ICR Mechanical filter switch for accurate color by day and full IR sensitivity at night.

0.01 Lux Low Light Color capture down to 0.01 lux at F1.2; 0 lux with IR active.

3D Noise Reduction Cleaner low-light images and lower storage consumption.

Low Power Draw Under 2W with IR off, under 4.5W with IR on, from standard DC 12V.

Weatherproof Dome IP67 rated, operating from -30°C to 50°C, with 3-axis adjustment.

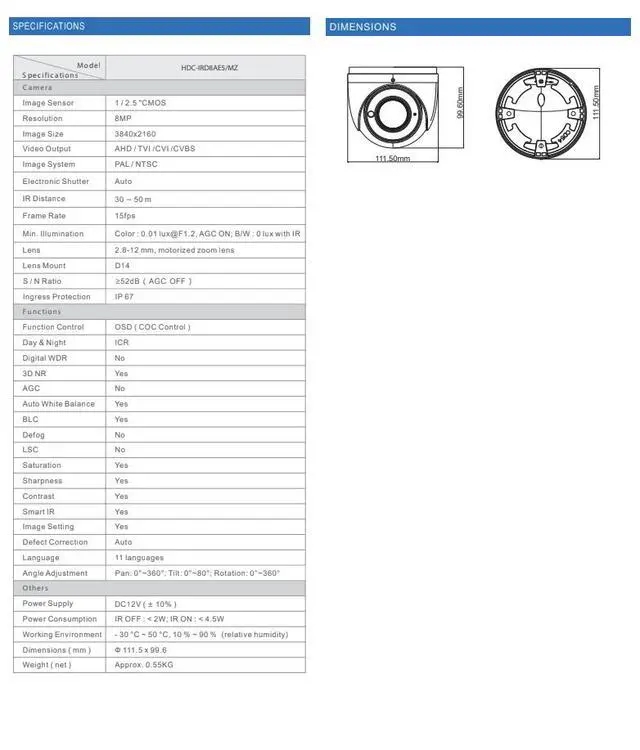

Specifications

Model: HDC-IRD8AE5/MZ | Type: HD Analog Dome, Motorized Zoom

Resolution: 8MP (3840 × 2160) | Up to 1700 TVL

Frame Rate: 8MP at 15fps | 5MP at 20fps | 4MP at 30fps

Image Sensor: 1/2.5" progressive scan CMOS | S/N Ratio: 52 dB (AGC off)

Video Output: AHD / TVI / CVI / CVBS (960H) | PAL / NTSC

Lens: 2.812 mm motorized zoom, D14 mount

Min. Illumination: Color 0.01 lux @ F1.2 (AGC on); B/W 0 lux with IR

IR Distance: 3050 m (98164 ft) with Smart IR

Day/Night: True day/night ICR

Electronic Shutter: Auto

Image: 3D NR, BLC, auto white balance, saturation, sharpness, contrast, auto defect correction

Control: OSD menu via COC (control over coax) | 11 languages

Power: DC 12V (±10%) | Consumption: <2W IR off, <4.5W IR on

Ingress Protection: IP67

Operating Conditions: -30°C to 50°C, 10%90% RH

Dimensions: Ø111.5 × 99.6 mm | Weight: approx. 0.55 kg (1.21 lbs)

Installation: Pan 0360°, Tilt 080°, Rotation 0360°
