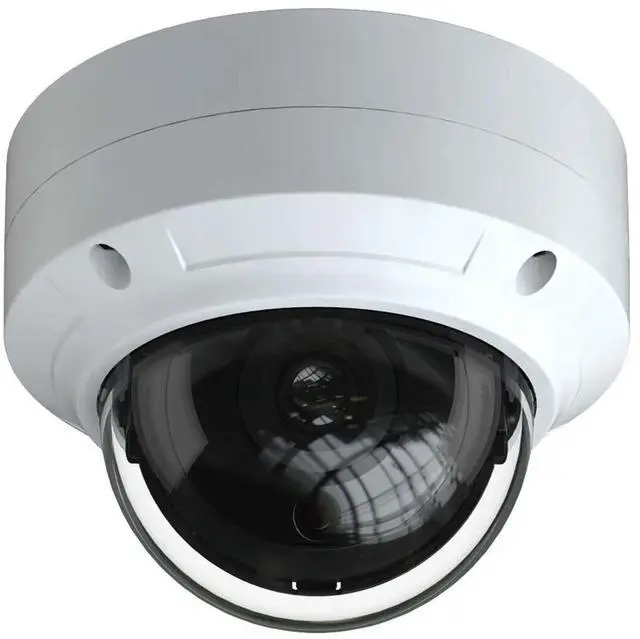

ENS Titanium HDC-VPD8AE1/28 8MP 4K HD Analog Vandal Dome Camera, 2.8mm Lens, 66ft IR Night Vision, AHD/TVI/CVI/CVBS 4-in-1, 1700TVL, WDR, Coax Control, IP66 IK10

Overview

The ENS Titanium HDC-VPD8AE1/28 is an 8MP HD analog vandal dome for sites running coax rather than Ethernet a way to get 4K-class resolution out of existing cabling without pulling new network runs. It outputs AHD, TVI, CVI, and 960H CVBS, so it drops into virtually any HD analog DVR, and at up to 1700 TVL it resolves detail well beyond what legacy analog cameras deliver. Resolution scales with frame rate needs: 8MP at 15fps, 5MP at 20fps, or 4MP at a full 30fps.

The IK10-rated housing is the reason to choose this model over a standard dome. It withstands deliberate impact, making it the right pick for schools, transit areas, apartment corridors, retail entrances, and anywhere the camera itself is likely to be a target. IP66 sealing handles weather on top of that.

A progressive scan CMOS sensor captures moving subjects cleanly without the tearing interlaced sensors produce, with WDR balancing harsh backlighting at doorways and glass frontages. True ICR day/night switching delivers accurate color by day and full infrared sensitivity at night, with 1020 m of IR reach for close and medium-range coverage. Noise reduction keeps low-light footage clean. The OSD menu is driven over the coax itself through COC control, so setup and adjustment happen from the DVR without separate control wiring.

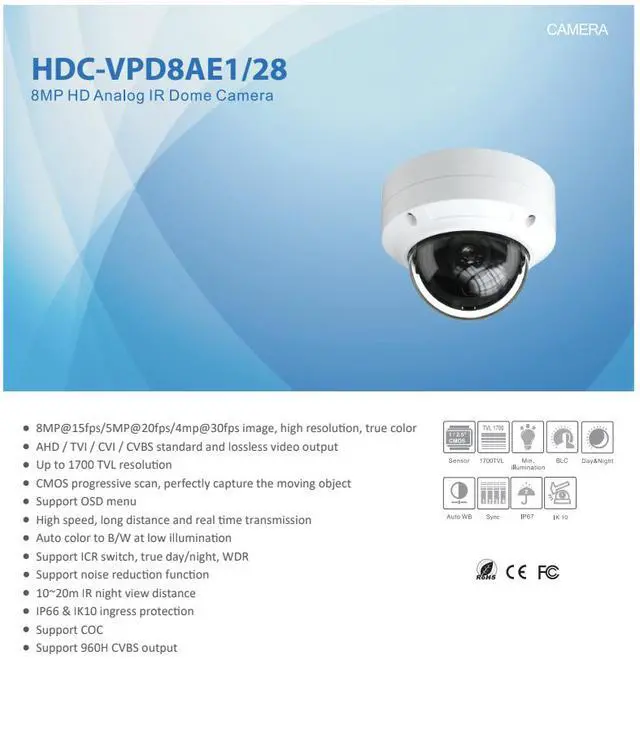

Key Features

8MP Resolution Over Coax 3840 × 2160 on existing analog cabling; 5MP at 20fps or 4MP at 30fps when frame rate matters more.

IK10 Vandal Resistance Impact-rated housing for exposed, reachable, or high-traffic installs.

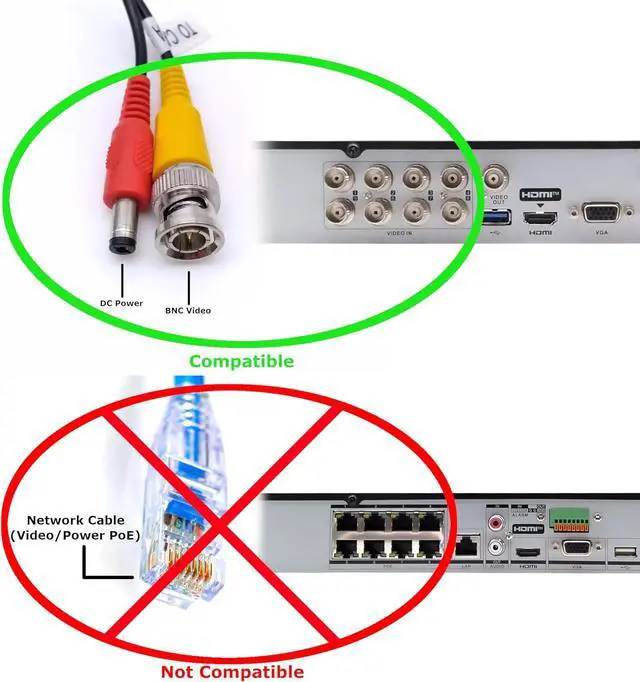

4-in-1 Output AHD, TVI, CVI, and 960H CVBS in one camera, compatible with essentially any HD analog DVR.

Up to 1700 TVL Resolution far beyond legacy analog, with lossless true-color video output.

WDR Balances harsh backlighting at entrances, doorways, and glass frontages.

True Day/Night ICR Mechanical filter switch for accurate color by day and full IR sensitivity at night; auto color-to-B/W at low light.

1020 m IR Night Vision Up to 66 ft of reach, suited to entryways, corridors, and close-range coverage.

Progressive Scan CMOS Captures moving objects without interlacing artifacts.

Noise Reduction Cleaner low-light images and lower storage consumption.

COC Coax Control Drive the OSD menu straight from the DVR over the video cable, no separate control wiring.

Weather and Impact Rated IP66 and IK10 protection in one housing.

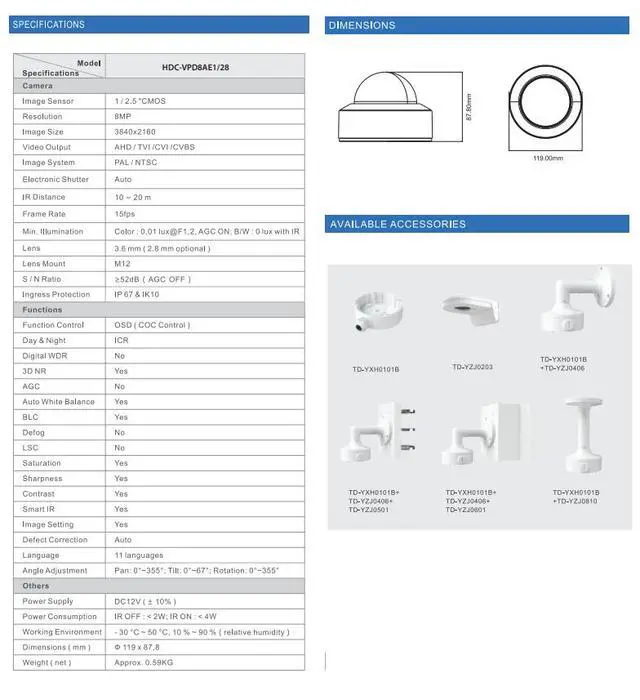

Specifications

Model: HDC-VPD8AE1/28 | Type: HD Analog Vandal Dome, Fixed Lens

Resolution: 8MP (3840 × 2160) | Up to 1700 TVL

Frame Rate: 8MP at 15fps | 5MP at 20fps | 4MP at 30fps

Image Sensor: Progressive scan CMOS

Video Output: AHD / TVI / CVI / CVBS (960H)

Lens: 2.8 mm fixed

IR Distance: 1020 m (3366 ft)

Day/Night: True day/night ICR, auto color to B/W at low illumination

Image: WDR, noise reduction

Control: OSD menu via COC (control over coax)

Ingress Protection: IP66 & IK10
