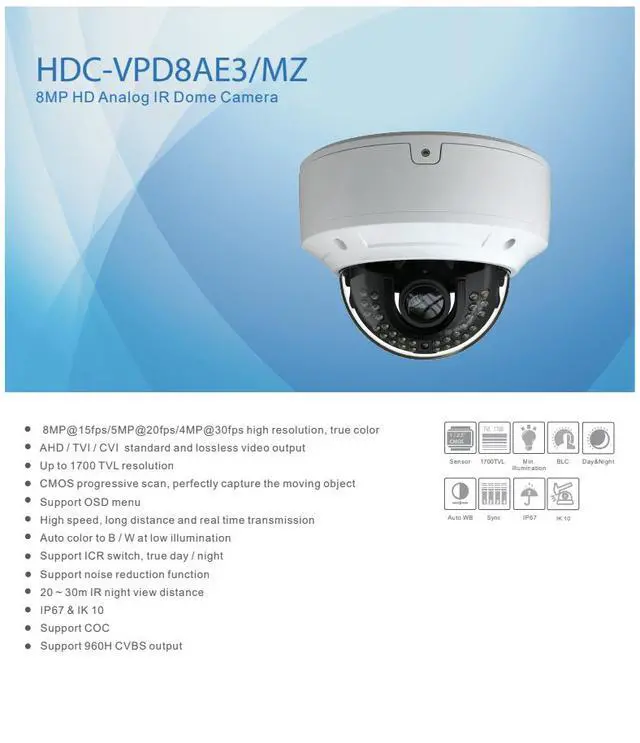

ENS Titanium HDC-VPD8AE3/MZ 8MP 4K HD Analog Vandal Dome Camera, 2.8-12mm Motorized Zoom, 98ft IR Night Vision, AHD/TVI/CVI/CVBS 4-in-1, 1700TVL, Smart IR, Coax Control, IP67 IK10

Overview

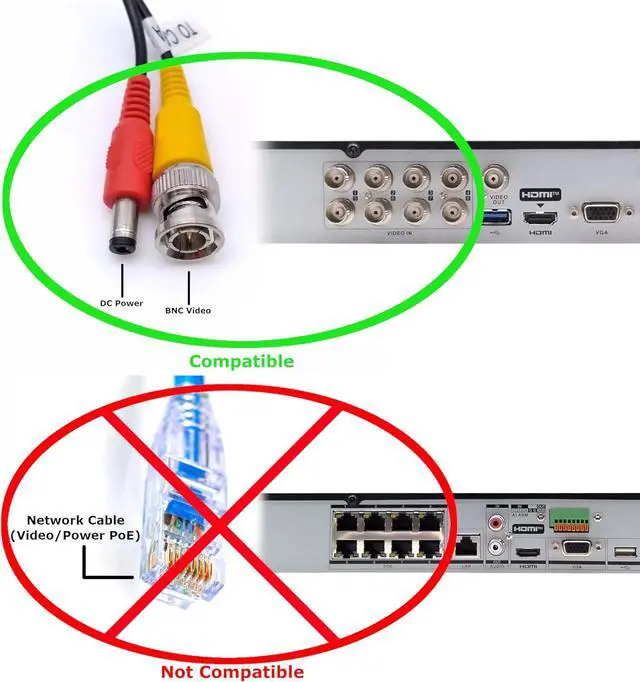

The ENS Titanium HDC-VPD8AE3/MZ is an 8MP HD analog vandal dome for sites running coax rather than Ethernet a way to get 4K-class resolution out of existing cabling without pulling new network runs. It outputs AHD, TVI, CVI, and 960H CVBS, so it drops into virtually any HD analog DVR, and at up to 1700 TVL it resolves detail well beyond what legacy analog cameras deliver. Resolution scales with frame rate needs: 8MP at 15fps, 5MP at 20fps, or 4MP at a full 30fps.

Two things separate this model from a standard analog dome. The IK10-rated housing withstands deliberate impact, making it the right pick for schools, transit areas, apartment corridors, retail entrances, and anywhere the camera itself is likely to be a target. And the 2.812 mm motorized zoom lens adjusts remotely through the DVR using COC coax control, so framing or re-framing a camera doesn't mean climbing a ladder and reopening a sealed housing a real time saver on ceiling-mounted or high installs where vandal resistance is the point.

A 1/2.5" progressive scan CMOS sensor captures moving subjects cleanly without the tearing interlaced sensors produce, with 0.01 lux color sensitivity at F1.2. Smart IR reaches 2030 m and modulates output to prevent close-range subjects from washing out, with true ICR day/night switching handling the transition. The IP67 housing operates from -30°C to 50°C and draws under 5W with IR active on standard 12V DC.

Key Features

8MP Resolution Over Coax 3840 × 2160 on existing analog cabling; 5MP at 20fps or 4MP at 30fps when frame rate matters more.

IK10 Vandal Resistance Impact-rated housing for exposed, reachable, or high-traffic installs.

2.812 mm Motorized Zoom Adjust field of view remotely instead of reopening a sealed vandal housing on a ladder.

4-in-1 Output AHD, TVI, CVI, and 960H CVBS in one camera, compatible with essentially any HD analog DVR.

Up to 1700 TVL Resolution far beyond legacy analog, with lossless true-color video output.

COC Coax Control Drive the OSD menu and lens adjustment straight from the DVR over the video cable, no separate control wiring.

2030 m Smart IR Up to 98 ft of night reach, with Smart IR preventing washout on close subjects.

Progressive Scan CMOS 1/2.5" sensor captures moving objects without interlacing artifacts.

True Day/Night ICR Mechanical filter switch for accurate color by day and full IR sensitivity at night.

0.01 Lux Low Light Color capture down to 0.01 lux at F1.2; 0 lux with IR active.

3D Noise Reduction Cleaner low-light images and lower storage consumption.

Low Power Draw Under 2W with IR off, under 5W with IR on, from standard DC 12V.

Weather and Impact Rated IP67 and IK10 protection in one housing, operating from -30°C to 50°C.

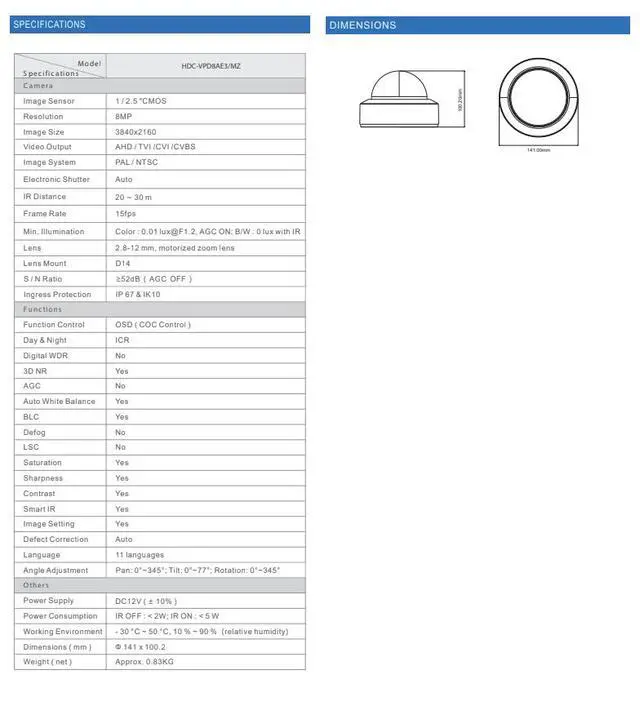

Specifications

Model: HDC-VPD8AE3/MZ | Type: HD Analog Vandal Dome, Motorized Zoom

Resolution: 8MP (3840 × 2160) | Up to 1700 TVL

Frame Rate: 8MP at 15fps | 5MP at 20fps | 4MP at 30fps

Image Sensor: 1/2.5" progressive scan CMOS | S/N Ratio: 52 dB (AGC off)

Video Output: AHD / TVI / CVI / CVBS (960H) | PAL / NTSC

Lens: 2.812 mm motorized zoom, D14 mount

Min. Illumination: Color 0.01 lux @ F1.2 (AGC on); B/W 0 lux with IR

IR Distance: 2030 m (6598 ft) with Smart IR

Day/Night: True day/night ICR, auto color to B/W at low illumination

Electronic Shutter: Auto

Image: 3D NR, BLC, auto white balance, saturation, sharpness, contrast, auto defect correction

Control: OSD menu via COC (control over coax) | 11 languages

Power: DC 12V (±10%) | Consumption: <2W IR off, <5W IR on

Ingress Protection: IP67 & IK10

Operating Conditions: -30°C to 50°C, 10%90% RH

Dimensions: Ø141 × 100.2 mm | Weight: approx. 0.83 kg (1.83 lbs)

Installation: Pan 0345°, Tilt 077°, Rotation 0345°
