VisiPower 10 Inch Cable Length 100m/328ft Underwater Fishing Video Camera Fish Finder IP68 Waterproof 20 LEDs 360 Degree Rotating Dome Rotating Panoramic viewing Camera

10 Inch 100m/328ft Underwater Fishing Video Camera Fish Finder IP68 Waterproof 20 LEDs 360 Degree Rotating Dome Rotating Panoramic viewing Camera

Fishing Camera Description:
This product you are watching now is the latest popular, fashional, good looking and convenient Underwater Video Camera System. It not only has a large and color screen, but also has a height definition camera which has HD CCD 800TV lines. total 20pcs: 6pcs white LED + 12pcs IR LED + 2pcs blue LED (for luring fish);
LED switch mode: only white LED ononly IR LED ononly blue LED onall LED onall LED off, obtain more better quality image



Product Description
Underwater Video CCD Camera with Vertical rotation 0-180 degree; Horizontal rotating0-360 degree
6pcs white LED + 12pcs IR LED + 2pcs blue LED (for luring fish)
Power Box: Battery status
For underwater exploration/Fishing/Well inspection!
is an underwater video camera withVertical rotation 0-180 degree; Horizontal rotating0-360 degree pan head for viewing objects in all directions. It is a CCD camera, very sharp image. It was specially designed for underwater activities such as sea bottom exploration, ocean fishing and ice fishing, well inspection, etc.

Typical applications are:
Underwater exploration
Ocean/Ice/Lake fishing
Swimming/diving/snorkeling
Well/pipe inspection


Key features:

1. High-quality CCD color video camera with 1/3" HD CCD

2.
Control Box: Vertical Rotate 0-180 by manually; Horizontal rotate 0-360 by Auto or manually
3.5 speed adjustment from fast to slow for different applications

4. All LEDS can be turned off/on for best image quality under different
5.20 m heavy-duty gauge anti-corrosion cable

6. Aluminum box
Size: 375*265*135 (MM)

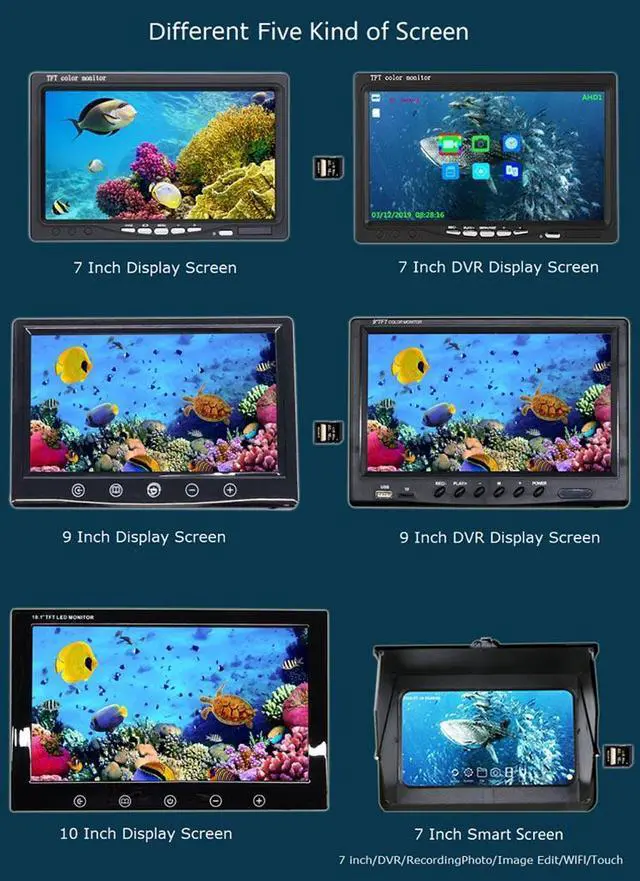

Monitor:
Display: 10 inch TFT( 16:9 )
Resolution: 1024 (H) X600 (V)
Power supply: DC12V

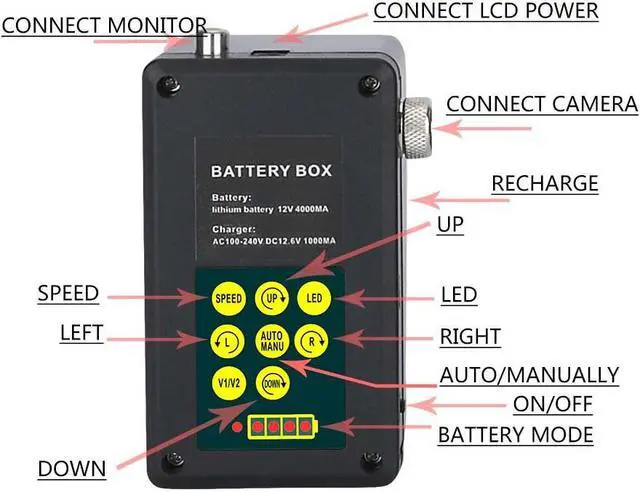

Battery Box:
1.
Charger: AC100V-240VAC DC 12.6V 1000MA
2.
Battery: Lithium battery 4500MA
3.
Battery Mode: Support
4.
Recharge Time: above 5hous
5.
Battery Working Time: about 8-9hous


Camera specifications

1.
Image sensor: 1/3" HD color CCD

2.
Horizontal resolution: 800 TVL

3.
Lens focus size: 3.6 mm

4.
Angle of view: 92
5.
LED: total
20pcs: 6pcs white LED + 12pcs IR LED + 2pcs blue LED (for luring fish);
LED switch mode: only white LED ononly IR LED ononly blue LED onall LED onall LED off

7.
Rotating Angle: Vertical rotation 0-180 degree; Horizontal rotating0-360 degree

8.
Underwater vision distance: 1-3m, depending on clarity of water

9.
Current consumption: 400mA

10.
Body construction: Metal + ABS plastic

11.
Waterproof level: IP68

12.
Power supply: 12V DC
13.
Camera Size: 83*125 (MM)

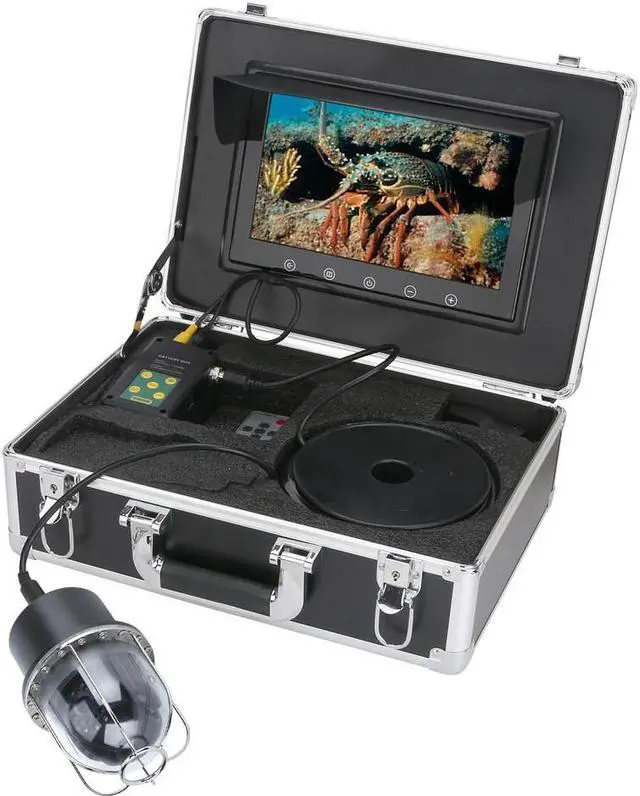

Item Includes:
1 x 10 inch Color TFT LCD Monitor
1 x Underwater Camera
1 x 100m/328ft Cable
1 x DC 12V Battery Charger
1 x Remote Control box
1 x Aluminum box
