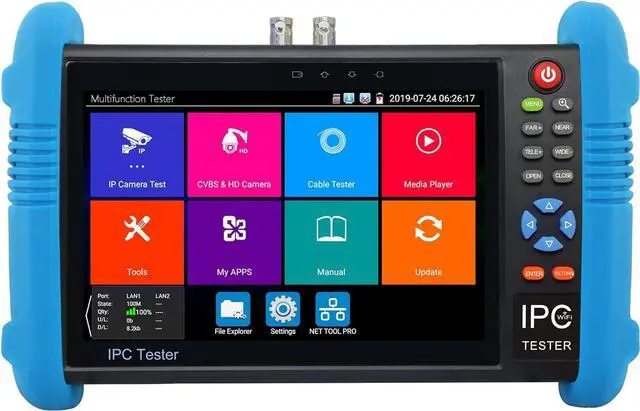

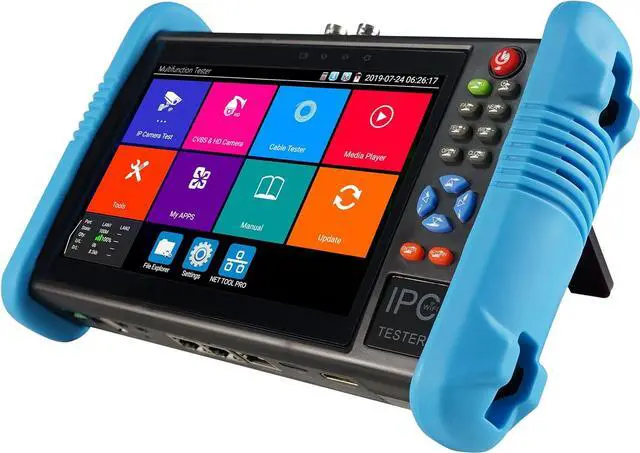

7 inch IPS touch screen, 1280*800 resolutions
H. 265 & H. 264 IP, 4K video display via mainstream
Rapid Network Cameras Test, Auto log in and display image, create testing report
Support Third-Party cameras test, enter IP Camera test app, input username and password to test
CVBS camera test and PTZ control
IPC TEST, HIK test tool, DH test tool
Doesn't support SDI
8MP TVI test, 3840 x 2160P 15 fps, 4xzoom, video record &playback, coaxial PTZ control & call OSD menu *
8MP AHD test, 3840 x 2160P 15 fps, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *
8MP CVI test, 3840 x 2160P 12.5 /15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
CVBS camera test and PTZ control
Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement*
DC12V/2A power output, camera can be powered from DC 12Votage
48V PoE power output power
Rapid video, just by one key to detect all network cameras and auto display
Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
Cable test:
Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
Cable tracer, search BNC cable, network cable and telephone cable from the mess cables *
TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cables length and short circuit. measurement
