TIGERSECU. Protecting homes and businesses for over 20 years.
aplus content video

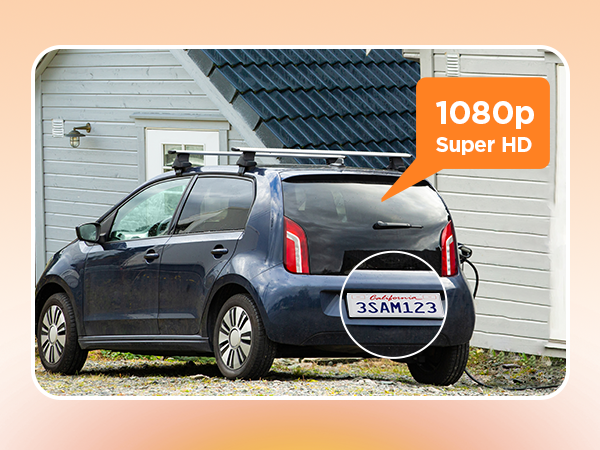

Crystal Clear HD 1080p
Crystal clear 1080p video lets you clearly distinguish people, objects, and actions.

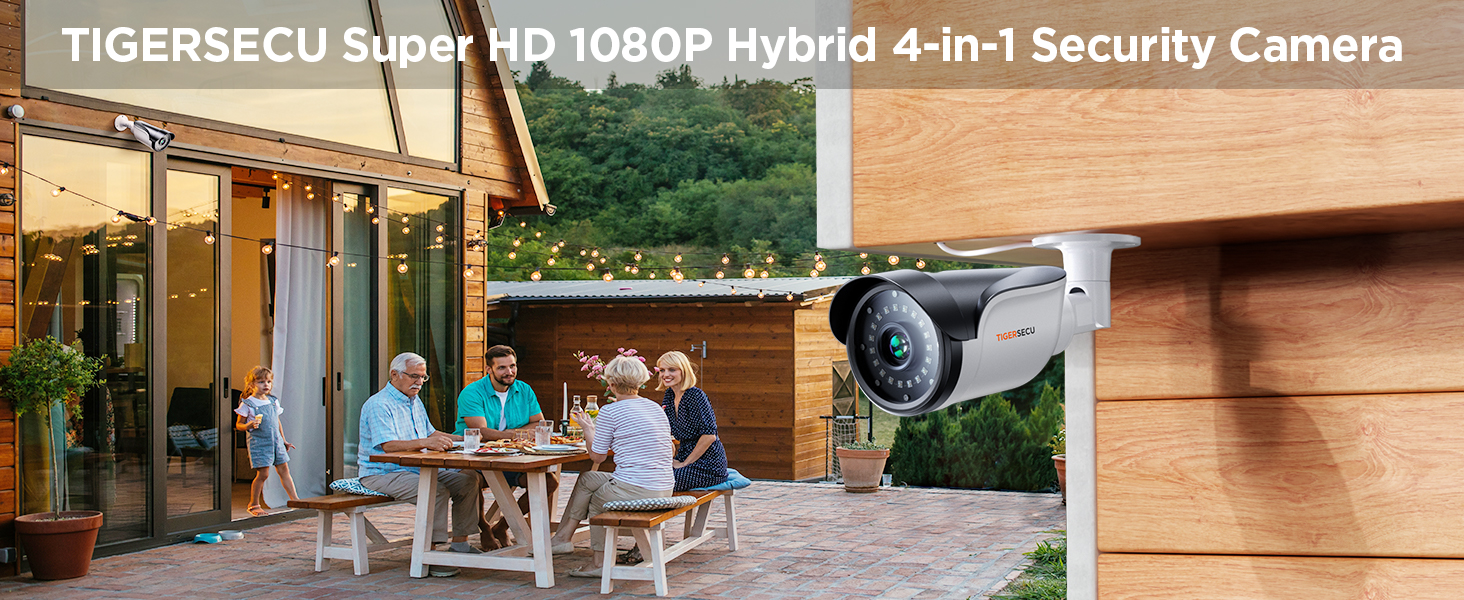

Hybrid 4-in-1 Camera OSD Switch
With the 4-in-1 switch, use this camera with 4 different types of security DVRs.

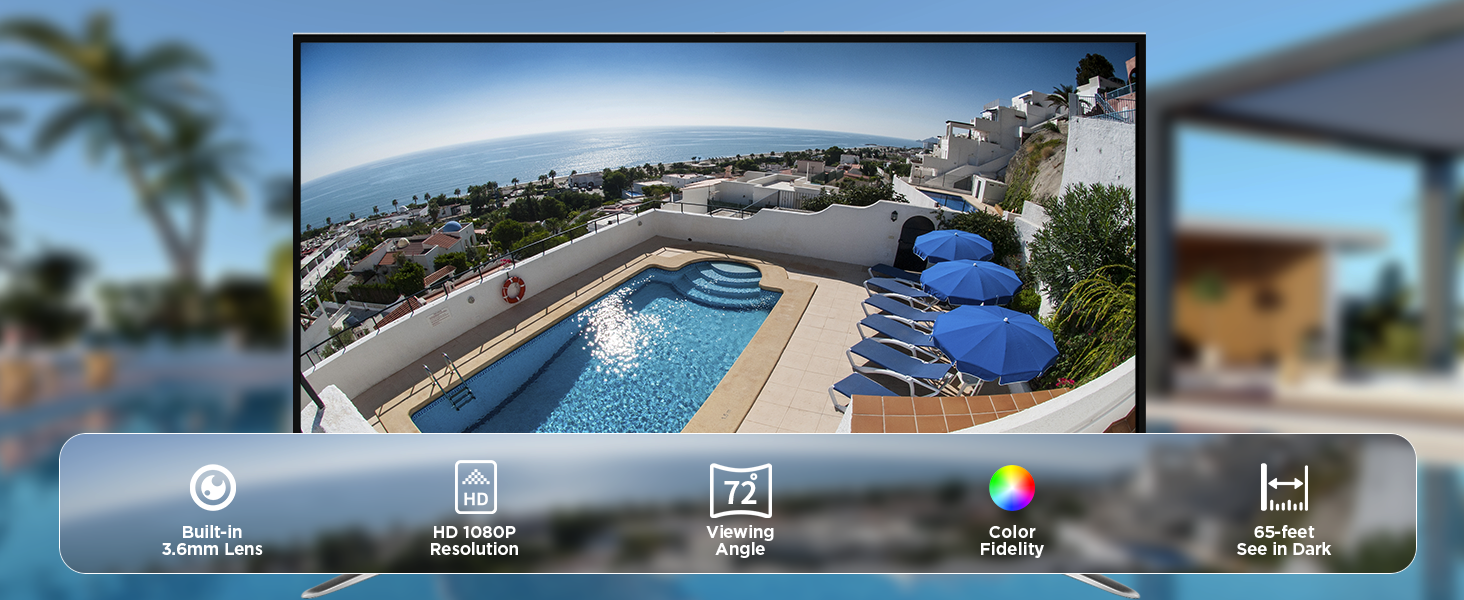

Capture Details of Home
72 degree viewing angle and longer range, ideal for large areas like backyards and parking lots.

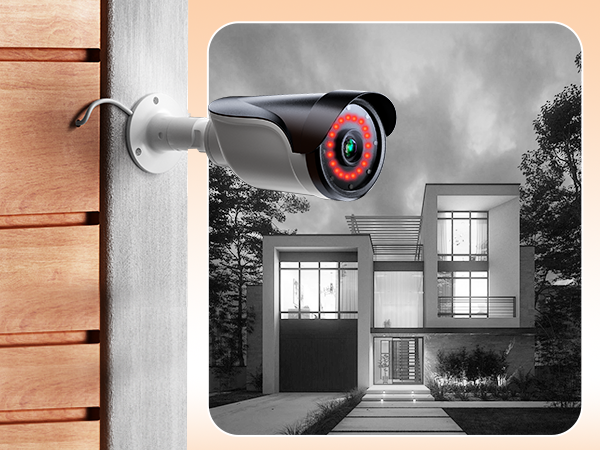

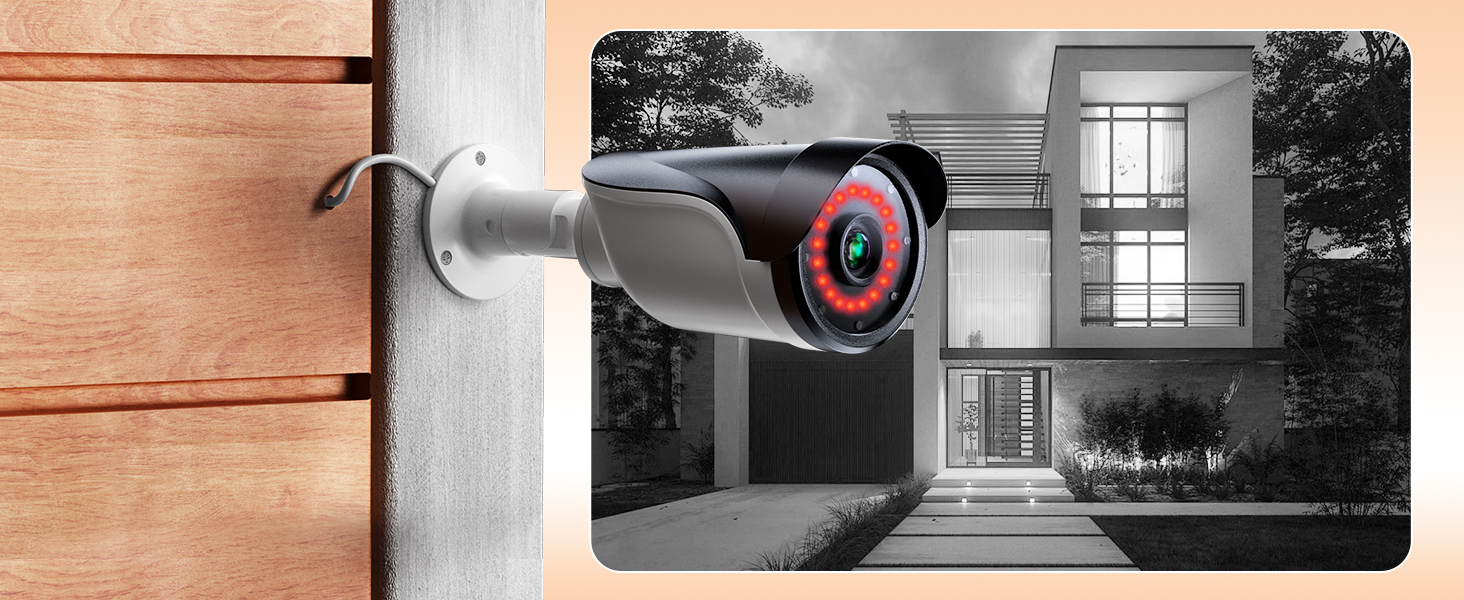

65-feet Night Vision
See in the dark up to 65 feet with powerful infrared night vision.

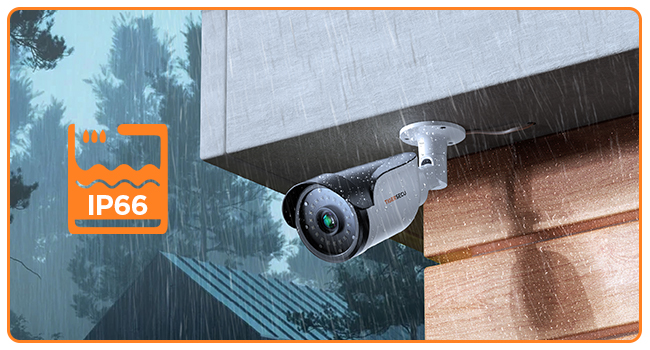

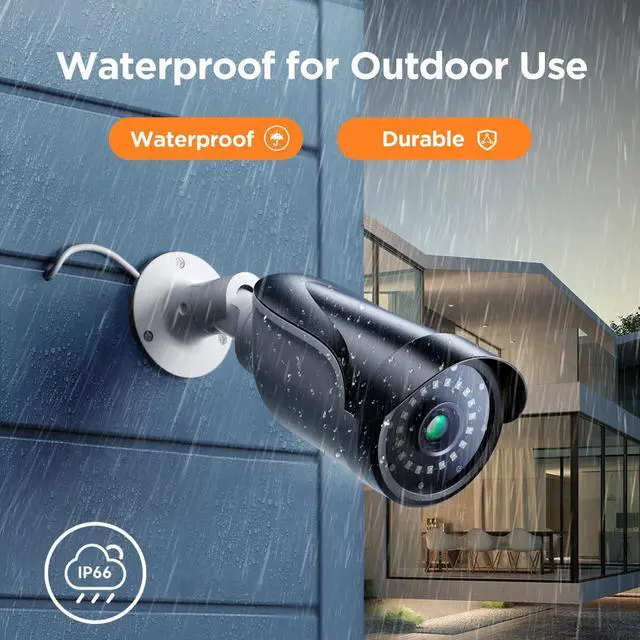

Heavy-Duty and Weatherproof
TIGERSECU's heavy-duty metal IP66 cameras can be mounted indoors and outdoors and are built tough to withstand rain, snow, and the elements.

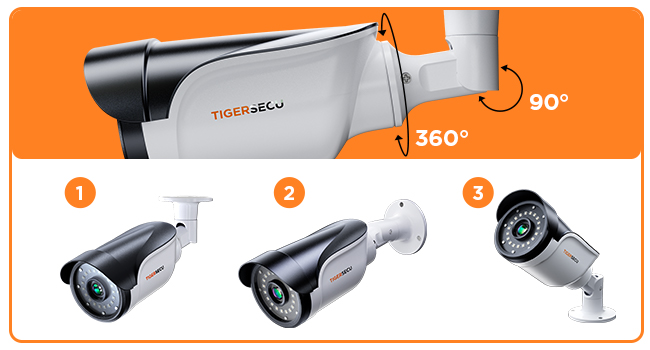

90 Degree Adjustable Angle
Adjust to the desired angle before installation to meet your specific needs, then securely screw it in place.
Is this security camera compatible with DVR systems from other brands?
Yes, this TIGERSECU security camera works with most recorders that support HD-TVI, HD-CVI, AHD, or CVBS (D1). Simply convert the camera mode to CVBS to make it compatible with older 720p or D1 DVR systems.

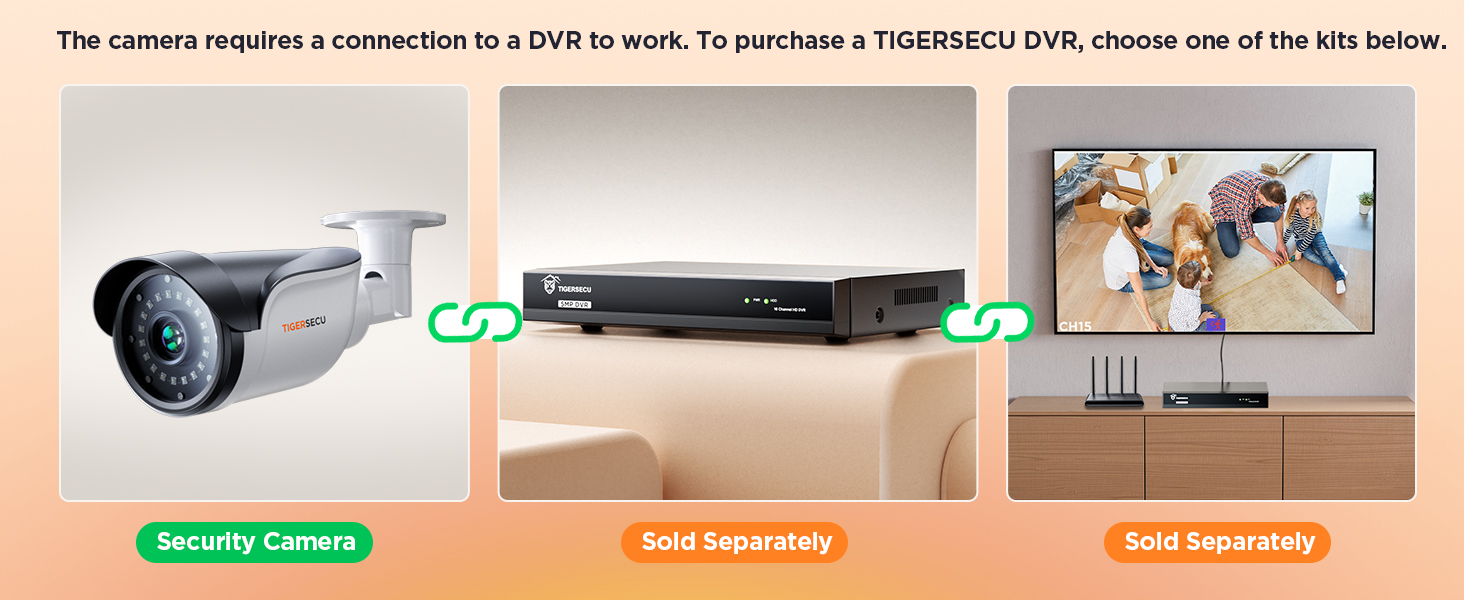

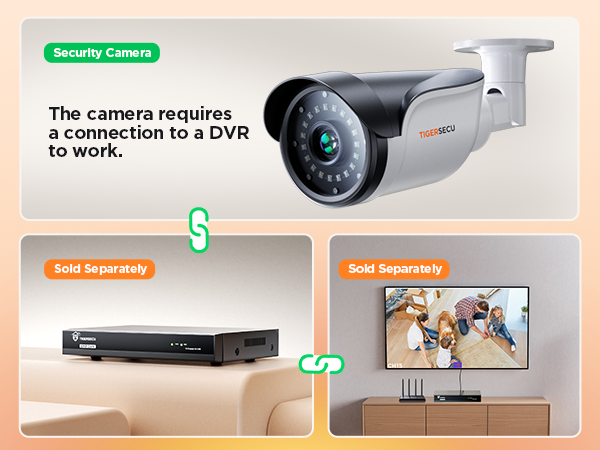

Does it have a mobile app for remote access?
No, this camera on its own does not work with a mobile app. This camera requires connection to a security DVR in order to work. Once connected to a DVR, you'll be able to view camera footage through the DVR’s mobile app for remote access.
Is the camera's power adapter sold separately or included? What kind of power supply works with this camera?
The power supply for this camera is not included. We recommend using a 12V 1A power supply to power up each camera. The power interface is DC 5.5 x2.1 mm. Insufficient power can result in distorted or blacked-out images, or video loss.
Is this a wired or wireless camera?
This is a hard-wired camera that can be connected to your security DVR using a BNC video cable. Contact TIGERSECU's Help Desk if you need a hand with installation.

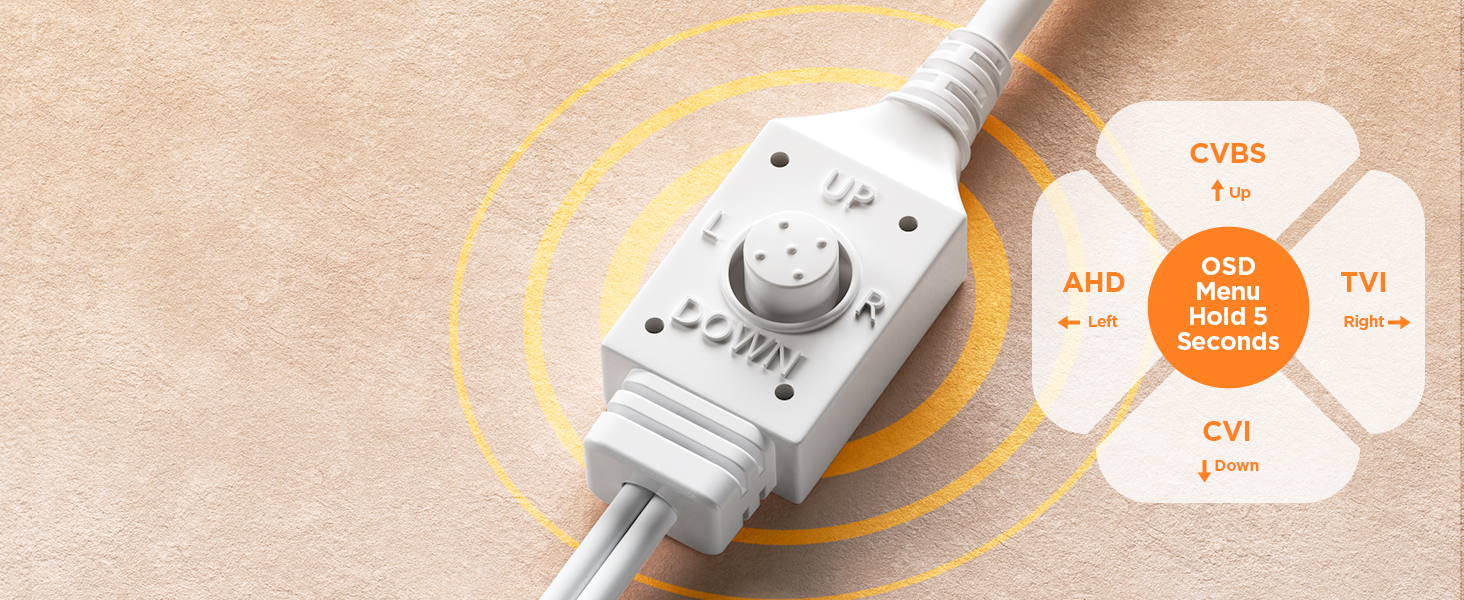

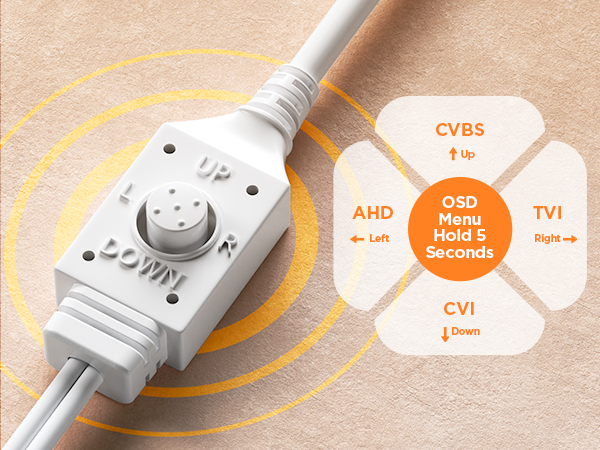

What’s an OSD switch and what does it do?
The OSD switch is a toggle switch on the security camera that allows you to easily switch the camera’s video mode so it can work with a variety of DVRs, including HD-TVI, AHD, CVI, and even older 960H D1 analog DVRs.
Compare TIGERSECU Security Cameras
 2MP Bullet Camera |  2MP Wide Angle Dome |  5MP Bullet Camera |  5MP Wide Angle Dome | |
|---|---|---|---|---|
Customer Reviews | — | — | — | — |
Price | — | — | — | — |
Resolution | 2MP (1920 x 1080 pixels) | 2MP (1920 x 1080 pixels) | 5MP (2560 x 1920 pixels) | 5MP (2560 x 1920 pixels) |
Connectivity Technology | BNC cable connection to DVR | BNC cable connection to DVR | BNC cable connection to DVR | BNC cable connection to DVR |
Viewing Angle | 72 degrees | 96 degrees | 72 degrees | 96 degrees |
Night Vision | 65-feet | 65-feet | 100-feet | 100-feet |
Weather Resistant Rating | IP66 | IP66 | IP66 | IP66 |
Technical Details
TIGERSECU Home Security
Protecting homes and businesses for over 30 years
Our family-owned small business is based in Lomita, California, and since 1996, we've been committed to producing high quality, affordable and easy-to-use security cameras and video surveillance systems designed to protect your home and keep your business secure.
Our passion for quality and dedication to our customers set us apart. With TIGERSECU, you're not just buying a product, you're joining a family that values your security.
Designed in California
Video Surveillance Recorders
Security Cameras
Complete Security Systems
TIGERSECU. Protecting homes and businesses for over 20 years.
aplus content video
Crystal Clear HD 1080p
Crystal clear 1080p video lets you clearly distinguish people, objects, and actions.
Hybrid 4-in-1 Camera OSD Switch
With the 4-in-1 switch, use this camera with 4 different types of security DVRs.
Capture Details of Home
72 degree viewing angle and longer range, ideal for large areas like backyards and parking lots.
65-feet Night Vision
See in the dark up to 65 feet with powerful infrared night vision.
Heavy-Duty and Weatherproof
TIGERSECU's heavy-duty metal IP66 cameras can be mounted indoors and outdoors and are built tough to withstand rain, snow, and the elements.
90 Degree Adjustable Angle
Adjust to the desired angle before installation to meet your specific needs, then securely screw it in place.
Is this security camera compatible with DVR systems from other brands?
Yes, this TIGERSECU security camera works with most recorders that support HD-TVI, HD-CVI, AHD, or CVBS (D1). Simply convert the camera mode to CVBS to make it compatible with older 720p or D1 DVR systems.
Does it have a mobile app for remote access?
No, this camera on its own does not work with a mobile app. This camera requires connection to a security DVR in order to work. Once connected to a DVR, you'll be able to view camera footage through the DVR’s mobile app for remote access.
Is the camera's power adapter sold separately or included? What kind of power supply works with this camera?
The power supply for this camera is not included. We recommend using a 12V 1A power supply to power up each camera. The power interface is DC 5.5 x2.1 mm. Insufficient power can result in distorted or blacked-out images, or video loss.
Is this a wired or wireless camera?
This is a hard-wired camera that can be connected to your security DVR using a BNC video cable. Contact TIGERSECU's Help Desk if you need a hand with installation.
What’s an OSD switch and what does it do?
The OSD switch is a toggle switch on the security camera that allows you to easily switch the camera’s video mode so it can work with a variety of DVRs, including HD-TVI, AHD, CVI, and even older 960H D1 analog DVRs.
Compare TIGERSECU Security Cameras
2MP Bullet Camera | 2MP Wide Angle Dome |  5MP Bullet Camera | 5MP Wide Angle Dome |
|---|---|---|---|
| Customer Reviews | |||
| — | — | — | — |
| Price | |||
| — | — | — | — |
| Resolution | |||
| 2MP (1920 x 1080 pixels) | 2MP (1920 x 1080 pixels) | 5MP (2560 x 1920 pixels) | 5MP (2560 x 1920 pixels) |
| Connectivity Technology | |||
| BNC cable connection to DVR | BNC cable connection to DVR | BNC cable connection to DVR | BNC cable connection to DVR |
| Viewing Angle | |||
| 72 degrees | 96 degrees | 72 degrees | 96 degrees |
| Night Vision | |||
| 65-feet | 65-feet | 100-feet | 100-feet |
| Weather Resistant Rating | |||
| IP66 | IP66 | IP66 | IP66 |

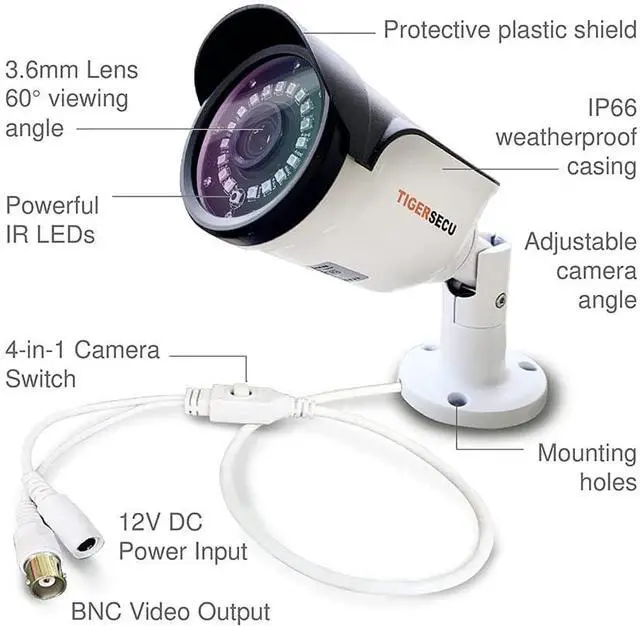

Technical Details
| Connection Type | BNC security cable |
|---|---|
| Image Sensor | 1/3-inch SONY CMOS IMX322 with IR-Cut |
| Resolution | 1920 x 1080 pixels (2 Megapixel) |
| Lens | Fixed 3.6mm lens, 24 pcs IR LEDs |
| Viewing Angle | 72 degrees |
| Viewing Distance | 65 feet |
| Video Format | TVI, AHD, CVI, CVBS 960H (Default 1080P TVI mode) |
| OSD/UTC | OSD controller |
| Day/Night Mode | Auto Switch (displays in color during the day, black-and-white at night) |
| Power Source | DC 12V 1A |
| Operation Conditions | -22? to 122?, humidity 90% (non-condensing) |
| Weatherproof Rating | IP66 |
| DVR Requirements | Works with 1080P and 5MP security DVRs |
