X9-ADHD X9-MOVTADHS IP Camera Tester POE CCTV Tester Monitor 8MP CVI / TVI / AHD X9-ADHS

Product Overview:

The 8 inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 2048X1536 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions TDR cable test, Digital multi-meter, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

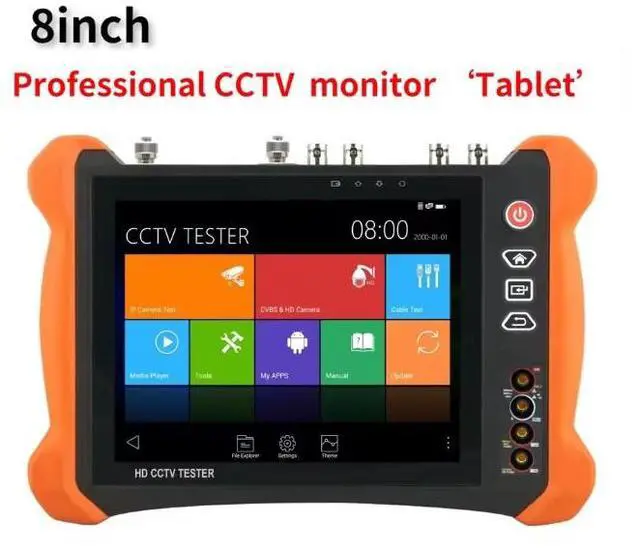

8 inch retina touch screen, 2048*1536 resolution

8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI

H.265/H.264, 4K video display via mainstream

Chrome browser, test and set Axis camera

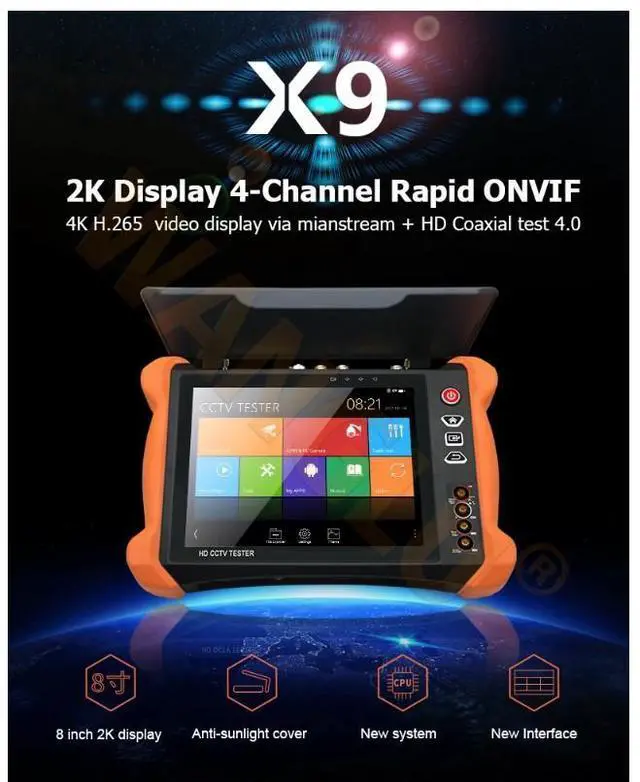

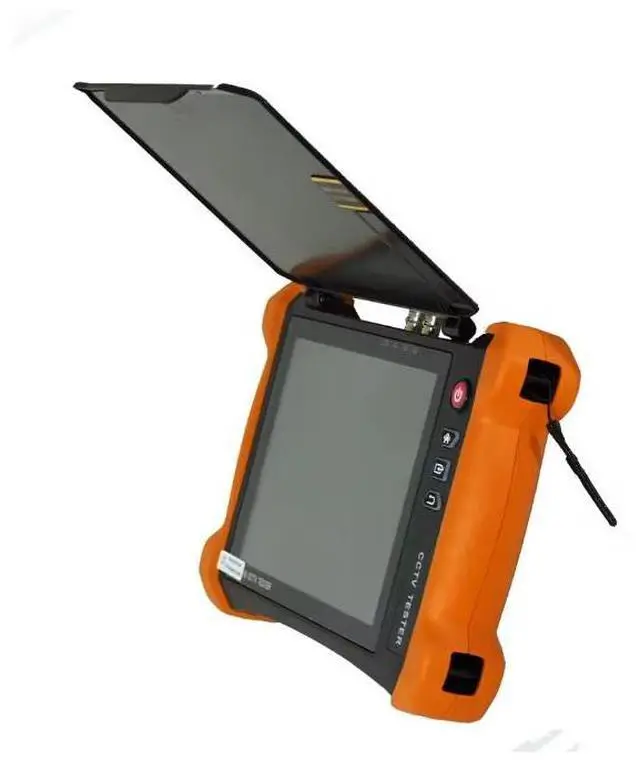

Anti-sunlight and screen protecting cover

HDMI input support 4K 60FPS

HDMI output support 4K 30FPS

DC24V 2A, DC12V 3A, 48V PoE power output

Rapid ONVIF, auto view video and create test report

RJ45 cable TDR test ,UTP cable quality test

Backlight buttons, easier to operate in the dark

4 channels ONVIF video simultaneous display

Camera test:

8 inch retina touch screen, 2048*1536 resolution

H.265 & H .264 IP, 4K video display via mainstream

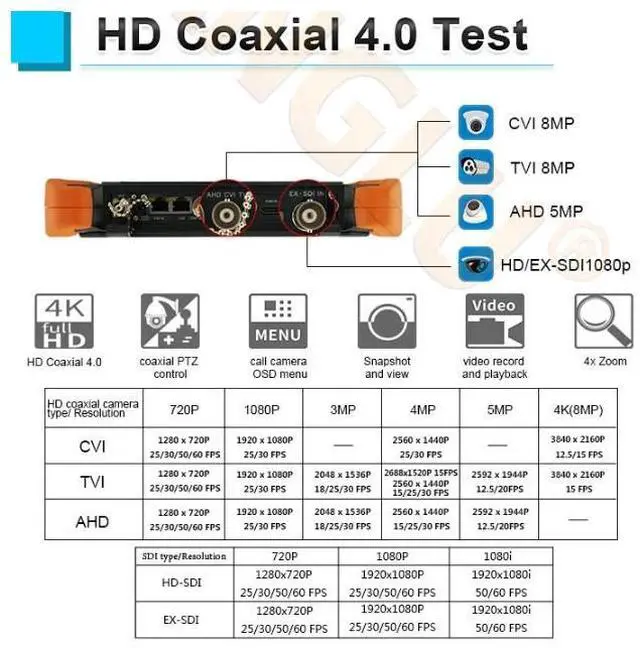

8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu

8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu

HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu

3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu

4 channel ONVIF video simultaneous display,4 channel display max support 1080P ,single channel display max support 4K

Rapid ONVIF, Auto log in and display image, create testing report

Chrome browser, test and set Axis camera

AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

CVBS camera test and PTZ control

Model: X9-MOVTADHS

8 inch retina touch screen, 2048*1536 resolution

8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI

H.265/H.264, 4K video display via mainstream

Chrome browser, test and set Axis camera

Anti-sunlight and screen protecting cover

HD input support 4K 60FPS

HD output support 4K 30FPS

DC24V 2A, DC12V 3A, 48V PoE power output

Rapid ONVIF, auto view video and create test report

RJ45 cable TDR test ,UTP cable quality test

Backlight buttons, easier to operate in the dark

4 channels ONVIF video simultaneous display

Camera test:

8 inch retina touch screen, 2048*1536 resolution

H.265 & H .264 IP, 4K video display via mainstream

8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu

8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

8MP EX-SDI test,3840x2160P 25/30FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu

HD-SDI test, 1920x1080P 25/30/50/60 FPS,4xzoom, video record& playback, coaxial PTZ & call OSD menu

3G-SDI test, 1920x1080P 50/60 FPS,4xzoom, video record& playback, coaxial PTZ & call OSD menu

4 channel ONVIF video simultaneous display,4 channel display max support 1080P ,single channel display max support 4K

Rapid ONVIF, Auto log in and display image, create testing report

Chrome browser, test and set Axis camera

AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

CVBS camera test and PTZ control

IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement

DC12V/3A power output, camera can be powered from DC 12Voltage

48V PoE power output power

Rapid video, just by one key to detect all network cameras and auto display

Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test:

Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

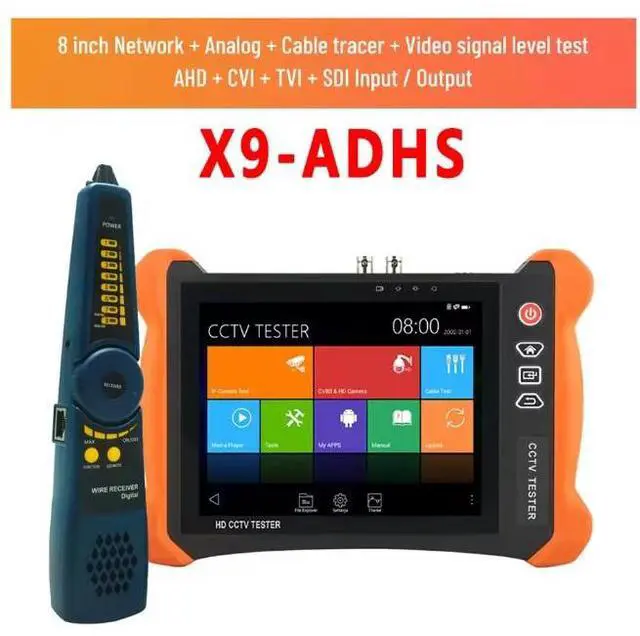

Cable tracer, search BNC cable, network cable and telephone cable from the mess cables

Other functions:

Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

POE & power information, DC12V& PoE power and voltage output /input measurement

Tester Play: Tester, android version mobile phone and PC display at the same time

Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HD IN etc

HD input, support up to 4K 60FPS, display,record and snapshot

Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

Self -update software, you can install apps with android version

Media player, 4K video files and MKV/MP4 media files play

Quick office, quick office app (support excel, word, ppt format) doc. editable

8GB SD card including

Display its genuine resolution of the IP camera images

Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

7.4 V/ 7000mAh Lithium Ion Polymer Battery, after 3.5 hours fast charging , working time lasts 13 hours
