1Pack CCTV 1/4" 1200TVL 36X Optical Zoom DSP Color Video Box Camera Auto Focus

1/4" So ny 1200TVL 36X Optical Zoom Auto Focus CCTV DSP Color Video Box Camera

Do not attempt to disassemble the camera. ln order to prevent electric shock, do not remove screws or cover. There are no user-serviceable parts inside. Refer all servicing to qualified service personnel.

Handle the camera with care. The camera could be damaged by improper handling or storage.

Do not expose the camera to rain or moisture, or try to operate it in wet areas. Take immediate action if the camera becomes wet. Turn the power off and refer servicing to qualified service personnal Moisture can damage the camera and also create a danger of electric shock.

Do not use strong or abrasive detergents when cleaning the canera body. Use a dry cloth clean the camera when dirty. In case the dirt is hard to remove, use a mild detergent and wipe gently.

Never point the canera toward the sun, whether the camera is used outdoors or not, never point it toward the sun. Use cautionwhen operating the camera in the vicinity of spot lights or other bright reflecting objects.

Do not operate the camera beyond its temperature humidity or power source ratings. Do not use the camera in an extreme environment where high temperature or high humidity exists.

Use the camera under conditions where temperatures are between -10~+50, and humidity is below 85%. For the correct power supply, refer to the specification sheet.

Specifications :

System of signal: NTSC

Pick up device: 1/4'' SO NY

Horizontal resolution: 1200TV Line

S/N ratio: 50 dB

Minium illumination: 0.1Lux

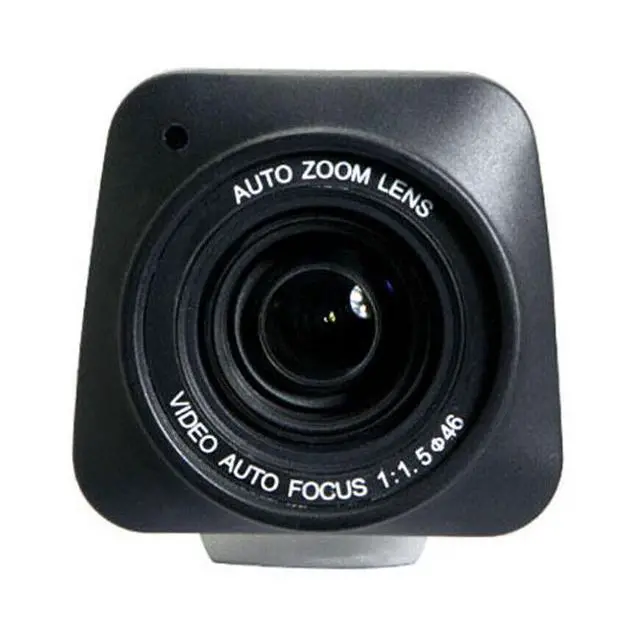

Lens: 3.9~140.4 mm

View angle: 49.6°~2.5°

Electronic Shutter: 1/60to 1/10000S(NTSC), 1/50to 1/10000S(PAL)

White Balance: Auto tracking

Auto AGC control: Auto control

Backlight compensation: On/Off

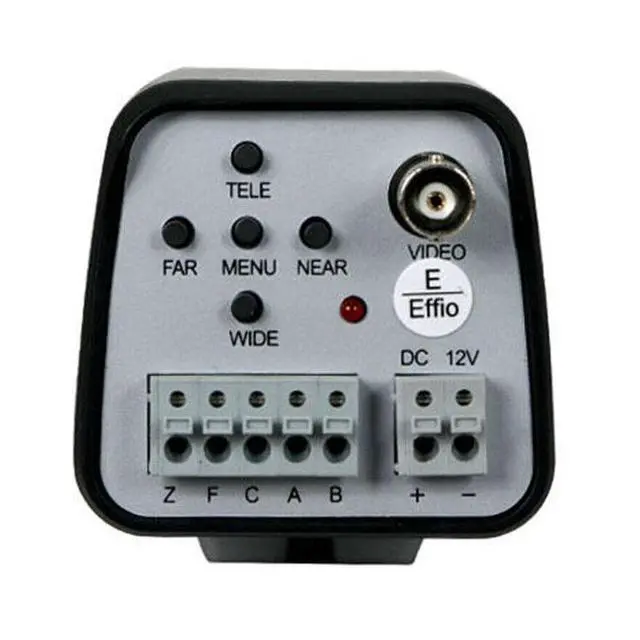

Control connector: Bys contol DC±3V~±12V

Focus Mode: Bus control focus/Button control focus

Video output: 1.0Vp-p,75
