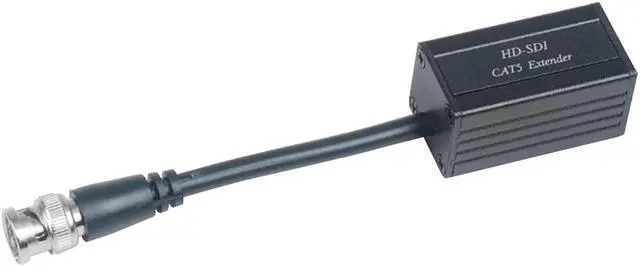

CCTV CAT5 to HD-SDI Converter Extender (Transmitter and Receiver) HD SDI Video Baluns
- To send HD SDI signal over CAT5e/6 UTP cable.
- Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M)
- No external power required.
- Up to 45 meters via CAT6 cable at HD-SDI resolution.
- Up to 150M meters via CAT6
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
HD-SDI CAT5 Extender is a passive device which use in one pair to send HD-SDI signals up to 45m via a CAT6 cable at HD resolution in a point-to-point configuration. The HD-SDI passive CAT5 extender supports uncompressed transmission of up to 1.485G b/s. It is perfect to send HD CCTV over existing CAT5 cable Applications include HD-CCTV, broadcasting, HD camcorder, studio-to-studio, post production, live events, medical imaging displays, and medical imaging…etc. To send HD SDI signal over CAT5e/6 UTP cable. Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M) No external power required.
Up to 45 meters via CAT6 cable at HD-SDI resolution. Up to 150M meters via CAT6 cable at SDI resolution.
Up to 45 meters via CAT6 cable at HD-SDI resolution. Up to 150M meters via CAT6 cable at SDI resolution.
