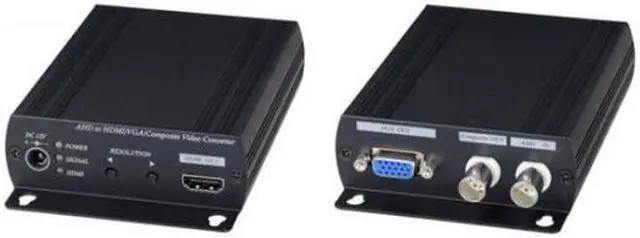

HD CCTV HD AHD, HD TVI, HD CVI to HDMI, VGA, BNC, Video Converter Supports PIP, Loop Out
- HD CCTV HD AHD, HD TVI, HD CVI to HDMI, VGA, BNC, Video Converter Supports PIP, Loop Out
- BL AD001HD4 support 4 analog cameras: HD-TVI/AHD/HDCVI/CVBS, convert signal to HDMI, VGA and Composite Video
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Converts HD-TVI/AHD/CVI/NTSC/PAL/960H signal to HDMI, VGA, Composite Video or loop out.
Input support: HD-TVI/AHD/HDCVI
support: 720p@25/30/50/60, 1080p@25/30Hz.

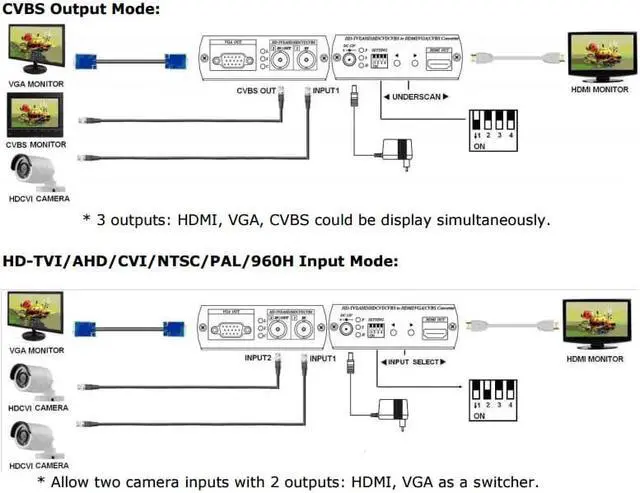

Output support: HDMI, VGA, Composite Video or loop out. 3 outputs could be display simultaneously.

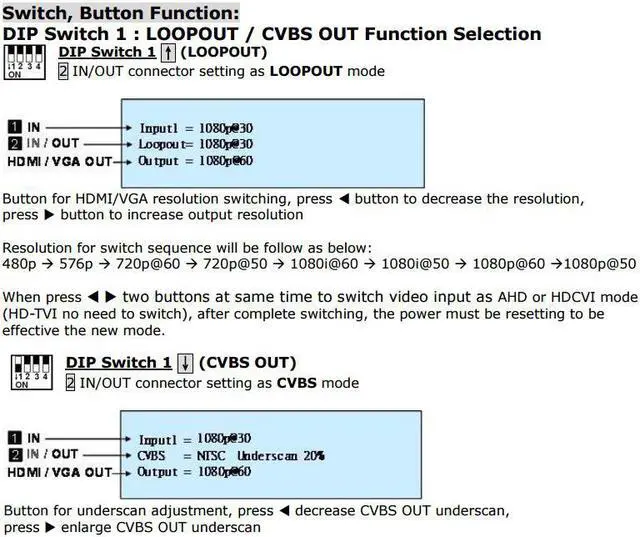

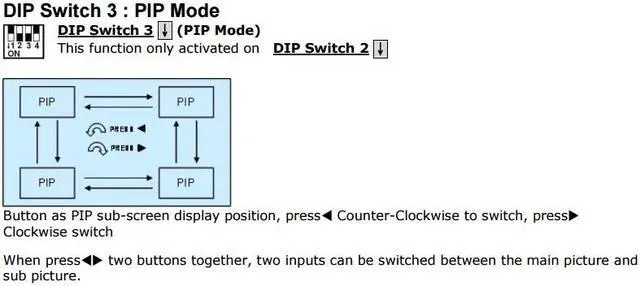

BNC connector function selection: loop output, composite video output or as second camera input. Built in PIP (display two input picture) under dual camera input mode.

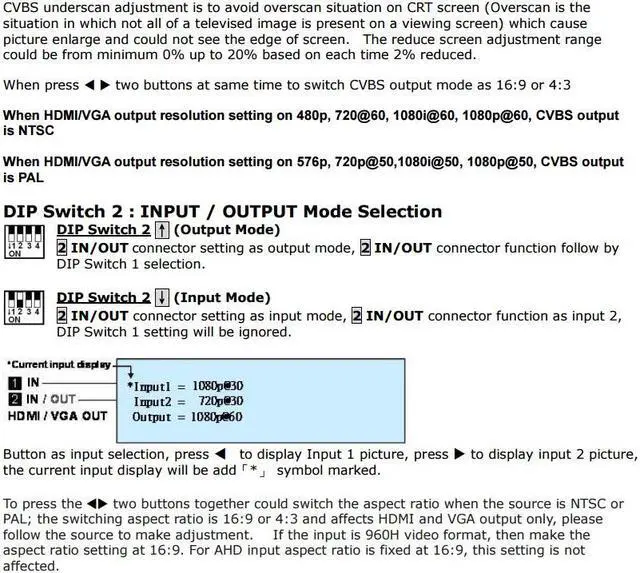

HDMI/VGA output support: 480p, 576p, 720p, 1080i, 1080p Composite video output support NTSC, PAL. Composite output built in underscan adjustment. (allow the edges of the picture fit well) Built in OSD to display input/output setting. HDMI and DVI compliant. (support DVI monitor by a HDMI to DVI adaptor)
Input support: HD-TVI/AHD/HDCVI
support: 720p@25/30/50/60, 1080p@25/30Hz.
Output support: HDMI, VGA, Composite Video or loop out. 3 outputs could be display simultaneously.
BNC connector function selection: loop output, composite video output or as second camera input. Built in PIP (display two input picture) under dual camera input mode.
HDMI/VGA output support: 480p, 576p, 720p, 1080i, 1080p Composite video output support NTSC, PAL. Composite output built in underscan adjustment. (allow the edges of the picture fit well) Built in OSD to display input/output setting. HDMI and DVI compliant. (support DVI monitor by a HDMI to DVI adaptor)
