SuperLink key fob for instant programmable actions across your UniFi deployment, with up to 10 years of battery life.
Overview- Dimensions: 67 x 35 x 18.5 mm (2.6 x 1.4 x 0.7")
- UniFi Application Suite: Protect
Performance- Connectivity: SuperLink (Proprietary)
- Operating Frequency:
- US: 915.6927.6 MHz
- EU: 865.1869.5 MHz
- Antenna Gain:
- SuperLink: -1 dBi
- Max. TX Power:
- SuperLink: 14 dBm
- Max. Range:
- SuperLink: 2 km (1.2 mi)
Hardware- Max. Power Consumption: 150mW
- Supported Voltage Range: 3V
- Power Method:

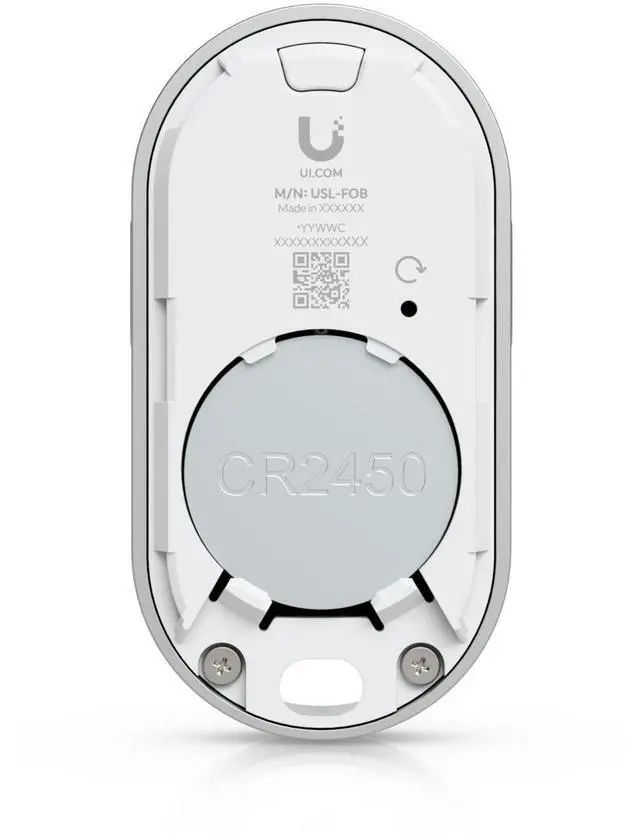

- (1) Lithium battery
- Size: CR2450
- Capacity: 600 mAh
- Max. pulse current: 50mA
- Battery Life: Up to 10 years
- Weight: 32 g (1.1 oz)
- Enclosure Material: Polycarbonate

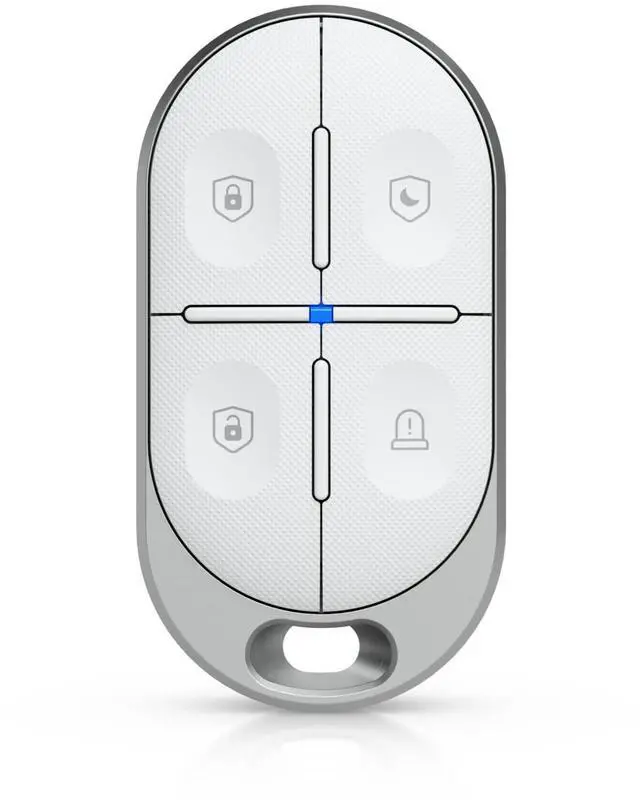

- Buttons:
- (4) Top buttons: Primary faceplate: Arm, Disarm, Night mode, Panic / Secondary faceplate: Numeric (1, 2, 3, 4) for programmable functions

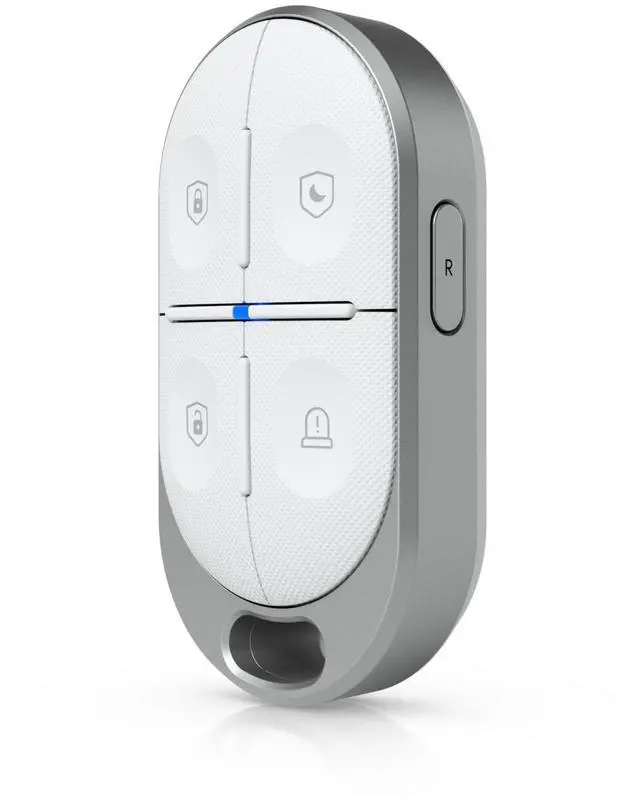

- (2) Side buttons for programmable functions
- LEDs:
- (1) Status: R/B/W
- (1) Signal: B/R
- Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
- Ambient Operating Humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, UL 4200A
- NDAA Compliant:
Software- Application Requirements:
- Web Application: UniFi Protect
- Mobile App: UniFi Protect iOS and Android
