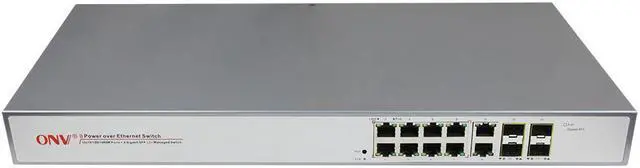

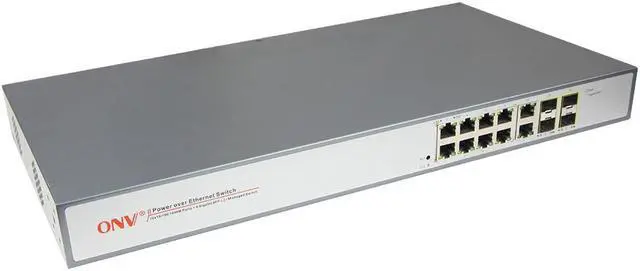

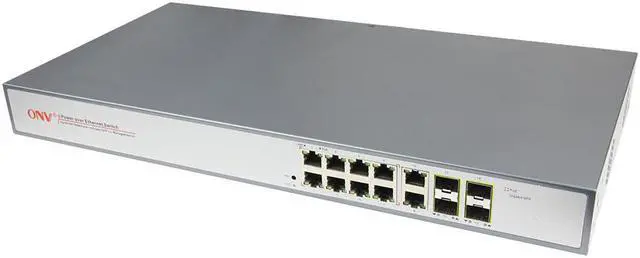

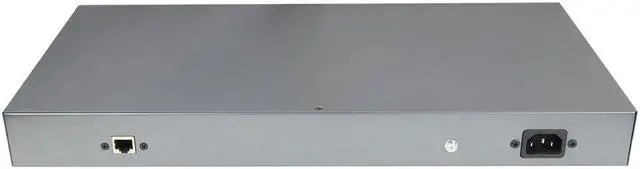

130W 14-Port Gigabit Managed PoE Switch 10/100/1000M PoE RJ45 Gigabit SFP ports ONV-POE33148PFM-at

Feature
? All gigabit design, 8*10/100/1000M PoE ports + 2*10/100/1000M RJ45 ports + 4*Gigabit SFP ports
?8 PoE ports support power over Ethernet for PDs
?Meet IEEE 802.3af/at PoE standard. Supports per port PoE configuration function
?L2+ features provide better manageability, security, QoS, and performance.
?Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.
?Support spanning tree STP(802.1D) and RSTP(802.1W).
?Jumbo frames support up to 9.6K kilobtyes.
?Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.
?Support cable diagnosis
?G.8032, support <50ms industrial quick ring protection

Product model: ONV-POE33148PFM-at
Product Description: 14-port full Gigabit network management PoE power supply switch, 8*10/100/1000M electrical port +2*10/100/1000M electrical port +4*1000M SFP optical port network management POE switch, of which 1-8 ports support IEEE 802.3af/at POE standard, single port power supply 30W, total input power is 250W.

Note: The default power supply type is the end jumper method (1/2+, 3/6-), the optional intermediate jumper method (4/5+, 7/8-), does not include the SFP module, and must be ordered separately.
