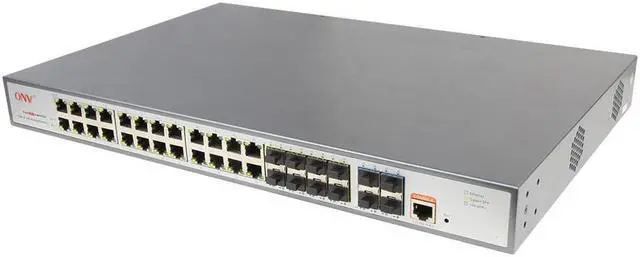

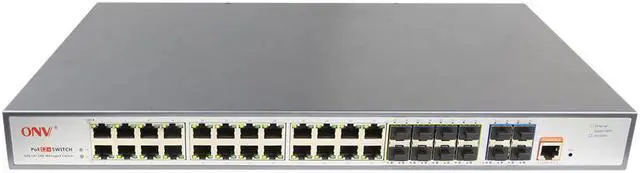

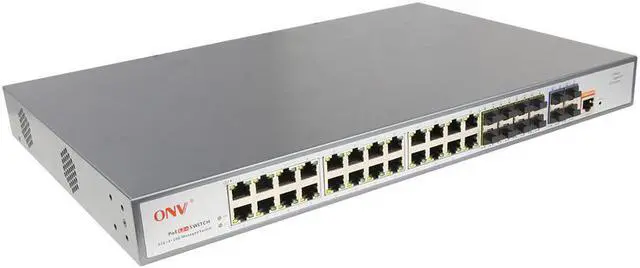

36 port Million Gigabit POE Switch 24PG+8GF+4TF Power Supply Network Management ONV-POE36036PFM-at

High-performance of both hardware and software
This 10G L2+ Core PoE Switch uses top-rated 10G network switching chip, multiple layers PCB design, as well as self-developed switch software system. With combination of hardware and software, it improves product quality from forwarding stability, packet processing speed, and other work capability.
Support the fast ring network protocol, free configuration
The switch supports stable and reliable fast Ring Protection Protocol(RSTP). It Achieved real ring loop redundancy protection. Besides, there is no need to configure 10G port when users using this switch, to reduce probability of network failure.
Strong network security
Support dynamic or static binding by users’ definition, such as IP, MAC, VLAN, PORT, etc. Support port isolation, to prevent communication between two neighbor network equipment within the same broadcast domain , for reducing network risk; Supports perfect storm control function which can suppress broadcast, multi-cast, and uni-cast storm; Support specific ARP inspection which can effectively prevent ‘‘ARP spoofing attack’’ created by hackers or attackers via ARP packets.
Convenient management and maintenance
By easy WEB interface(http and https protocol supported), you can conveniently operate and configure all kinds of function in this switch. Support management by CLI, Telnet, Console port, which is more suitable for professional network administrator; It also allow reset by one-press, making maintenance easier.


Feature
?24*10/100/1000M PoE RJ45 ports + 8*Gigabit SFP ports + 4*10G SFP+ ports
?Support L2+ Switching features, including VLAN, TRUNK, Mirroring, Port isolation/flow control/speed limit, Storm control, QOS, ACLs etc.
?Support spanning tree STP, RSTP.
?Jumbo frames support up to 9.6K kilobytes
?Support enhanced management through WEB, CLI, TELNET, SNMP
?Support cable diagnosis
?24 ports support PoE. Compatible with both IEEE 802.3af/at. Allow PoE configuration for each PoE port

"INPUT: AC100-240V 6.3A
Built-in power supply: DC52V/11.6A 600W"


Target Industries
?HD monitor transmission and power supply
?Wireless AP layout transmission and power supply
?Network telephone transmission , intelligent house and home system
?Intelligent transportation supervisory system(ITS)
? High-speed Way supervisory/Tele-Communication System
? Security protection system, TV medical treatment
? Long-distance Muti-media Schooling, Campus monitoring
? Long-distance broadcast television transmission system
? High-building Security Protection, Military Tele-Com projects
