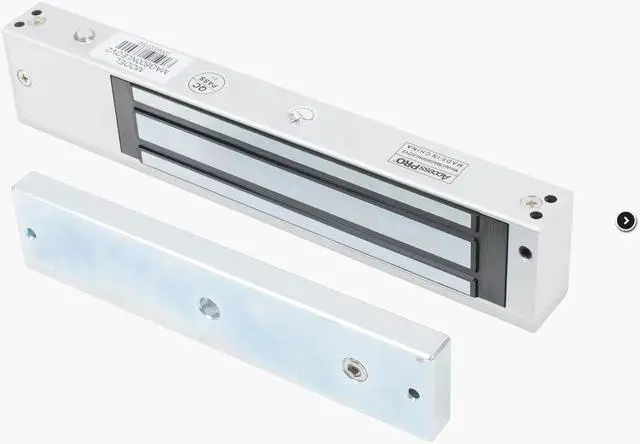

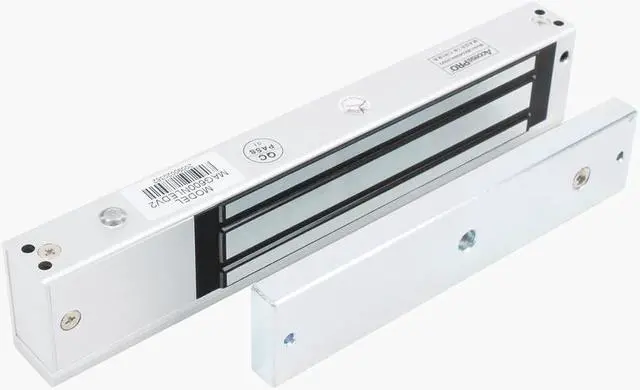

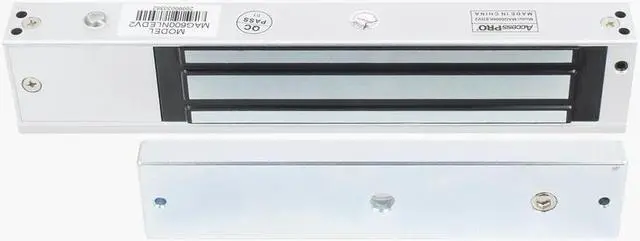

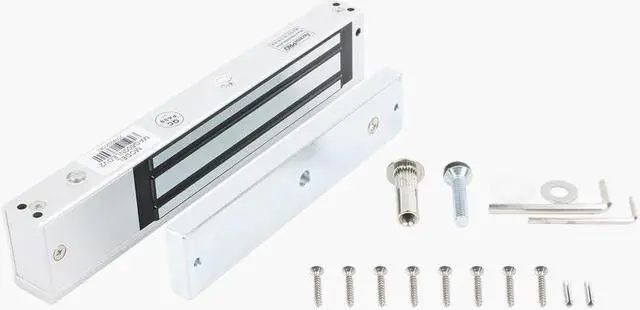

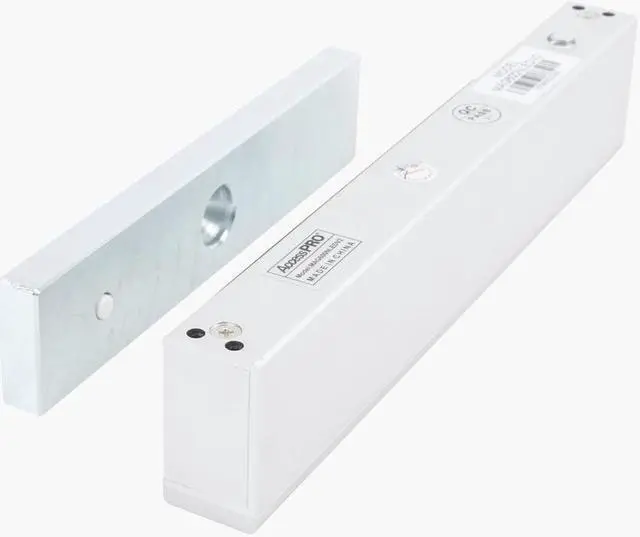

VT Single Door Magnetic Lock 600Lb / Anti-Residual Magnetism Design / Lock Status sensor / LED ultra bright / UL with L and Z shape Mount.
- VT Single Door Magnetic Lock 600Lb / Anti-Residual Magnetism Design / Lock Status sensor / LED ultra bright / UL with L and Z shape Mount.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Clamping force: 600lbs.
Free design of residual magnetism.
Ultra-bright indicator LED.
Voltage: 12/24 Vcc + 10% (selectable by jumper).
Current consumption: 12V / 520mA, 24V / 260mA.
Operating temperature: 14- 131°F.
Operating humidity: 0 to 90% (without condensation).
Door sensor NO / NC
Magnet finish: anodized aluminum.
Finishing of the plate: zinc.
Dimensions of the magnet: 250 x 48.8 x 27.9 mm.
Dimensions of the plate: 180 x 38.8 x 13.2 mm.
Weight: 2.1 kg.
UL CERTIFIED
Free design of residual magnetism.
Ultra-bright indicator LED.
Voltage: 12/24 Vcc + 10% (selectable by jumper).
Current consumption: 12V / 520mA, 24V / 260mA.
Operating temperature: 14- 131°F.
Operating humidity: 0 to 90% (without condensation).
Door sensor NO / NC
Magnet finish: anodized aluminum.
Finishing of the plate: zinc.
Dimensions of the magnet: 250 x 48.8 x 27.9 mm.
Dimensions of the plate: 180 x 38.8 x 13.2 mm.
Weight: 2.1 kg.
UL CERTIFIED
