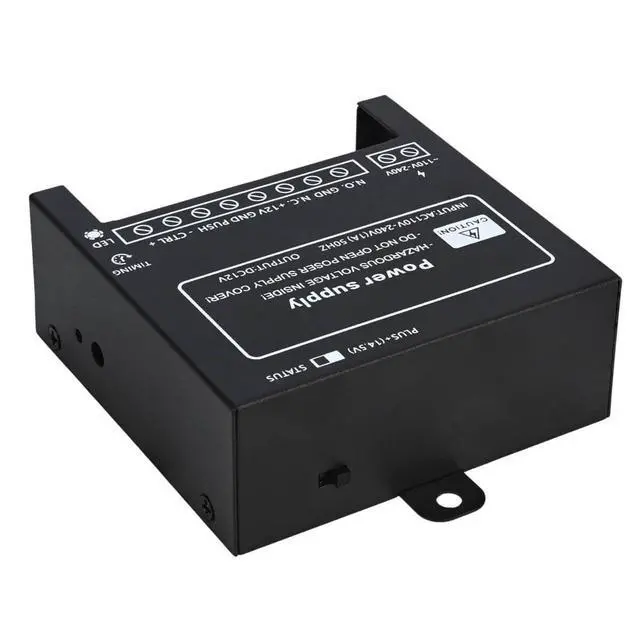

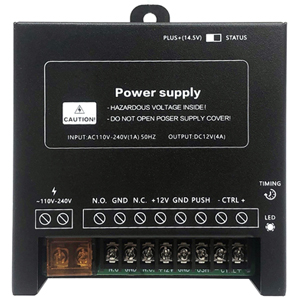

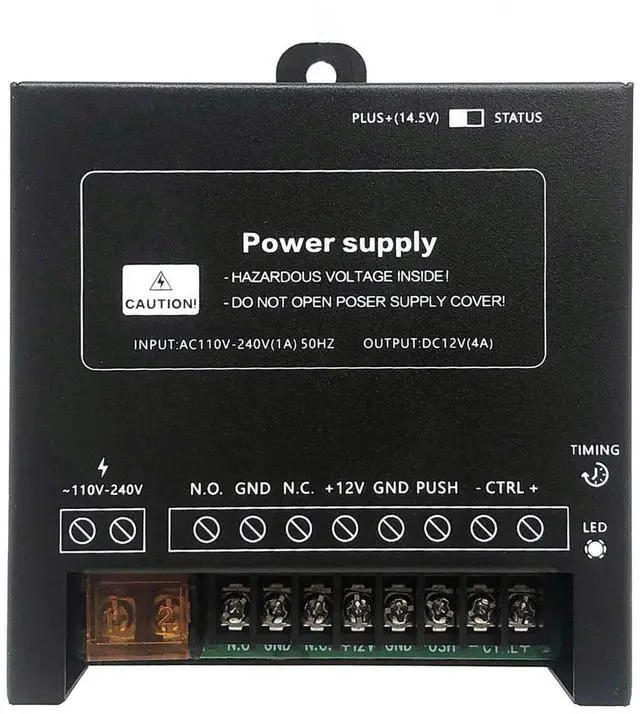

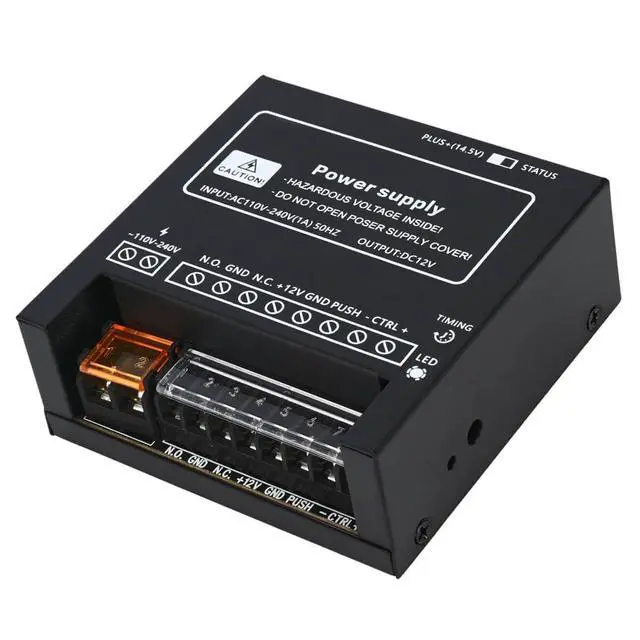

Power Supply Control for Door Access System Input 110V-240V AC to Output 12V DC 4A
Features
- This power supply control is specially applied for door access control system.
- It is of strong practicality, simple interface and steady performance.
- It can be protected automatically when there is short circuit, over voltage or over current.
- With working current of 4A, it can provide electric lock and access controller with 12V DC steady output voltage.
- Compatible with electric lock, access controller, exit push button, remote controller and doorbell chime, etc.
- Aluminum alloy enclosure with good heat dissipation.
- Based on relay control circuit, delay time can be adjusted from 0 to 15 seconds.

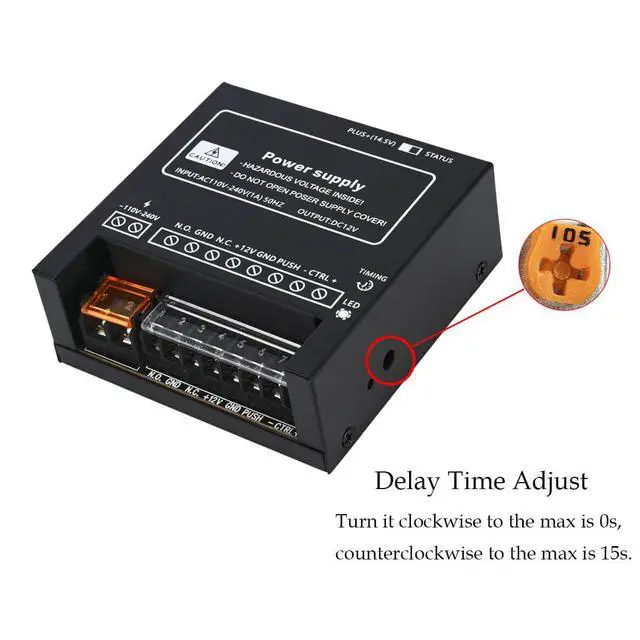

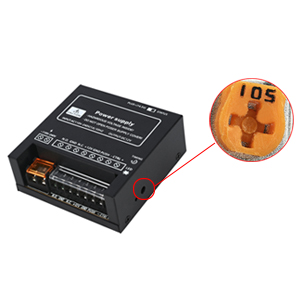

Delay Time Adjustable
You can rotate this cross knob. Turn it clockwise to the max is 0s, and counterclockwise to the max is 15s. You can turn it to a suitable position according to your needs. Default Delay Time is 6s.

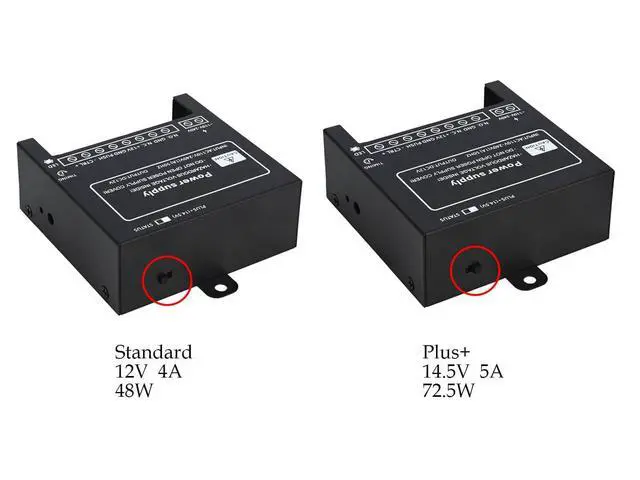

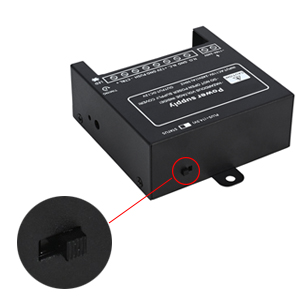

Larger Power Mode Available
Default mode (STATUS) provides DC 12V 4A and if you need a larger power mode, you can turn the button to PLUS+ mode and it can provide DC 14.5V 5A power.

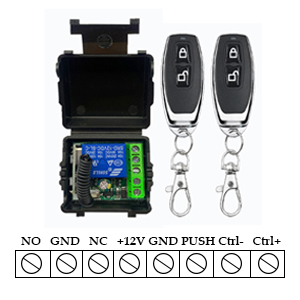

Accessible Remote Control
Compatible with all kinds of electric lock, access controller, exit push button, remote controller and doorbell chime, etc.
Specification
- Input Voltage: AC110-240V Worldwide Voltage
- Input Frequency: 50-60Hz
- Output Voltage: 12V DC (14.5V under PLUS+ mode)
- Output Current: 4A (5A under PLUS+ mode)
- Enclosure Material: Aluminum alloy
- Enclosure Color: Black
- Time Delay: 0-15s
- Operating temp: -20?~+45?(-4?-113?)

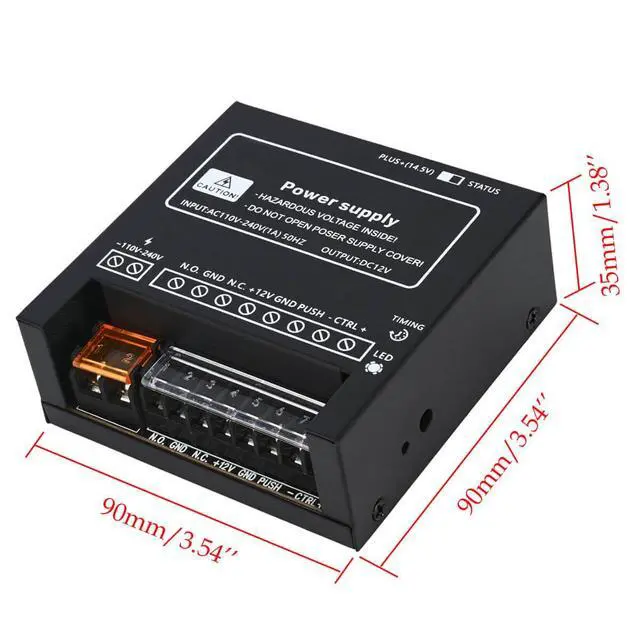

- Dimensions (Lx W x H): 3.54" x 3.54" x 1.38"
- Weight: 0.3kg / 0.67lb
Package Included
- 1 x Power Supply
- 1 x User manual
- 1 x Fix screw kit

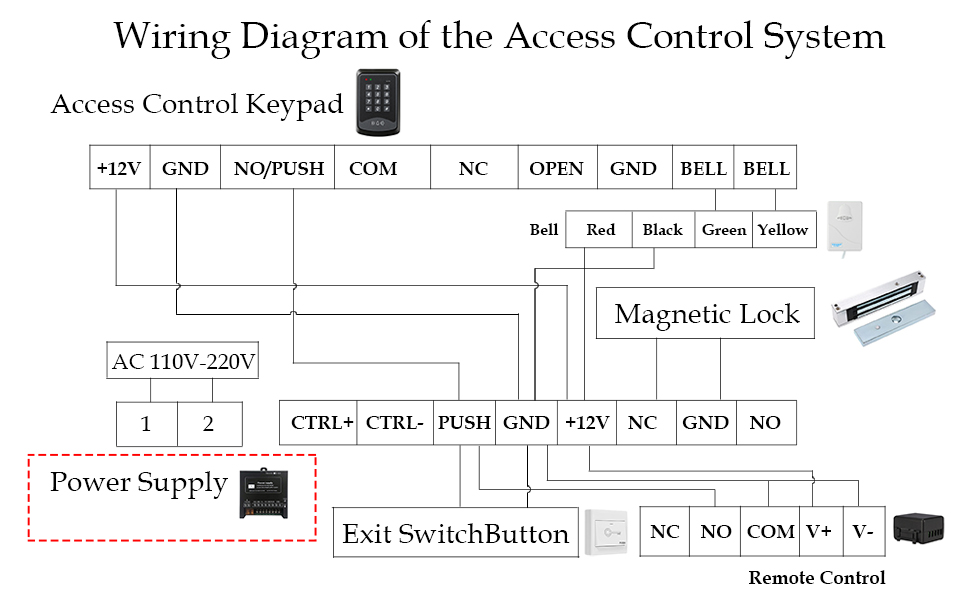

Wiring Diagram
