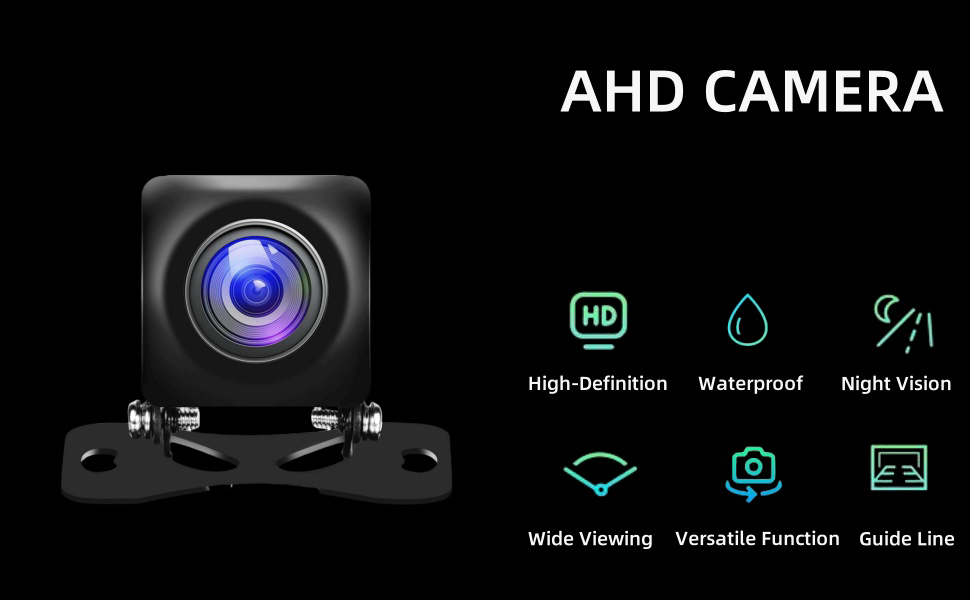

Note: this backup camera only support 2 format
1. 720P HD PAL-25hz, most devices are in this mode, so you need to cut the white line.

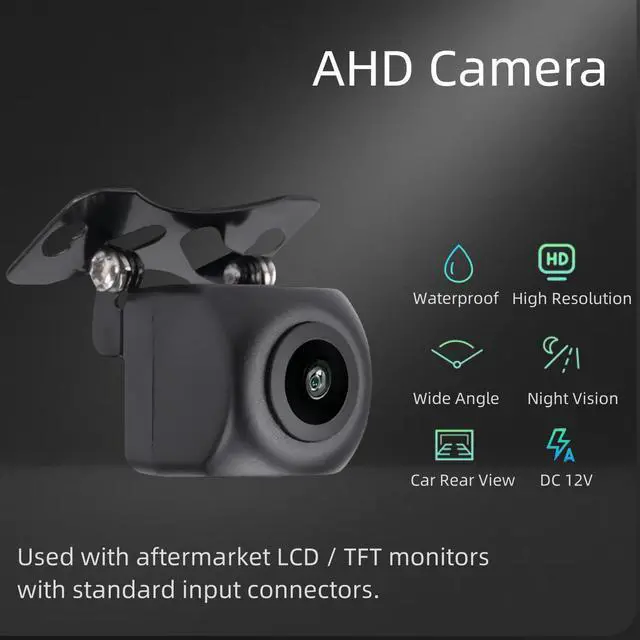

2. 1080P AHD PAL-25hz, few devices support this mode, higher resolution and clearer picture quality. The camera defaults to AHD format, you don't need to cut any cable.

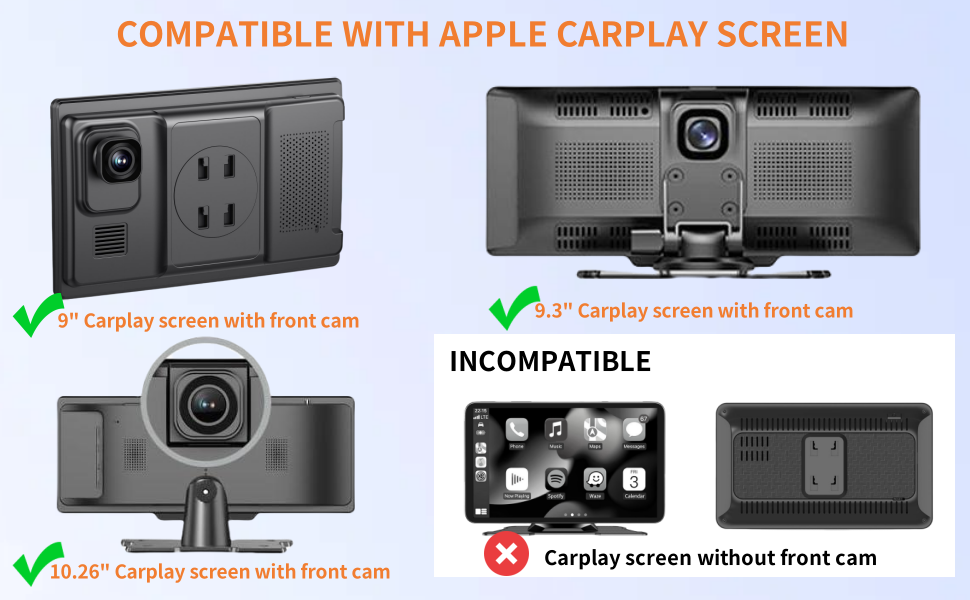

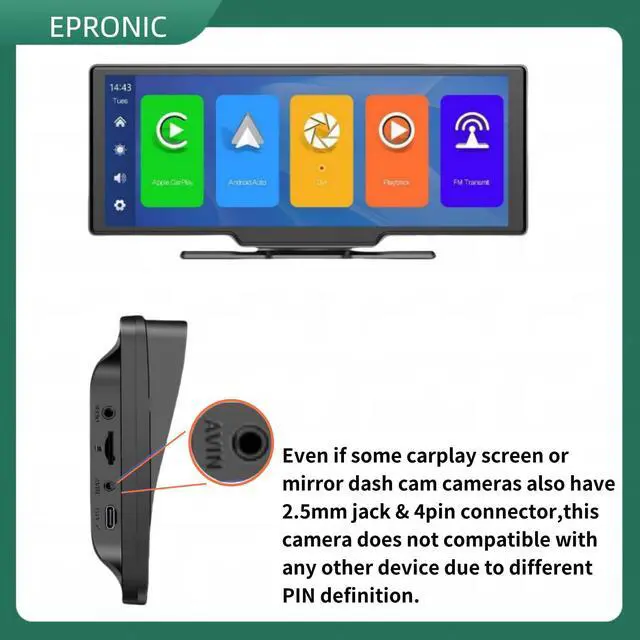

Note: Most carplay devices only support CVBS format, if you need it, you can reply this email.

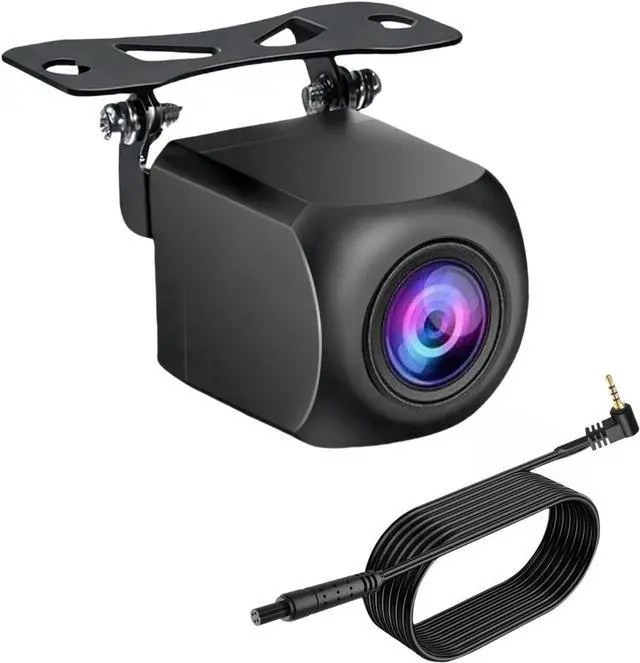

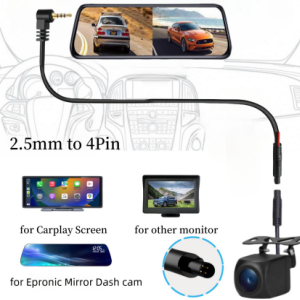

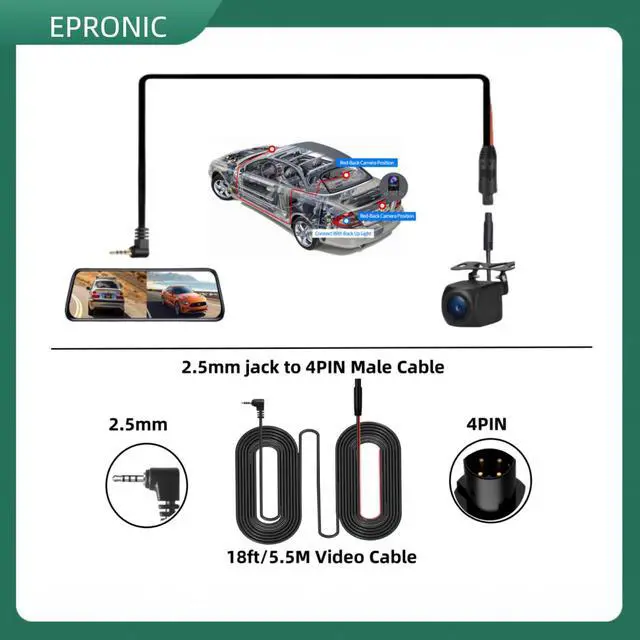

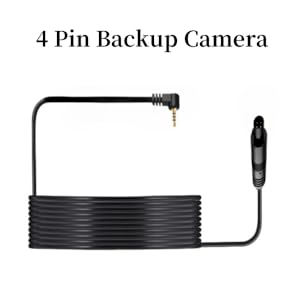

2.5mm jack one end, 4pin at camera end

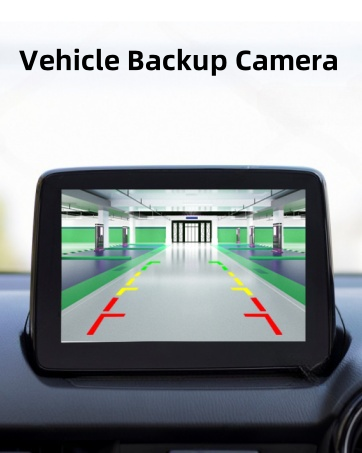

- Camera power cable: 2.5mm jack Vehicle Backup Camera Front/Rear View Camera
- connection to your carplay screen.(plug and play)
- Please don’t replace it to 3.5mm AV-IN port video cable.
High Definition

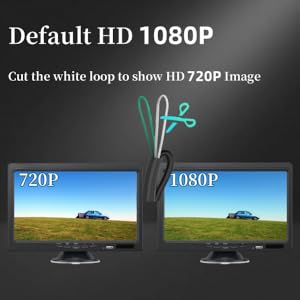

- If you need the 720P image, cut off the white wire/loop.
- Pay more attention: After you install the backup camera, or cut any loops, pls restart your monitor or radio. Or, it will not show correct image.
Front and Rear View
- If you need the front view camera, cut off the green wire/loop.
- Pay more attention: After you install the backup camera, or cut any loops, pls restart your monitor or radio. Or, it will not show correct image.
4 PIN BACKUP CAMERA

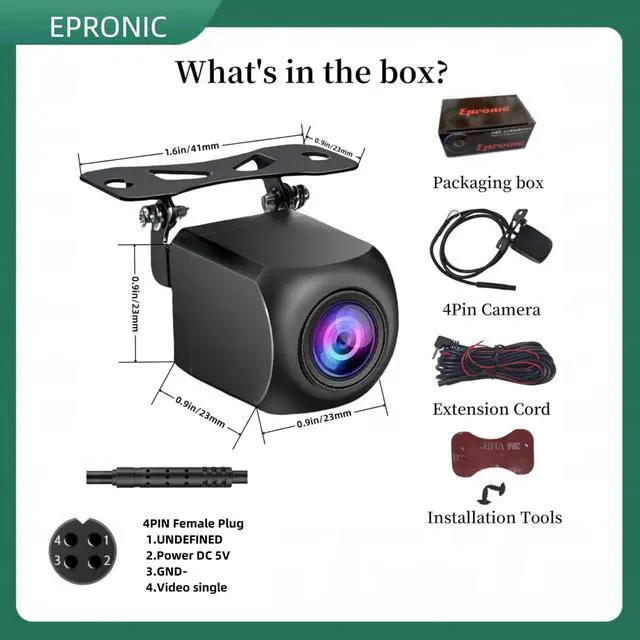

What's in the package?
- 1*4 pin Car Rear View Camera

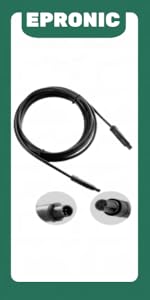

- 1*18.04ft extension video cable
- 1* 1.64ft Power Supply Cable
- 1* Universal Bracket
- 1*User Manual
- 2* Install Screw

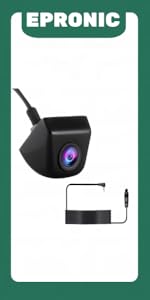

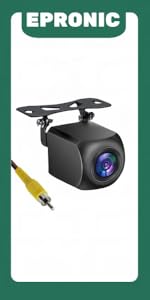

 4pin Backup Camera |  4pin Backup Camera |  Epronic 360° Rotation HD Backup Camera Front/Rear View Camera with Great Nigh... |  Epronic Universal Rear Camera for Car HD1080P/NTSC, IP68 Waterproof Cámaras d... |  Licence Plate Mount |  Extension Cord | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — no data | — no data | — no data | — |

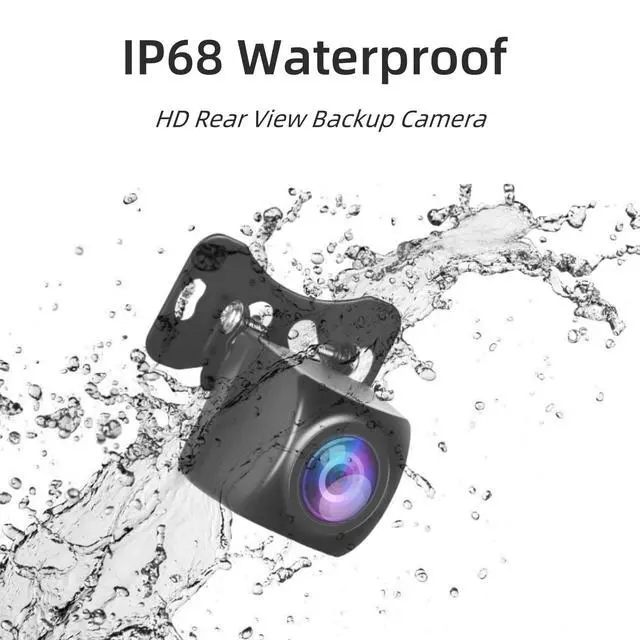

| Waterproof | IP68 | IP68 | IP68 | IP68 | ? | no data |
| Power supply | 12V DC (vehicle system) | 12V DC (vehicle system) | 12V DC (vehicle system) | 12V DC (vehicle system) | no data | no data |
| TV system | PAL default | PAL default | NTSC default | PAL default | no data | no data |
| Product Dimensions | 1"L x 0.89"W x 0.89"H | no data | 0.9"L x 0.89"W x 0.89"H | 0.9"L x 0.89"W x 0.89"H | 7inch | 10M(31ft) |
| Real Angle Of View | 170° | 149° | 170° | 149° | no data | no data |
| Operation Temperature | -20°C+90°C | -20°C+90°C | -20°C+80°C RH95% | -20°C+90°C | no data | no data |
| Video Resolution | 1080P/720P | 1080P/720P | 720P | 1080P/CVBS | no data | |
| Optical Sensor Tech | CMOS | CMOS | CMOS | CMOS | no data | no data |
