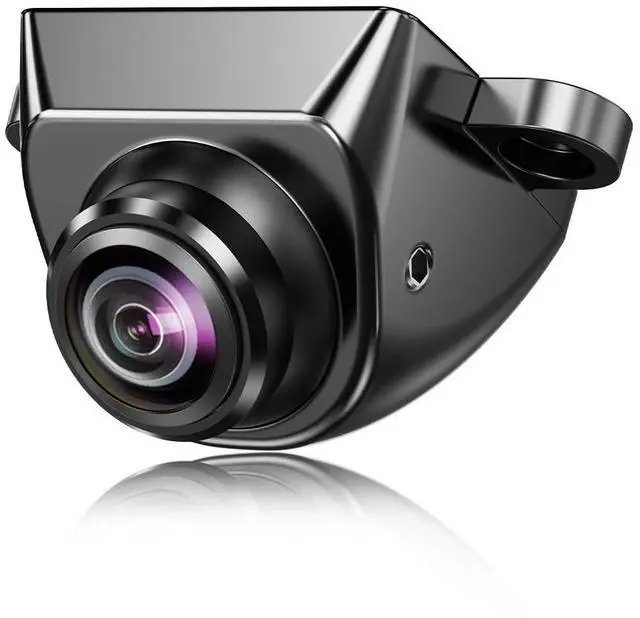

GreenYi HD Backup Camera with Adjustable Lens
hero-video

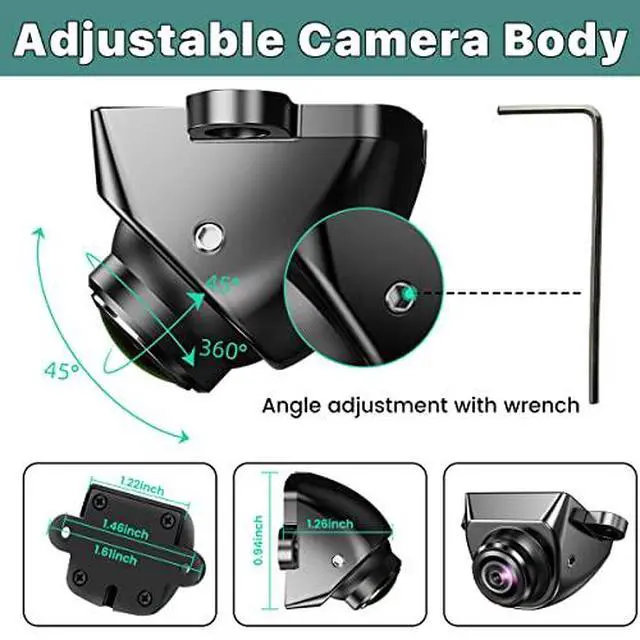

Merchant VideoThis backup camera's body can be rotated for 360 degrees, its lens can be rotated for 45 degrees(right to left) + 45 degrees(up to down), you can get a perfect view with all kinds of position installation. There is an extra silicone holder included in case you don't want to drill a hole.
Features of Car Rear Camera
Work Under Extreme Condition
Our camera is IP68 waterproof, no problem with car washing, rain or other bad weather.
Also works well in extreme high or low temperature condition.
Starlight Night Vision
Backup camera for car has a good performance even when reversing at dark night, high clarity sharp colorful image will still show on your monitor.

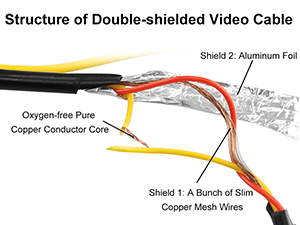

Double-shielded Video Cable
GreenYi backup camera comes with 26FT / 8M long video cable, enough for most vehicles. Double-shielded design to ensure high quality video signal.

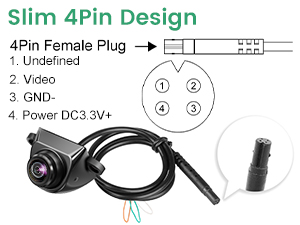

4Pin Backup Camera for Car
4pin design, easier installation than that of RCA. Can't be connected to any dashcam, mirror cam or GPS monitors that doesn't support RCA video input.

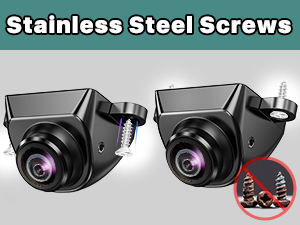

Stainless Steel Screws
Stainless steel screws are made of stainless steel 304, which has excellent corrosion resistance and mechanical strength.

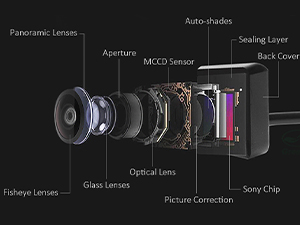

Applies Best Material
Fisheye lens to get wide view angle;
Glass lens to filter impurities;
F1.2 aperture to capture more light input;
C4 chip to better process the image;
Applying New Chip
Applying CCD AHD chip, our back up camera can show high definition and stable images.
Include Everything You Need
We provide 26FT double-shielded video cable and 4pin power cable, some extra zip ties and electrical tape to help you install more conveniently.

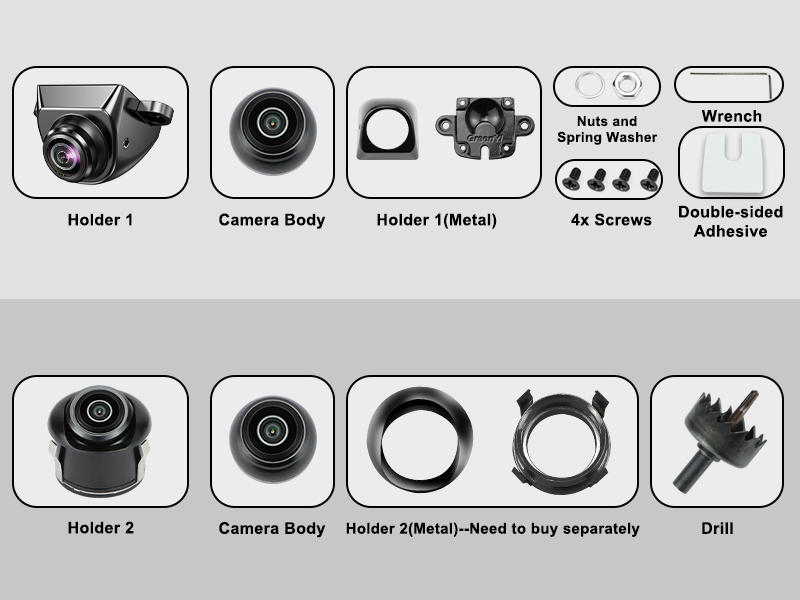

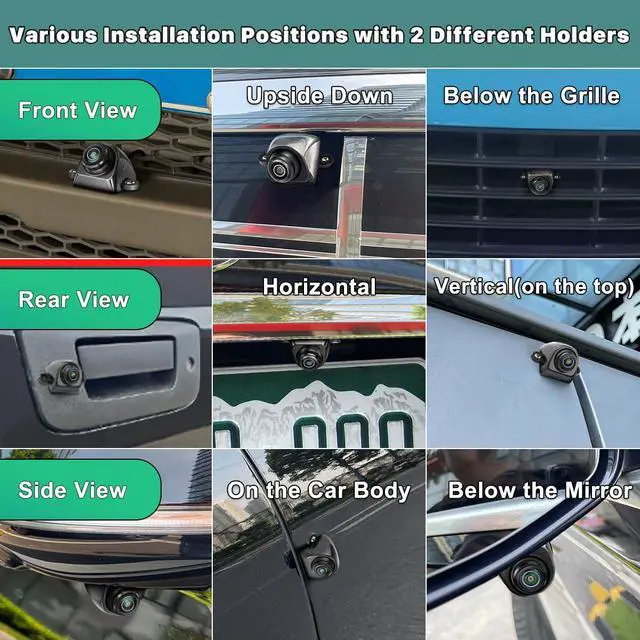

Two Holders for Selection(Holder 2 needs to buy separately):
Holder 1: The backup camera comes with this metal holder installed well by default. You can install it with horizontal or vertical(upside down) mounting.
Holder 2: This metal holder is for flush hidden mounting, need to drill a hole. Need to buy separately with ASIN: B0BLG78TTM.
About GreenYi Vehicle Backup Camera:
NOTE: All of our 4pin backup cameras can't be connected directly with any other monitors(no matter DVR or dashcam or whatever) which is not compatible with RCA video input.
* Please test the back up cameras before final installation.

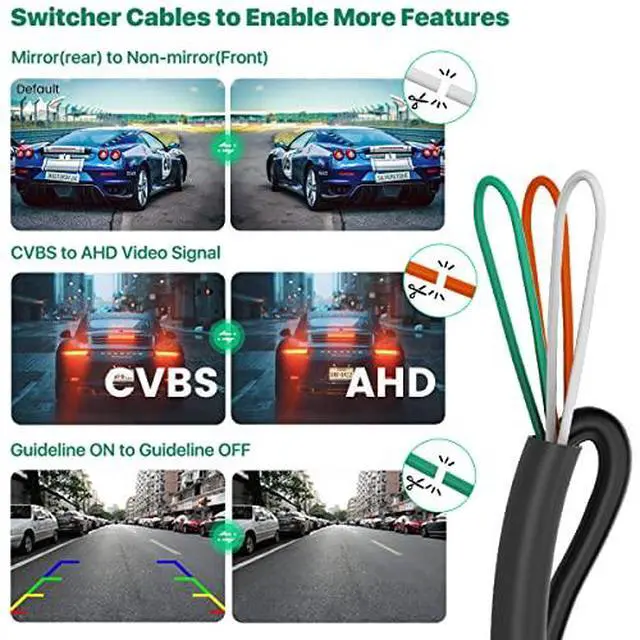

* If there is no option for AHD 720P 30HZ/NTSC in your video signal settings page of your monitor, then please don't cut the orange cable.
* If you connect the backup camera for pickup to a FACTORY RADIO, please order a suited Harness & Programmer separately, because different RADIO needs different Harness & Programmer.

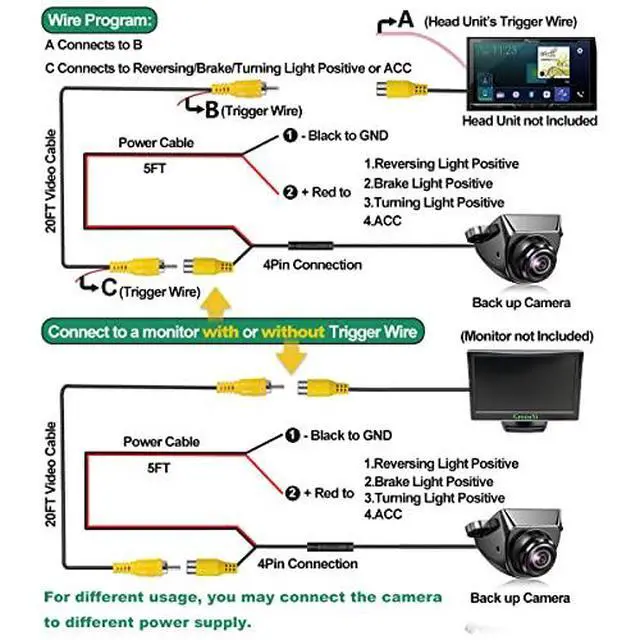

* There is a pink color wire on your head unit usually, please connect it with the 26FT video cable's trigger wire.
* Before you routing, if there is no image on the screen, other than check the camera, please check display settings as well. You can use other device with RCA connector, such as TV to check if the camera works.

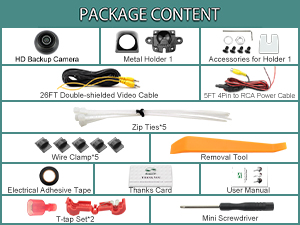

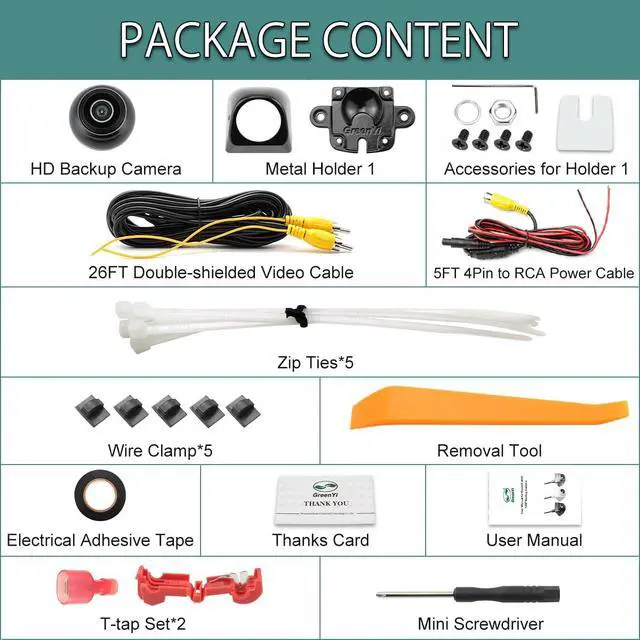

Package:
1. 1 * HD 720P Backup Camera 2. 1 * 26FT Double Shielded Video Cable 3. 1 * 5FT Power Cable 4. 1 * Metal Holder set 5. 1 * Accessory Bag for Metal Holder
6. 1 * User Manual 7. 1 * Adhesive Tape 8. 1 * Removal Tool 9. 5 * Zip Ties 10. 5 * Wire Clamps 11. 1 * Mini Screwdriver
12. 1 * Electric Adhesive Tape 13. 2 * T-tap Sets
Specifications
Compromises Other Backup Cameras' Advantages:
 720P Backup Camera |  720P Backup Camera |  Car Backup Camera |  1080P Backup Camera |  1080P Backup Camera |  Trajectory Backup Camera |  Trajectory Backup Camera | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Adjustable Camera Body | ? | ? | ? | ? | ? | ? | ? |
Viewing Angle | 170 Degrees | 170 Degrees | 170 Degrees | 170 Degrees / 120 Degrees | 170 Degrees / 120 Degrees | 170 Degrees | 170 Degrees |
Video Signal | CVBS to AHD | CVBS to AHD | CVBS to AHD | AHD to CVBS | AHD to CVBS | CVBS | CVBS |
Support Guideline on / off | ? | ? | ? | ? | ? | ? | ? |
Vertical or Horizontal Mount | Both Available | Both Available | Vertial mount | Both Available | Horizontal | Both Available | Horizontal |
Resolution | 1280x720p | 1280x720p | 1920x1080p / 1280x720p | 1920x1080p / 1280x720p | 1920x1080p / 1280x720p | 960x720p | 960x720p |
Can be Used as | Front / Rear / Side View Cam | Front / Rear / Side View Cam | Rear Camera | Front / Rear / Side View Cam | Reverse Camera | Reverse Camera | Reverse Camera |
Unique GreenYi Backup Cameras
We offer unique backup cameras with practical usage, customers' satisfaction comes first.
We have concentrated on vehicle accessories industry for over 10 years.
We have always been doing all we can to provide high quality UNIQUE products for our dearest customers.
We persist that Customers’ Satisfaction Comes First.
Universal Backup Camera
Trunk Handle Backup Camera
OE Backup Camera
WIFI License Plate Backup Cam
Backup Camera Video Cable
GreenYi HD Backup Camera with Adjustable Lens
hero-video
Merchant VideoThis backup camera's body can be rotated for 360 degrees, its lens can be rotated for 45 degrees(right to left) + 45 degrees(up to down), you can get a perfect view with all kinds of position installation. There is an extra silicone holder included in case you don't want to drill a hole.
Features of Car Rear Camera
Work Under Extreme Condition
Our camera is IP68 waterproof, no problem with car washing, rain or other bad weather.
Also works well in extreme high or low temperature condition.
Starlight Night Vision
Backup camera for car has a good performance even when reversing at dark night, high clarity sharp colorful image will still show on your monitor.
Double-shielded Video Cable
GreenYi backup camera comes with 26FT / 8M long video cable, enough for most vehicles. Double-shielded design to ensure high quality video signal.
4Pin Backup Camera for Car
4pin design, easier installation than that of RCA. Can't be connected to any dashcam, mirror cam or GPS monitors that doesn't support RCA video input.
Stainless Steel Screws
Stainless steel screws are made of stainless steel 304, which has excellent corrosion resistance and mechanical strength.
Applies Best Material
Fisheye lens to get wide view angle;
Glass lens to filter impurities;
F1.2 aperture to capture more light input;
C4 chip to better process the image;
Applying New Chip
Applying CCD AHD chip, our back up camera can show high definition and stable images.
Include Everything You Need
We provide 26FT double-shielded video cable and 4pin power cable, some extra zip ties and electrical tape to help you install more conveniently.
Two Holders for Selection(Holder 2 needs to buy separately):
Holder 1: The backup camera comes with this metal holder installed well by default. You can install it with horizontal or vertical(upside down) mounting.
Holder 2: This metal holder is for flush hidden mounting, need to drill a hole. Need to buy separately with ASIN: B0BLG78TTM.
About GreenYi Vehicle Backup Camera:
NOTE: All of our 4pin backup cameras can't be connected directly with any other monitors(no matter DVR or dashcam or whatever) which is not compatible with RCA video input.
* Please test the back up cameras before final installation.
* If there is no option for AHD 720P 30HZ/NTSC in your video signal settings page of your monitor, then please don't cut the orange cable.
* If you connect the backup camera for pickup to a FACTORY RADIO, please order a suited Harness & Programmer separately, because different RADIO needs different Harness & Programmer.
* There is a pink color wire on your head unit usually, please connect it with the 26FT video cable's trigger wire.
* Before you routing, if there is no image on the screen, other than check the camera, please check display settings as well. You can use other device with RCA connector, such as TV to check if the camera works.
Package:
1. 1 * HD 720P Backup Camera 2. 1 * 26FT Double Shielded Video Cable 3. 1 * 5FT Power Cable 4. 1 * Metal Holder set 5. 1 * Accessory Bag for Metal Holder
6. 1 * User Manual 7. 1 * Adhesive Tape 8. 1 * Removal Tool 9. 5 * Zip Ties 10. 5 * Wire Clamps 11. 1 * Mini Screwdriver
12. 1 * Electric Adhesive Tape 13. 2 * T-tap Sets
Specifications
| Image Sensor | CCD AHD Chip |
|---|---|
| Power | DC 12-24V |
| Resolution | 1280*720 Pixels |
| Viewing Angle | 170 degrees |
| Waterproof Grade | IP68 |
| Minimum Illumination | 0.01Lux / F1.5 |
| TV System | NTSC |
| Signal to Noise Ratio | =48dB |
| Working Humidity | 80%RH |
| Operating Temperature | -22?— +140? |
| Storage Temperature | -40?—+176? |
Compromises Other Backup Cameras' Advantages:
720P Backup Camera | 720P Backup Camera | Car Backup Camera | 1080P Backup Camera | 1080P Backup Camera | Trajectory Backup Camera | Trajectory Backup Camera |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Adjustable Camera Body | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Viewing Angle | ||||||
| 170 Degrees | 170 Degrees | 170 Degrees | 170 Degrees / 120 Degrees | 170 Degrees / 120 Degrees | 170 Degrees | 170 Degrees |
| Video Signal | ||||||
| CVBS to AHD | CVBS to AHD | CVBS to AHD | AHD to CVBS | AHD to CVBS | CVBS | CVBS |
| Support Guideline on / off | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Vertical or Horizontal Mount | ||||||
| Both Available | Both Available | Vertial mount | Both Available | Horizontal | Both Available | Horizontal |
| Resolution | ||||||
| 1280x720p | 1280x720p | 1920x1080p / 1280x720p | 1920x1080p / 1280x720p | 1920x1080p / 1280x720p | 960x720p | 960x720p |
| Can be Used as | ||||||
| Front / Rear / Side View Cam | Front / Rear / Side View Cam | Rear Camera | Front / Rear / Side View Cam | Reverse Camera | Reverse Camera | Reverse Camera |
