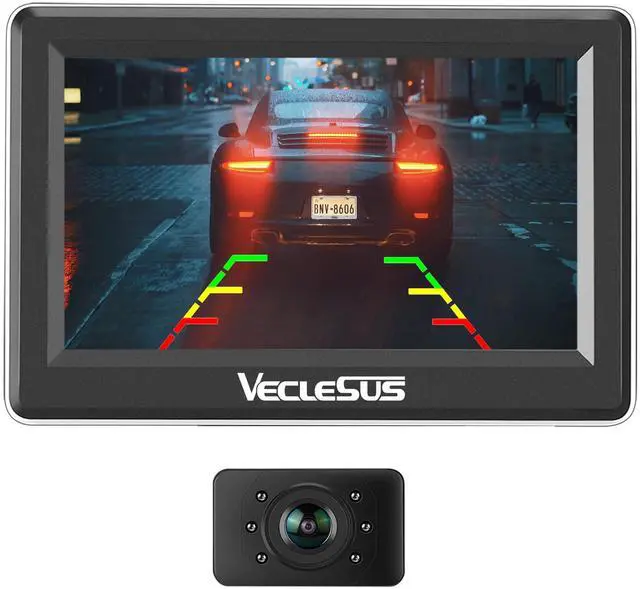

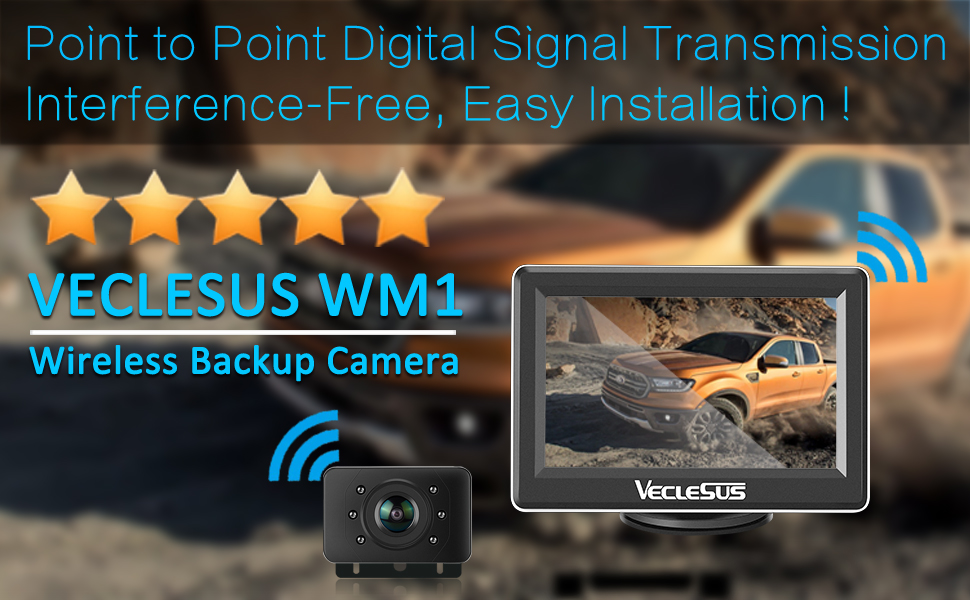

VECLESUS WM1 Wireless Backup Camera
Tips:

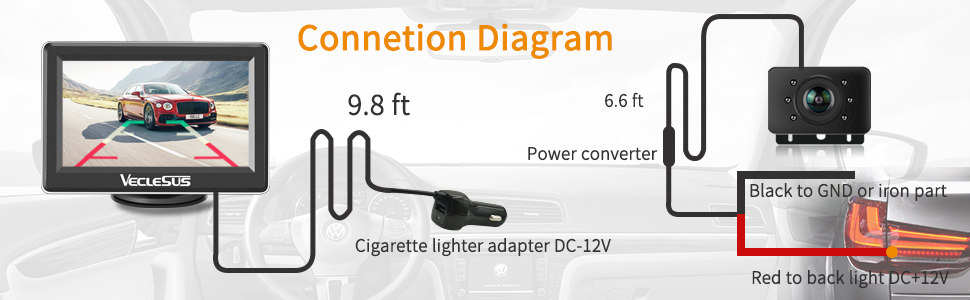

- Before installating this wireless backup camera, please refer to the wiring diagram below and the user manual in the package.
- We have also made available a free video installation tutorial on YouTube which you can access by simply search VECLESUS WM1.
- This car backup camera is powerd by the reversing light, please find out the reversing light with the test pencil or multimeter, then connect it to the backup camera.
Note:
- It is not wifi or bluethooth backup camera, wireless here simply means the cordless transmission from the camera to the monitor, with the monitor and camera wired and powered separately. So our wireless backup camera is very easy to install as you do not have to route the wires from the rear to the front.

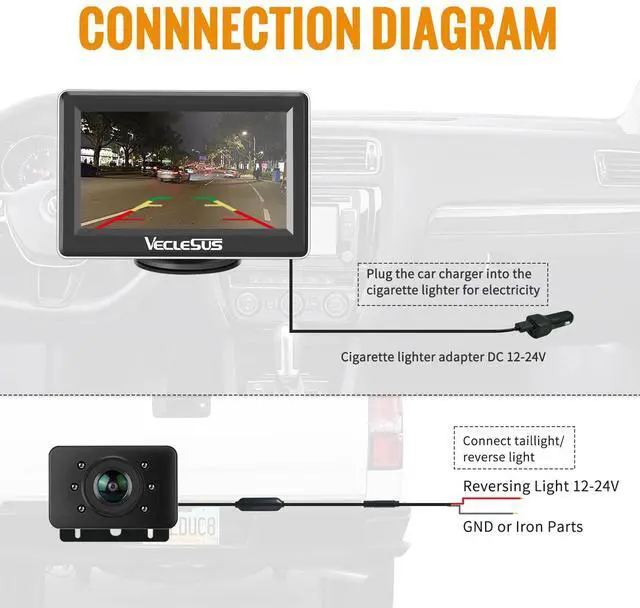

- This backup camera kit is powerd by the reversing(back) light. Please verify the reversing light with the test pencil or multi-meter, and proceed by connecting the red wire to it and the black to the GND or iron part. You can consult the user manual or our videos on YouTube for further details.

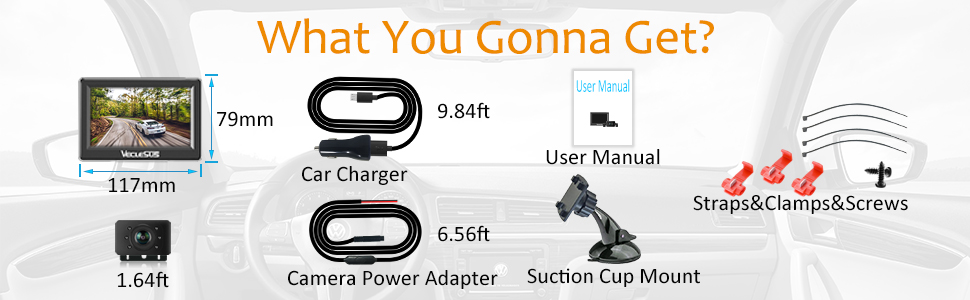

- The monitor powered by a car charger, with an extra USB port reserved for charging other devices. The power cord length of the monitor and backup camera is shown in the figure below:
Powerful Camera

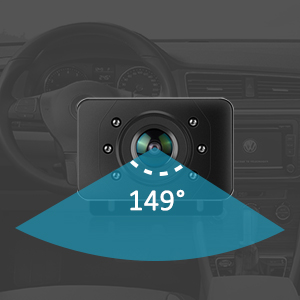

Golden Viewing Angle
Big data shows that the 149-degree perspective makes the image more vivid without distortion, giving you more confidence on parking/driving.

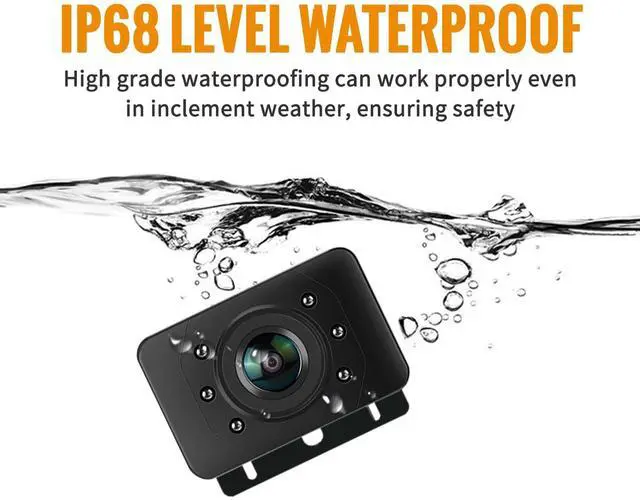

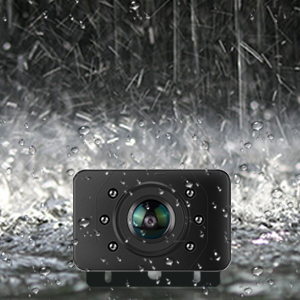

IP68 High Rating Waterproof
The high waterproof rating of this wireless backup camera makes them completely prevent dust from entering the camera lens. Even continuous immersion under a certain pressure will not cause water to enter the camera.

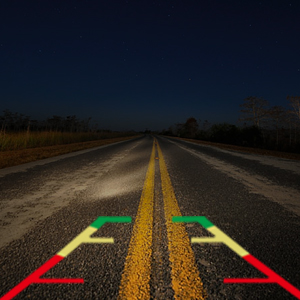

Superior Night Time Vision
With a number of highly sensitive sensor, perfect color night vision in low light conditions.
Note: The white LEDs on the camera are night vision sensors and does not be lighted up at night.
Image Direction Adjustable
It supports mirror and flip mode, not only can be used as a backup camera but also can be installed in the front of the car backup camera.

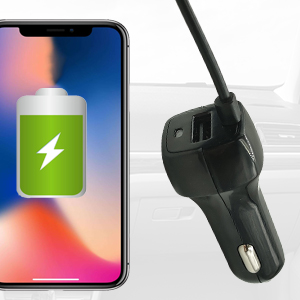

Extra USB Port

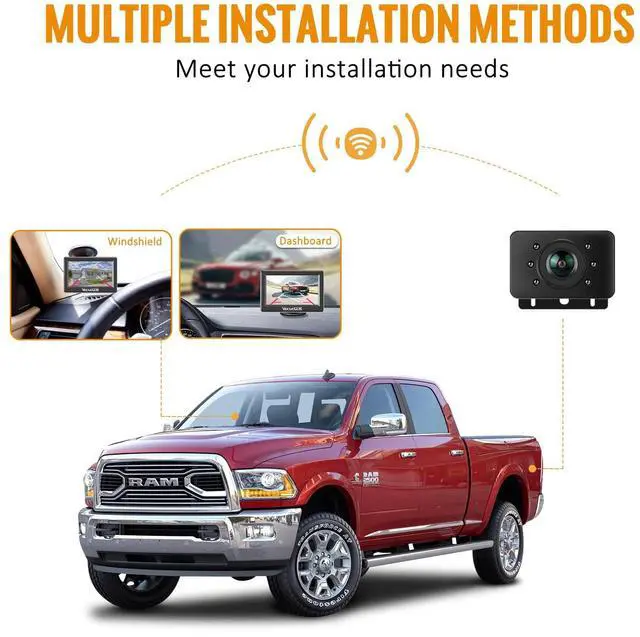

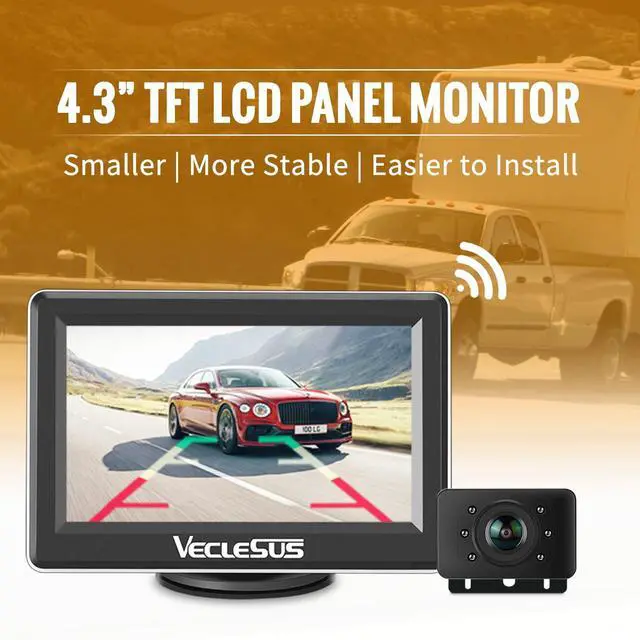

The 4.3-inch monitor without external antenna and can be mounted on the dash or windshield without blocking the view when driving.
The car charger with an extra USB port to charge other devices.

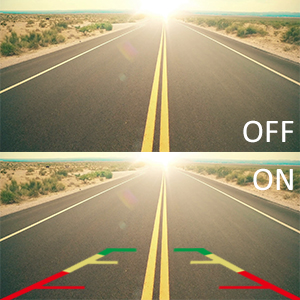

Parking Line Ajustable
The parking guideline can be adjusted ON/OFF for many purposes, it depends.
 VM1B |  VM1 |  VT1 |  V5M |  VC1 |  VMS | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — no data | — | — | — | — | — |
| Wireless or Wired | Wired | Wired | Wired | Wired | Wired | Wired |
| Night Vision | Infrared Night Vision | Colorfull Night Vision | Colorfull Night Vision | Infrared Night Vision | Colorfull Night Vision | Colorfull Night Vision |
| Monitor Mount Position | Dashboard or windshield | Dashboard or windshield | Rearview Mirror | Dashboard or windshield | / | Dashboard or windshield |
| Monitor Size | 4.3? LCD | 4.3? LCD | 4.3? LCD | 5? LCD | / | 7? LCD |
| Camera Angle | 149° | 149° | 149° | 149° | 149° | 149° |
| Adjustable Parking Lines | ? | ? | ? | ? | ? | ? |
| Mirror/Normal Image Option | ? | ? | ? | ? | Mirror | ? |
| IP 68 Waterproof | ? | ? | ? | ? | ? | ? |
| Remote Control | / | / | / | Yes | / | / |
| The length of extension cable | 16.4FT | 33ft(10m) | 33ft(10m) | 49.2ft(15m) | 33ft(10m) | 66ft(20m) |
Vehicle Backup Cameras System for car
- Vehicle Backup Cameras System for Extended train
- Vehicle Backup Cameras Systems for Trucks\RVS\Buses\Pickups\Motorhome etc
- Vehicle Backup Cameras System for airplane\Boat etc
Vehicle Backup Cameras System for Recreational Vehicle
- Vehicle Backup Cameras System for Agricultural vehicles etc
- Vehicle Backup Cameras System with baby camera

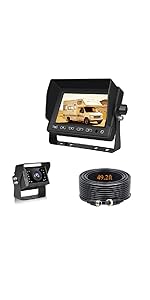

V5M Camera 480P 5"

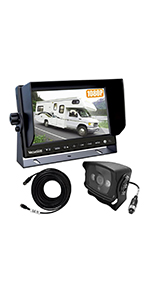

VMST Cam 1080P 7” 33ft+66ft
VMS Camera 1080P 7" 2 Videos
VMW7 Wireless 1080P 7” monitor

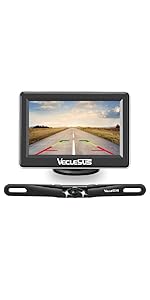

VM1 Camera 1080P 4.3''
WM1 Wireless 1080P 4.3''

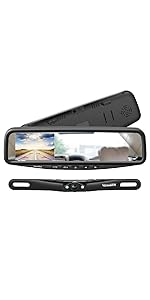

VT1 Camera 1080P 4.3" Mirror

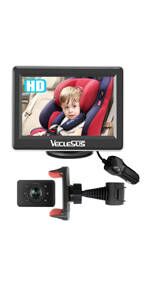

VM1B baby monitor 1080P 4.3''
VT1B baby monitor 1080P 4.3''
- …………………………
