As a burgeoning manufacturer of top-notch OEM&ODM vehicle electronic products, NATIKA aims to serve even the most demanding needs of worldwide clientele.Invariably, we believe that customer experience counts far more than short-term profits, so we make concerted efforts to design, manufacture, and improve our products and services in an innovative and responsible fashion.

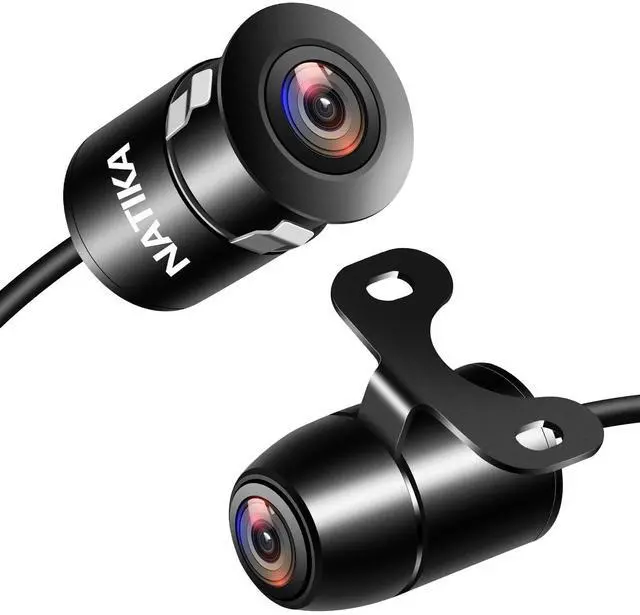

NATIKA backup camera WD-012 support flush or bracket mount option, no distorted & fish-eye effect, starlight level night vision,IP69K IP rating reliable waterproof and horizontal 135 degrees wide view angle.

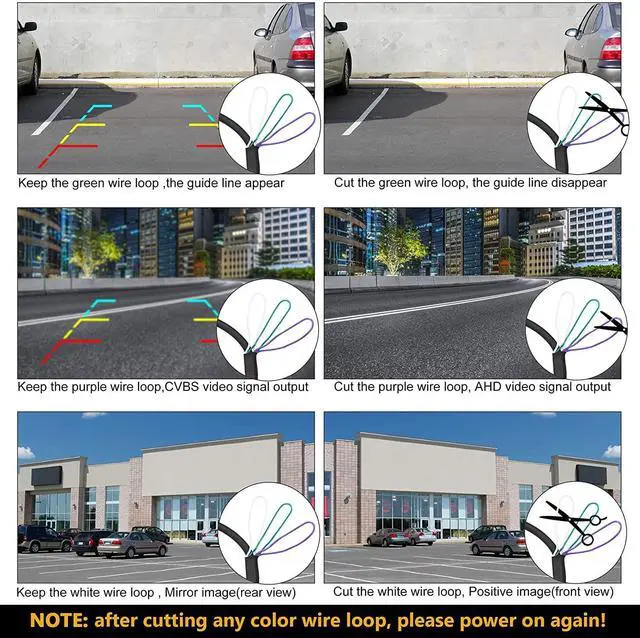

Useful Wire/Loop Control Design:
Reverse camera WD-012 with 2 small wires/Loops (White and Green color).
*If you need the guide line, please keep the green loop; If no need, just cut it; If you use it as a front view camera, please cut the white loop;

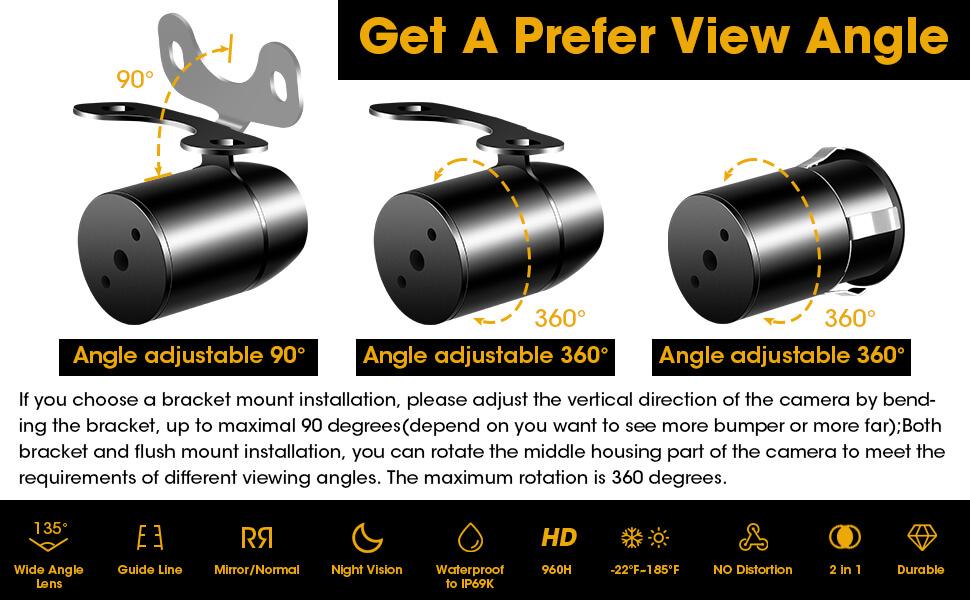

*If you use it as a front view camera without guide line, please cut both white and green wire/loop; If as a side view camera, please rotate the middle housing part of the camera (maximum 360 degrees) to get a prefer view angle; Look backward, keep the white loop; look forward, cut the white loop.
*Note: this camera is a rear view camera with guide line/parking line as DEFAULT.
*Please power on again after you cut the small loops, then the image should be correct.

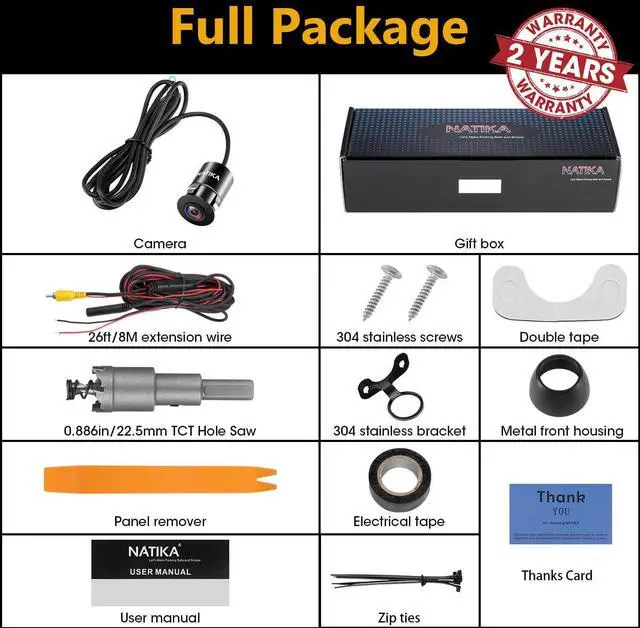

What you get:
1 x NATIKA Backup Camera; 1 x 26ft/8M Extension Wire; 2 x 304 Stainless Screws; 1 x Double Tape; 1 x User Manual; 1 x Electrical Tape; 3 x Wire Clamps; 1 x Panel Remover; 7 x Zip Ties; 1 x NATIKA Gift Box; 1 x Thanks Card; 1 x 0.886in/22.5MM TCT Hole Saw; 1 x 304 Stainless Bracket; 1 x Metal Front Housing
Notes:
*This NATIKA rear view camera WD-012 is perfect for REAR, FRONT and SIDE view.
*If connect this NATIKA backup/front/side view camera WD-012 to a FACTORY RADIO, please separately order a suited Harness & Programmer to complete installation, because different RADIO need different Harness & Programmer to work together.
* Mount this reverse camera on the panel and route the wire to inside (DO NOT pinch the wire/cable when route the wire, pinched wire will damage the camera, drill a hole to allow the wire go through if needed).
* If your head unit with a reverse triggering wire, normally it is a purple/white, blue/white or pink color wire, please find it, and connect it with the extension wire's triggering wire well(small short red wire next to the RCA/AV connector).
*If the image on the screen is blurry, flickering/flash or has horizontal or vertical strip, please check all your power and video connections. Possibly use a different ground point(iron part) and wrap power and video plugs with electrical tape to insulate from interference. If it still with blurry, flickering/flash or has horizontal or vertical strip, please order a 12V DC power adapter filter rectifier to solve it, especially need for Dodge VW AUDI BMW Mercedes Benz brands vehicle.
*Before you routing, if there is no image on the screen, other than check the camera, please check display setting as well. You can use other device with RCA connector, such as TV to check if the camera works.
* If you use wire clamps for connection, please kindly check and see if it works(connection is solid or not).
*For camera connection: connect the camera's male plug to female connector of the extension wire/cable, make sure the arrows to align and push the camera's male plug tightly into the female connector of the extension wire.
*If the camera is mounted offset, the guidelines on image will be offset.
*Ideally to mount the camera at the middle of the trim. If mount the camera at side, it still works, but with guide line offset.
*Guide line is for reference only, please use the mirrors for position when backup.
*Apply electrical tape for the joint of all for the connectors, and use zip ties to fasten the wire on your vehicle.
*Seal the red wire next RCA/AV connector with electrical tape if you do not use it.
*If you want to get a perfect view angle, before you use a drill rig to make a hole, please seriously check and test to find where is the best spot to mount this reverse camera,please rotate the middle housing part of the camera (maximum 360 degrees) or move the bracket (maximum 90 degrees) to get the best view angle.

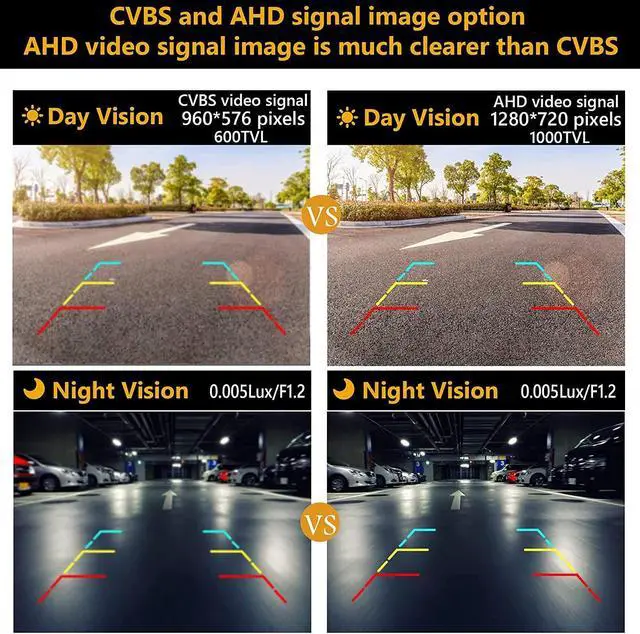

High Resolution and Amazing Night Vision
NATIKA vehicle reverse camera WD-012 built-in a LATEST high sensitive STARLIGHT LEVEL night vision HD 1/2.7inch CMOS IV image sensor and a digital high-definition image processor ISP(support 3D digital noise cancelling technology) it is maximum Pixels 1280*720, and effective 960*576 pixels at 25 fps, also with grade A 6G All-glass,F1.8 large aperture lens, transmit great sharp and clear image in day and night. Base on different output format, the rear view camera WD-012 output is 600TVL, but it is clear than the cameras whose original resolution is 420TVL,480TVL, 520TVL and 600TVL. It support amazing night vision function, the minimum illumination is 0.005Lux, say goodbye to grainy picture!

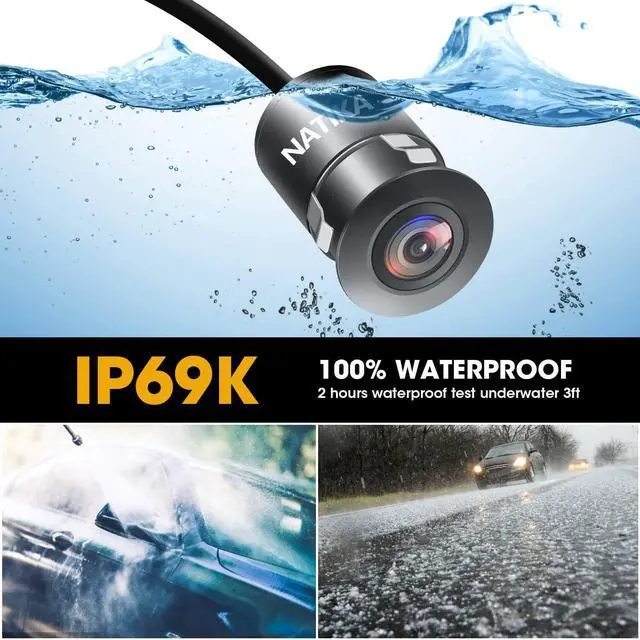

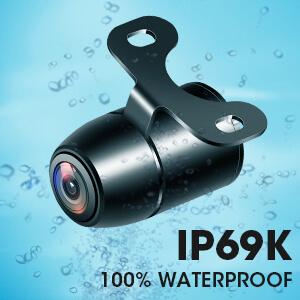

IP69K High IP Rate Waterproof
IP69K waterproof IP rate NATIKA rear view camera WD-012. It designed with fully sealed glue filling craft, so the waterproof function is better than IP67 and IP68, no need to worry about water, fog or mist inside.
Wide Applicable Temperature
NATIKA vehicle rear view camera WD-012 built-in wide range temperature electronic parts and components, the range is from -22? to +185?(-30? to +85?), it is great weatherproof and can work perfectly not only in the high temperature summer but also in cold winter or snowy weather, also outlasts harsh weather like thunderstorms, rain and more, in short it can adapt to all kinds of bad weather.
No Distortion & Fish-eye Affect REAL Picture
NATIKA flush or bracket mount vehicle reverse camera WD-012 use a LATEST 6pcs FULL glasses large-aperture optical system(include a grade A 6G All-glass+F1.8 large aperture lens),so the picture without any distorted & fish-eye effect, you will get a 100% REAL picture when you backing up, and enjoy a FULL REAL picture!

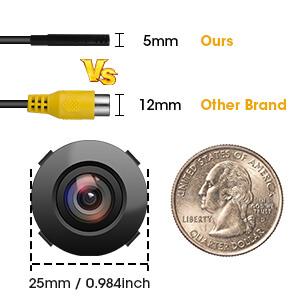

Small size MINI 4PIN connector

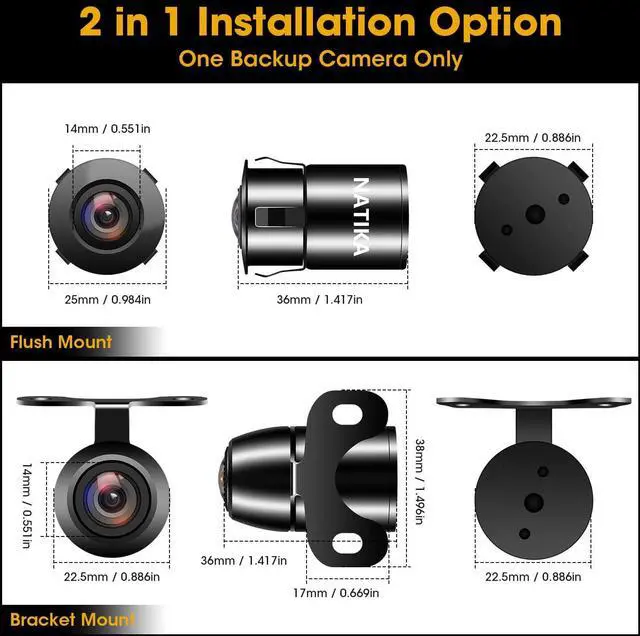

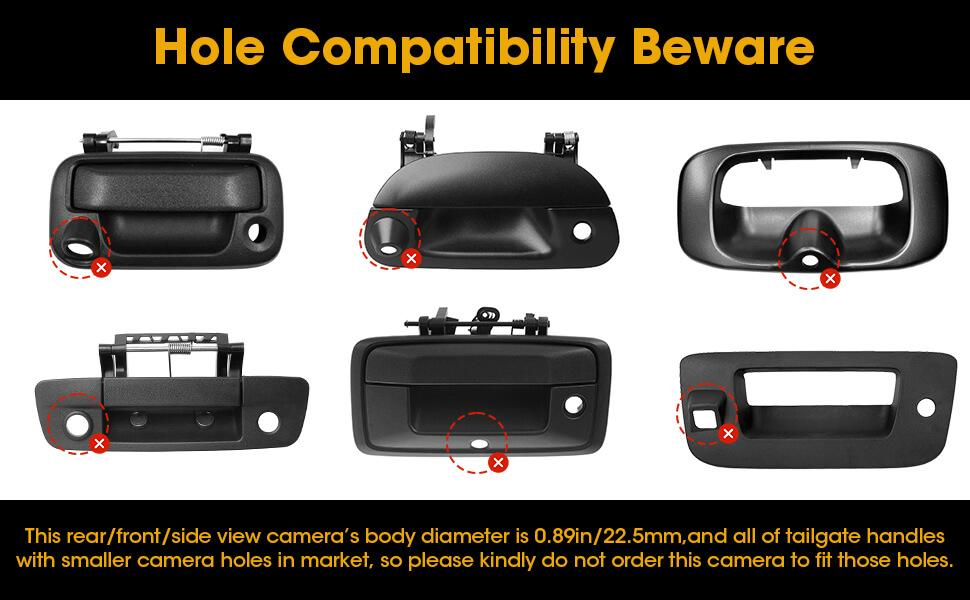

NATIKA vehicle reverse camera WD-012 with small size,diameter is 0.886in and solid materials grade A zinc alloy housing.
5MM mini 4PIN connector for convenient installation.

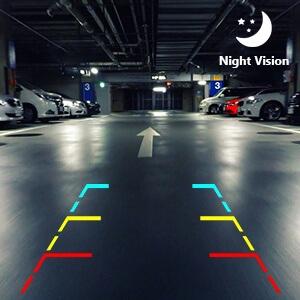

Amazing Night Vision
NATIKA vehicle backup camera WD-012 shows you clear picture even very dark areas, such as out of doors at night or inside of garage, because it built-in a latest 1/2.7inches low illumination level 0.01Lux high sensitive CMOS sensor and a Digital high-definition image sensor processor(ISP), also with a grade A 6G All-glass and F1.8 large aperture lens, delivers sharp and crystal clear picture day and night.

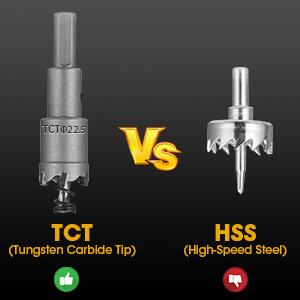

0.886in/22.5MM Sturdy & Solid TCT Hole Saw
NATIKA flush mount front view camera WD-012 include a sturdy and solid tungsten carbide tip hole saw, It can pierce less than 0.315in/8mm stainless steel plates or less than 0.7874in/20mm metal plates very well. And HSS(High-Speed-Steel)hole saw only can pierce less than 0.118in/3MM cast iron, aluminum, plastic or wood materials plates.

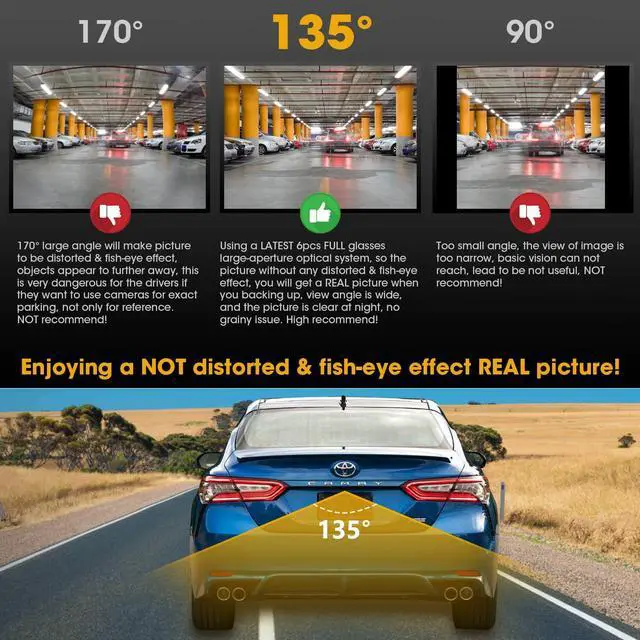

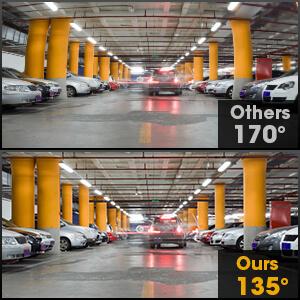

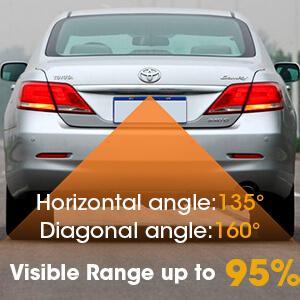

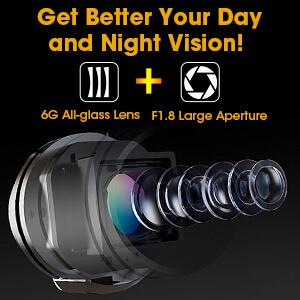

Useful Wide View Angle
NATIKA flush or bracket mount vehicle rear view camera WD-012 built-in a LATEST Grade A 6G All-glass and F1.8 large aperture lens, the lens' horizontal angle is 135 degrees(visible range up to 95%), thanks to the 135° viewing field, you'll be able to see far more than you could in the rear view mirrors alone. It helps you to decrease blind zone accidents very well.(your kids and pets will be more safe behind or in front of your vehicles).

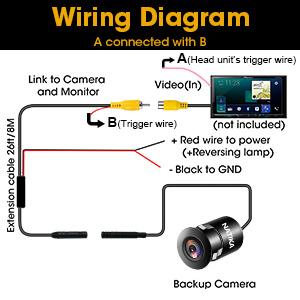

Easy Installation
1. Find a flat surface for mounting camera 2. Connect the power wire of flush mount backup camera to power of reversing light 3. Connect the 26ft extension cable of flush mount backup camera to the head unit of vehicle.
NOTE: 1).Please test the backup camera before routing 26ft extension cable from back to front.
2).Connected trigger A with B if your head unit with a trigger wire A, If not, no need connect them.
4.Start the vehicle and gear on reverse to test the camera.
5.Re-install the head unit.
