As a professional supplier of top-notch OEM&ODM vehicle backup Cameras , RAAYOO aims to only provide better backup cameras at a lower priice. We go to great lengths to research and improve our products all the time. And we believe that customer experience counts far more than short-term profits, so we make concerted efforts to design, manufacture, and improve our products and services in an innovative and responsible fashion.

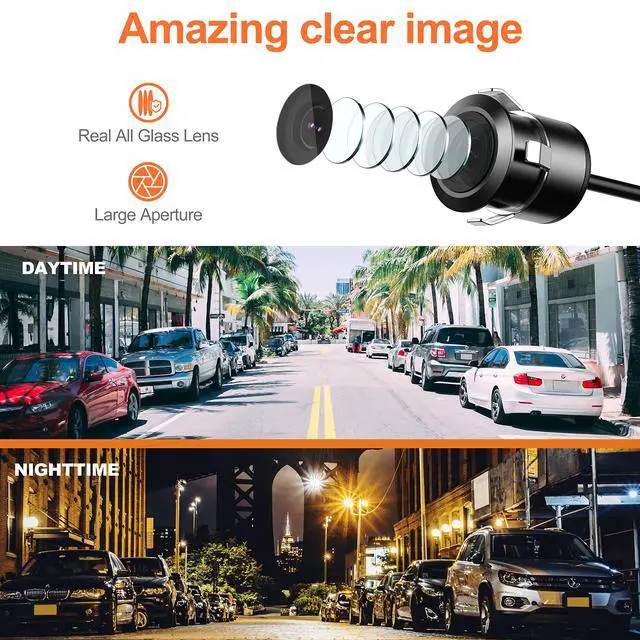

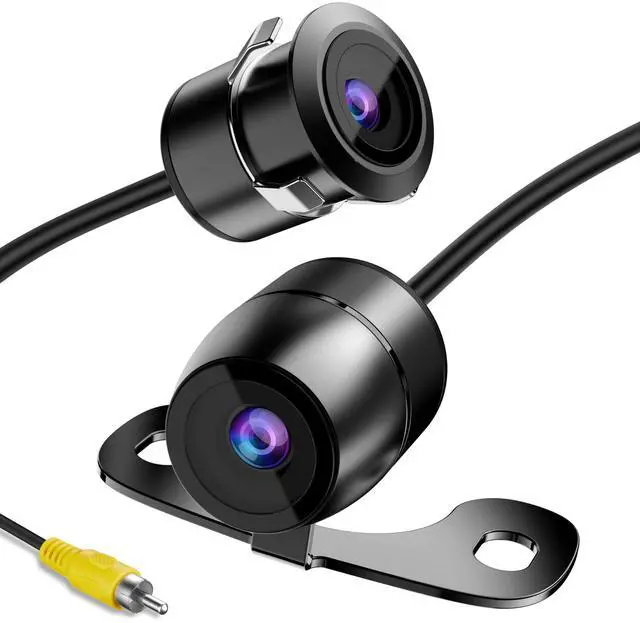

RAAYOO L002 12V/24V back up camera is a universal backup camera for cars,trucks,RVs,pickups with RCA video input connector, it support flush mount installation or bracket mount installation, HD high clear no distortion image, starlight level night vision, reliable IP69 rating waterproof level and horizontal 170 degrees wide view angle.
If connect this RAAYOO L002 Reverse Camera to a Factory Radio, please separately order a suited Harness & Programmer to complete installation, because different Radio need different Harness & Programmer to work together.
Before wiring, if there is no image on the screen, in addition to checking the camera, please also check the display settings. You can use other devices with RCA interfaces (such as a television) to check whether the camera is working properly.

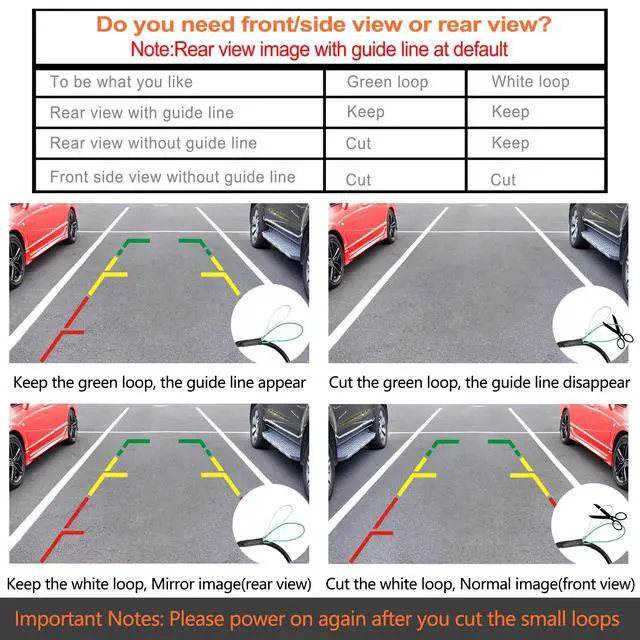

2 Important Wires/Loops Control Design:
RAAYOO L002 vehicle backup camera with 2 small wires/Loops.
*Default setting is rear view with guide lines
*Cut the Green loop: cancel the guide line; Cut the White loop: convert rear view to front view.
Important Notes: Please power off the vehicle and power on again after you cut the small loops, then the image should be converted successfully. Please feel free to let us know if your image cannot converted successfully.
As a professional supplier of top-notch OEM&ODM vehicle backup Cameras , RAAYOO aims to only provide better backup cameras at a lower priice. We go to great lengths to research and improve our products all the time.
We believe that customer experience counts far more than short-term profits, so we make concerted efforts to design, manufacture, and improve our products and services in an innovative and responsible fashion.
- 12 Hour Response
- 24 Month Replacement
- Lifetime Technology Support

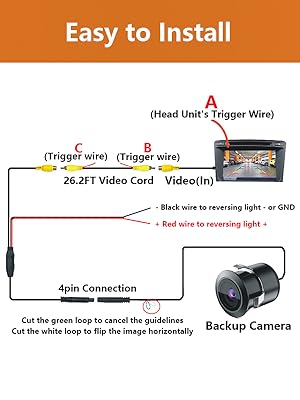

RAAYOO L002 Backup Cameras Installation
1.Find a proper location to mount this reverse camera.
2.Connect the power wire of camera to your reversing light, postive to reversing light +, negative to revesing light - or ground.
3.Connect the video cable to the head unit of your vehilce. Cable A connect with Cable B, Cable C connect to reversing light +.
- (1)Please test the backup camera before rounting the video cable;
- (2) Connect trigger A with B if your head unit with a trigger wire A, if not, no need connect them;
- (3) Wiring connection is the most important part of making the camera work, please make sure all of connection is tight to prevent the camera from not working or poor contact;
- 4.Start the vehicle and gear on reverse to test the camera.
- Note: Cut the green loop and white loop on the camera cable to flip the image and cancel the guide lines if you use it as a front/side view camera.

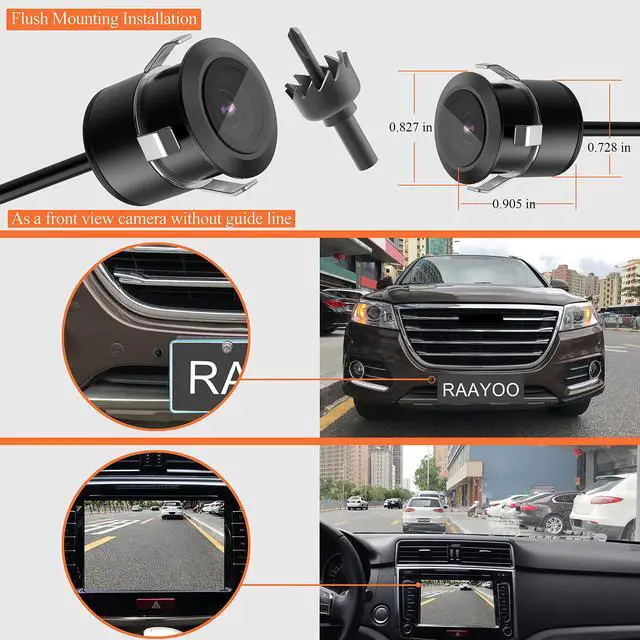

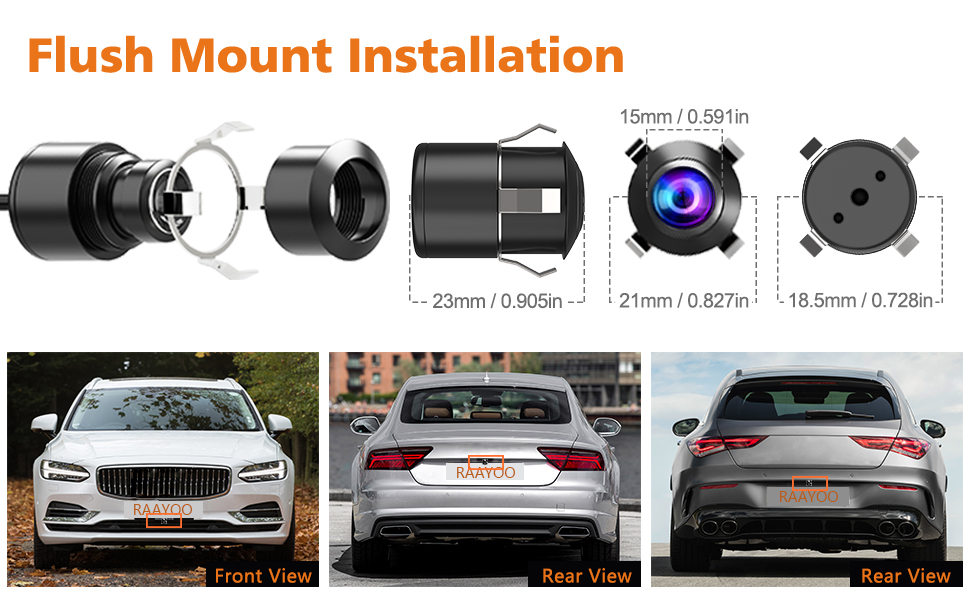

Flush Mount Installation - Seems like it's always been a part of this car.
Using this method to install the camera is more invisible and beautiful, however, please make sure that finding out the accurate installation position to get better view angle before installation, because it is difficut to ajust the camera after finish flush mount installation.

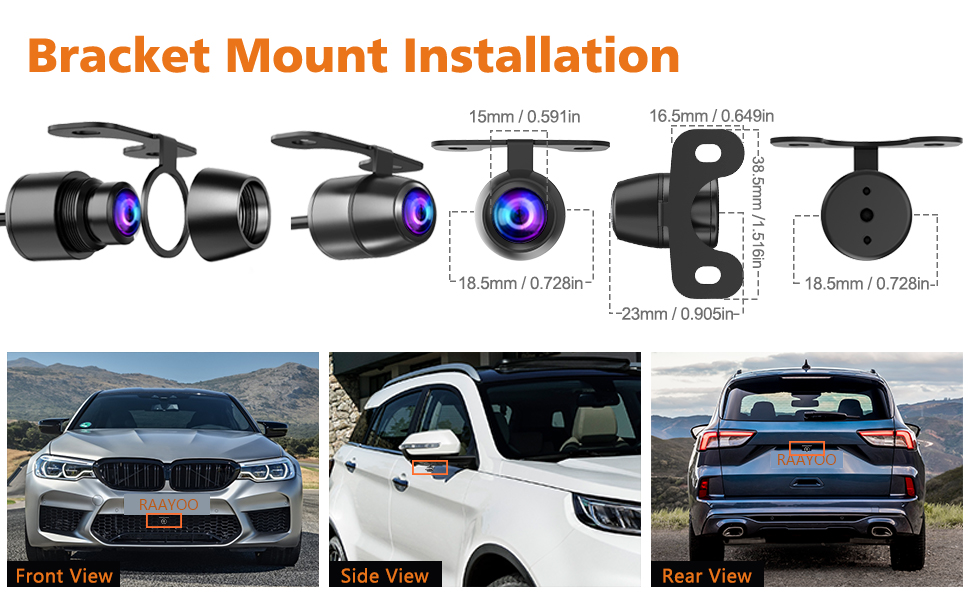

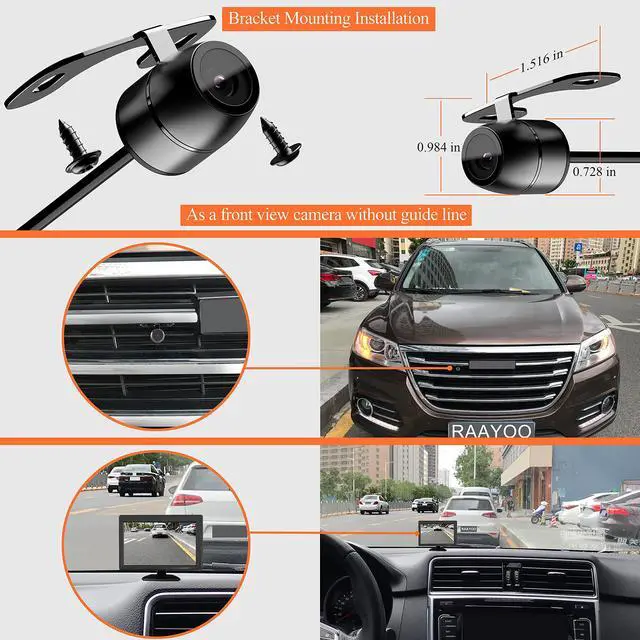

Braceket Mount Installation - Suitable for Various Scenarios and Environments

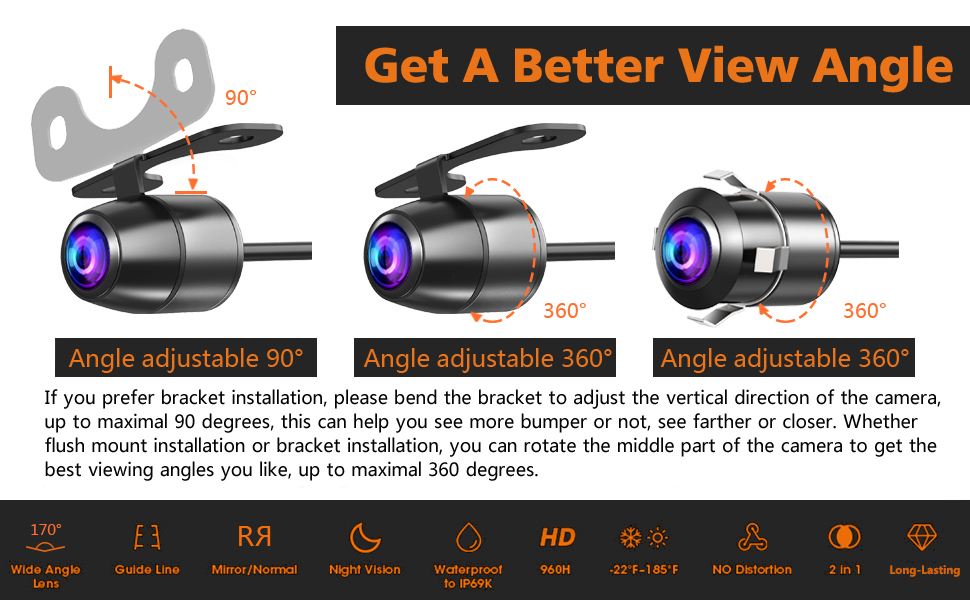

Car bumpers is a good postion for flush mount installation, it is easy to drill a hole with drilling bit. Before drilling a hole, please seriously check and test to find where is the best position to mount this camera If you want to get a perfect view angle, please rotate the middle housing part of the camera (maximum 360 degrees) or move the bracket (maximum 90 degrees) to get the best view angle.

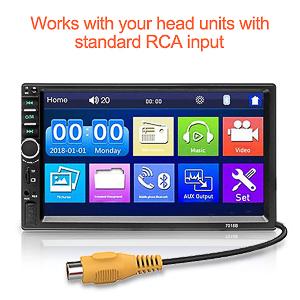

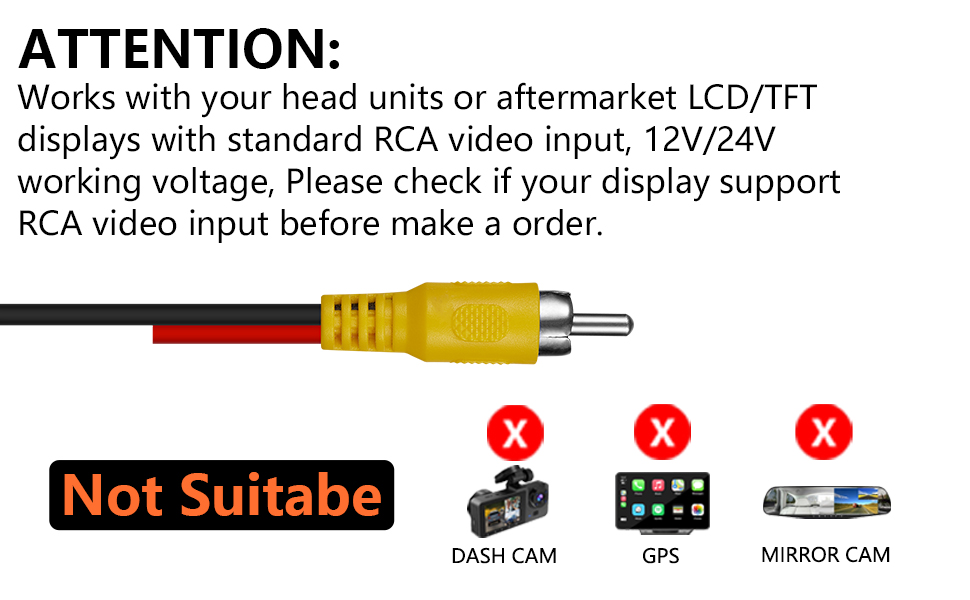

Support Any Car Stereo with Standrad RCA Video Input
Works with your head units or aftermarket LCD/TFT displays with standard RCA video input, 12V/24V working Voltage, Please check if your display support RCA video input before make a order.

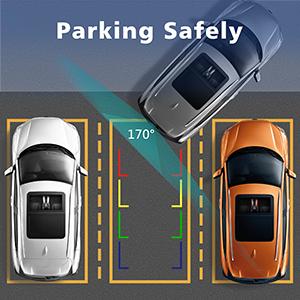

Parking Safely
It is difficult to park without a rear view camera even though you are an experienced driver, we cannot see all of the area behind of our vehicles. With this 170° large Viewing angle reverse camera, you can see clearly everything at the back of your car and quickly and safely park you car well.

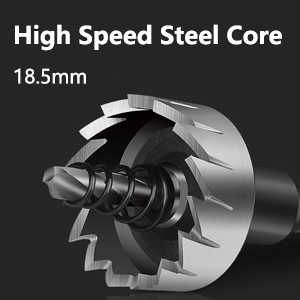

Drill Bit Included
Equipped with 18.5mm high speed steel drill bit, special grinding process and high strength matrix, strong piercing ability, sharp and durable, easy to drill a hole on the bumper.
RAAYOO, an innovative brand dedicated to guarding driving safety, was born from the firm pursuit of traveling safety.
We continue to break through technical bottlenecks and carefully design car cameras with high definition, wide field of view and reliable performance.
We always adhere to the customer-centered, committed to providing excellent products and quality service, for countless car owners to bring peace of mind and protection.
CVBS 960x576 Backup Camera
CVBS 960x576 Backup Camera
AHD720P 1280x720 Backup Camera
AHD720P 1280x720 Backup Camera
AHD1080P1920x1080Backup Camera
AHD1080P1920x1080Backup Camera
