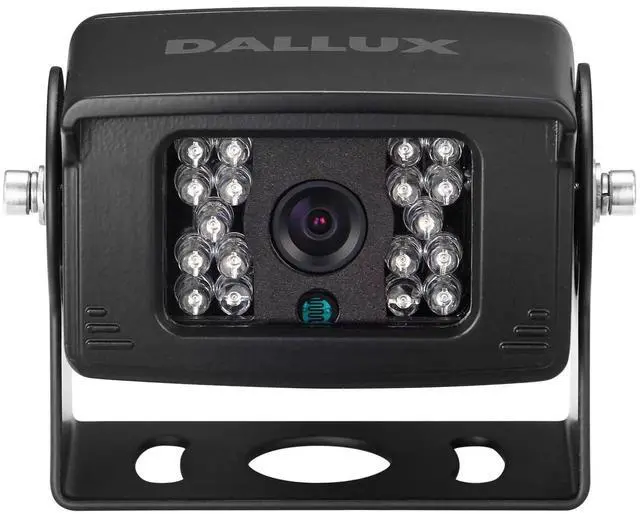

DALLUX Truck Bus Cab Cam 4 PIN Backup camera

DALLUX--a proffesional manufacture of vehicle backup camera and monitor since 2002 year

20 years experience in the field of automotive electronics, the spirit of pursuing excellence never stop. We not only supply high quality vehicle cameras and monitor products, but also supply various driving safety solution for automobile manufacturers and fleet management company,etc.

Products Features:

Patent design camera case: This is a professional truck backup camera made with a patent design camera case, weight upto 0.3KG(10.6 ounce), Sturdy case have pass the salt spray test, durable without paint peelling.
1/3" CCD Image Sensor: Built in professional vehicle camera image sensor 130° 1/3 Color CCD 800TVL.
Super Night Vision: Up to 50 foot infra-red night vision distance. It can give you a perfect night driving experience.
Awesome Waterproof : The rear view camera is completely weatherproof with an IP69K rating, strong and reliable, shock resistant, with a 20G vibration and 100G impact rating (highest in the industry).

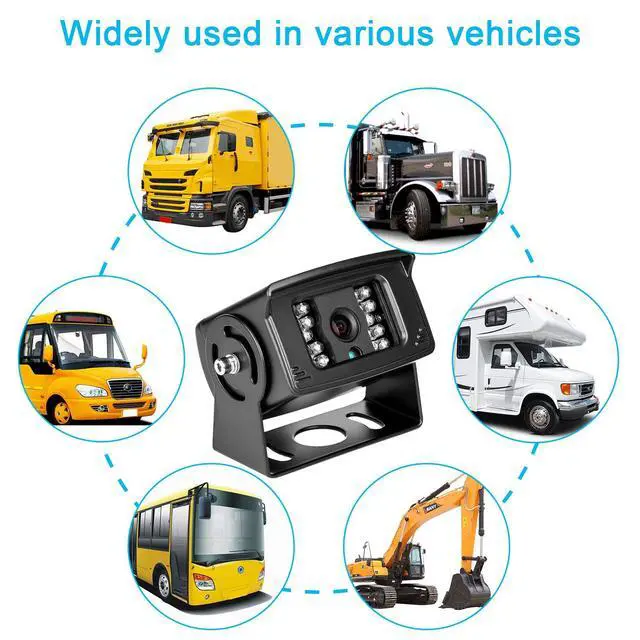

Wide range of applications:

This HC5000 RV Cab cam Camera can be use on Bus, Truck, Van,Trailer, RV, Campers, Motor Home, School bus, Pickup Truck, Travel Trailer, Oversized Truck, Dump Truck, Camping Trailer, 5th(fifth)wheel RV.

Large vehicles, such as buses, Box trucks,Garbage trucks, Flatbed trucks,Street sweeper trucks, Refrigerator trucks, Motor homes, Vans, Skid steers, Farm tractors, Combines, Cotton pickers, Crop sprayers, Bulldozers, Snow plows, Forklifts, Excavators, Heavy equipments, Horse Trailer and Agricultural Machine.

DALLUX High Definition Rearview Camera Specification

Image Sensor: 1/3 "Color CCD
Effective Pixels: 976×576 pixels pixels
Resolution: 800 TV line
Operating voltage: 9V-36V
Operating temperature: -20~80 degree centigrade
Output cable: 4PIN aviation connector

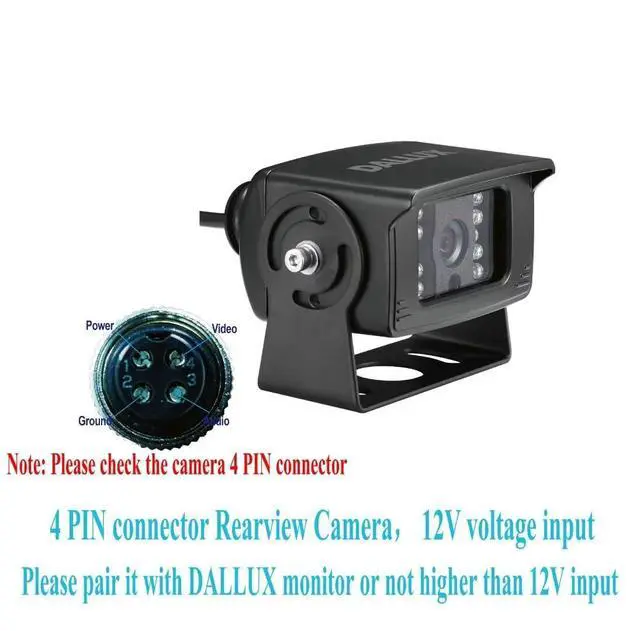

Universal 4 PIN Connector Truck Backup Camera

Shock Proof 4 PIN connector .
Double Shield pure copper cable protect video signal.
Please check the camera 4 PIN connector careful if it is compatible with your monitor connector.

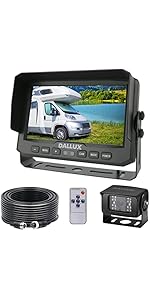

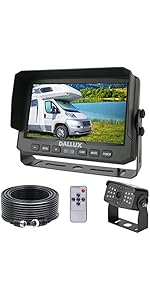

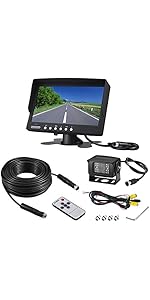

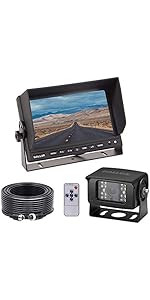

This is a 12V input camera, it can working fine with 12V power supply from the monitor and DALLUX camera monitor system(ASIN: B09HNYDFB7, B07ZX6HFBG, B072M58X9N).

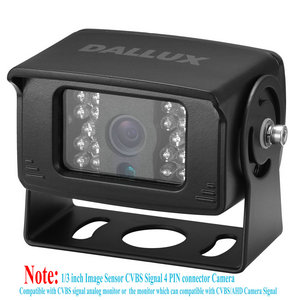

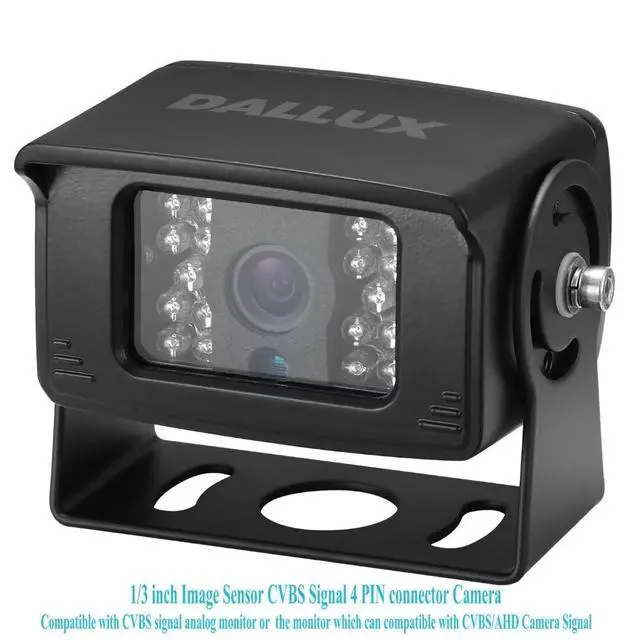

4 PIN CVBS Signal Camera

This is a 1/3 inch CCD high definition CVBS signal truck 4 PIN camera, it can work fine with DALLUX monitor and other monitor which is CVBS Signal or AHD monitor which can compatible with CVBS camera. Please confirm again if it can compatible with your monitor before you buy.
6 layer high definition glass lens make the camera image better.
Super IR light make your driving safe even it is all dark. (The camera will switch to white&black mode automatically when it is dark.)

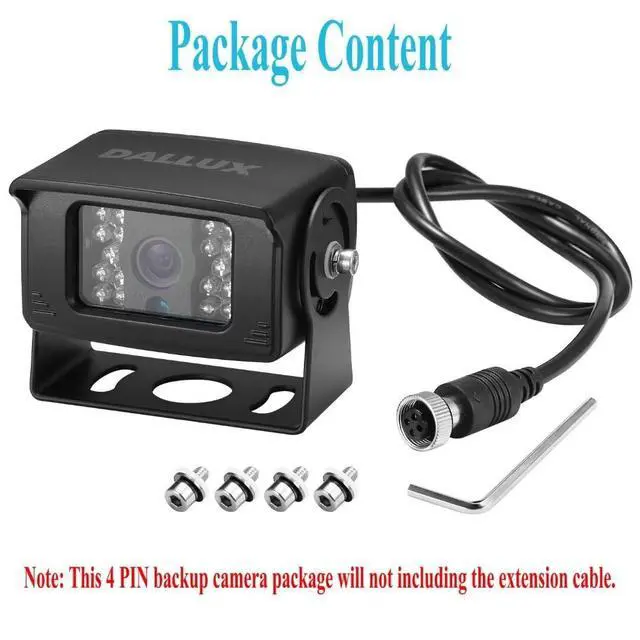

The package comes without the 4 PIN extension cable which connect the camera and monitor, please search the ASIN code and buy it according to your requirement: 5m(16.4ft) ASIN: B08L4F8L4C, 10m(32.8ft)ASIN: B07ZXBJDQ3, 15m(49.2ft)ASIN: B074W5WSQ6, 20m(65.7ft)ASIN: B074W8Q29B

DALLUX Truck RV Cab Cam 4 PIN Backup Camera

rearview backup reverse camera for truck bus trailer RV van pickup motor home nightvision waterproof

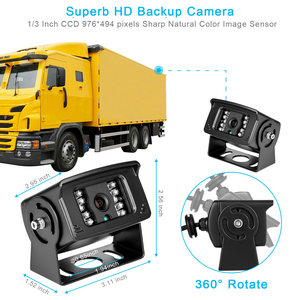

Super Sharp Natural Color Image RV Rearview Camera

Backup camera built-in 1/3 inch color CCD image sensor. 800TV Line, 976×576 pixels, 1/3 inch image sensor unit pixel area is bigger than 1/4 inch, so the image quality is better, CCD better than CMOS image sensor on sensitivity, resolution and noise control, it can give you a pretty sharp natural color image.

Vehicle rearview backup reverse camera for truck bus travel horse trailer RV van pickup campers

Waterproof IP69K Rating Trailer Rearview Camera

Backup camera comes with patent design casing, special waterproof glued process. Completely waterproof with an IP69K rating. This is actually the highest IP rating there is and means the camera will work fine in all weather conditions such as pouring rain & violent storms.

vehicle rearview backup reverse camera for truck school bus traveltrailer RV van pickup Night vision

IR Night vision Heavyduty Vehicle Camera

With 18 infra-red lights, the backup camera will be able to see up to 50ft even in complete darkness! This image sensor can have a very good night vision performance under low illumination, it will be even without any ambient light at all. Unlike other CMOS image sensor camera, it will not change the color to be pink color.

Wide angle HD backup camera car house motor home 5th wheel van horse trailer travel camper vehicle

130 degree Viewing Angle No Blind Spot

Backup camera comes with 6 layer glasses high definition lens, with an ultra wide 130°viewing angle, the backup camera will provide a complete view from behind your vehicle. This ensures complete safety with no blind spots.

DALLUX Truck Bus Rearview Camera Compatible Connector

truck backup camera connector

Check if this is your connector?

Please check your male 4 PIN connector will be like this? If yes, it will compatible with our camera Fe-male connector.

truck backup camera

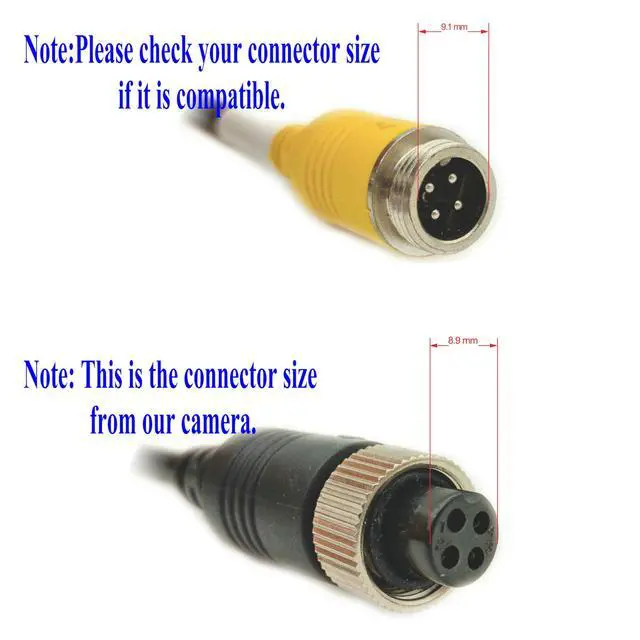

Check the size of the connector

Please check your male 4 PIN connector size, and compare with our camera fe-male connector size if it is compatible.

Truck backup camera

Plug in Correct and Tighten the nut

Please insert both connectors according to the arrow mark, then tighten the nut.
