8MP IPC-9800Pro 7" IPC 8MP AHD CVI TVI CVBS SDI CCTV Camera Tester Testing Tool IPC-9800ADH Pro

Feature

7 inch IPS touch screen, 1280*800 resolution

8K H.265 video display via mainstream

Analog camera test and PTZ control

8MP TVI test,3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu *

8MP AHD test, 3840 x 2160P 15 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu *

8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *

8MP EX-SDI test, 3840 x 2160P 25/30 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu *

HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *

3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *

Rapid ONVIF, Auto log in and display image, create testing report

AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement *

DC24V 2A, DC12V 3A power output, camera can be powered from tester

48V PoE power output power, max power 30W

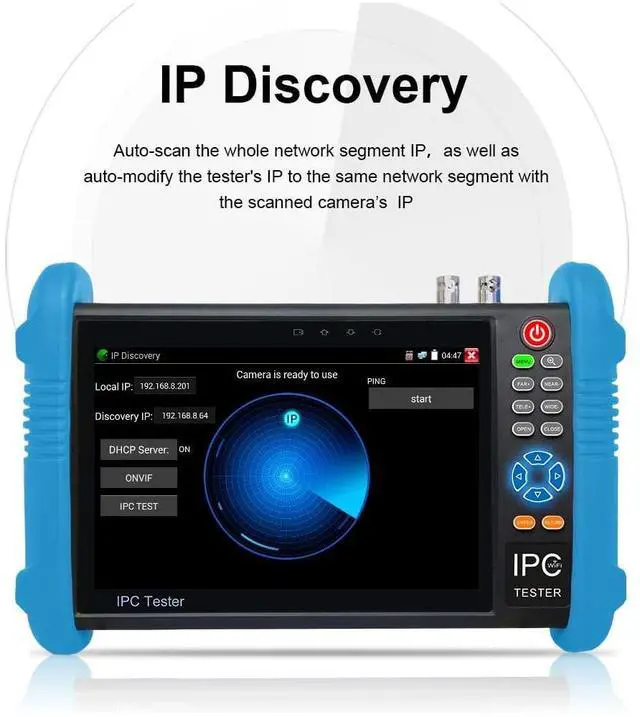

Rapid video, just by one key to detect all network cameras and auto display

Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

CVBS loop test, the tester can send and receive color bar generator signal, to check BNC cable

Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test

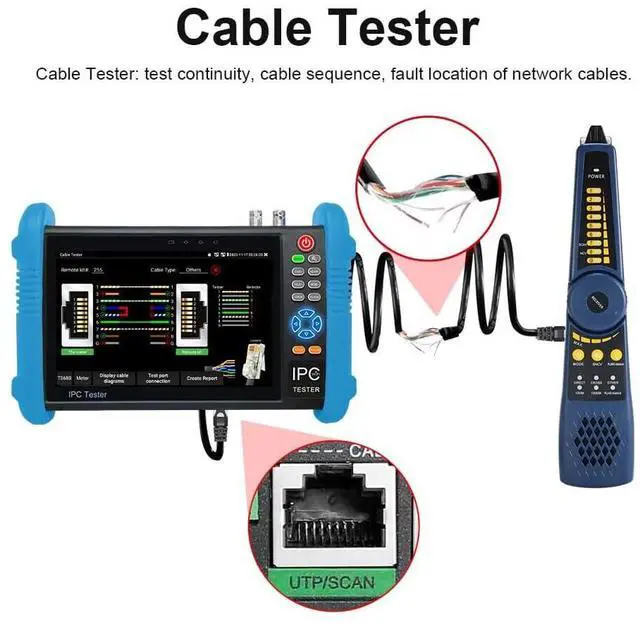

Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

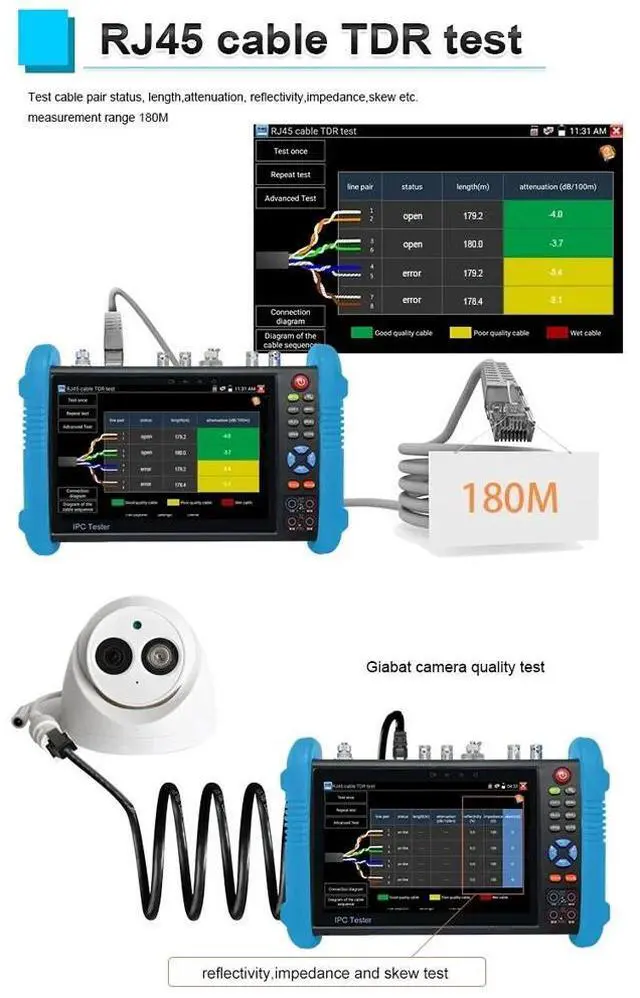

RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

Upgraded Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables, more accurately.*

Cable Length, BNC cable, network cable, telephone cable, RVV cable, elevator cable, and cat 5/6 cable's length test. Max measurement for cable's open is 1.5KM. (Short circuit length test not supported)*

TDR cable test: BNC cable, network cable, telephone cable, RVV cable, elevator cable and cat 5/6 cable's length and short circuit. Max measurement 1.2KM *
