Video Compression |
H.265+/H.265/H.264+/H.264 |
Video Input |
16CH Analog HD/Analog+2CH IP |
Video Output |
HDMI and VGA Up to 1080P |
Audio Input/Output |
1/1 RCA |
Analog HD Recording Resolution |
1080P Lite(960×1080)/720p(1280×720):15fps |
Analog HD Playback Resolution |
1080P Lite (960×1080)/720p(1280×720):15fps |
IPC Recording Resolution |
2CH, Up to 5MP |
IPC Playback Resolution |
2CH,Up to 5MP |
Max Playback Channel |
16CH |
Onvif Protocols |
Support |
HDD |
1 SATA interface |
HDD Capacity |
Up to 10TB capacity |
Network interface |
RJ45x1(10/100M) |
BNC Output |
- |
Alarm Input/Output |
- |
RS485 |
- |
USB |
USB2.0x2 |
Operating Power |
DC12V |
Dimensions(W x H x D) |
10.2"x8.7"x1.8" / 260x222 45mm |
Weight (without hard disk) |
1.1KG |
Description:
·Support advanced H. 265+Video Compression
·Support TVI/AHD/CVI/CVBS/IPC input 5 in 1
·Supports iPhone, iPad, Android mobile remote monitoring
DVR:
Video Compression: H. 265+/H. 265/H. 264+/H. 264
Video Input: 16CH Analog HD/Analog+2CH IP
Video Output: HDMI and VGA Up to 1080P
Audio Input/Output: 1/1 RCA
Analog HD Recording Resolution: 1080P Lite (960 x 1080) /720p (1280 x 720): 15fps
Analog HD Playback Resolution: 1080P Lite (960 x 1080) /720p (1280 x 720): 15fps
IPC Recording Resolution: 2CH, Up to 5MP
IPC Playback Resolution: 2CH, Up to 5MP
Max Playback Channel: 16CH
Onvif Protocol: Support
Hard Drive:
HDD: 1 SATA interface
HDD Capacity: Up to 10TB capacity
External Interface:
Network interface: RJ45x1 (10/100M)
USB: USB 2.0 x2
General:
Operating Power: DC12V
Working Temperature: 14 ° F 131 ° F/-10 ° C 55 ° C
Dimensions (W x H x D): 10.2 ""x 8.7"" x 1.8 ""/260 x 222 x 45mm
Weight (without hard disk): 2.4 lbs/ 1.1KG (without HDD)

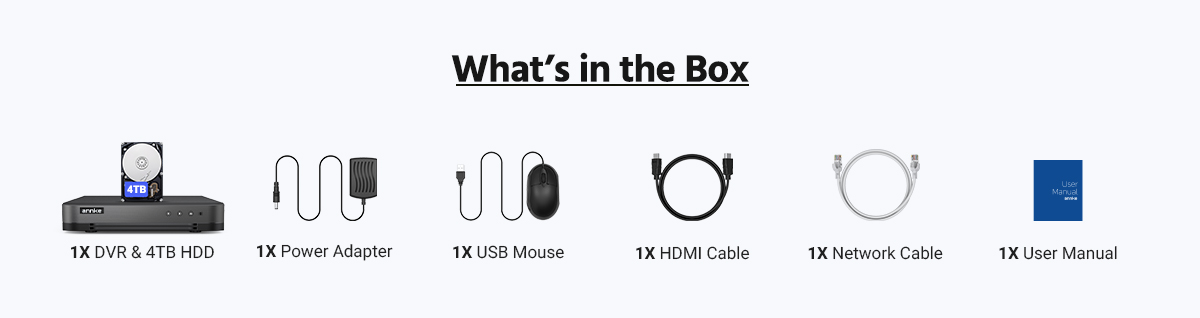

Packaging Contents:
DVR: 1
USB Mouse: 1
1m Netcable: 1
1.8 m HDMI Cable: 1
Power Adapter: 1
User's Manual for DVR: 1
