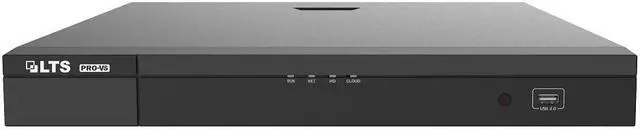

LTS VSN7216-P16 HD IP 16CH 160Mbps Up to 8MP Built-In 16CH POE NDAA COMPLIANT NVR
- Video Input: 16CH IP@160Mbps
- Video Output: HDMI up to 4K(3840 x 2160) / VGA up to 1080P
- Max. Recording Resolution: Up to 8MP(3840 x 2160)
- Decoding Format: H.265/H.264
- Decoding Capability: 2CH@4K / 8CH@1080P
- Max. Playback Resolution: Up to 8MP(3840 x 2160)
- Audio In/Out: 1CH/1CH, RCA
- Alarm In/Out: 4CH/1CH
- Built-in PoE: 16CH
- Network: 10/100/1000M, 1 RJ45
- Storage: 2 SATA up to 10TB
- Backup: 1 USB 2.0, 1 USB 3.0
- Dimensions: 14.9(W)x12.4(D)x2.1(H)
- Recorder Case: 1U
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model VSN7216-P16 Video/Audio Input IP Video Input 16-ch Two-way Audio Input 1-ch, RCA Network Incoming Bandwidth 160Mbps Outgoing Bandwidth 64Mbps Remote Users 128 Protocols P2P, UPnP, NTP, DHCP, PPPoE Video/Audio Output HDMI/VGA
Output HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60
VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Audio Output 1-ch, RCA Synchronous Playback 16-ch Corridor Mode Screen 3/4/5/7/9/10/12/16 Decoding Decoding format Ultra265/H. 265/H. 264 Live view/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 Hard Disk SATA 2 SATA interfaces Capacity Up to 10TB for each disk External Interface Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface USB
Interface Front panel: 1 x USB 2.0, Rear
panel: 1 x USB 3.0 Alarm In 4-ch Alarm Out 1-ch PoE Interface 16 independent 100Mbps PoE network interfaces Max Power Max 30W for single port Max 240W in total Supported Standard IEEE 802.3 af/at General Power Supply 100 ~ 240 V AC
Power Consumption: 10W (without HDD) Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity 90% RH (non-condensing) Dimensions (W×D×H) 380mm ×315mm × 53mm ( 14.9" × 12.4" × 2.1" ) Weight (without HDD) 2.6 kg ( 5.29 lb)
Output HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60
VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Audio Output 1-ch, RCA Synchronous Playback 16-ch Corridor Mode Screen 3/4/5/7/9/10/12/16 Decoding Decoding format Ultra265/H. 265/H. 264 Live view/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 Hard Disk SATA 2 SATA interfaces Capacity Up to 10TB for each disk External Interface Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface USB
Interface Front panel: 1 x USB 2.0, Rear
panel: 1 x USB 3.0 Alarm In 4-ch Alarm Out 1-ch PoE Interface 16 independent 100Mbps PoE network interfaces Max Power Max 30W for single port Max 240W in total Supported Standard IEEE 802.3 af/at General Power Supply 100 ~ 240 V AC
Power Consumption: 10W (without HDD) Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity 90% RH (non-condensing) Dimensions (W×D×H) 380mm ×315mm × 53mm ( 14.9" × 12.4" × 2.1" ) Weight (without HDD) 2.6 kg ( 5.29 lb)
